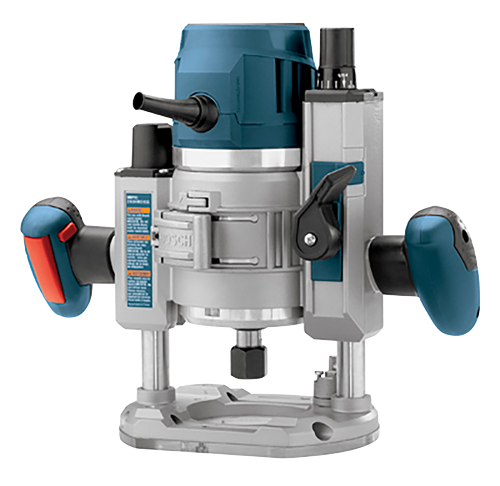

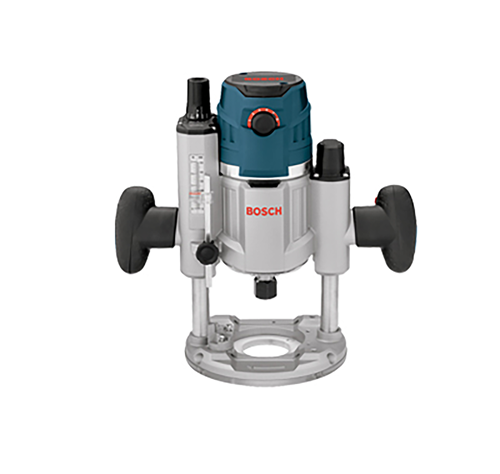

Bosch 15 Amp Corded Variable Speed Combination Plunge & Fixed-Base Router Kit with Hard Case (MRC23EVSK)

Bosch 15A Variable-Speed Plunge/Fixed Router Kit

A powerful 15-amp modular router system with both fixed and plunge bases, designed for precision woodworking. It delivers 10,000–25,000 RPM, Constant Response circuitry, soft-start, and trigger-control handles, all stored in a rugged hard case.

---

Key Features:

• Trigger-Control Handles: Power switch in the handles for enhanced control on both bases
• Precision and Depth Accuracy: Afterlock microfine adjustment and adjustable turret stop on plunge base
• Versatile Fixed Base: 1-5/8 in. continuous microfine depth range with precision-centering design
• Powerful Performance: 15-amp motor with variable speed dial and Constant Response circuitry
• Rugged Portability: Hard plastic carrying case with compartments for included accessories

---

Specifications Table:

Specification	Details
Model	MRC23EVSK
Amperage	15 A
Horsepower Rating	2.3 HP
No Load RPM	10,000–25,000
Variable Speed	Yes
Voltage / Rating	120V AC
Base Diameter	6 in. Fixed / 7 in. Plunge
Fixed-Base Depth Range	1-5/8 in.
Plunge Depth	3 in. (75 mm)
Subbase Opening	2 in.
Case Type	Hard plastic
Dust Collection	No
Height	9.5 in.
Length	6.75 in.
Width	12.6 in.
Works With	Router Tables; RA1171; RA1181; RA1152; RA1054; RA1128; RA1129; RA1051; RA1175; RA1177AT
Includes	Motor; Fixed Base (MRF01); Plunge Base (MRP01); 1/4 in. Self-Releasing Collet Chuck (2 610 906 283); 1/2 in. Self-Releasing Collet Chuck (2 610 906 284); 16 mm Shaft Wrench (2 610 991 388); 24 mm Collet Nut Wrench (2 610 992 417); T-Handle Hex Height Adjustment Wrench (2610923193); Carrying Case (2 610 004 484); Pack of 3 M4 Screws for table mounting (2610005966)
Collet Capacity	1/4 in., 3/8 in., 1/2 in., 8 mm

---

Frequently Asked Questions (FAQ):

Q: What collet sizes are included?
A: Self-releasing collets for 1/4 in. and 1/2 in. are included; the router is compatible with 3/8 in. and 8 mm collets as well.

---

Q: What is the plunge depth capacity?
A: Up to 3 inches (75 mm).

---

Q: Is dust collection built in?
A: No integrated dust collection; optional Bosch dust hoods (RA1175, RA1177AT) are compatible.

---

Q: Can I adjust depth from above a router table?
A: Yes, above-table depth adjustment is available when the fixed base is installed in a router table.

---

Q: What accessories are included in the kit?
A: Motor, fixed base (MRF01), plunge base (MRP01), 1/4 in. and 1/2 in. collet chucks, 16 mm shaft wrench, 24 mm collet nut wrench, T-handle hex height adjustment wrench, carrying case, and pack of M4 table-mounting screws.

---

Precision Power That Elevates Every Edge

This Bosch router kit brings a refined, architectural clarity to woodwork, turning edges and joinery into tailored details. The trigger-control handles and modular bases create a fluid, confident motion that feels bespoke. Style it with a clean router table and template guides to carve crisp profiles and custom panels. It’s an indispensable tool for crafting luxurious, impeccably finished spaces.

---

Upgrade your shop with Bosch’s precision router kit and start achieving cleaner cuts and faster, more accurate setups today.
