Eaton

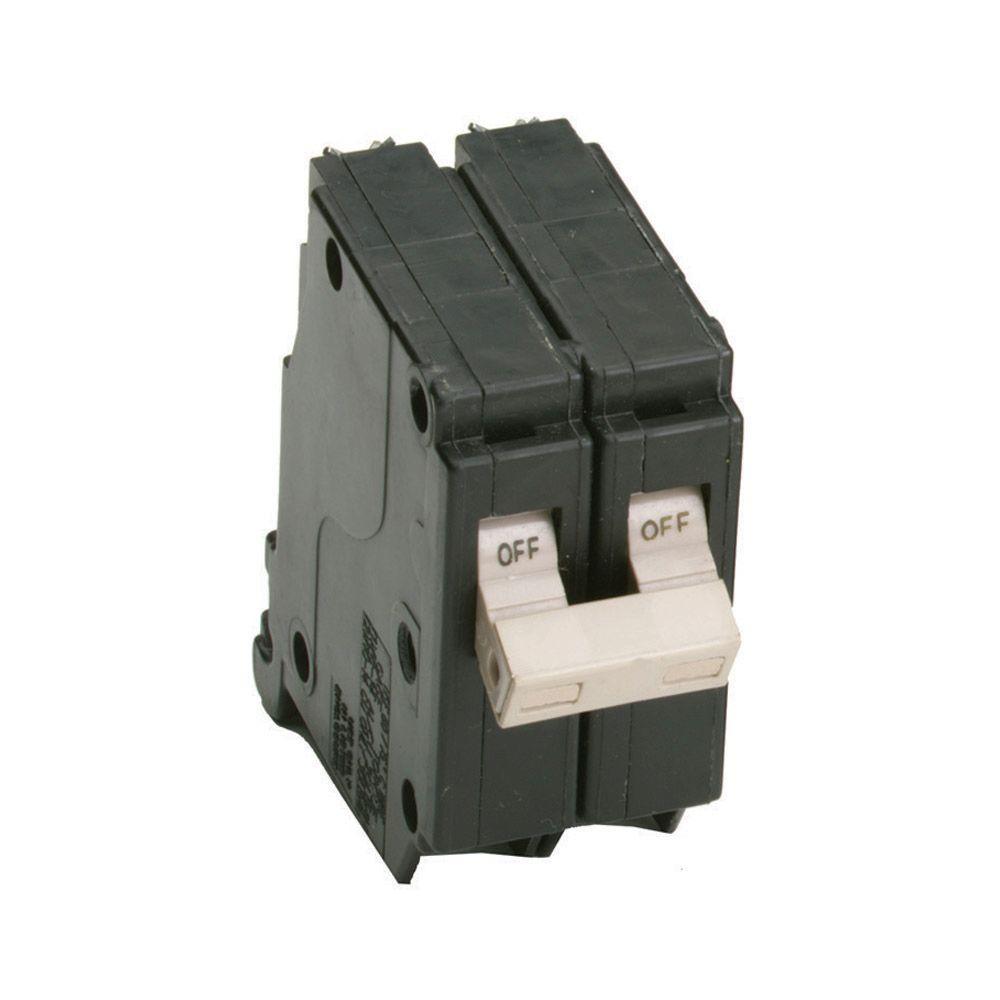

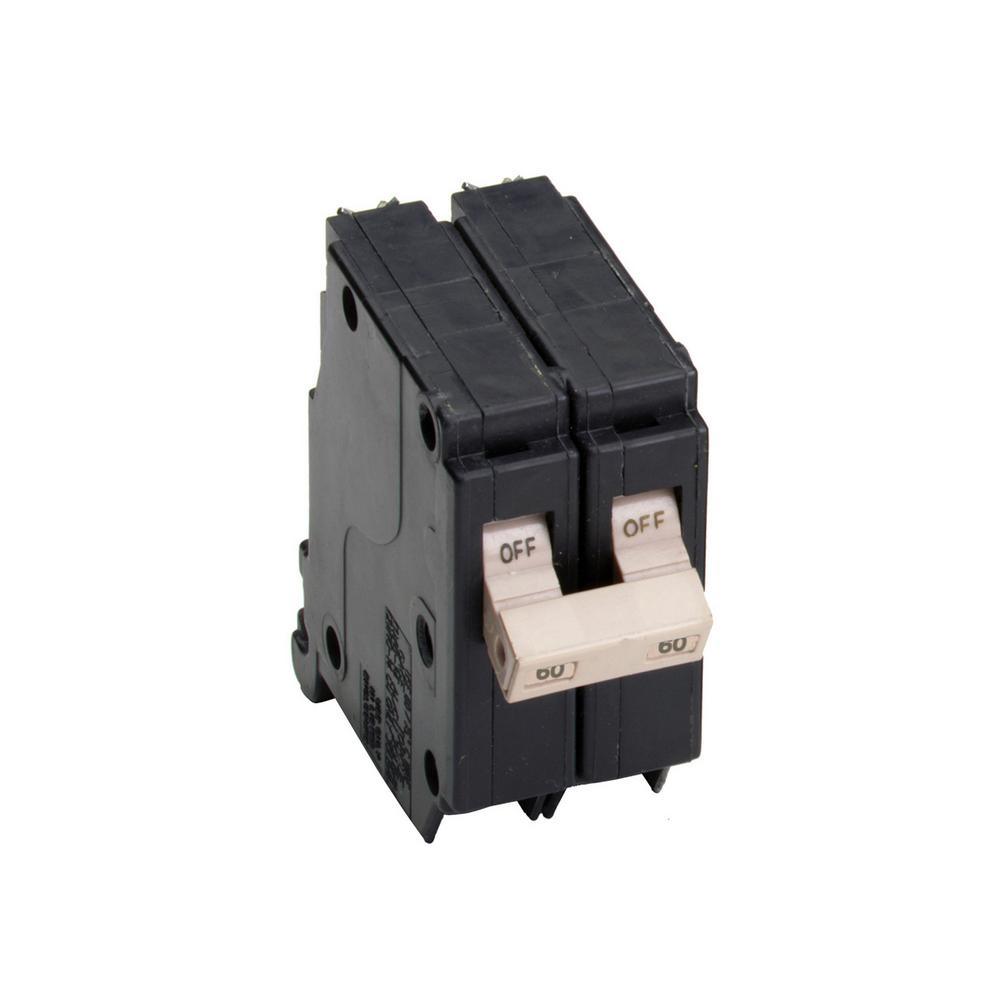

CH 60 Amp 2-Pole Circuit Breaker
$29.97
Published price — same for everyone
In stock
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
- Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
- Amperage rating: 60 Amp
- Double pole breaker
- Trips to off position
- For use in type CH load centers only
- Interrupt rating - 10 kAIC
- Voltage rating is 120/240-Volt
- #14-2 AWG Cu/Al 60°C or 75°C
- HACR rated
- Requires two 3/4 in. spaces
| Item Weight | 1 |
| Product Weight (lb.) | 0.45 |
| Maximum Amperage (amps) | 60 |
| Number of Poles | 2 |
| Voltage (volts) | 120/240 |
| Pack Size | 1 |
| Power Distribution Features | No Additional Features |
| Mounting Type | Plug In |
| Returnable | 180-Day |
| Interruption Type | Standard Trip |
| Breaker Type | Double Pole |
| Electrical Product Type | Breaker |
| Product Height (in.) | 3 in |
| Product Width (in.) | 1.48 |
| Product Depth (in.) | 3.5 in |
| Certifications and Listings | ANSI Certified,CSA Listed,UL Listed |
| Manufacturer Warranty | Limited Lifetime Warranty according to the Warranty Policy |
