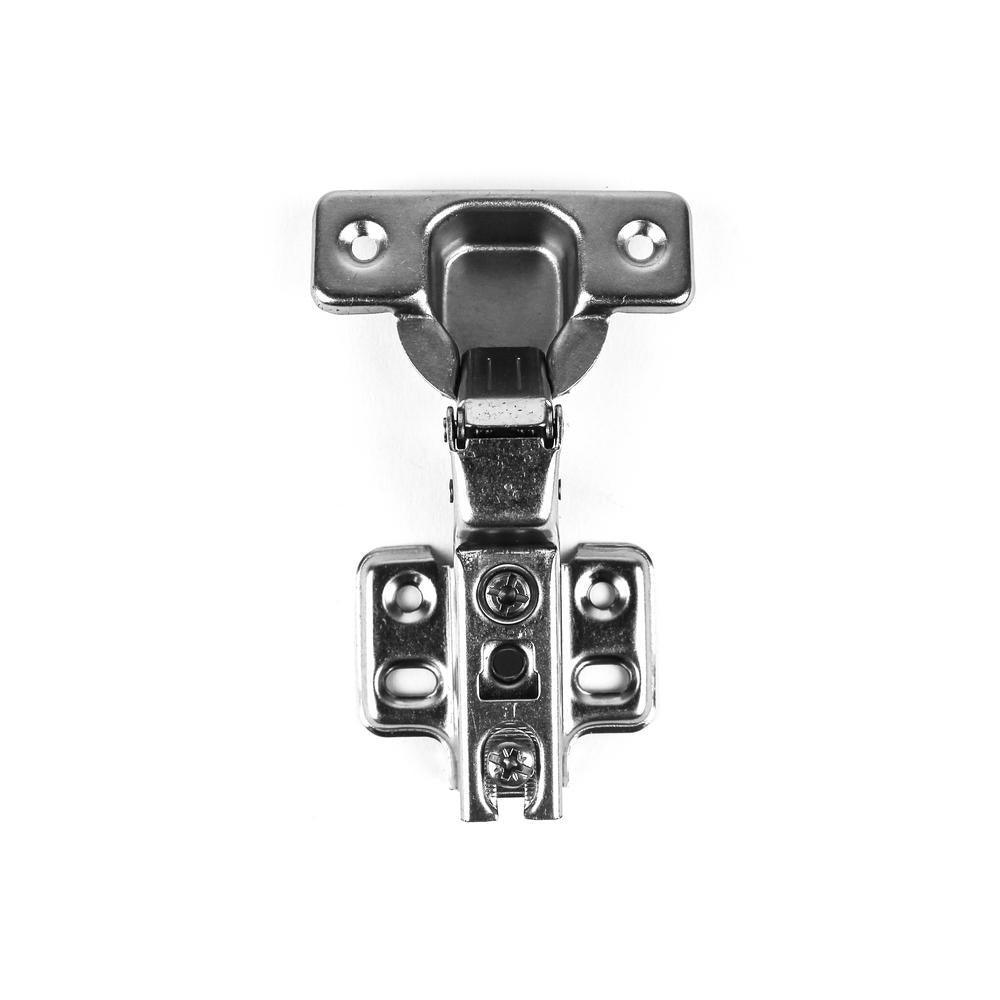

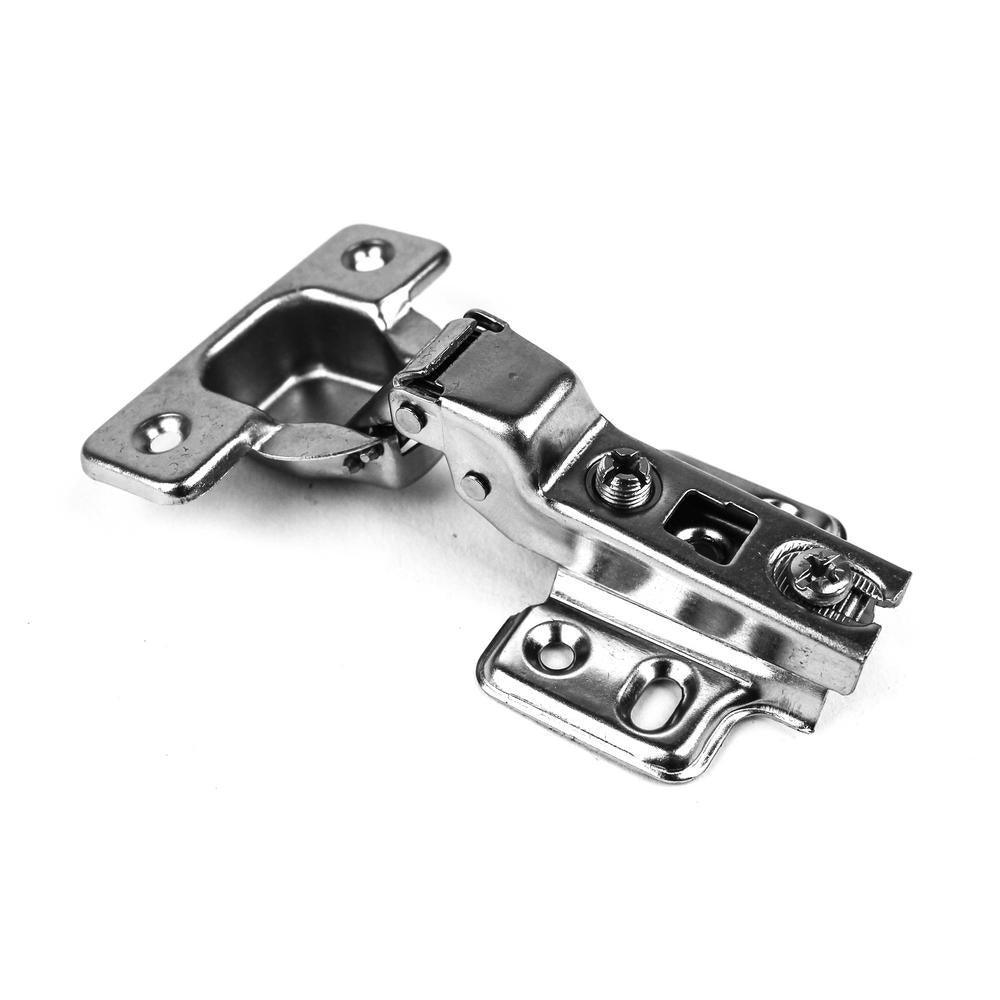

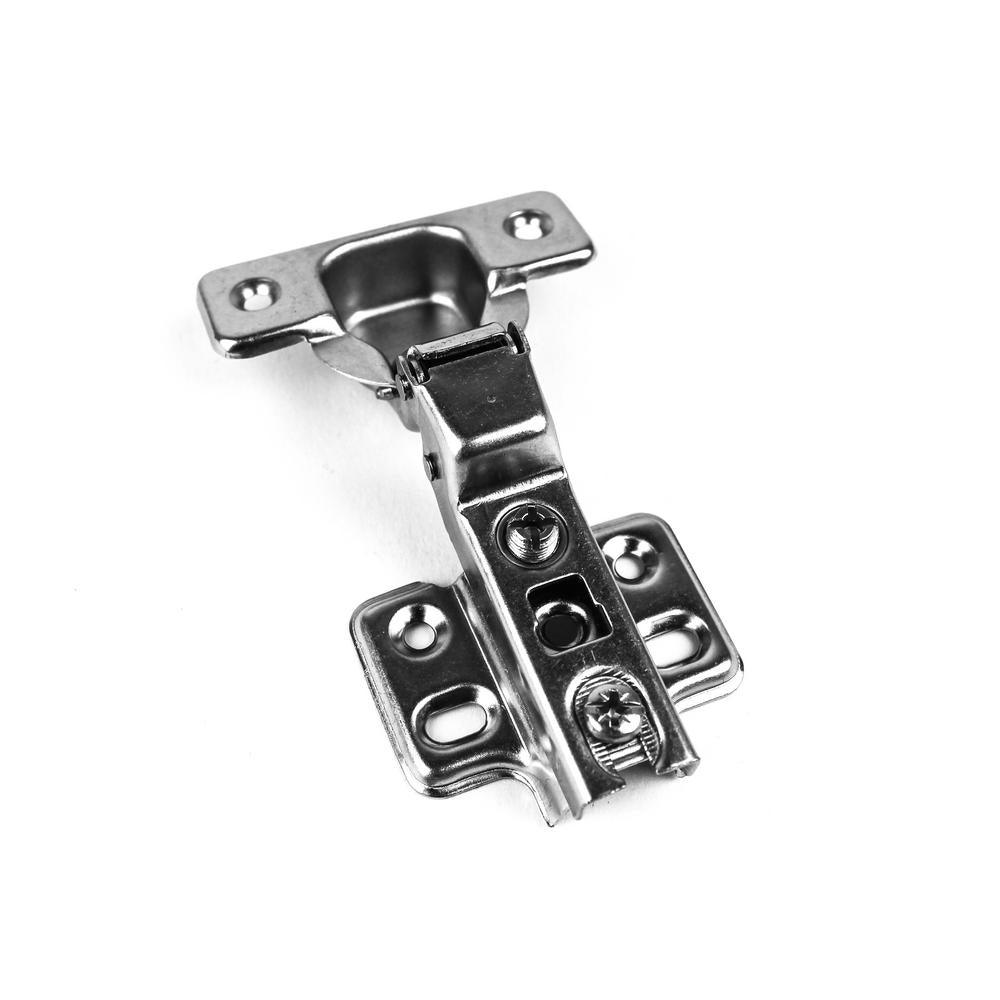

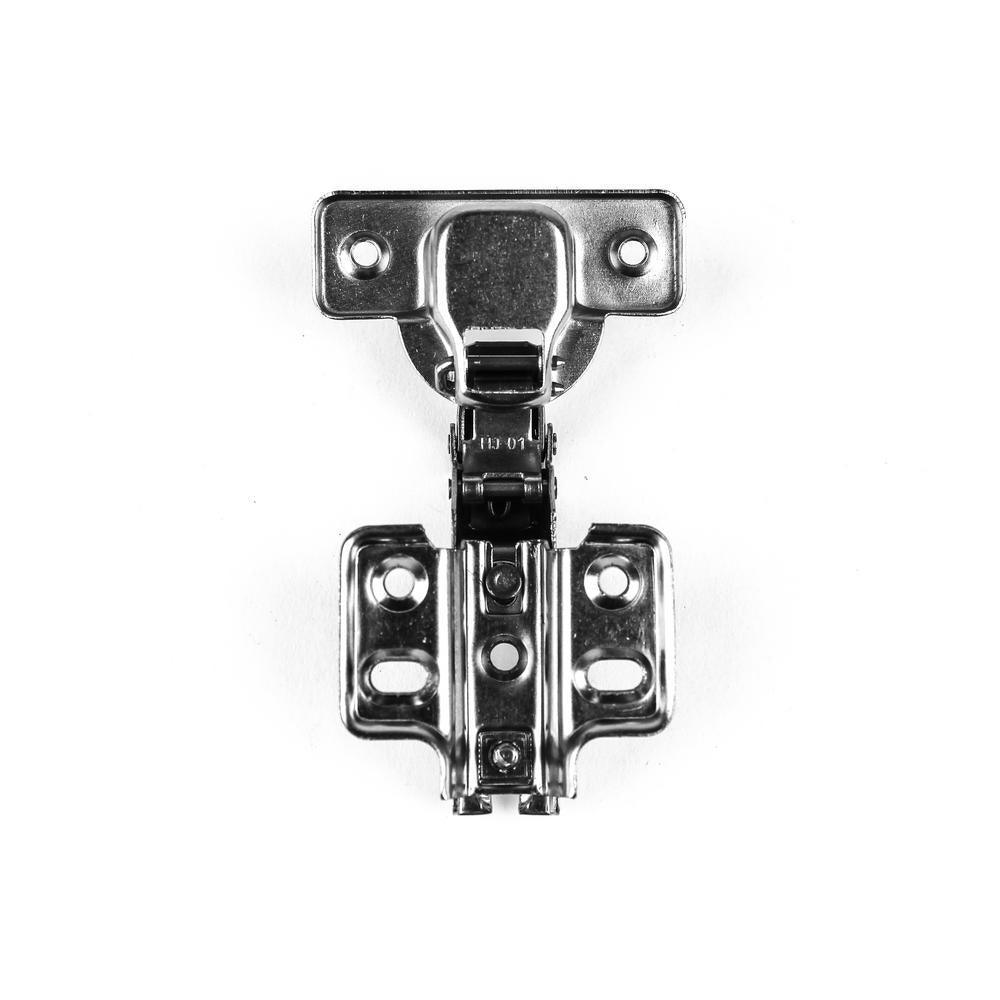

105-Degree 35 mm Half Overlay Frameless Cabinet Hinges with Installation Screws (15-Pairs)
$22.99
Published price — same for everyone
In stock
SKU '312301561
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
These hinges are a type of hinge that has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. Half overlay hinges are useful for pairs of doors in the middle of a run of cabinets. These hinges used everywhere, from kitchen to office in frameless cabinets. NOTE: Our hinges are for frameless cabinets.
Features
- Designed for frameless cabinet doors, these small hinges help save space in otherwise tight cabinets to improve kitchen convenience
- Opening angle: 105°, overlay: half overlay, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12.5 mm)
- Suitable door thickness: 3/5 in. to 1 in. (16 mm to 24 mm), screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated
- Adjustment: 2-cam 4-way adjustable: side (minus 3 mm to plus 1 mm) and depth ( plus 3 mm to minus 1 mm), (you can adjust the height of the door with adjustable screws holes of the plate during the installation), cabinet type: frameless, bore distance: 1/8 in. (3 mm)
Features
| Item Weight | 4.2 |
| Hardware Finish Family | Nickel |
| Hinge Opening (Degrees) | 105 |
| Package Quantity | 30 |
| Cabinet Frame Type | Frameless |
| Finish | Nickel Plated |
| Hinge Type | Half overlay |
| Number of Holes | 6 |
| Features | Self Closing |
| Returnable | 180-Day |
| Material | Stainless Steel |
| Builders Hardware Product Type | Cabinet hinge |
| Product Height (in.) | 3.2 in |
| Product Depth (in.) | 0.5 in |
| Product Width (in.) | 2.1 in |
| Manufacturer Warranty | Yes |
