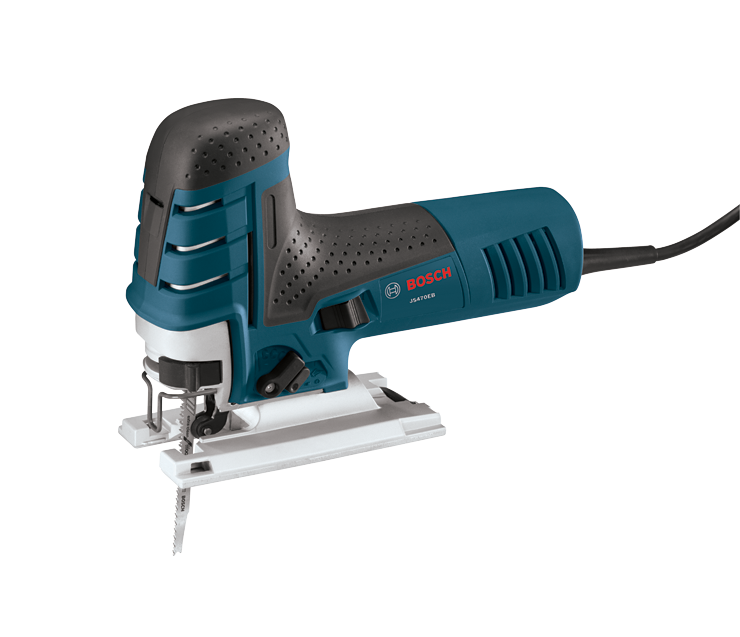

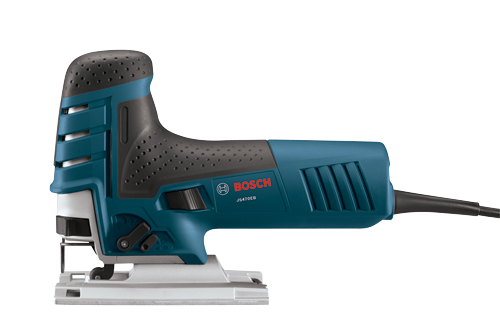

Bosch JS470EB 7.0-Amp Variable-Speed Barrel-Grip Keyless Jigsaw

Bosch 7.0A Variable-Speed Barrel-Grip Jigsaw

A pro-grade barrel‑grip jigsaw delivering precise, smooth cuts with a powerful 7.0-amp motor and variable speed control. Features toolless T‑shank blade changes, an aluminum footplate with no‑mar overshoe, and Constant Response circuitry for consistent performance under load.

---

Key Features:

• Power and Precision: 7.0-amp motor with 500–3,100 SPM and 1" stroke for fast, controlled cutting
• Toolless Blade Changes: Ejection lever and multi-directional clamp for quick, hands-free T‑shank blade swaps
• Smooth Operation: Fully counterbalanced, low‑vibration design and precision‑machined plunging system
• Versatile Control: Variable-speed dial and four orbital settings adapt to materials and cut types
• Durable Footplate: Large die-cast aluminum base with plastic overshoe to protect work surfaces

---

Specifications Table:

Specification	Details
Model	JS470EB Professional
Amperage	7.0 Amp
No Load SPM	500–3,100
Stroke Length	1 in
Bevel Angle Range / Max Bevel	0–45°
Category	Jig Saws
Cutting Capacity – Soft Wood	5-7/8 in
Cutting Capacity – Aluminum	0.875 in
Cutting Capacity – Mild Steel	0.375 in
Dust Blower	Yes (on/off switch)
Dust Collection	Yes; works with JA1007 attachment
Jig Saw Blade Type	T‑shank (does not accept U‑shank)
Variable Speed	Yes (dial control)
Voltage / Rating	120V, 60 Hz
Reverse	No
Height	7 in
Length	7 in
Width	2.5 in
Weight	5.9 lb
Footplate	Large die‑cast aluminum with no‑mar plastic overshoe
Gearbox	Aluminum with insulated cover
Orbital Settings	Four
Includes	JS470EB jigsaw; Non‑Marring Overshoe (2601099183); Anti‑Splinter Insert; T‑Shank Blade; Bevel Wrench; Carrying Case
Works With (Accessories)	Jig Saw Guide JA1010; Dust Collection Attachment JA1007; Anti‑Splinter Insert JA1013
Constant Response Circuitry	Maintains speed under load
Blade Change System	Toolless; blade ejection lever

---

Frequently Asked Questions (FAQ):

Q: Does this jigsaw accept U‑shank blades?
A: No. It uses T‑shank blades only.

---

Q: What is the bevel capacity?
A: Up to 45 degrees.

---

Q: Is there dust management?
A: Yes. It has a dust blower with on/off switch and works with the JA1007 dust collection attachment.

---

Q: What’s included in the box?
A: JS470EB jigsaw, non‑marring overshoe (2601099183), anti‑splinter insert, T‑shank blade, bevel wrench, and carrying case.

---

Q: What materials can it cut?
A: Soft wood up to 5-7/8", aluminum up to 0.875", and mild steel up to 0.375" (with appropriate blades).

---

Curve-Cutting Elegance with Pro-Level Control

This barrel‑grip jigsaw brings a sculptural sensibility to precise installations, gliding through countertops and cabinetry with refined ease. The die‑cast footplate and soft‑grip body feel tailored, while the low‑vibration mechanism keeps lines clean and confident. Style a kitchen upgrade with fluid cutouts and seamless edges; it’s a quiet powerhouse for expressive workmanship. Consider it a must for luxurious, detail‑driven spaces.

---

Upgrade your cutting precision—add the Bosch JS470EB to your kit today for smooth, controlled results on every project.
