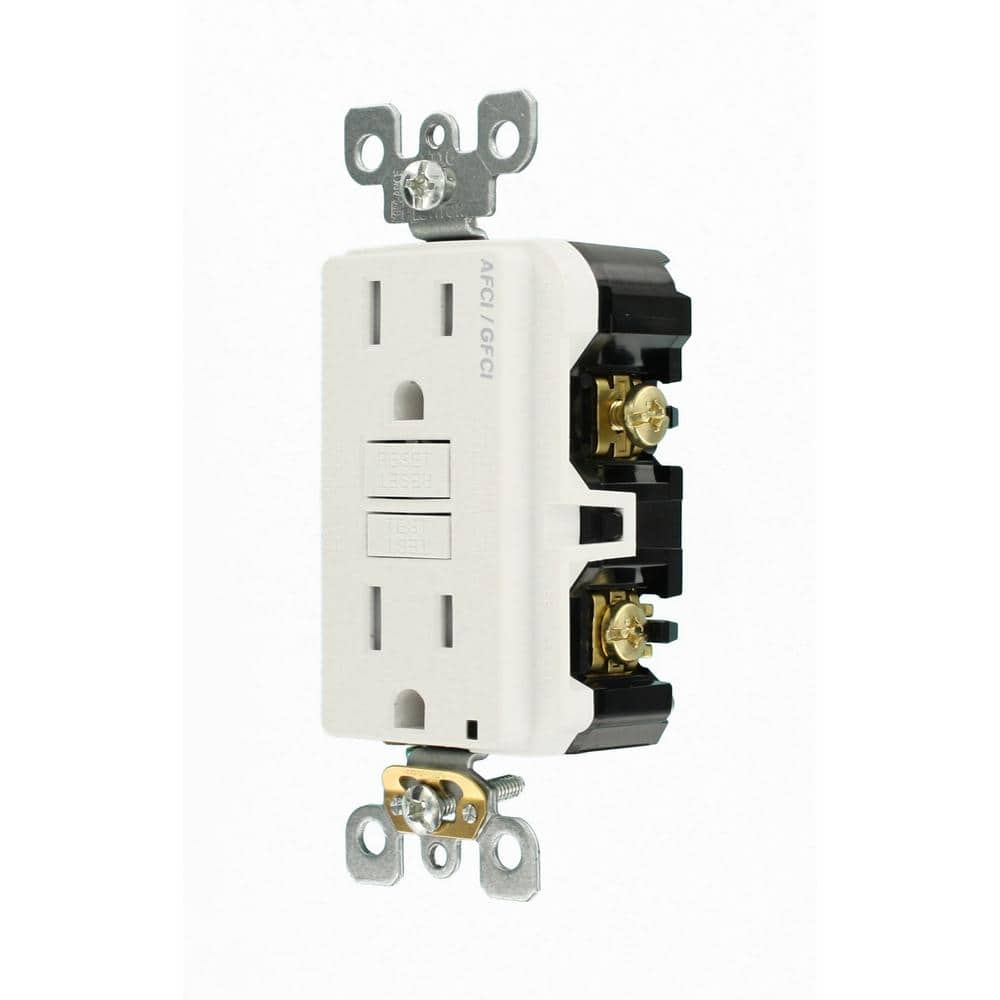

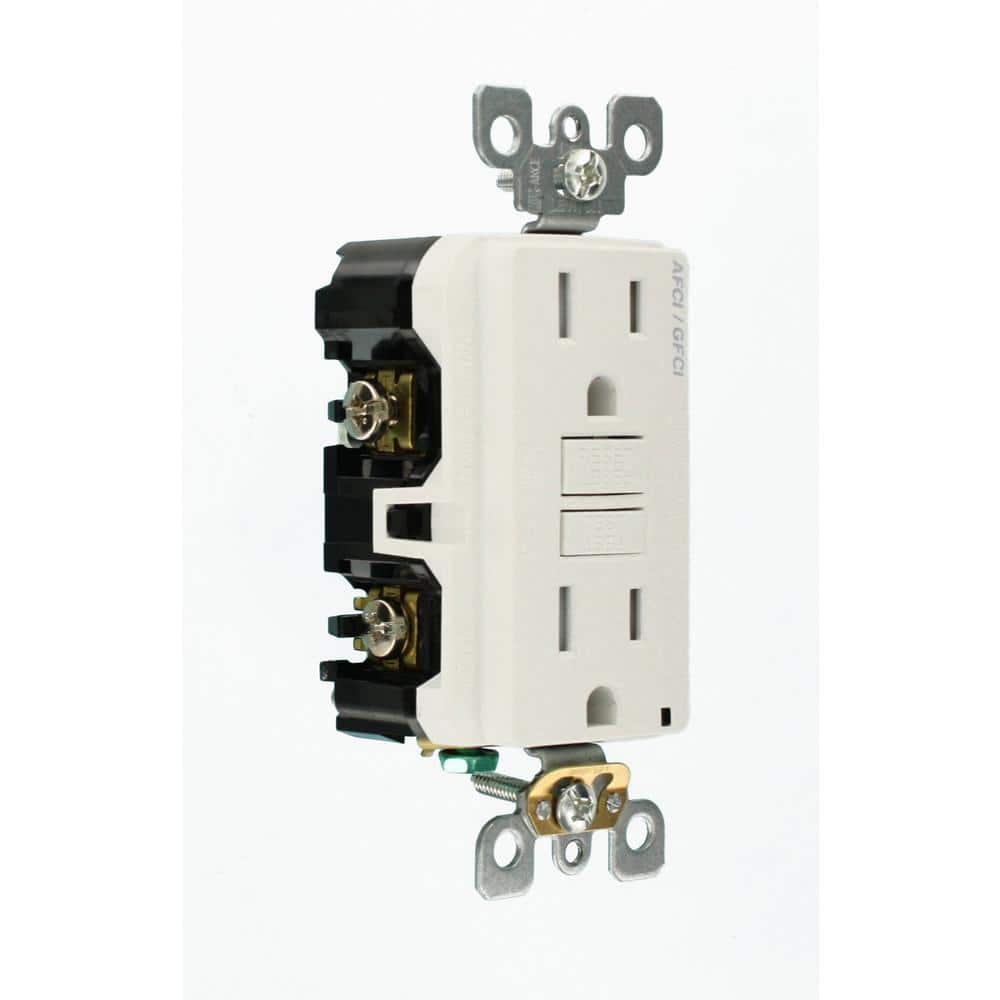

Leviton 15 Amp 125-Volt Duplex Self-Test SmartlockPro Tamper-Resistant AFCI/GFCI Dual Function Outlet, White
Published price — same for everyone
In stock
SKU R92-AGTR1-0KW
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Leviton SmartlockPro AFCI/GFCI Dual Function Tamper-Resistant Outlet
Combine arc-fault and ground-fault protection in one slim Decora-style receptacle. This 15A, 125V SmartlockPro outlet self-tests for safety and offers intuitive status indication, ideal for kitchens, laundry rooms, and upgrades requiring NEC-compliant protection.
Key Features:
- Dual Protection: AFCI and GFCI technologies safeguard against electrical fires and shocks
- Self-Test Safety: Built-in self-testing with status indicator light for at-a-glance diagnostics
- Tamper-Resistant Design: Shuttered receptacle helps prevent unwanted object insertion

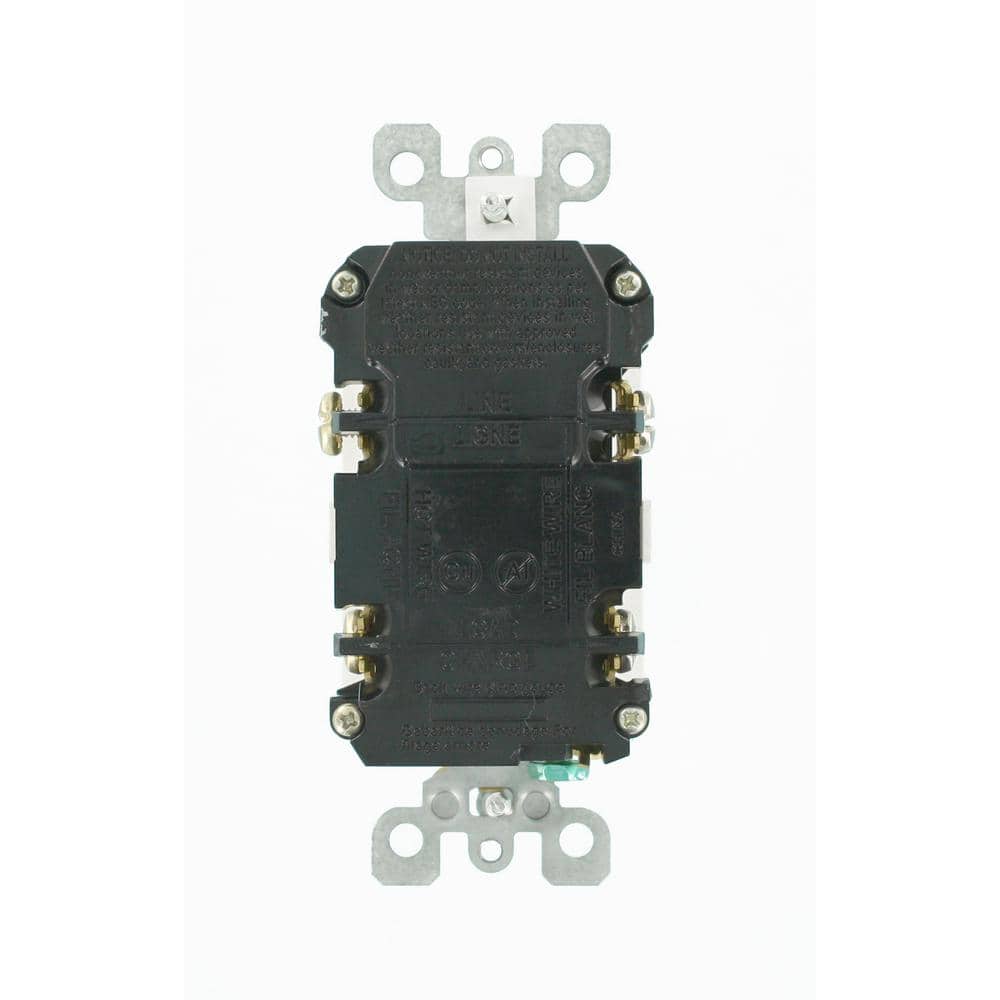

- Easy Installation: Fits standard wall boxes; side screw terminals and expanded back-wire options
- Decora Compatibility: Works with Leviton Decora devices and wall plates for multi-gang setups
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 15 A |
| Voltage | 125 V |
| NEMA Configuration | 5-15R |
| Number of Receptacles | 2 |
| Color/Finish | White |
| Durability | Tamper Resistant |
| Electrical Features | Indicator Light; Self-Test |
| Grounding | Grounded |
| Indoor/Outdoor | Indoor |
| Material | Polycarbonate; Impact-resistant thermoplastic cover and body |
| Mounting Type | Screw-In |
| Outlet Material | Plastic |
| Package Quantity | 1 |
| Receptacle Configuration | 5-15 |
| USB Connection | No USB |
| Wall Plate Included | No |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminal; Back-wire holes with internal clamp |
| Safety Rating | AFCI, GFCI |
| Product Depth | 1.02 in |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Certifications and Listings | ANSI Certified; CSA Certified; UL Listed |
| Manufacturer Warranty | 2-Year Limited |
| Series | SmartlockPro |
| Indicator | Status indicator light for power, protection, and line/load reversal |
Frequently Asked Questions (FAQ):
Q: Where should this outlet be installed?
A: It is ideal for residential kitchen and laundry areas or anywhere NEC requires AFCI/GFCI protection; installs in place of a standard outlet.
Q: Does it include a wall plate?
A: No, a wall plate is not included; it is compatible with Leviton Decora wall plates.
Q: How do I know if it’s working properly?
A: The outlet performs automatic self-tests and uses an indicator light to show power, protection status, and line/load reversal.
Q: What wiring connections does it support?
A: Side screw terminals with nine back-wire holes for line, load, and ground; NEMA 5-15R receptacle.
Q: Is it certified?
A: Yes—UL Listed, CSA and ANSI certified, and includes a 2-year limited manufacturer warranty.
Safety Meets Sleek in a Decora Profile

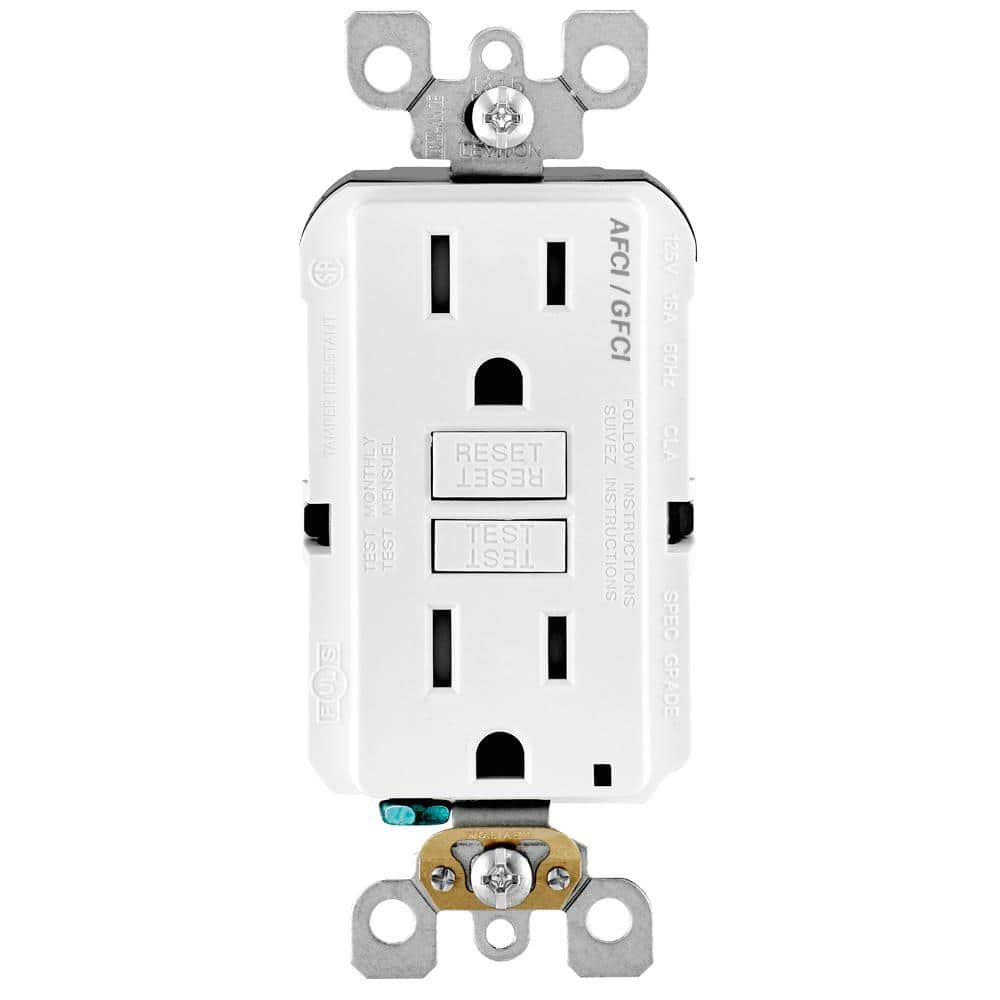

This dual-function outlet brings a polished, minimalist face to hardworking spaces, blending seamlessly with modern Decora plates. The subtle test and reset buttons add a refined, purposeful detail while the tamper-resistant shutters maintain a clean silhouette. Style it in a multi-gang kitchen backsplash or laundry zone to create a cohesive, secure electrical layout. It’s a discreet essential that elevates everyday living with intelligent protection.
Upgrade to SmartlockPro protection—install this Leviton dual-function outlet today for safer, code-compliant power in your home.
