Bosch CM10GD 15 Amp Corded 10 in. Dual-Bevel Sliding Glide Miter Saw with 60-Tooth Carbide Saw Blade

Bosch 10 in. Dual-Bevel Glide Miter Saw (15A)

The Bosch CM10GD delivers precise, smooth crosscuts in a compact footprint thanks to its Axial-Glide System. A powerful 15-amp motor spins at 4,800 RPM, while upfront bevel controls and tall sliding fences make setup fast for crown, base, and wide stock. Includes a 60-tooth carbide-tipped blade, work clamp, dust bag, and vacuum adapter.

---

Key Features:

• Axial-Glide System: Compact, rail-free design for smoother cuts and up to 10 in. less front-to-back footprint.
• Powerful Motor: 15-amp, 4,800 RPM motor for professional cutting capacity.
• Wide Cutting Capacity: 12 in. horizontal, 5-1/2 in. vertical baseboard, and 6 in. crown nested (45° spring).

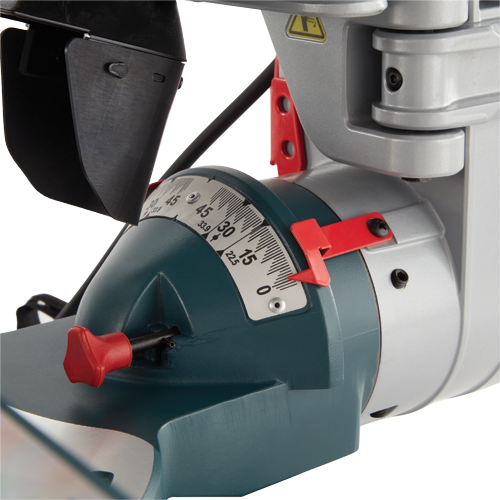

• Upfront Controls: Bevel lock lever and range selector located up front for quick, safe adjustments.
• Enhanced Dust Collection: Category-best up to 90% collection when connected to a vacuum.

---

Specifications Table:

Specification	Details
Model	CM10GD
Amperage	15 A
Blade Diameter	10 in.
Blade Size	10"
No Load RPM	4,800
Voltage	120V
Bevel Angle Range	47° left and 47° right
Bevel Stops	0°, 33.9°, 45°, 47° (L/R)
Miter Angle Range	52° left, 60° right
Miter Detents/Positive Stops	0°, 15°, 22.5°, 31.6°, 45° (L/R), 60° (R)
Category	Compound Miter Saws
Electric Motor Brake	Yes
Dust Collection	Yes; up to 90% with vacuum
Cut Capacity (0° miter, 0° bevel)	3-1/8 in. x 12 in. (can cut 4x12 with Adjustable Depth Stop)
Cut Capacity (0° miter, 45° left bevel)	1-1/2 in. x 12 in. (can cut 2x12)
Cut Capacity (0° miter, 45° right bevel)	1 in. x 12 in. (can cut 1x12)
Cut Capacity (45° miter, 0° bevel)	3-1/8 in. x 8 in. (can cut 4x8 with Adjustable Depth Stop)
Cut Capacity (45° miter, 45° left bevel)	1-1/2 in. x 8 in. (can cut 2x8)
Cut Capacity (45° miter, 45° right bevel)	1 in. x 8 in. (can cut 1x8)
Max. Crown (45° spring)	6 in. nested
Max. Crown (38° spring)	5-1/4 in. angled against fence
Max. Baseboard Against Fence	3-1/4 in. (5-1/2 in. from 0° to 47° left)
Height of Table from Base	4 in.
Dimensions (L x W x H)	32 in. x 26.5 in. x 20.5 in.
Depth Front-to-Back (no arm)	30 in.
Weight	64 lb
Works With	Bosch T1B, T4B, GTA3800 stands; MS1238, MS1233; Bosch VAC hoses/adapters and most 22 mm/35 mm hoses
Includes	10 in. 60-tooth blade, wrench, work clamp, dust bag, vacuum adapter/elbow
Color	Blue

---

Frequently Asked Questions (FAQ):

Q: What blade size does this saw use?
A: It uses a 10 in. blade and comes with a 10 in. 60-tooth carbide-tipped blade included.

---

Q: What are the miter and bevel ranges?
A: Miter range is 52° left and 60° right with detents; bevel range is 47° left and 47° right with common detents.

---

Q: Does it have a brake and dust collection?
A: Yes, it has an electric motor brake and supports dust collection with up to 90% capture when using a vacuum.

---

Q: What is the saw’s weight and dimensions?
A: Approx. 64 lb; about 32 in. length, 26.5 in. width, and 20.5 in. height.

---

Q: What’s included in the box?
A: 10 in. 60-tooth blade, wrench, work clamp, dust bag, and vacuum adapter/elbow.

---

Precision Cuts, Sculptural Form

This miter saw’s Axial-Glide arms feel like kinetic sculpture—sleek, compact, and exquisitely engineered to move with grace. The tall sliding fences become a crisp architectural line that ensures miters and crown sit flawlessly in refined interiors. Park it on a rolling stand with a pale wood work surface and let the Bosch blue read as a considered accent in the workshop. For those who demand craftsmanship with style, it’s a cornerstone of luxurious making.

---

Bring Bosch’s Axial-Glide precision to your shop today and cut cleaner, faster, and smarter on every project.
