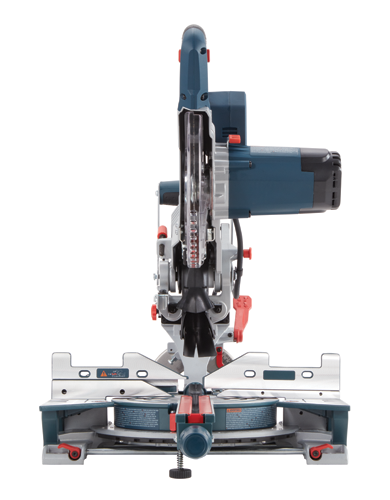

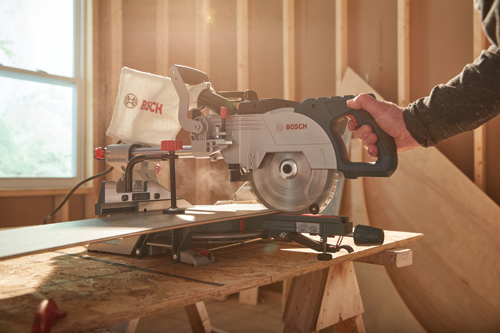

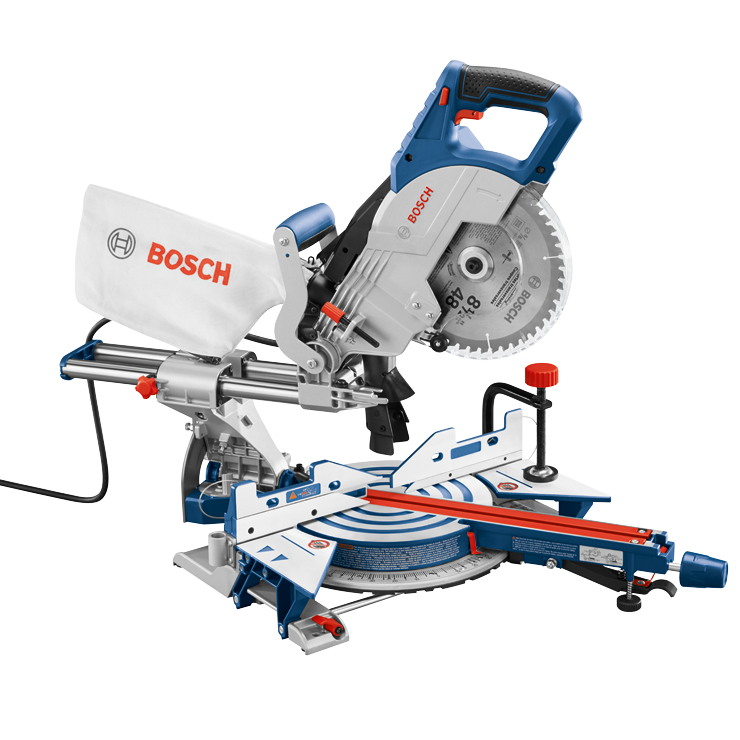

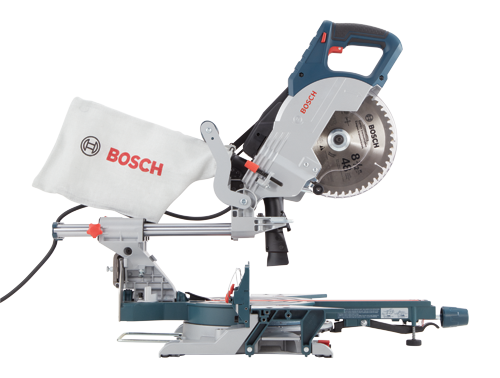

Bosch CM8S Glide 8-1/2-in 12-Amp Single-Bevel Sliding Compound Corded Miter Saw

8-1/2" 12A Single-Bevel Sliding Compound Miter Saw

Compact yet powerful, the Bosch CM8S 8-1/2 in. sliding compound miter saw delivers 5,600 RPM for precise crosscuts with the portability of a 37 lb tool. Side-access bevel controls, integrated expanding base extensions, and large easy-to-read scales streamline setup for fast, accurate results on the job.

---

Key Features:

• Ultimate Portability: Weighs only 37 lb with a centered top carry handle for one-handed transport.
• Easy Bevel Adjustments: Side-located bevel lock lever and turret stops for quick, precise settings.
• Expanded Support: Integrated base extensions expand up to 29 in. for longer workpieces.
• Accurate Cuts: Large, easy-to-read miter/bevel scales with 10 adjustable detents and thumb-actuated override.
• Impressive Capacity: Crosscuts up to 12-1/4 in. at 0°, 8 in. at 45°; handles 2x12 and 2x8 lumber.

---

Specifications Table:

Specification	Details
Model	CM8S
Amperage	12 A
Blade Diameter	8.5 in
Blade Size	8-1/2 in
No Load RPM	5,600
Voltage	120 V
Bevel Angle Range	-2° to 47° (left)
Bevel Stops	0°, 22.5°, 33.9°, 45°
Miter Angle Range	52° left, 60° right
Miter Detents/Positive Stops	0°, 15°, 22.5°, 31.6°, 45° (left/right), 60° (right)
Dust Collection	Yes
Electric Motor Brake	No
Separate On/Off Speed Control	No
Category	Compound Miter Saws
Case Type	No case included
Max Crosscut Capacity (0° miter/0° bevel)	2.75 in x 12-1/4 in (can cut 2x12)
Max Capacity (0° miter/45° left bevel)	1-1/2 in x 12-1/4 in (can cut 2x12)
Max Capacity (45° miter/0° bevel)	2.75 in x 8 in (can cut 2x8)
Max Capacity (45° miter/45° left bevel)	1-1/2 in x 8 in (can cut 2x8)
Max Capacity (0° miter/45° right bevel)	Not possible
Max Capacity (45° miter/45° right bevel)	Not possible
Crown Molding (angled against fence)	3-1/2 in (38° spring) / 3-3/4 in (45° spring)
Max Base Molding Against Fence	2-3/4 in
Height	18 in
Width	18 in
Length	32 in
Height of Table (base feet to table)	2.44 in
Works With	Bosch T1B, T4B, GTA3800 stands; MS1233 stops; MS1234 length stop; Bosch VAC hoses/adapters and most 22 mm/35 mm hoses
Includes	CM8S saw, 8-1/2 in 40T carbide blade, blade wrench, dust bag assembly, toolless workpiece clamp
Weight	37 lb

---

Frequently Asked Questions (FAQ):

Q: What blade size does it use and is one included?
A: It uses an 8-1/2 in. blade and comes with a 40-tooth carbide-tipped blade.

---

Q: What is the miter and bevel range?
A: Miter range is 52° left and 60° right with positive stops; bevel range is -2° to 47° (single-bevel left).

---

Q: How much does the saw weigh?
A: Approximately 37 lb for easy portability.

---

Q: Does it support dust collection?
A: Yes, it includes a dust bag and is compatible with Bosch vacuum hoses/adapters.

---

Q: What’s included in the box?
A: CM8S saw, 8-1/2 in. 40-tooth blade, blade wrench, dust bag assembly, and toolless workpiece clamp.

---

Precision Craft, Compact Form

This miter saw brings studio-level precision to the workshop with an elegantly engineered profile that feels effortless to move and command. The clear lower guard and bold, legible scales make each cut a confident gesture. Style it on a mobile stand with neatly organized clamps and blades to create a streamlined cutting station. It’s a refined essential for crafting bespoke trim and furnishing details with luxury-level accuracy.

---

Bring jobsite-ready precision to your projects—add the Bosch CM8S to your cart today.
