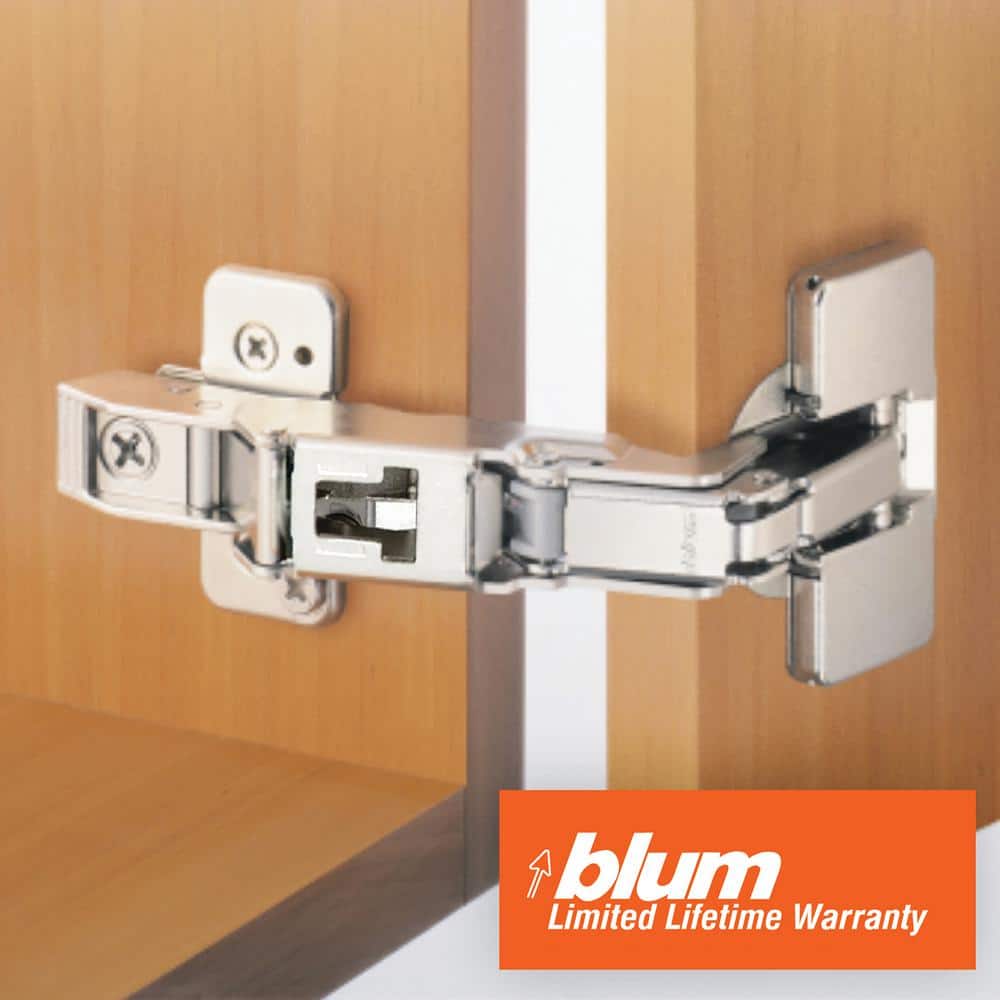

Blum CLIP Top Full Overlay Frameless Cabinet Bi-Fold Hinges, 35 mm, Spring-Closing (2-Pack)
Published price — same for everyone
In stock
SKU '202212846
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Blum CLIP Top 35 mm Full Overlay Frameless Bi-Fold Hinges (2-Pack)

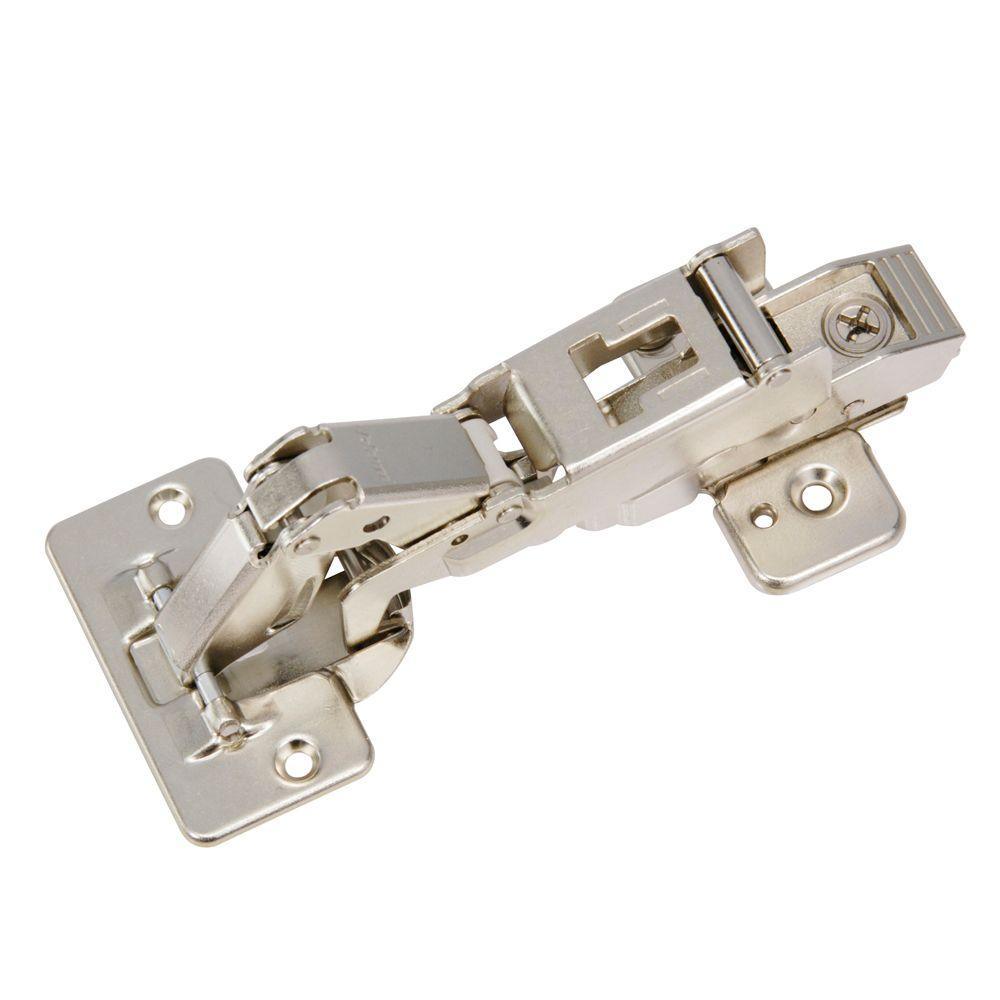

Concealed Blum CLIP Top hinges designed for frameless, full-overlay bi-fold cabinet doors. The 35 mm cup, spring-closing hinges open to 170° and include clip-on mounting plates and screws for quick installation.
Key Features:
- Wide Opening Angle: 170° swing for full access on bi-fold doors
- Concealed Euro Design: Hidden 35 mm cup hinge for a clean, modern look

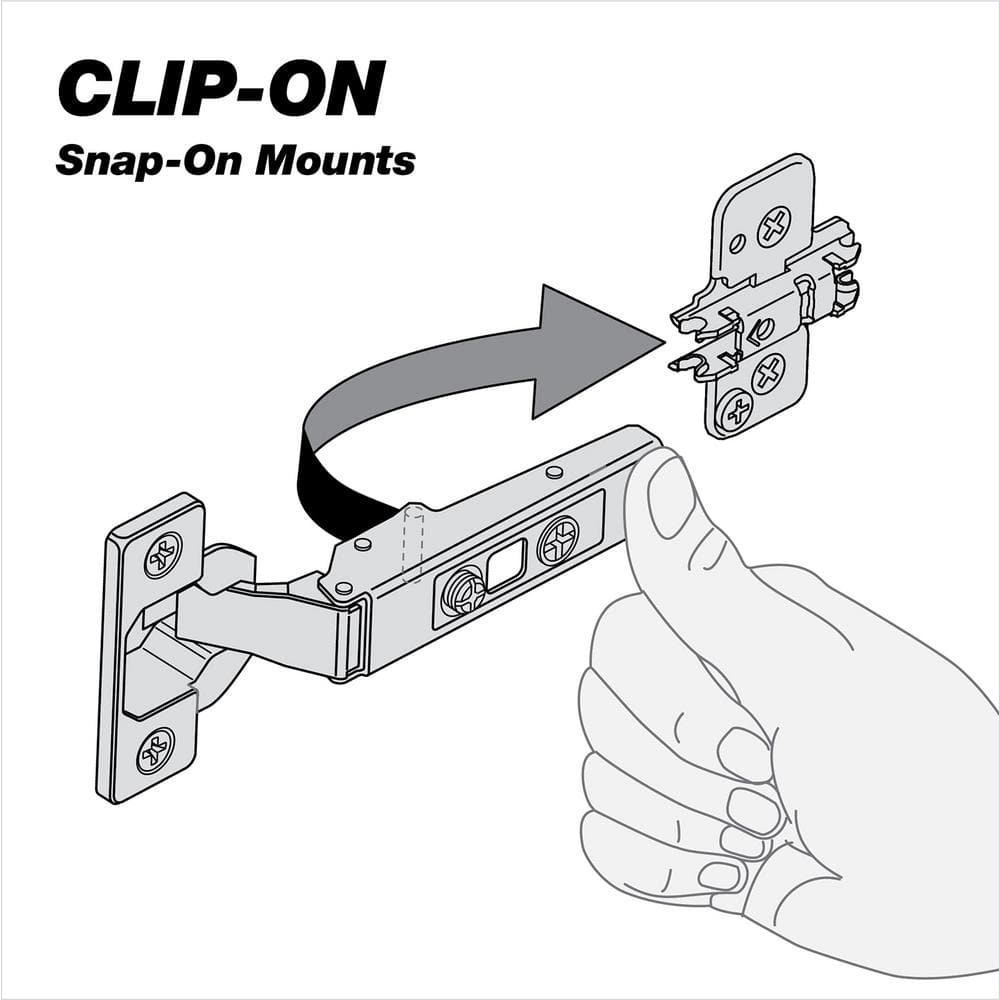

- Clip-On Mounting: Snap-on plates enable fast install and easy door removal
- Durable Construction: Steel/Zamak build with nickel finish for long-lasting performance

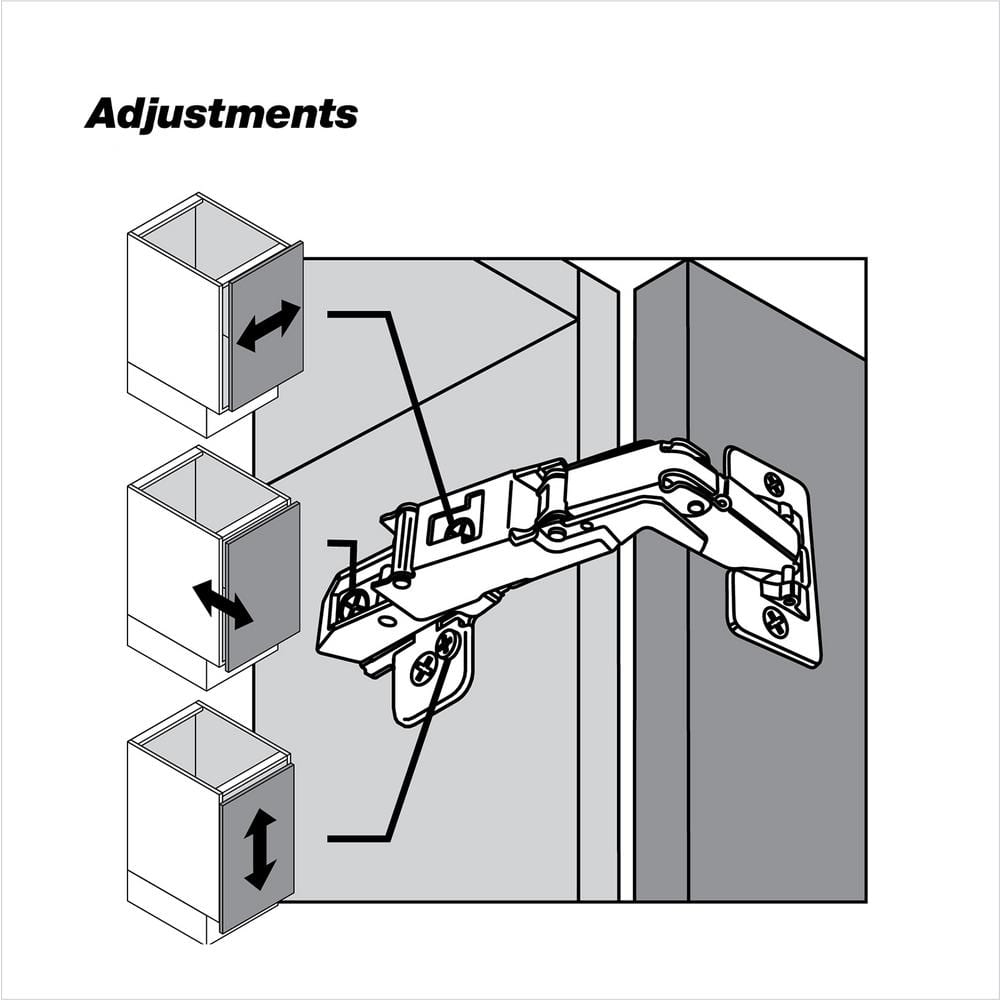

- Adjustable Fit: 3-way adjustment to fine-tune alignment on frameless cabinets
Specifications Table:
| Specification | Details |
|---|---|
| Hinge series | CLIP Top |
| Application | Frameless cabinets; full overlay bi-fold doors |
| Cup diameter | 35 mm |
| Opening angle | 170° |
| Closing mechanism | Spring-closing; self-closing |
| Material | Steel and Zamak |
| Finish | Nickel; Satin finish family |
| Hinge visibility | Concealed / Hidden |

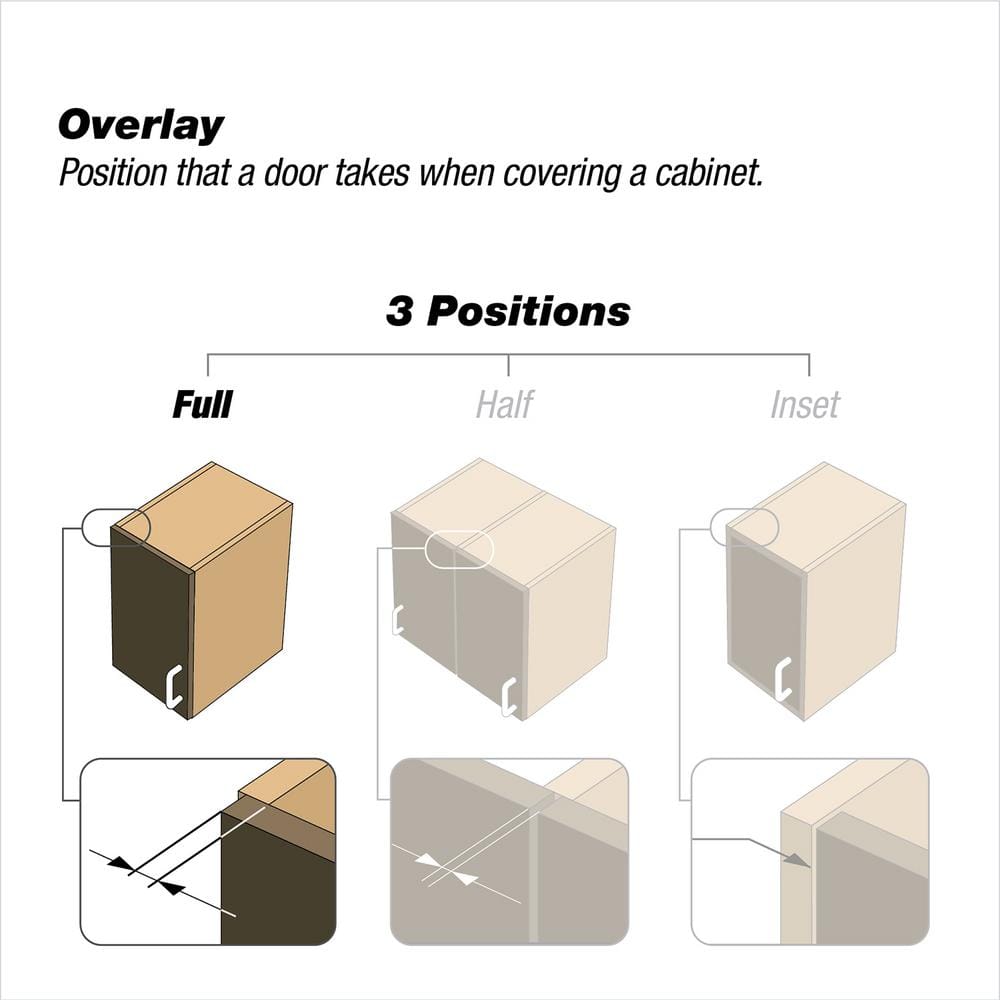

| Hinge type | Full overlay |
| Cabinet door type | Full Overlay |
| Cabinet frame type | Frameless |

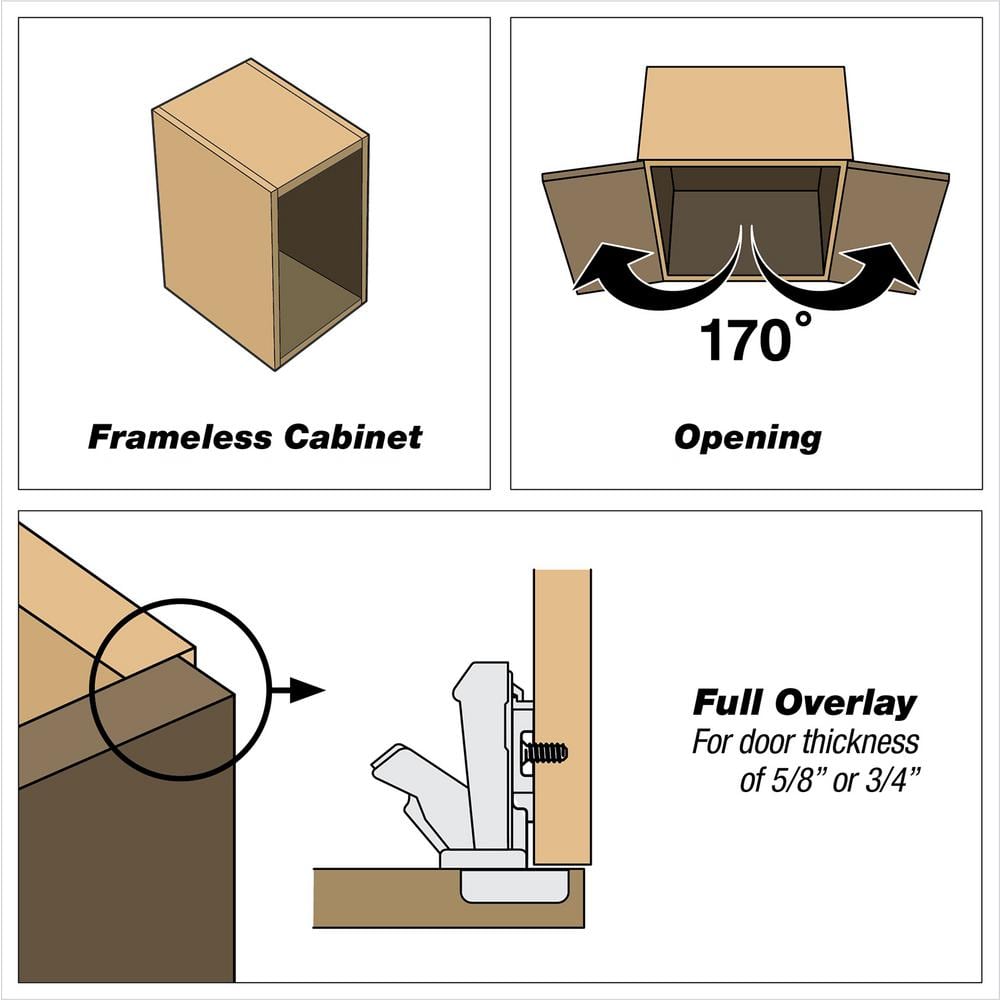

| Door thickness compatibility | 5/8 in. (16 mm) or 3/4 in. |
| Minimum cabinet thickness | 5/8 in. (16 mm) |
| Number of holes | 4 |

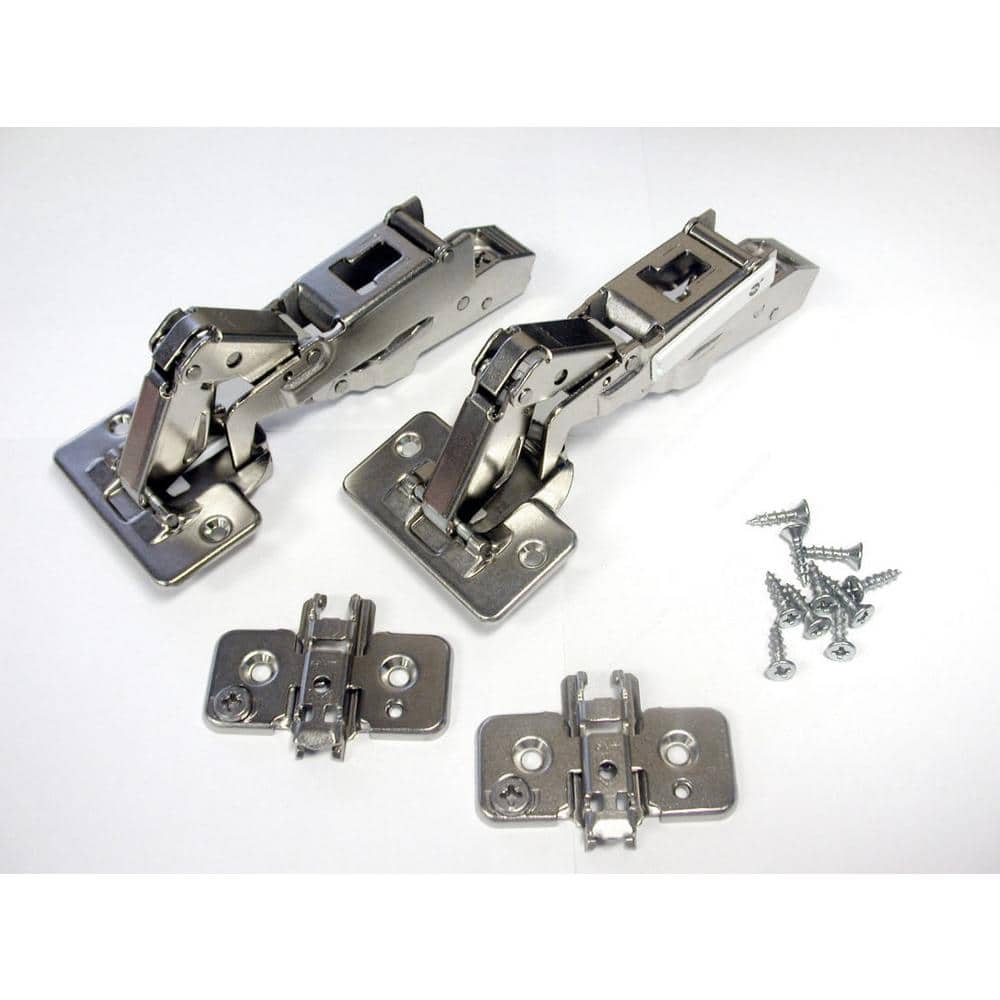

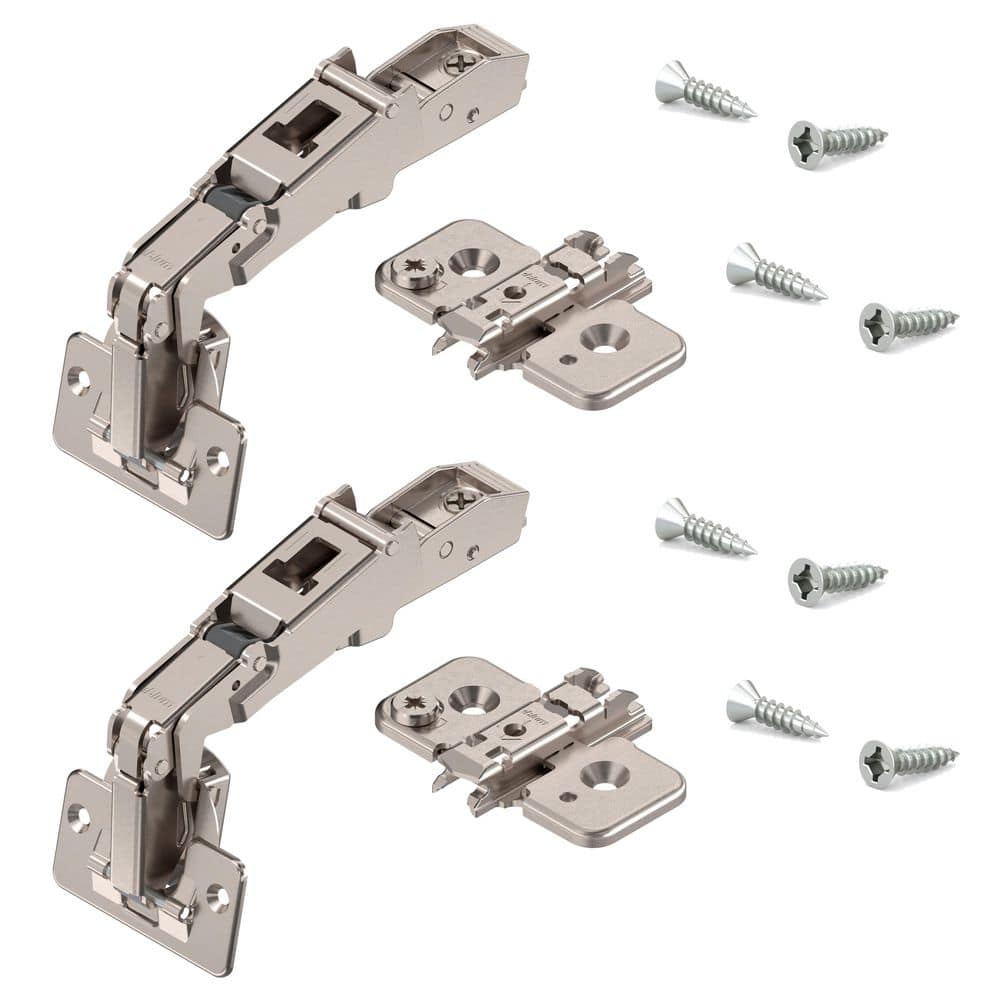

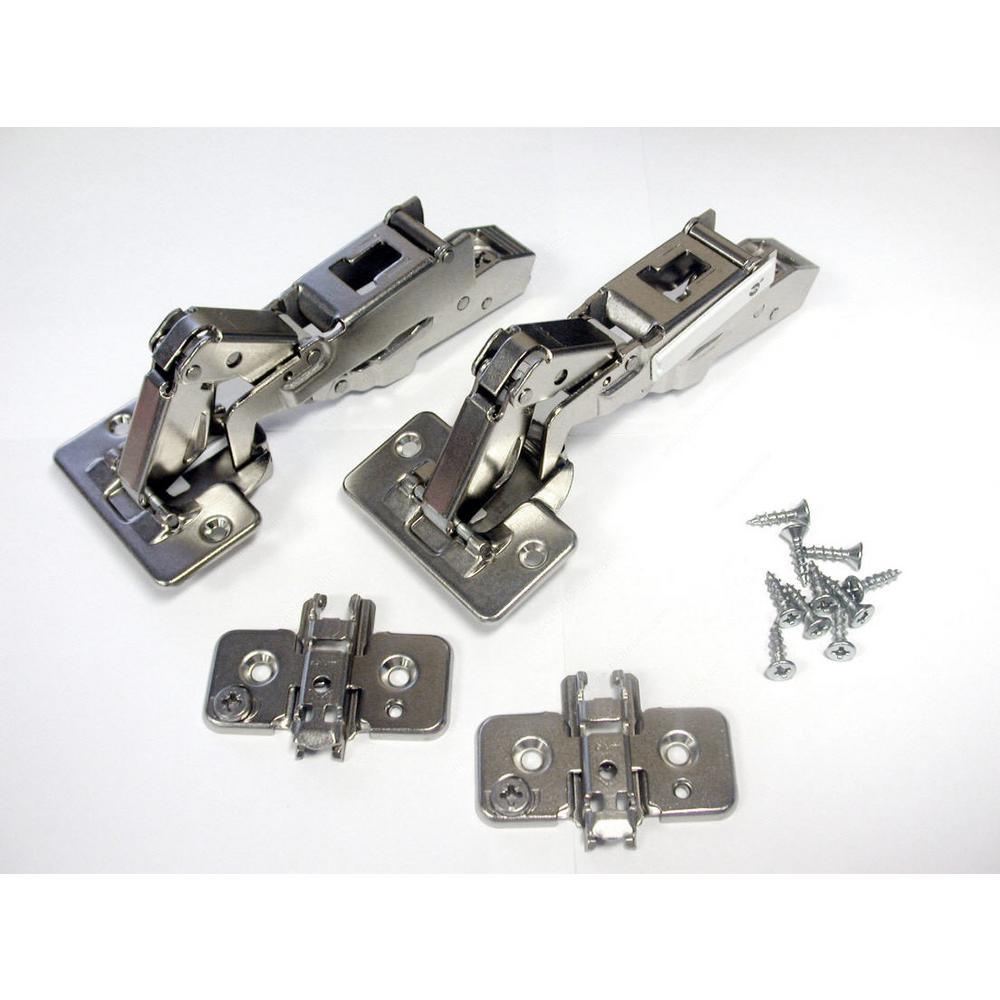

| Package quantity | 2 hinges (2 mounting plates, screws included) |
| Dimensions (product) | Depth 7.00 in; Height 1.70 in; Width 2.70 in |
| Mounting | Clip-on snap-on mounting plates; 3-way adjustment |
| Warranty | Blum Limited Lifetime Warranty |
| UPC | 773199304302 / 0773199304302 |
Frequently Asked Questions (FAQ):
Q: What cabinet style are these hinges for?
A: They are for frameless cabinets with full-overlay bi-fold doors.
Q: What door thickness do they support?
A: Designed for 5/8 in. (16 mm) or 3/4 in. doors; minimum door and cabinet thickness is 5/8 in.
Q: Do they close on their own?
A: Yes, they feature a spring-closing mechanism for firm, consistent closing.
Q: Is installation hardware included?
A: Yes, mounting plates and screws are included, and the clip-on design speeds installation.
Q: What is the opening angle?
A: Up to 170 degrees.
Sleek European Function for Effortless Bi-Fold Motion
These concealed CLIP Top hinges deliver a refined, uninterrupted facade while giving your bi-fold doors a luxuriously wide 170° sweep. The satin nickel finish and crisp engineering bring a tailored, architectural touch to cabinetry. Use them to streamline corner cabinets and keep lines clean—perfect for modern kitchens where every detail counts. Consider them the quiet, precise hardware essential to a polished, high-end install.
Upgrade your corner cabinets with smooth, 170° bi-fold motion—add these Blum CLIP Top hinges to your cart today.
