SharkBite

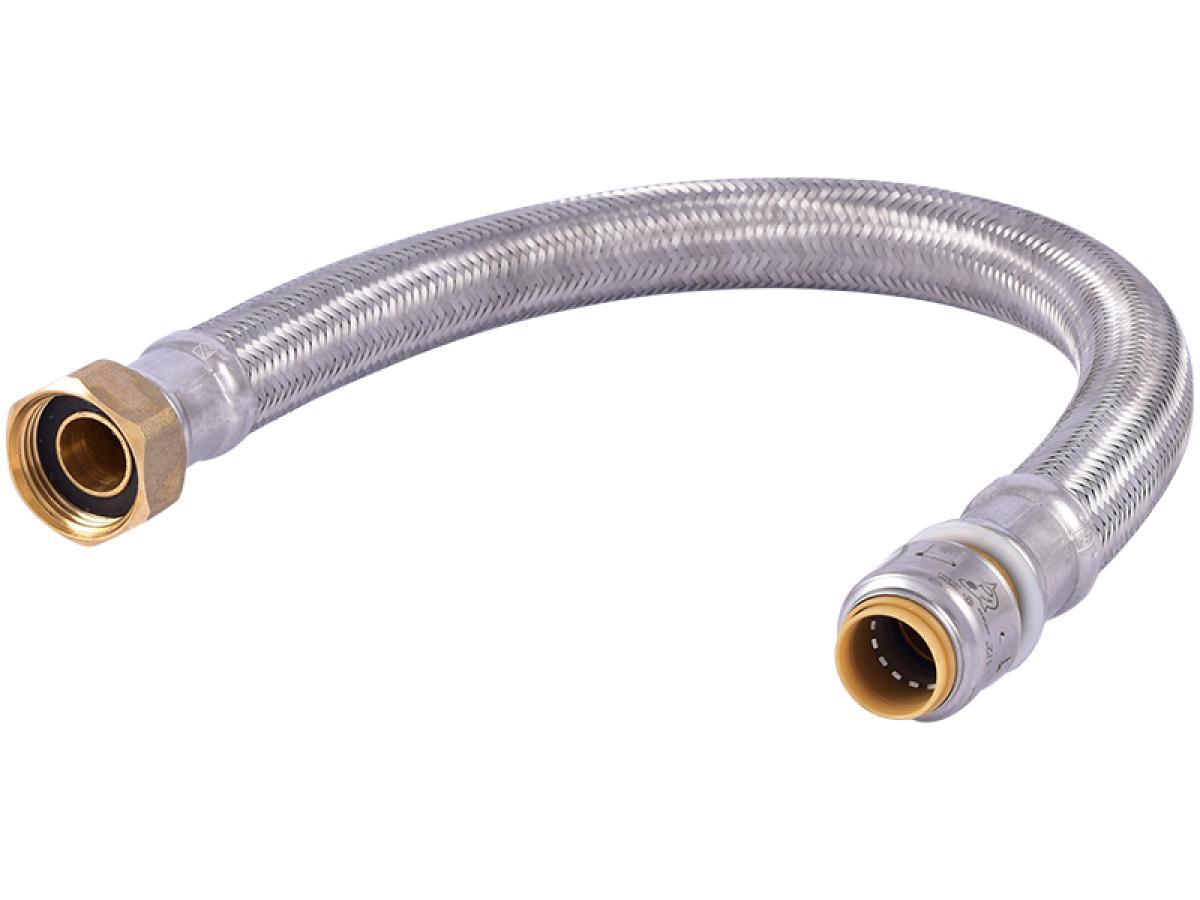

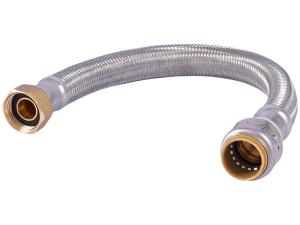

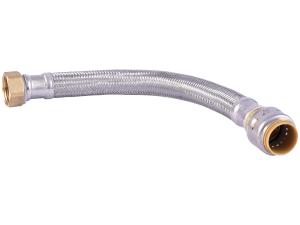

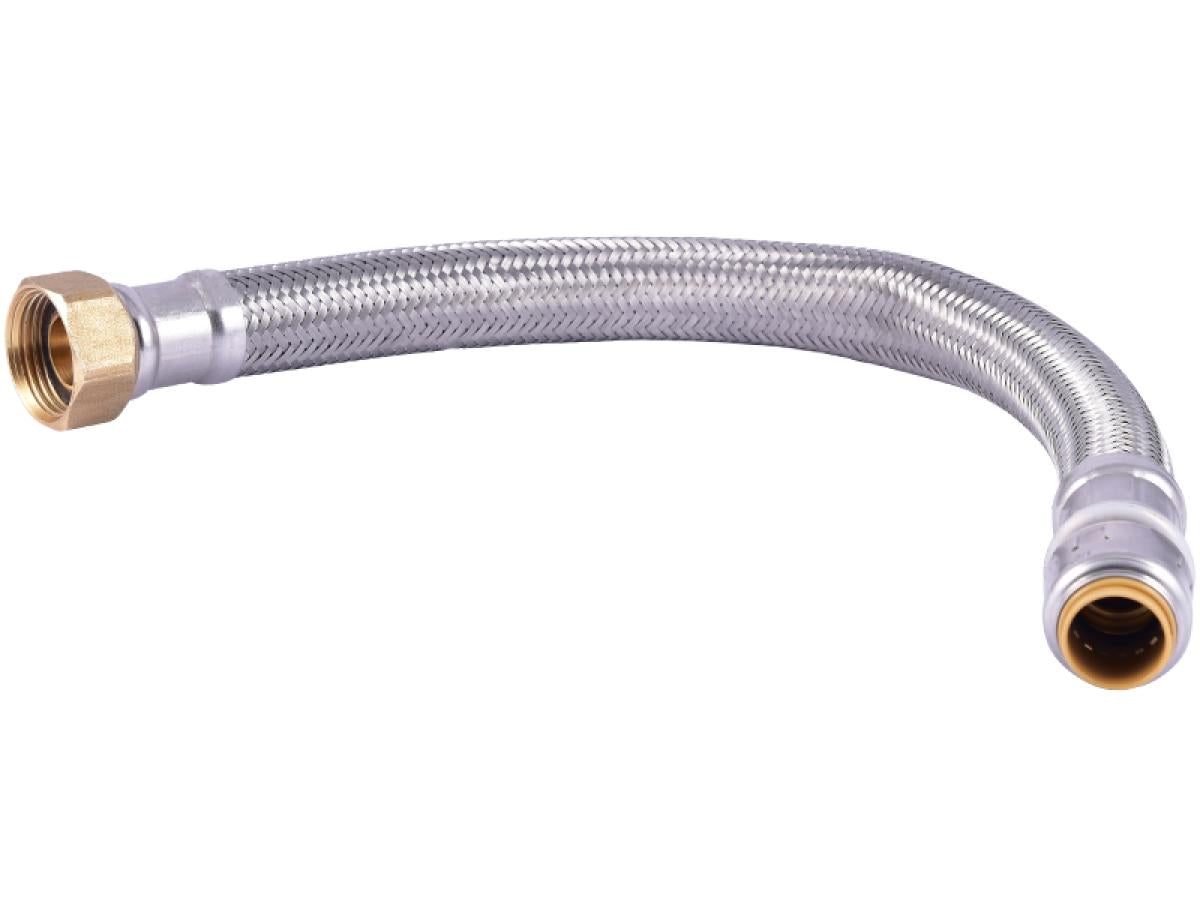

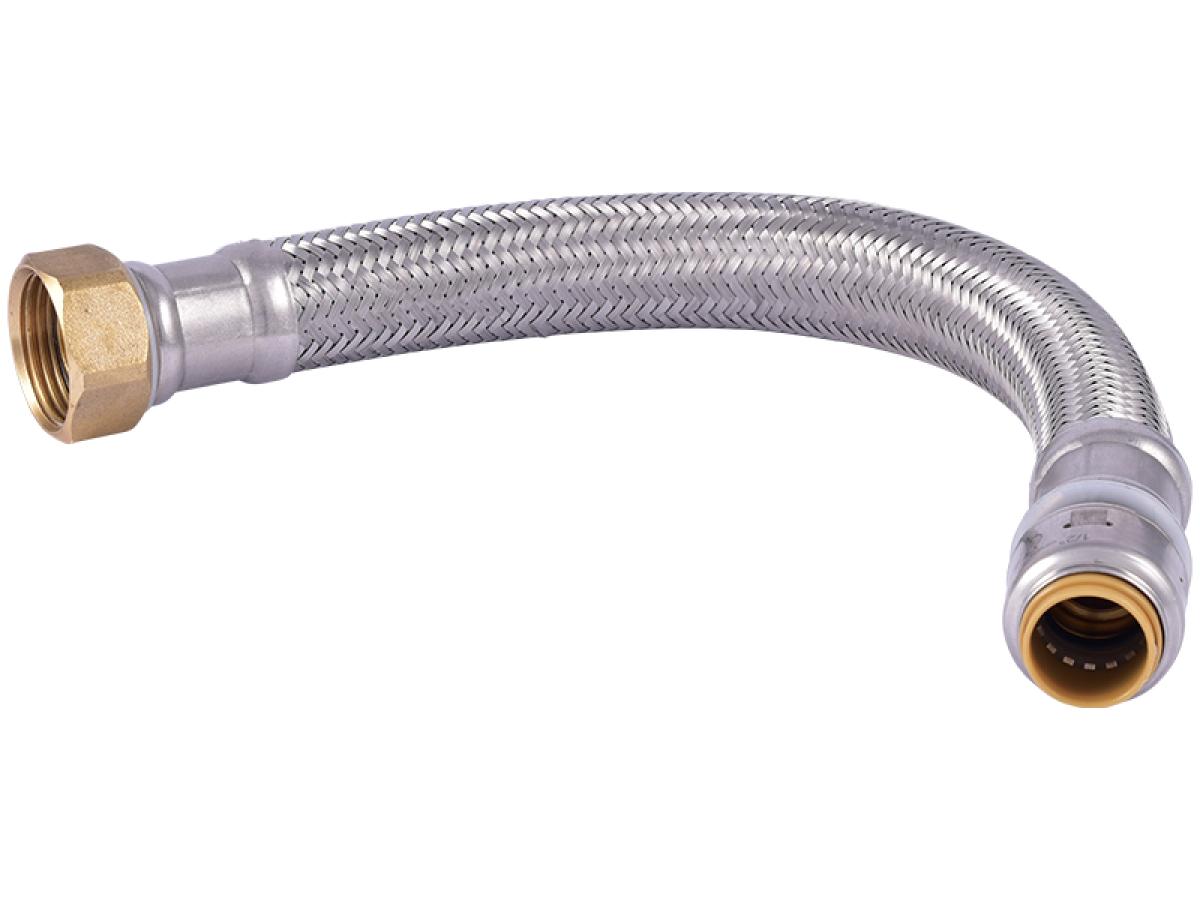

1/2 in. Push-to-Connect x 3/4 in. FIP x 18 in. Braided Stainless Steel Water Heater Connector with Integrated Ball Valve
In stock
SKU UR3068FX15
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Braided Stainless Steel Push-to-Connect Water Heater Connector, 18 in.
Flexible SharkBite braided connector links 1/2 in. push-to-connect to 3/4 in. FIP for water heaters, with an integrated ball valve for quick shutoff. Built for tight spaces and fast installs across PEX, copper, CPVC, PE-RT or HDPE SDR-9.
Key Features:
- Fast Push-to-Connect: Installs quickly without tools, solder, or glue
- Integrated Ball Valve: Built-in shutoff for maintenance and safety
- Durable Construction: Braided stainless steel with DZR lead-free brass body
- Wet-Line Ready: Can be installed on wet lines and pressure tested immediately
- Versatile Compatibility: Works with PEX, copper, CPVC, PE-RT, and HDPE SDR-9
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Connection 1 | 1/2 in. Push-to-Connect |
| Connection 2 | 3/4 in. FIP |
| Length | 18 in. |
| Body Material | DZR lead-free brass |
| Outer Sheath | Braided stainless steel |
| Compatibility | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Max Temperature | 140°F |
| Max Pressure | 200 psi |
| Removability | Can be removed with disconnect clip, tongs, or pro tool |
| Rotation After Install | Yes |
| Tube Liner for PEX | Not required |
Frequently Asked Questions (FAQ):
Q: What pipe types are compatible?
A: PEX, copper, CPVC, PE-RT, and HDPE SDR-9 pipe.
Q: Is special tooling required?
A: No. Push-to-connect fitting installs without crimping, soldering, or glue.
Q: Can it be installed on wet lines?
A: Yes, it can be installed on wet lines and pressure tested immediately.
Q: What temperature and pressure ratings apply?
A: Rated to 140°F and 200 psi.
Q: Can the connector be rotated after install?
A: Yes, it can be rotated after installation.
Streamlined Utility with a Sleek, Braided Finish
This polished braided connector brings a refined, technical elegance to utility spaces, making maintenance feel effortless and chic. The integrated valve is a subtle, sophisticated detail that elevates function with precision. Pair it with clean-lined plumbing and matte fixtures to keep the look cohesive and modern. It’s a small upgrade that signals luxurious practicality in everyday living.
Upgrade your water heater hookup with the fast, durable SharkBite braided connector—order now for a cleaner, quicker install.
