Schluter Systems
Schluter Systems DILEX-BWS 0.188-in W x 98.5-in L Dark Anthracite PVC Tile Edge Trim
Published price — same for everyone
In stock
SKU 1001049304
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

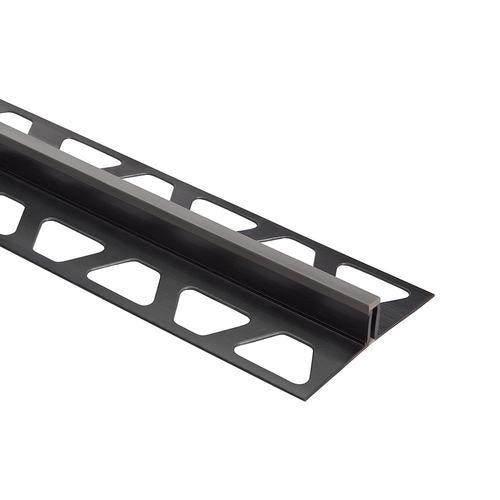

DILEX-BWS Dark Anthracite PVC Tile Movement Joint Trim

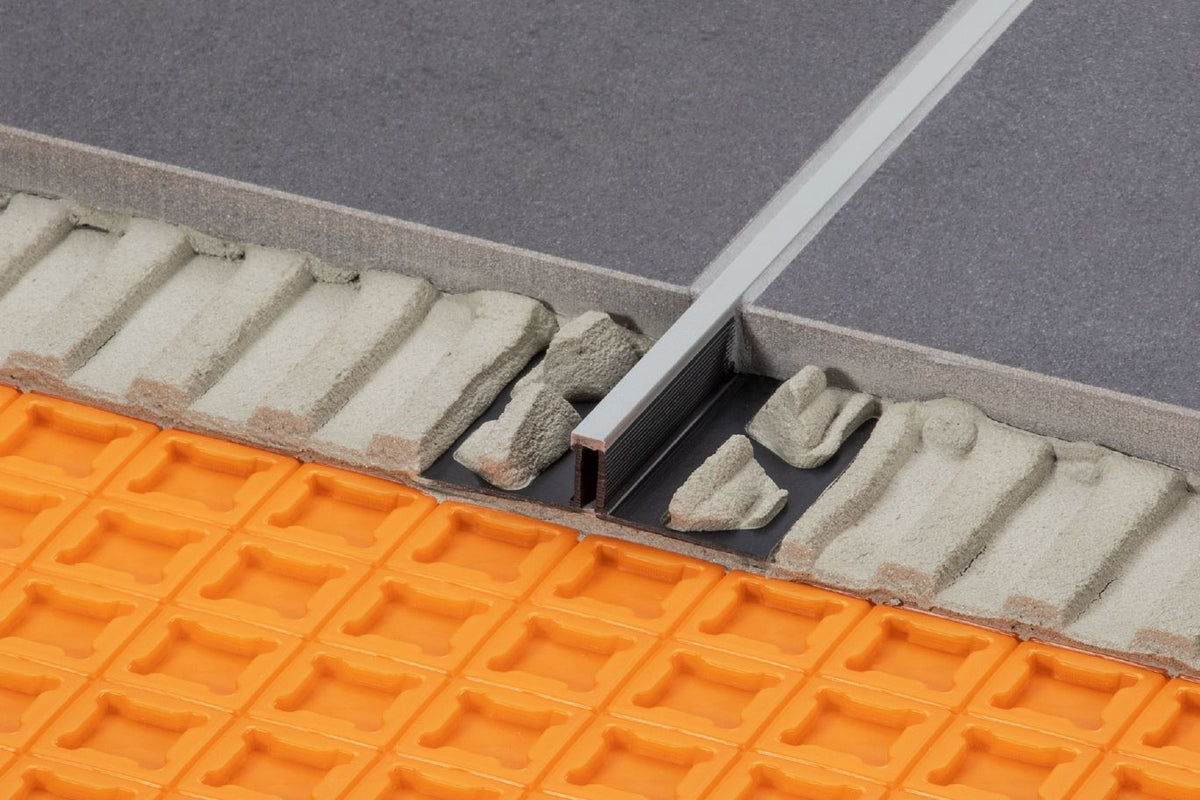

Schluter DILEX-BWS is a PVC surface movement joint profile with a 3/16 in (5 mm) movement zone to relieve stress in tiled floors. At 98.5 in length, it eliminates the need for caulking and helps prevent tile cracking and delamination in residential to medium-duty commercial spaces.
Key Features:
- Built-In Movement Zone: 3/16 in (5 mm) CPE insert absorbs limited movement and reduces stress in tile fields
- Crack Prevention: Helps prevent tile cracking and delamination by accommodating expansion and contraction
- No Caulk Needed: Integrated joint profile eliminates messy, maintenance-heavy caulking
- Durable PVC Construction: Suitable for residential to medium-duty commercial applications with light mechanical loads
- Grout-Matching Aesthetic: Movement zone available in multiple colors to coordinate with grout; shown in Dark Anthracite
Specifications Table:
| Specification | Details |
|---|---|
| Profile type | Surface movement joint profile |
| Model | DILEX-BWS |
| Material | PVC with CPE movement zone |

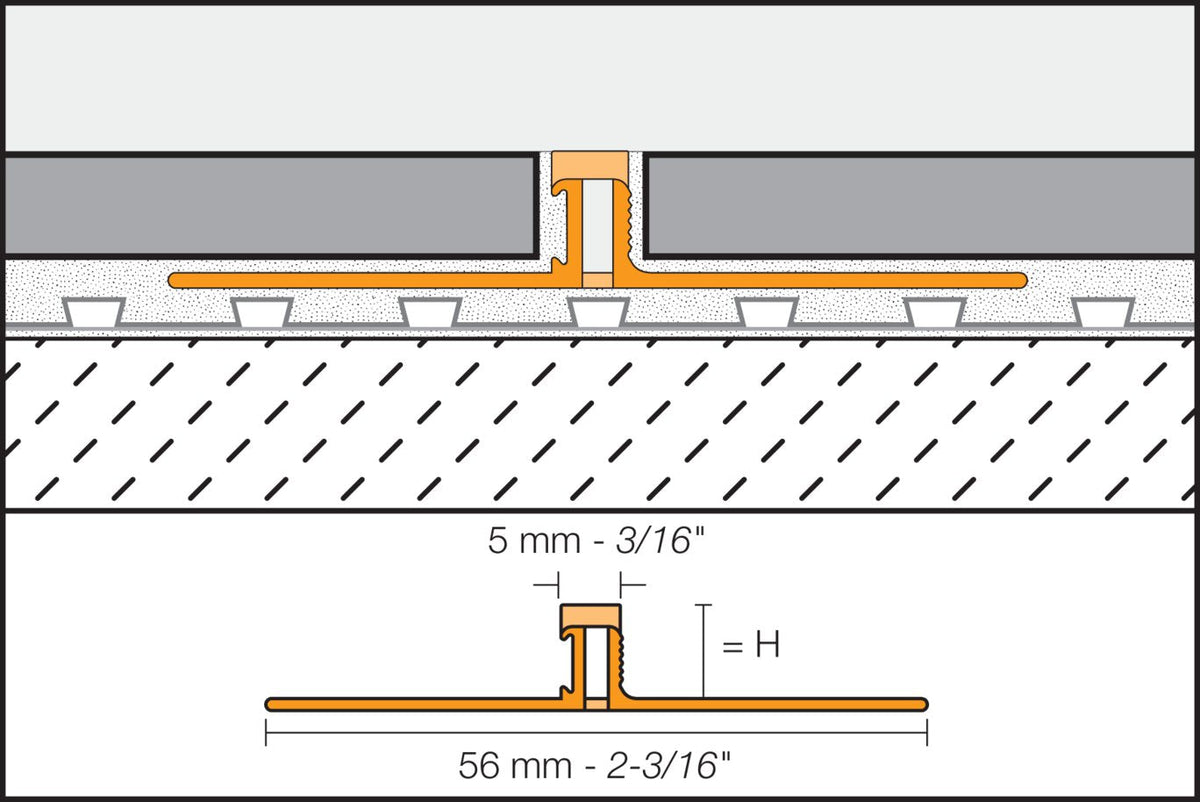

| Movement zone width | 3/16 in (5 mm) |
| Length | 98.5 in |
| Color | Dark Anthracite |
| Applications | Residential to medium-duty commercial; light mechanical loads |
| Function | Allows movement, eliminates need for caulking, helps prevent cracking and delamination of tiles |
Frequently Asked Questions (FAQ):
Q: What is the purpose of DILEX-BWS?
A: It provides a surface movement joint in tiled floors to accommodate expansion and contraction, preventing cracks and bond failure.
Q: Do I still need to use caulk with this profile?
A: No. The integrated movement zone eliminates the need for caulking at the joint.
Q: Where can it be used?
A: In residential and medium-duty commercial areas subject to light mechanical loads.
Q: What is the width of the movement zone?
A: 3/16 in (5 mm).
Q: Can I match the color to my grout?
A: Yes. The CPE movement zone is offered in various colors to coordinate with grout; this version is Dark Anthracite.
Seamless Strength, Subtle Sophistication
This movement joint trim slips into a tiled floor like a quiet line of poetry—refined, purposeful, and chic. The 3/16-inch insert creates a graceful reveal that protects your surface while visually elongating the room. Pair the Dark Anthracite with charcoal porcelain or warm concrete tones for a tailored, gallery-ready finish. It’s the discreet detail that keeps luxury spaces looking flawless for years.
Protect your tile installation with a clean, grout-matching joint—choose DILEX-BWS for a durable, maintenance-free finish.
