Schluter Systems
Schluter Systems SCHIENE 0.375-in W x 98.5-in L Satin Anodized Aluminum L-Angle Tile Edge Trim
Published price — same for everyone
In stock
SKU 1001071762
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

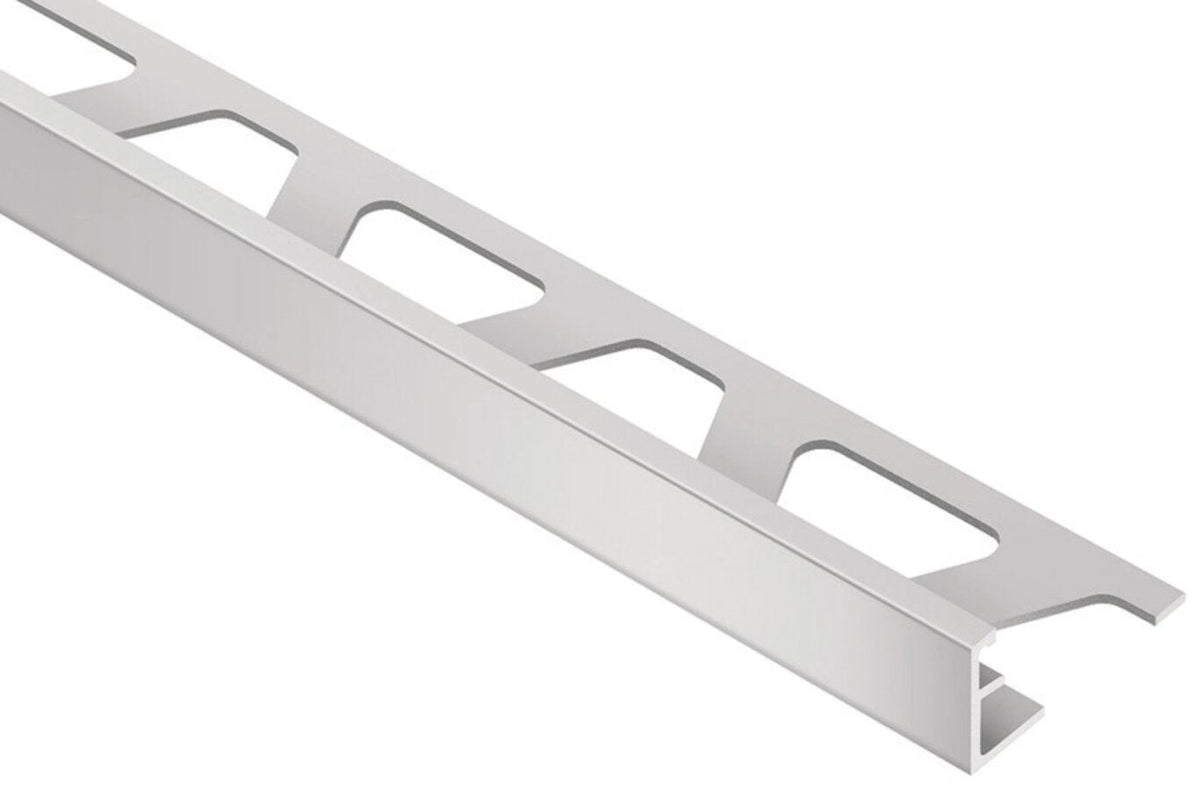

Satin anodized aluminum tile edge trim, 3/8 in x 98-1/2 in

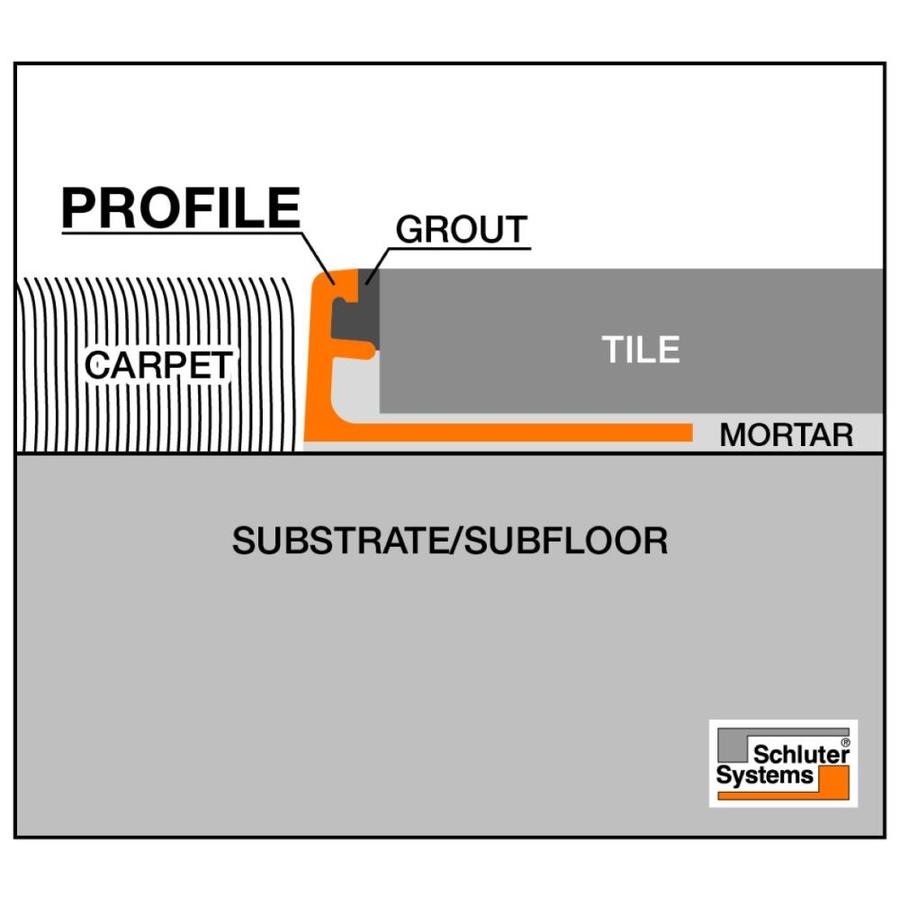

Schluter SCHIENE is a slim, L-angle edging profile that protects exposed tile edges and creates clean, same-height transitions to adjacent floor coverings. Made of satin anodized aluminum with an 87° slope, it transfers point loads and resists chipping while delivering a discreet, modern reveal.
Key Features:
- Edge Protection: 87° sloped profile shields tile edges from chipping and damage
- Clean Transitions: Approximately 1/8 in visible surface for subtle, same-height floor transitions
- Durable Build: Satin anodized aluminum resists wear in residential and light commercial floors

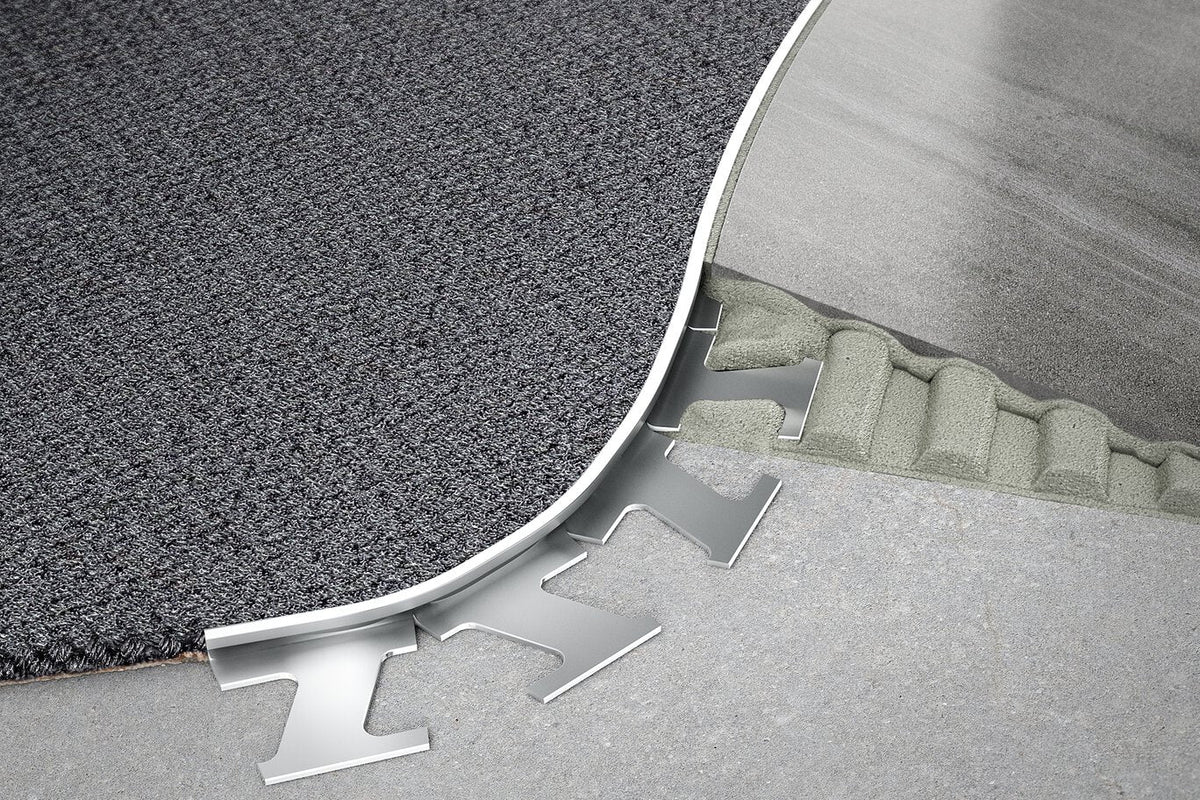

- Curved Applications: Optional radius-perforated anchoring leg allows forming gentle curves
- Long Length: 98.5 in strip reduces seams along large transitions
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Profile name | SCHIENE |
| Material | Satin anodized aluminum |
| Profile type | L-angle edging profile |
| Length | 98.5 in (approx. 2.5 m) |
| Width / Height | 0.375 in (3/8 in; 10 mm nominal) |
| Visible surface | ~1/8 in (3 mm) |
| Slope | 87° to transfer point loads and protect tile edges |
| Application | Same-height transitions between tile and adjacent floor coverings; edge protection |
| Curved installation | Available with radius-perforated anchoring leg to form curves |
| Typical use environment | Interior floors; choose stainless steel for high-moisture/chemical exposure |
Frequently Asked Questions (FAQ):
Q: What tile thickness does 0.375 in SCHIENE fit?
A: A 3/8 in (10 mm) profile is intended for tile installations of approximately the same thickness; select the profile height to match your tile.
Q: Can SCHIENE be used in curved transitions?
A: Yes. Versions with a radius-perforated anchoring leg can be shaped to form curves.
Q: Is this suitable for wet areas?
A: Aluminum profiles are generally for interior, dry environments; consider stainless steel SCHIENE for higher moisture or chemical exposure.
Q: How is it installed?

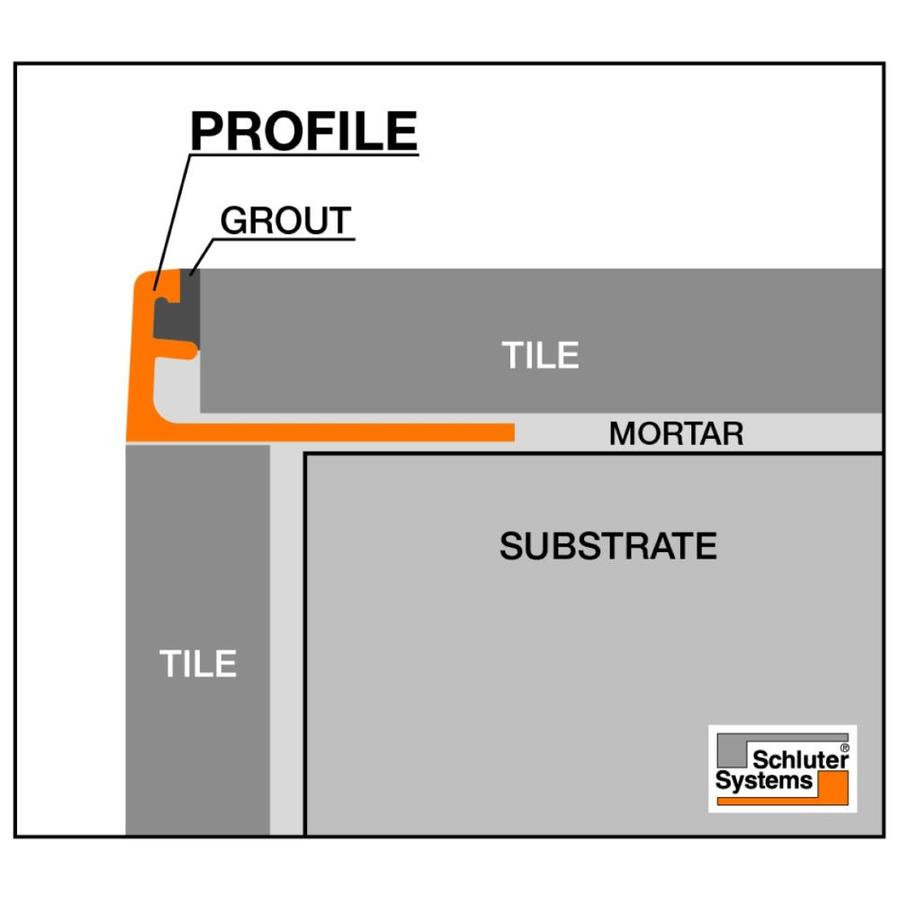

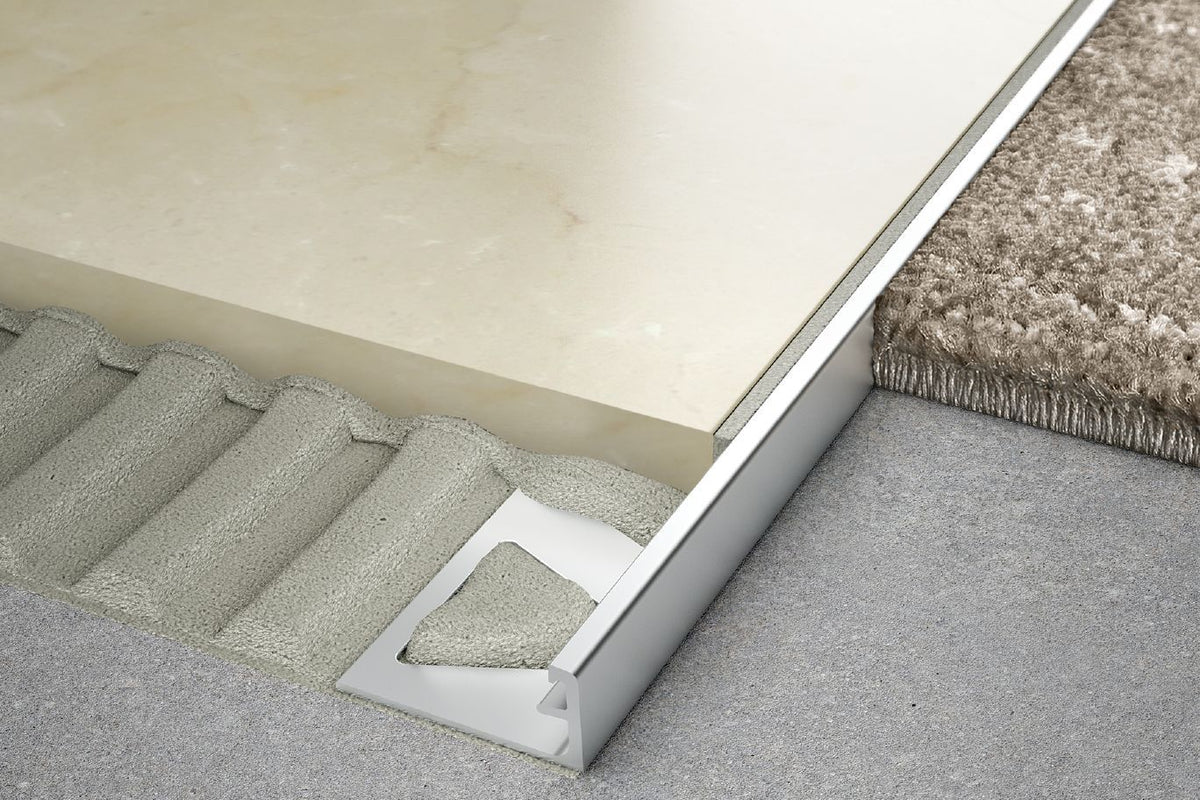

A: Embed the perforated anchoring leg in thin-set mortar under the tile, align the reveal with the tile edge, and grout flush with the profile.
Q: What is the visible reveal width?
A: Approximately 1/8 in (3 mm) for a discreet look.

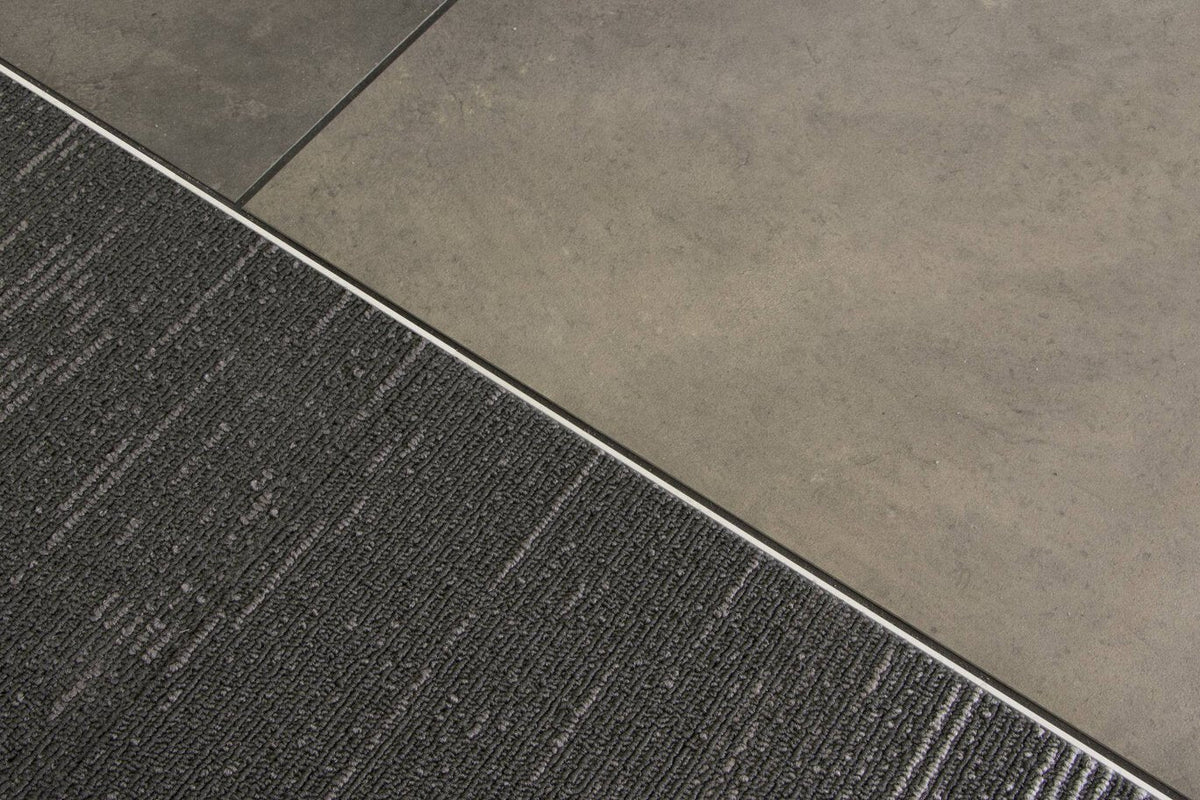

A razor-thin line that elevates every transition

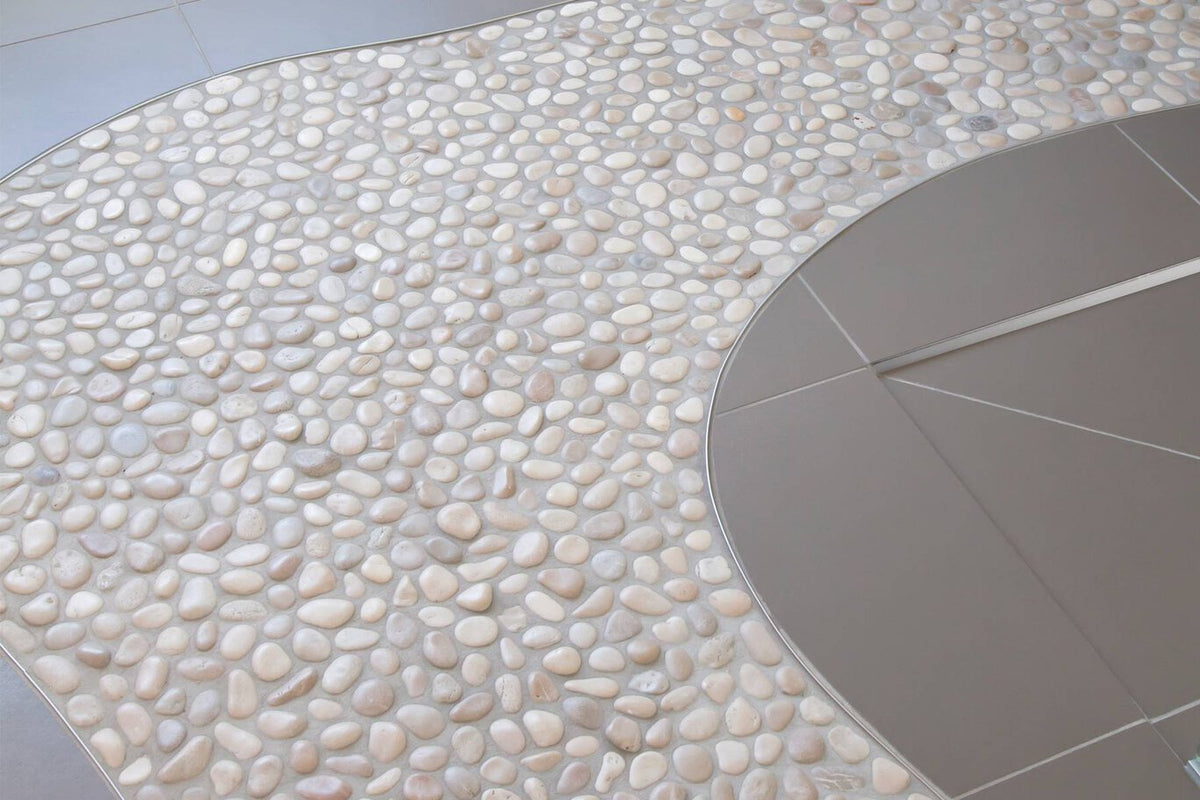

SCHIENE’s satin aluminum edge draws a crisp, architectural line that refines the meeting of tile and carpet. The whisper-thin reveal delivers polish without distraction, letting materials take center stage. Use it to trace gentle curves across a floor for a bespoke, gallery-like finish. It’s the quiet luxury detail that makes a room feel impeccably tailored.
Finish your tile project with SCHIENE for a clean, protected transition that looks custom-built.
