Schneider Electric

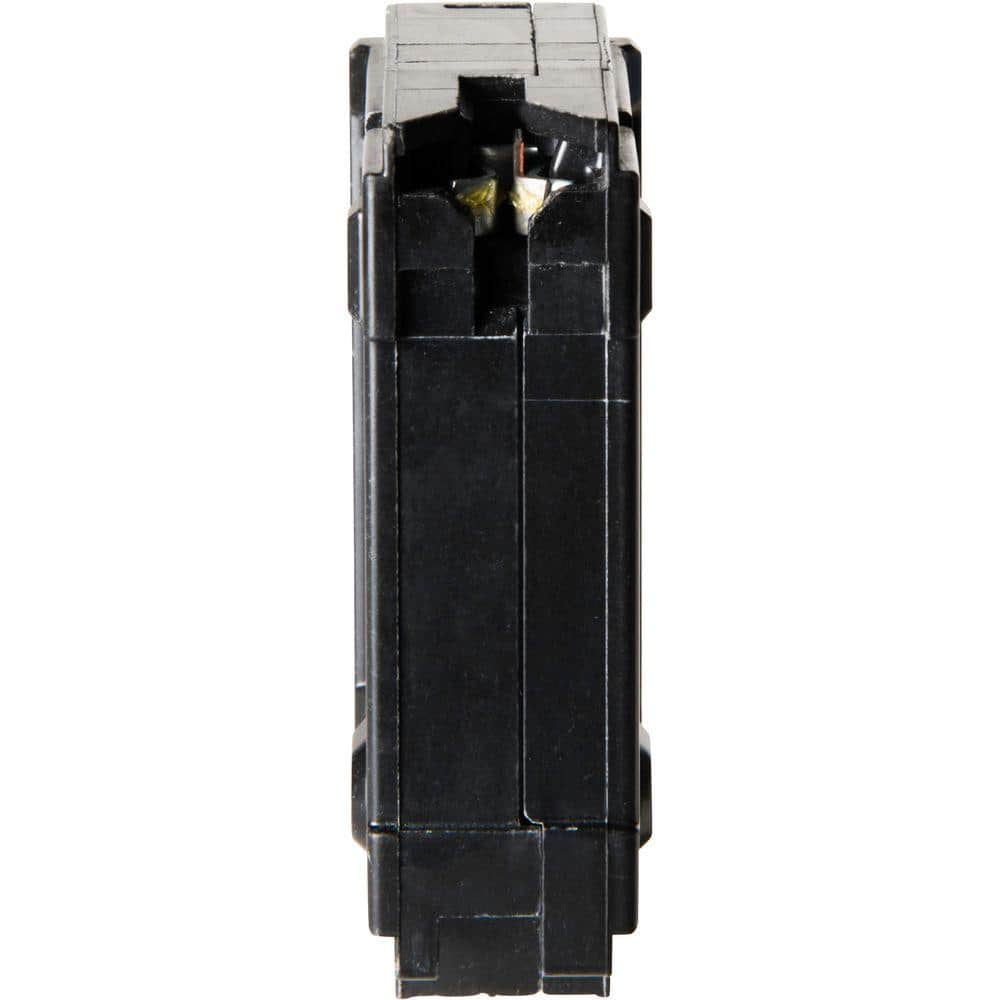

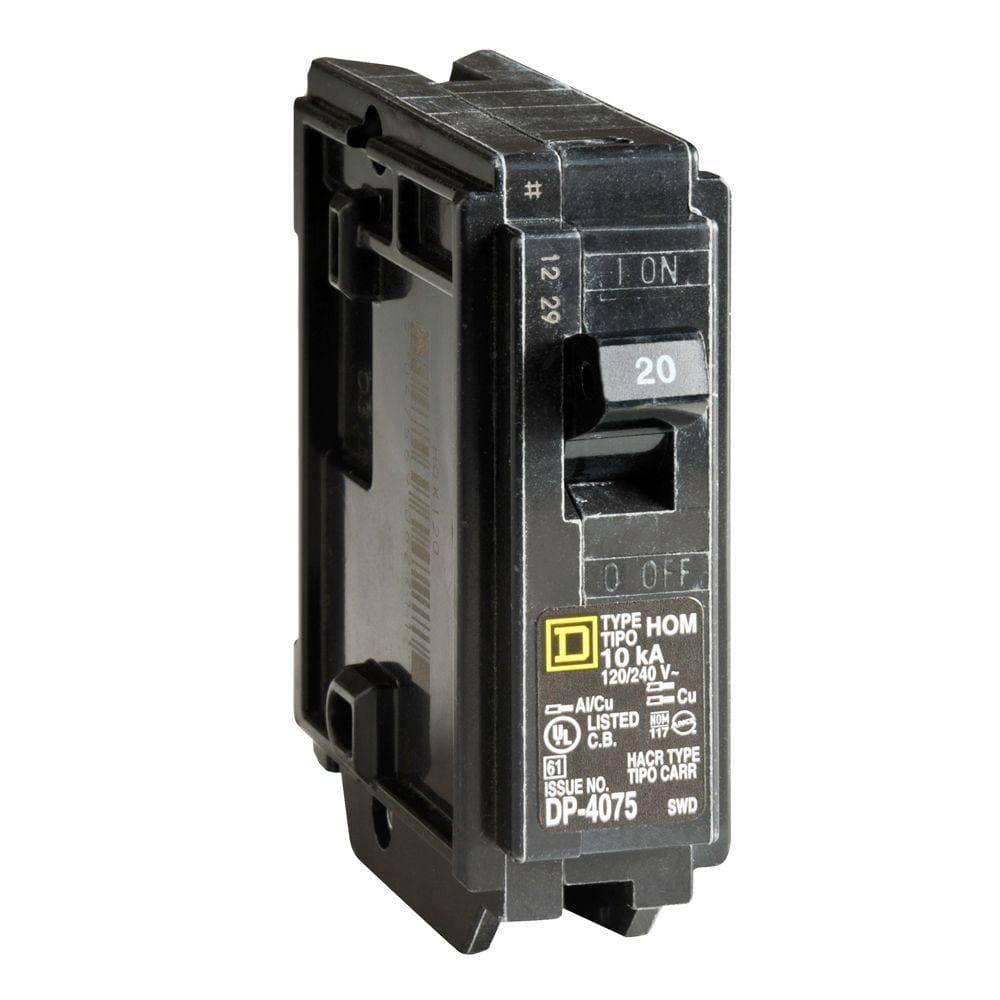

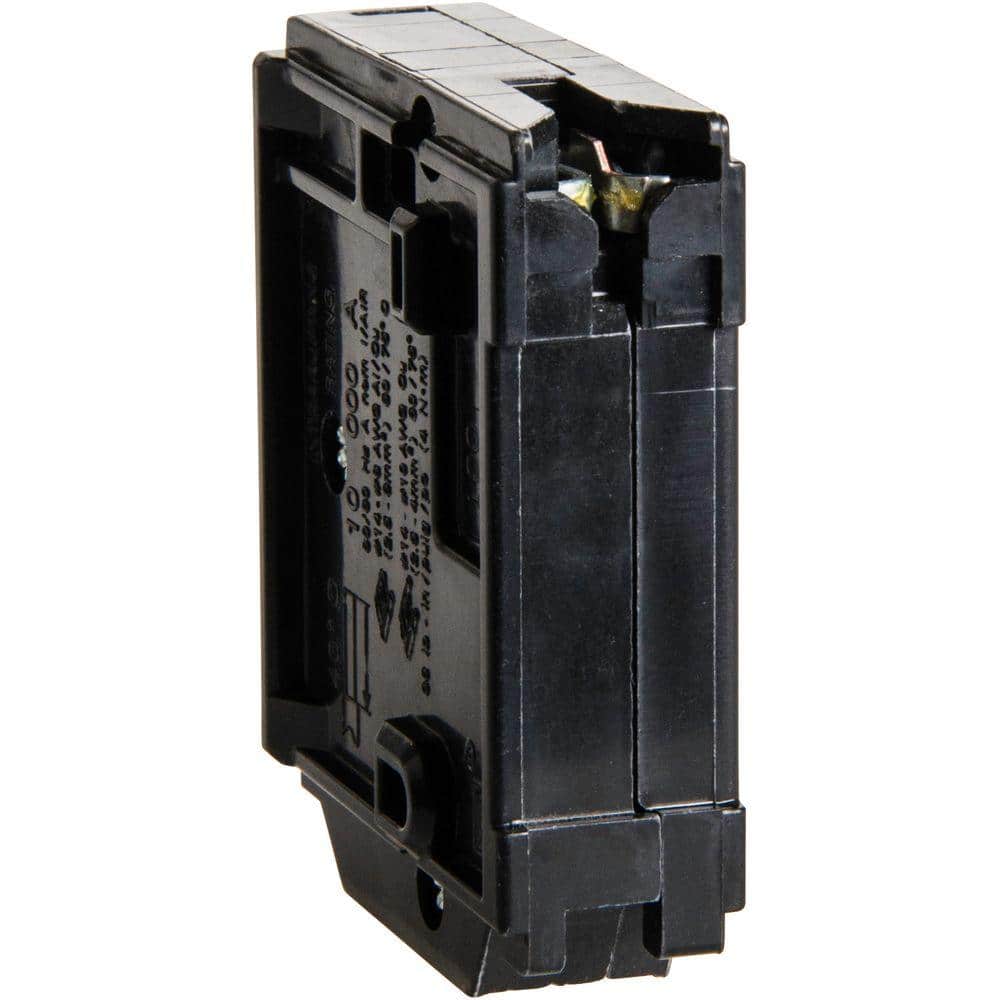

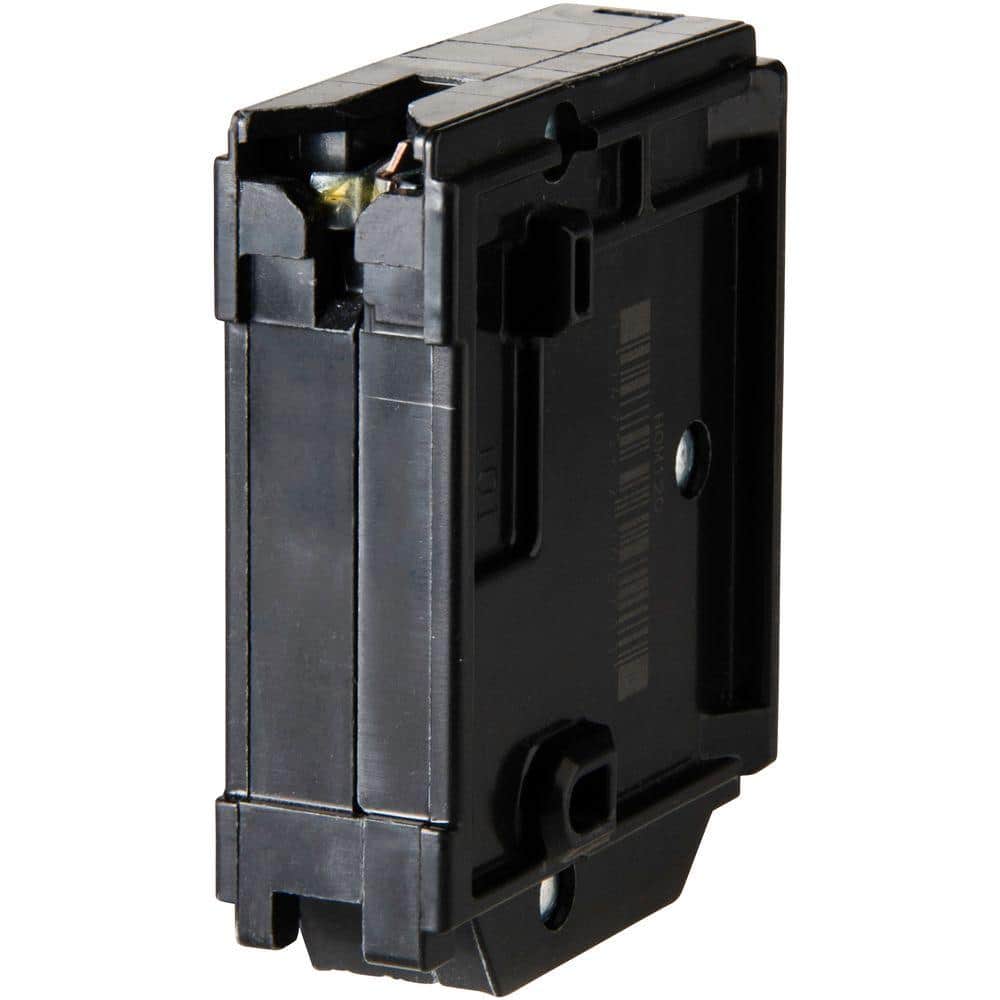

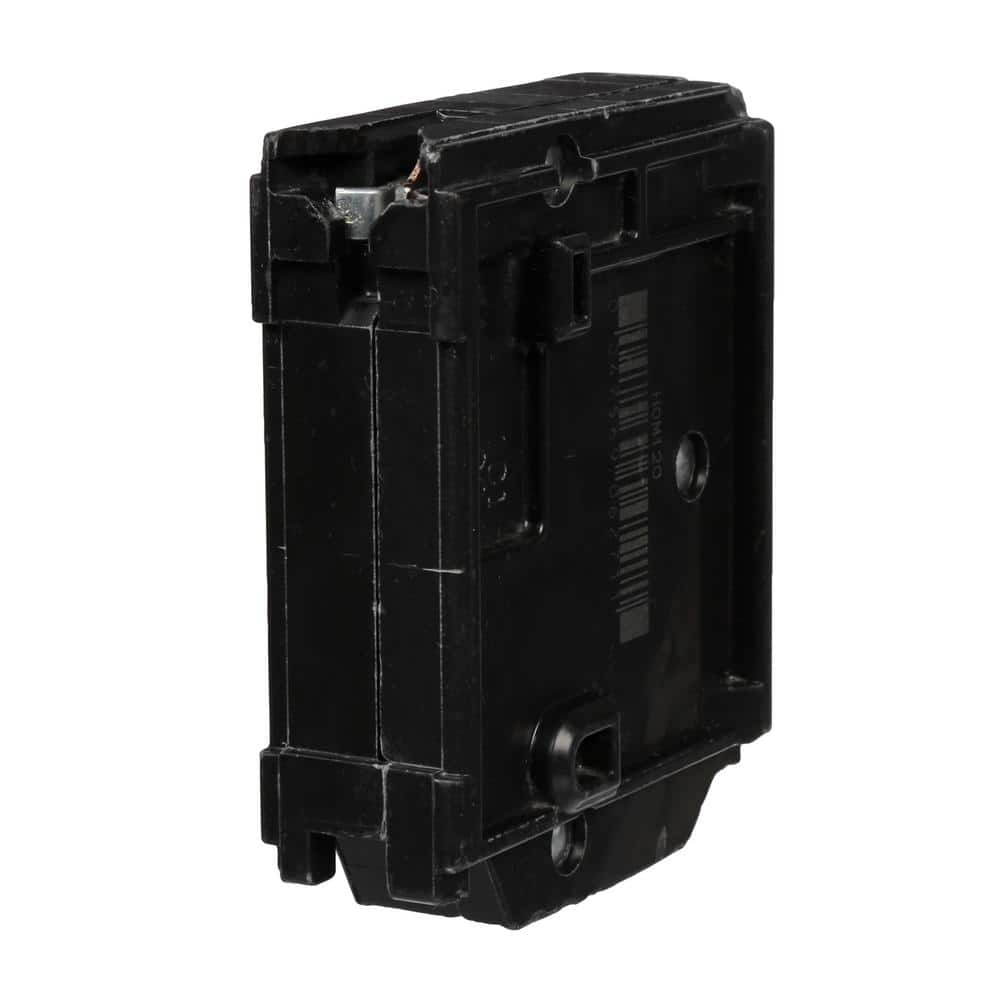

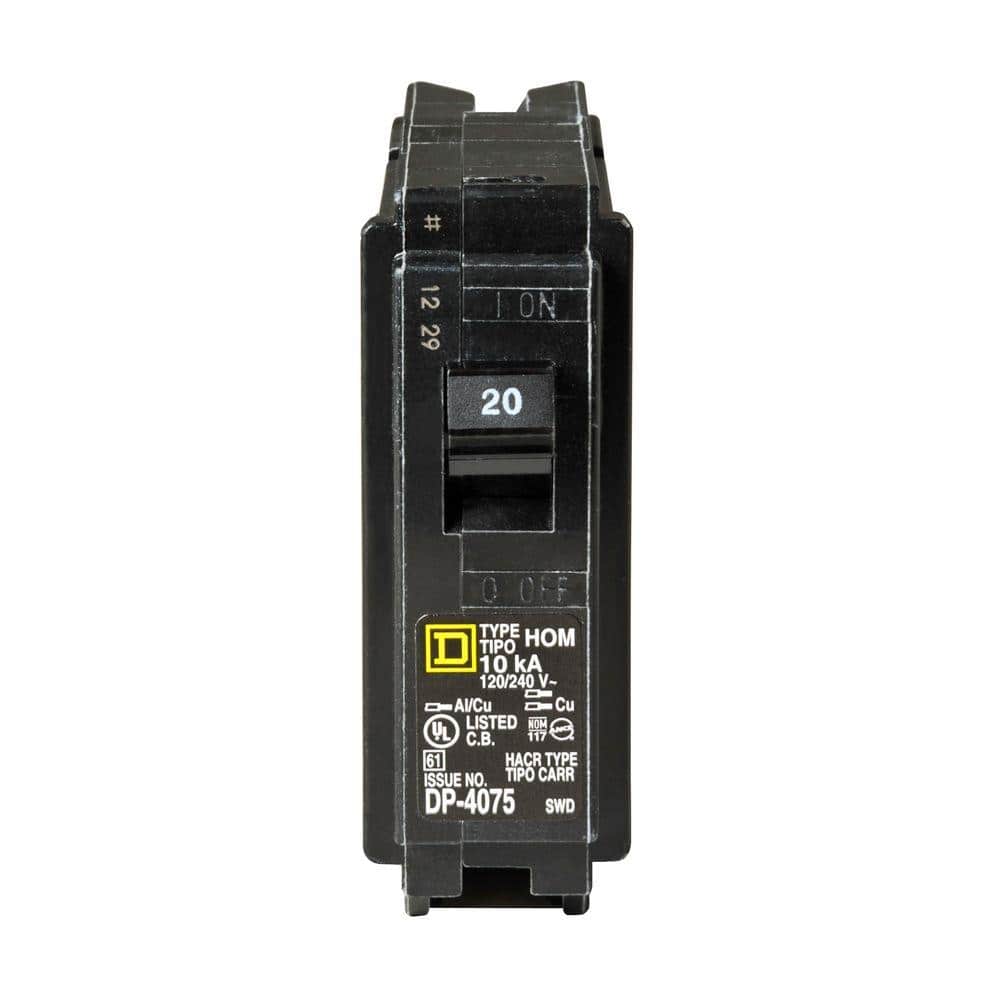

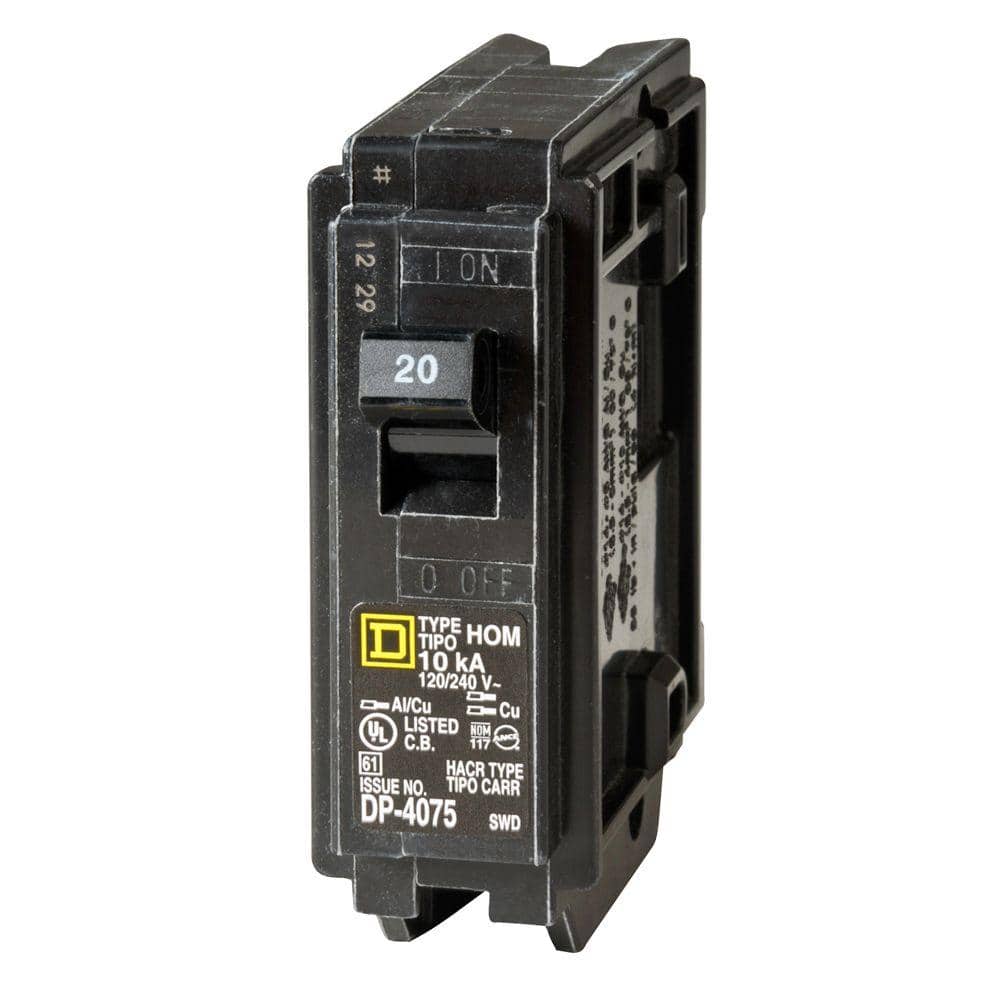

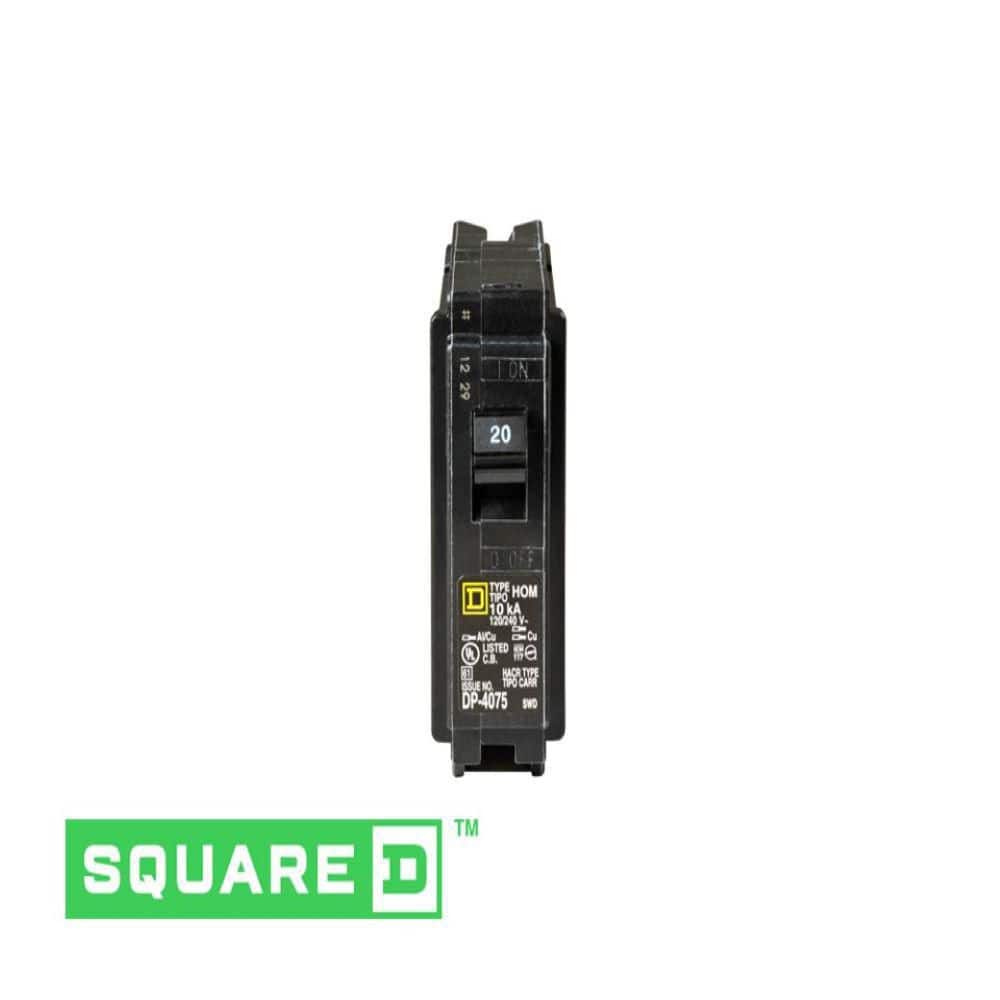

Square D Homeline 20 Amp Single-Pole Circuit Breaker, HOM120CP
Published price — same for everyone
In stock
SKU HOM120CP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 20A Single-Pole Circuit Breaker
Compact, plug-on Square D Homeline 20A single-pole breaker provides reliable overload and short-circuit protection for residential branch circuits. UL Listed with a thermal-magnetic trip unit, it fits Homeline load centers and CSEDs and is rated 120/240 VAC with 10 kA interrupting capacity.
Key Features:
- Reliable Protection: Thermal-magnetic trip safeguards circuits from overloads and short-circuits
- Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs using 1 space
- Residential Ready: SWD rated 20A breaker ideal for lighting and general branch circuits
- Compact Dimensions: 3.13 in H x 2.98 in D x 1 in W for easy panel fit
- Tested & Listed: UL Listed with 10,000 AIC for dependable performance
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard |
| Number of Poles | Single-pole |
| Amperage | 20 A |
| Voltage | 120/240 VAC |
| Interrupt Rating (AIC) | 10,000 |
| Trip Unit | Thermal Magnetic |
| Mounting Type | Plug-On |
| Connection Type | Non-Neutral |
| Spaces Required | 1 |
| Switching Duty | SWD (20A 1-pole) |
| Certifications | UL Listed, ANSI compliant |
| Dimensions (H x W x D) | 3.13 in x 1 in x 2.98 in |
| Material Compatibility | Al/Cu conductors |
| Product Weight | 0.28 lb |
| Application | Residential/commercial branch circuit protection |
Frequently Asked Questions (FAQ):
Q: What panels does this breaker fit?
A: It is designed for Square D Homeline load centers and CSED devices using one space.
Q: What is the interrupt rating?
A: 10,000 AIC at 120/240 VAC.
Q: Is it suitable for aluminum or copper wire?
A: Yes, lugs are rated for Al/Cu conductors as indicated on the breaker label.
Q: What type of trip mechanism does it use?
A: Thermal-magnetic trip unit.
Q: Is there a warranty?
A: Square D provides a limited lifetime warranty for Homeline breakers when installed in a Homeline load center.
A Sleek, Workhorse Essential for Every Panel
This breaker is the quiet hero of a well-composed home—streamlined, resilient, and utterly dependable. The compact Homeline silhouette keeps your panel crisp and orderly, letting the rest of the space sing. Pair it with a clean, labeled directory for a polished, designer-worthy electrical closet. Reliable infrastructure is the foundation of luxury living, and this piece delivers it with ease.
Equip your panel with dependable protection—add the Homeline 20A breaker to your cart today.
