Schluter Systems
Schluter Systems DILEX-BWB 0.5-in W x 98.5-in L Stone Grey PVC Tile Edge Trim
Published price — same for everyone
In stock
SKU 1001049724
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

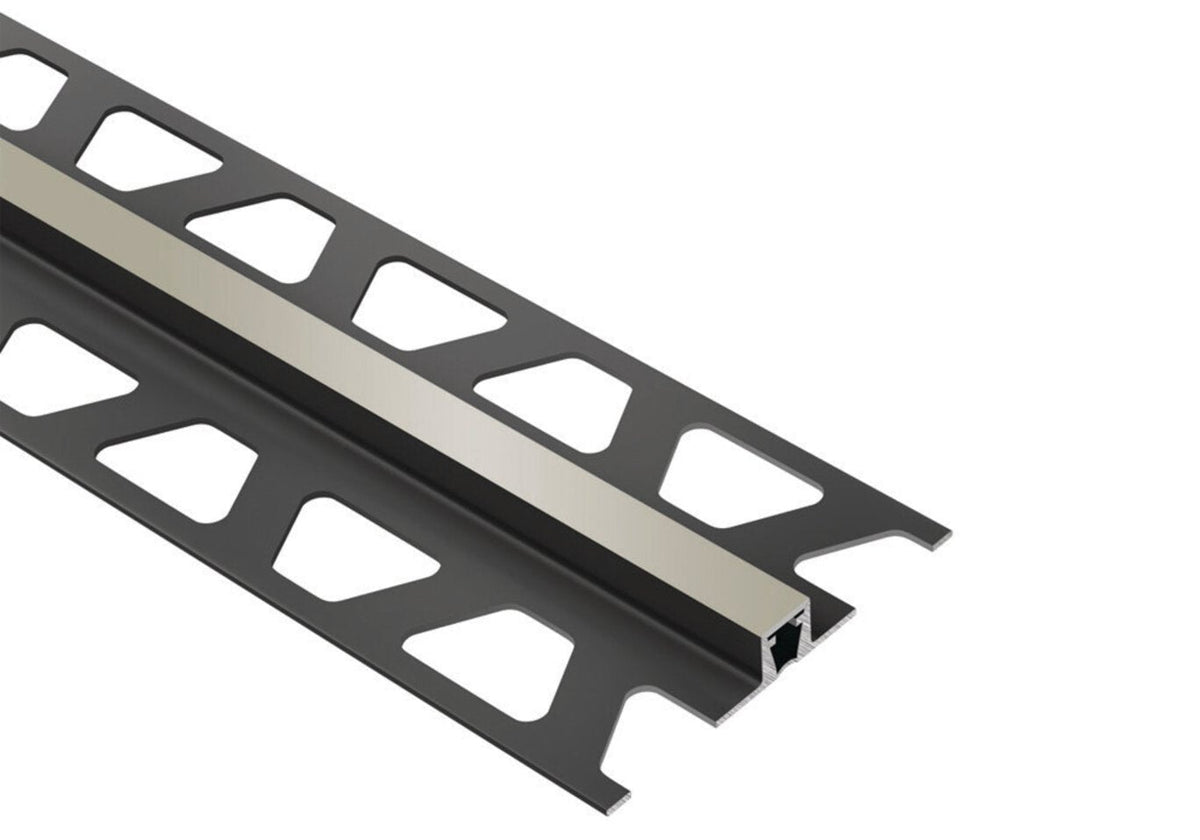

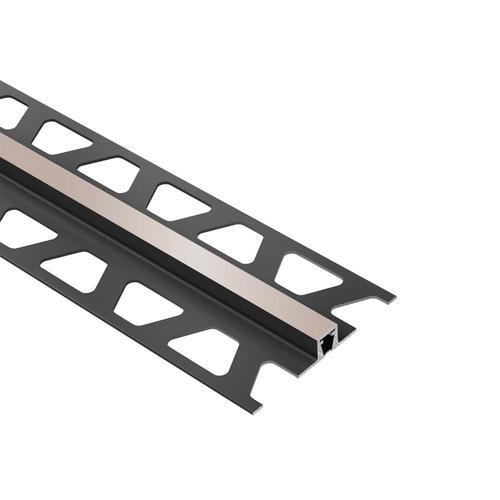

DILEX-BWB Stone Grey PVC Tile Movement/Edge Trim

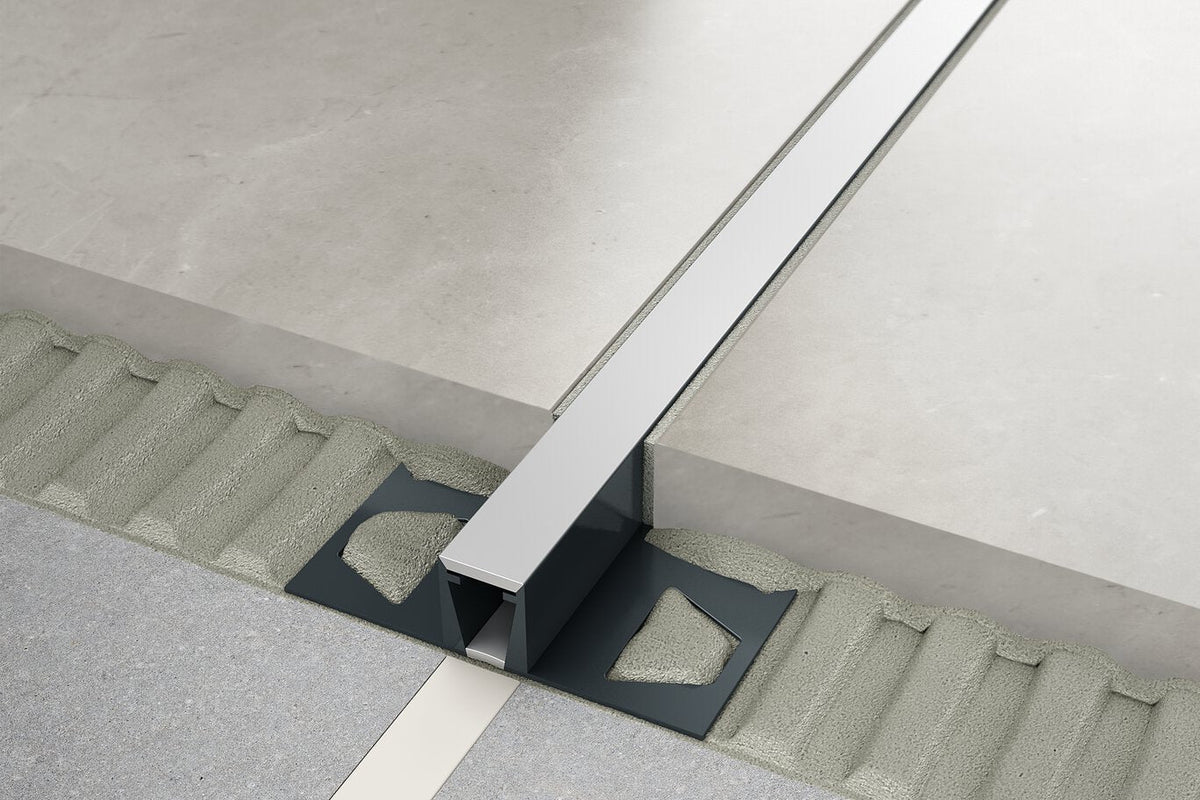

The Schluter DILEX-BWB is a PVC surface joint profile designed to absorb movement in large tiled areas while providing a clean, finished joint. With a 3/8 in (10 mm) movement zone, it eliminates the need for caulking and helps prevent tile cracking and delamination.
Key Features:
- Movement Control: 3/8 in (10 mm) movement zone relieves stress across tiled fields
- Durable PVC Construction: Designed for residential to medium-duty commercial spaces subject to light mechanical loads
- Clean Finish: Integrates into tile assemblies to replace caulked joints
- Long Length Coverage: 98.5 in profile ideal for larger runs and fewer seams
- Easy Integration: Perforated anchoring legs bond securely in thin-set mortar
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter DILEX-BWB |
| Material | PVC |
| Color/Finish | Stone Grey |

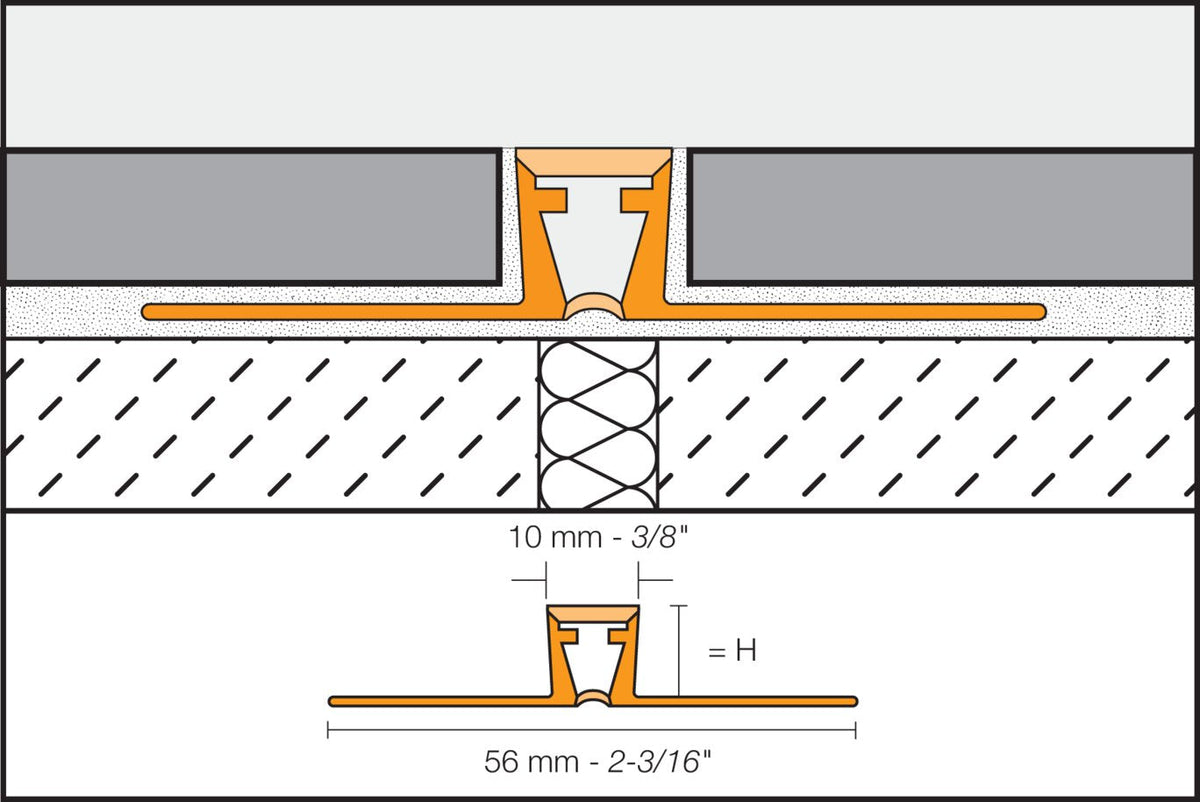

| Movement zone width | 3/8 in (10 mm) |
| Piece length | 98.5 in |
| Application | Surface and expansion joints in tiled areas; residential to medium-duty commercial; light mechanical loads |
| Function | Allows movement; eliminates need for caulking; helps prevent tile cracking and delamination |
Frequently Asked Questions (FAQ):
Q: What is the purpose of DILEX-BWB?
A: It creates a movement joint within tiled surfaces to relieve stress and help prevent cracking and delamination.
Q: Do I still need to caulk the joint?
A: No—DILEX-BWB eliminates the need for caulking at the movement joint.
Q: Where can it be used?
A: Suitable for residential to medium-duty commercial applications, such as offices and stores, where light mechanical loads occur.
Q: What size movement zone does it have?
A: It features a 3/8 in (10 mm) wide movement zone.
Q: What is the length of this piece?
A: The profile length is 98.5 inches.
A Sleek Joint That Lets Your Floors Breathe
DILEX-BWB draws a precise line that feels intentional—an architectural gesture that keeps expansive tile fields calm and pristine. The slim 3/8-inch movement zone becomes a refined detail rather than an afterthought, replacing messy caulk with a tailored finish. Run it through long corridors or open-plan kitchens to articulate the geometry and protect your surfaces. It’s a quiet essential for luxurious, long-lasting tile work.
Protect your tile installation and achieve a crisp, professional joint—choose DILEX-BWB today.
