Details

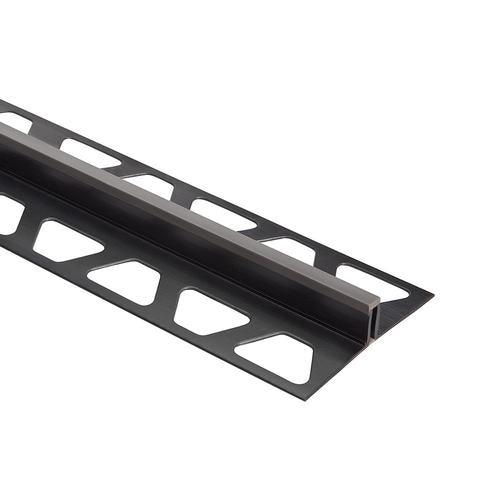

DILEX-BWS Dark Anthracite PVC Tile Movement Joint Trim

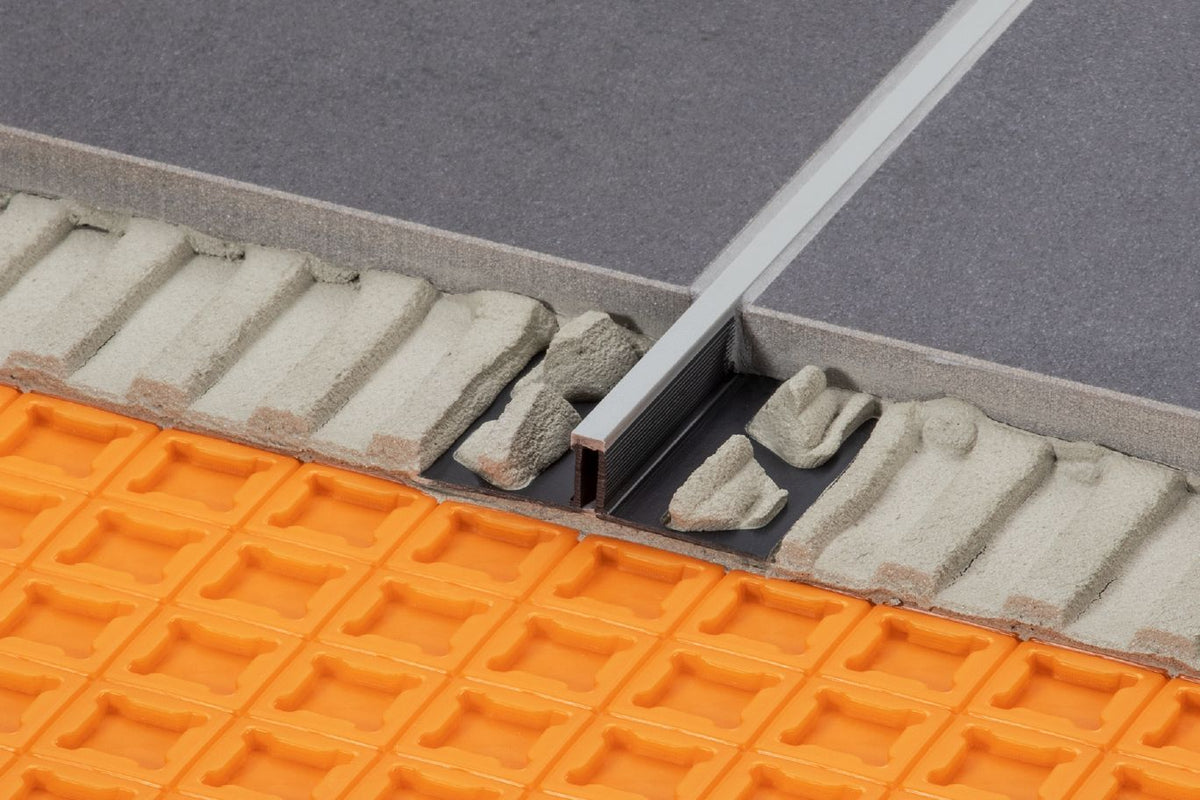

Schluter DILEX-BWS is a PVC surface movement joint profile designed to relieve stress in tiled floors. The 3/16-in (5 mm) movement zone eliminates the need for caulking and helps prevent tile cracking and delamination in residential to medium-duty commercial spaces.
Key Features:
- Stress-Relief Movement Joint: 3/16-in (5 mm) zone allows controlled movement to prevent cracking and debonding
- Durable PVC Construction: Rigid side sections with CPE movement zone for long-lasting performance
- Fast, Clean Installation: Integrates with thin-set during tile setting; no caulk required
- Color-Matched Aesthetics: Available in multiple colors to coordinate with grout; shown in Dark Anthracite
- Large-Area Tiling Support: Suitable for residential to medium-duty commercial floors with light mechanical loads
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Product type | Surface and expansion movement joint profile for tile |
| Model | DILEX-BWS |
| Material | PVC with CPE movement zone |

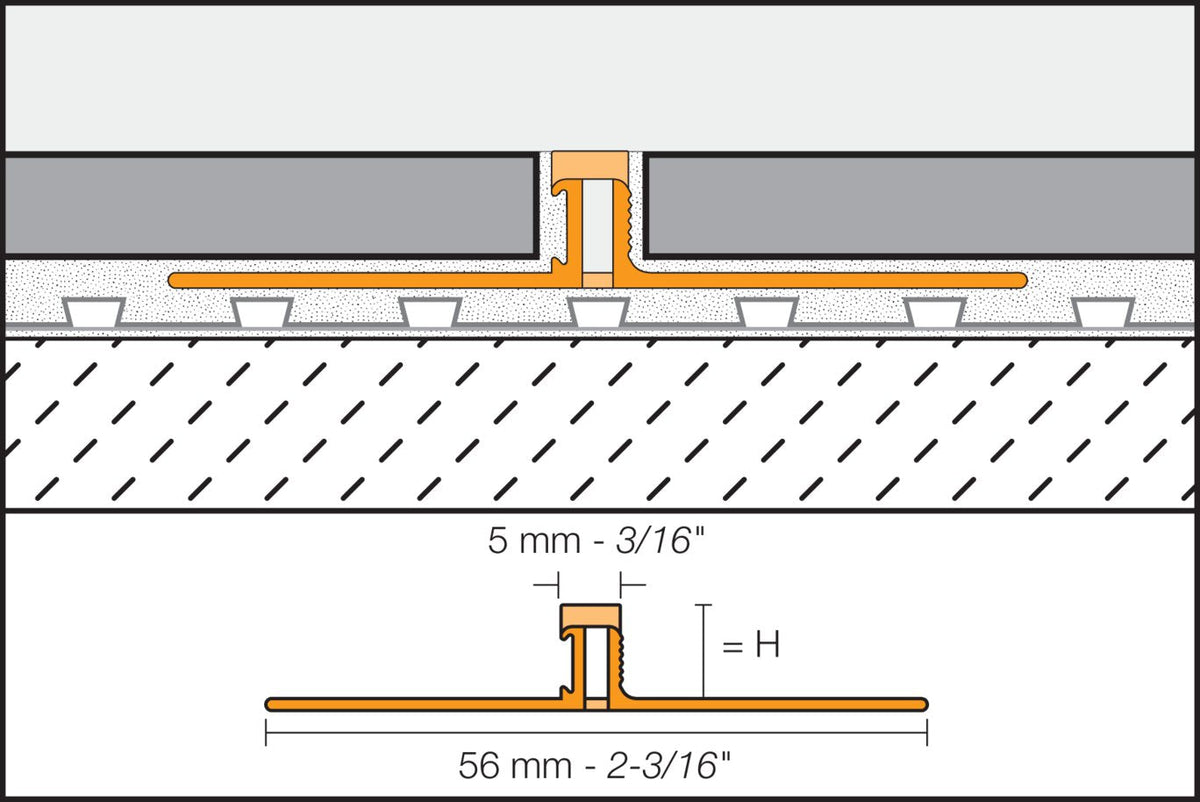

| Movement zone width | 3/16 in (5 mm) |
| Piece length | 98.5 in (2.5 m) |
| Visible width overall | 2-3/16 in (56 mm) overall profile width (typical) |
Frequently Asked Questions (FAQ):
Q: What tile thicknesses are compatible?
A: DILEX-BWS is offered in multiple heights (H) to match common tile thicknesses; select the profile height that aligns with your tile.
Q: Does it replace caulking at movement joints?
A: Yes, the built-in 3/16-in movement zone is designed to eliminate the need for caulking at those joints.
Q: Where can it be used?
A: Use in interior tiled floors and other areas requiring field movement joints—residential to medium-duty commercial subject to light mechanical loads.
Q: How long is each piece?
A: Each profile is 98.5 inches (2.5 m) in length.
Q: Is the movement strip color-matched?
A: Yes, the CPE movement zone is available in various colors to coordinate with grout; this variant is Dark Anthracite.
Seamless Architecture for Tiled Floors
DILEX-BWS introduces a refined, linear accent that subtly articulates expansive tiled surfaces. The slim 3/16-inch movement channel reads as a considered detail while preserving the integrity of your floor. Pair Dark Anthracite with cool stone or concrete looks to create a sophisticated grid that feels both tailored and architectural. It’s the quiet essential that keeps luxury spaces flawless over time.
Choose DILEX-BWS to protect your tile installation and achieve a clean, grout-matched movement joint that lasts.
