Schluter Systems DILEX-BWS 0.313-in W x 98.5-in L Cream PVC Tile Edge Trim
Published price — same for everyone
In stock
SKU 1001049940
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

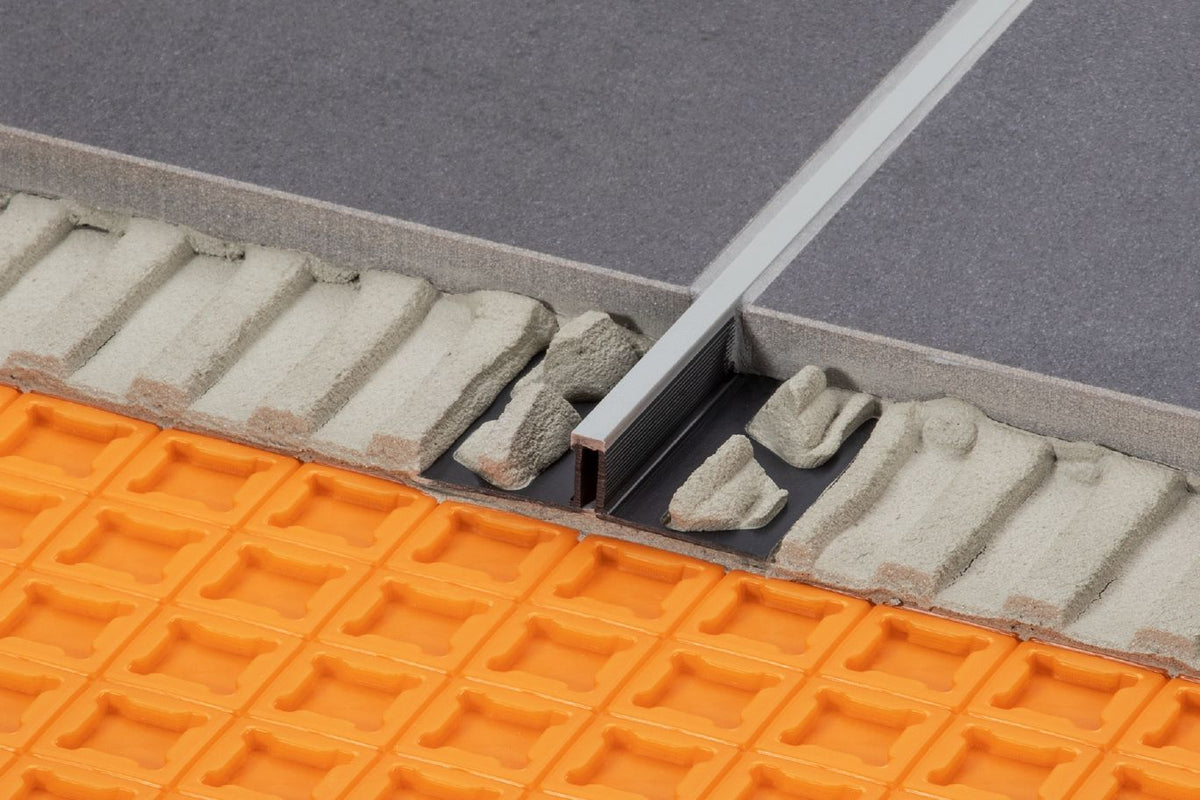

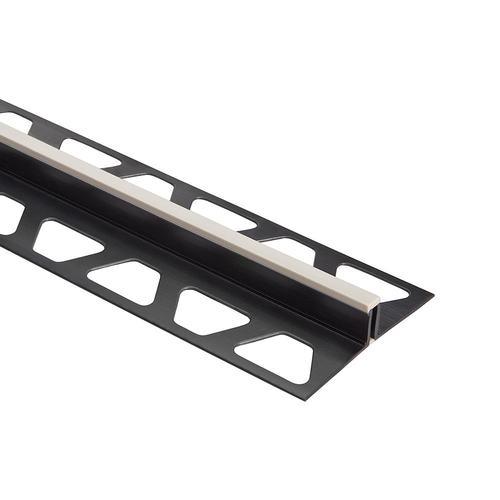

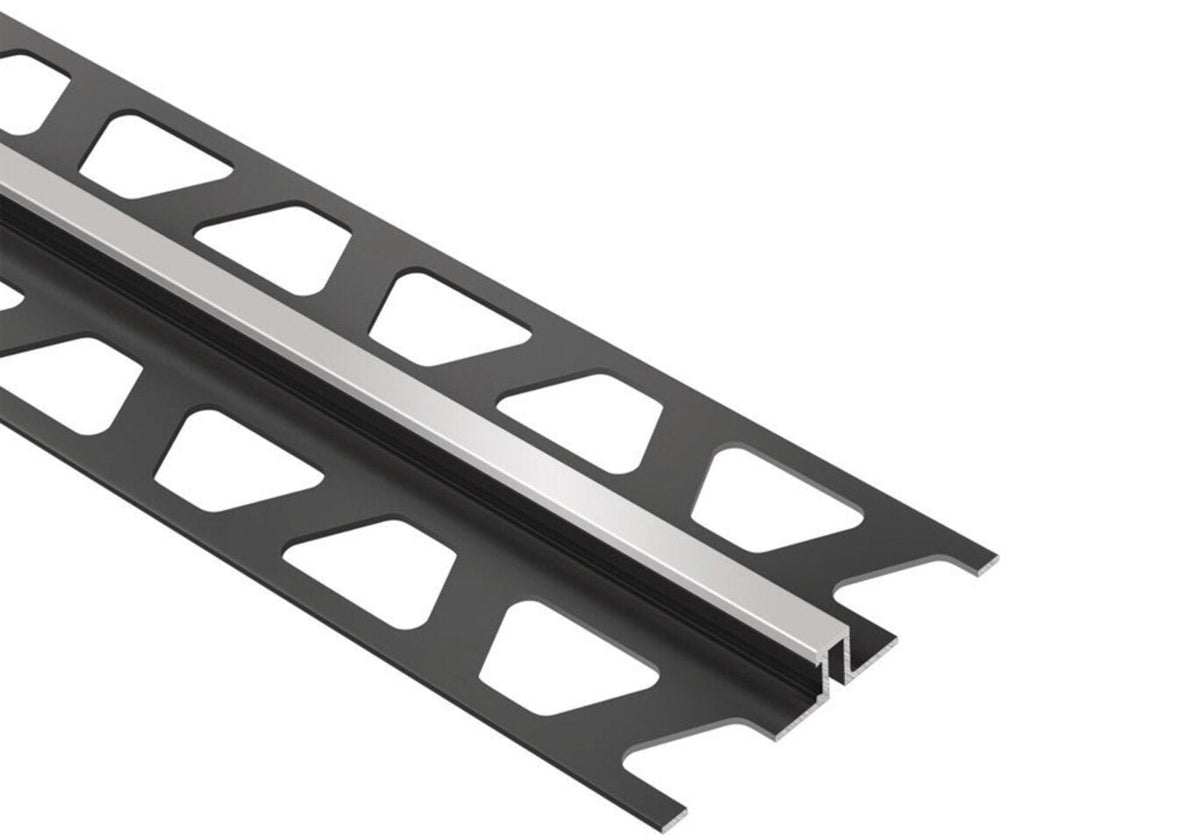

DILEX-BWS PVC Surface & Expansion Joint Tile Trim
A PVC movement joint profile that integrates into tile installations to absorb stress and prevent cracking. The 3/16-inch (5 mm) movement zone eliminates the need for caulking, ideal for residential to medium-duty commercial floors.
Key Features:
- Stress-Relief Movement Joint: 3/16 in (5 mm) CPE zone accommodates tile expansion and contraction
- Crack Prevention: Helps prevent tile cracking and delamination in large tiled areas
- Low-Maintenance: Eliminates the need for caulking for clean, durable joints
- Versatile Use: Suitable for residential to medium-duty commercial applications with light mechanical loads
- Color Options: Movement zone available in colors to match grout for a cohesive look
Please check the Product Data Sheet Here

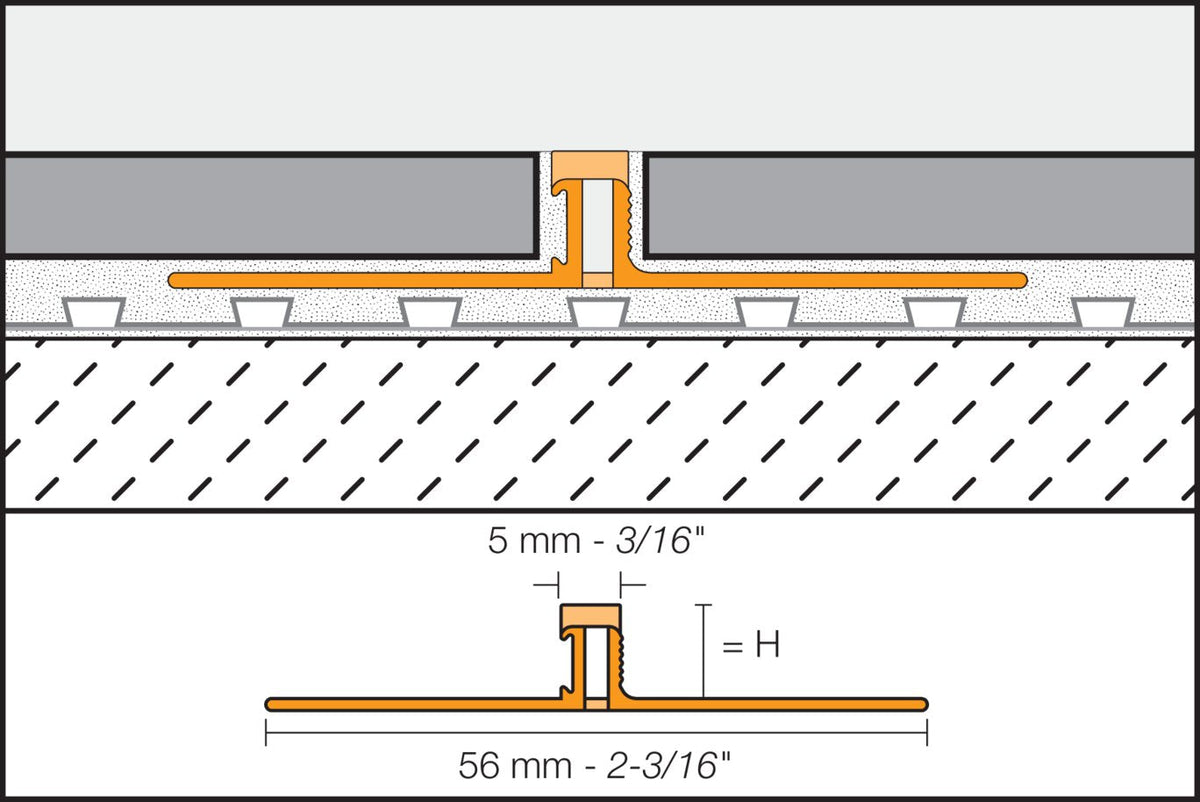

Specifications Table:
| Specification | Details |
|---|---|
| Profile type | PVC surface movement joint profile |
| Movement zone width | 3/16 inch (5 mm) |
| Length | 98.5 inches |
| Visible width | Approx. 0.313 inch (from title) |
| Applications | Residential to medium-duty commercial; light mechanical loads |
| Features | Eliminates need for caulking; prevents cracking and delamination; available in colors to match grout |
Frequently Asked Questions (FAQ):
Q: What is the purpose of DILEX-BWS?
A: It is a surface movement joint profile that allows limited movement in tile fields to reduce stress and prevent cracking and delamination.
Q: Where can it be used?
A: Use in residential and medium-duty commercial areas subject to light mechanical loads; integrate into large tiled floors at specified intervals.
Q: Does it require caulking?
A: No—its integrated movement zone eliminates the need for caulking.
Q: What is the width of the movement zone?
A: 3/16 inch (5 mm).
Q: Are color options available?
A: Yes, the CPE movement zone is available in multiple colors to coordinate with grout.
Seamless Movement, Effortless Refinement
This profile brings a sophisticated, tailored line to expansive tile surfaces while quietly managing movement beneath the scene. The refined strip and integrated joint maintain crisp grout lines and a pristine finish. Pair it with large-format stone or porcelain to create rhythm across the floor without visual interruption. It’s a discreet essential that elevates the space and ensures lasting luxury.
Add DILEX-BWS to your tile plan to protect against cracks and achieve a clean, maintenance-free finish.
