Schluter Systems DILEX-KSN 0.375-in W x 98.5-in L Stone Grey Steel Tile Edge Trim
Published price — same for everyone
In stock
SKU 1001049952
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

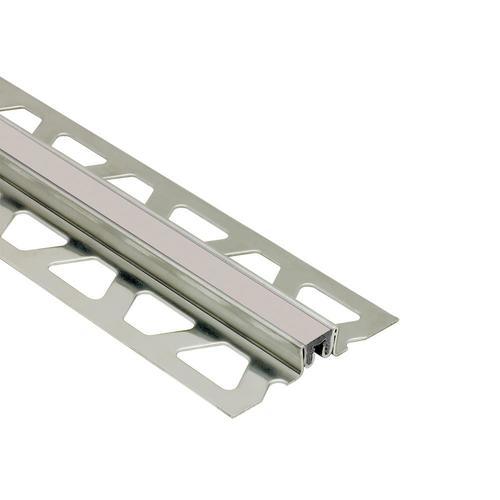

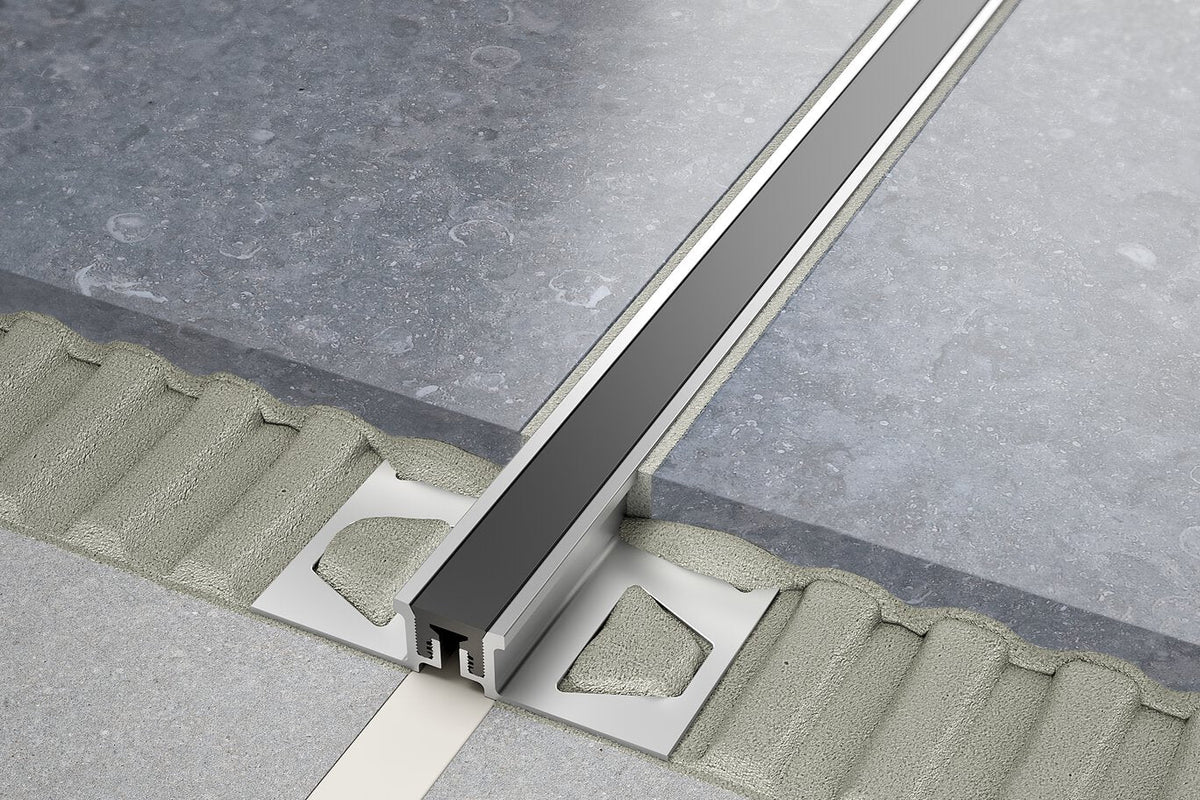

DILEX-KSN Stone Grey Steel Tile Movement Joint Trim
Heavy-duty movement joint profile with stainless steel anchoring legs and a replaceable thermoplastic rubber movement zone. Ideal for protecting tile edges and accommodating expansion in large, high-traffic installations.
Key Features:
- Movement Accommodation: 7/16 in (11 mm) soft thermoplastic rubber zone absorbs expansion and contraction to prevent cracking
- Heavy-Duty Edge Protection: Stainless steel anchoring legs safeguard tile edges in commercial traffic areas
- Maintenance-Free Design: Eliminates the need for caulking while resisting delamination
- Replaceable Insert: Central movement zone can be replaced if damaged for long-term service
- Long Length Coverage: 98.5 in profile simplifies linear runs across large tiled fields
Please check the Product Data Sheet Here

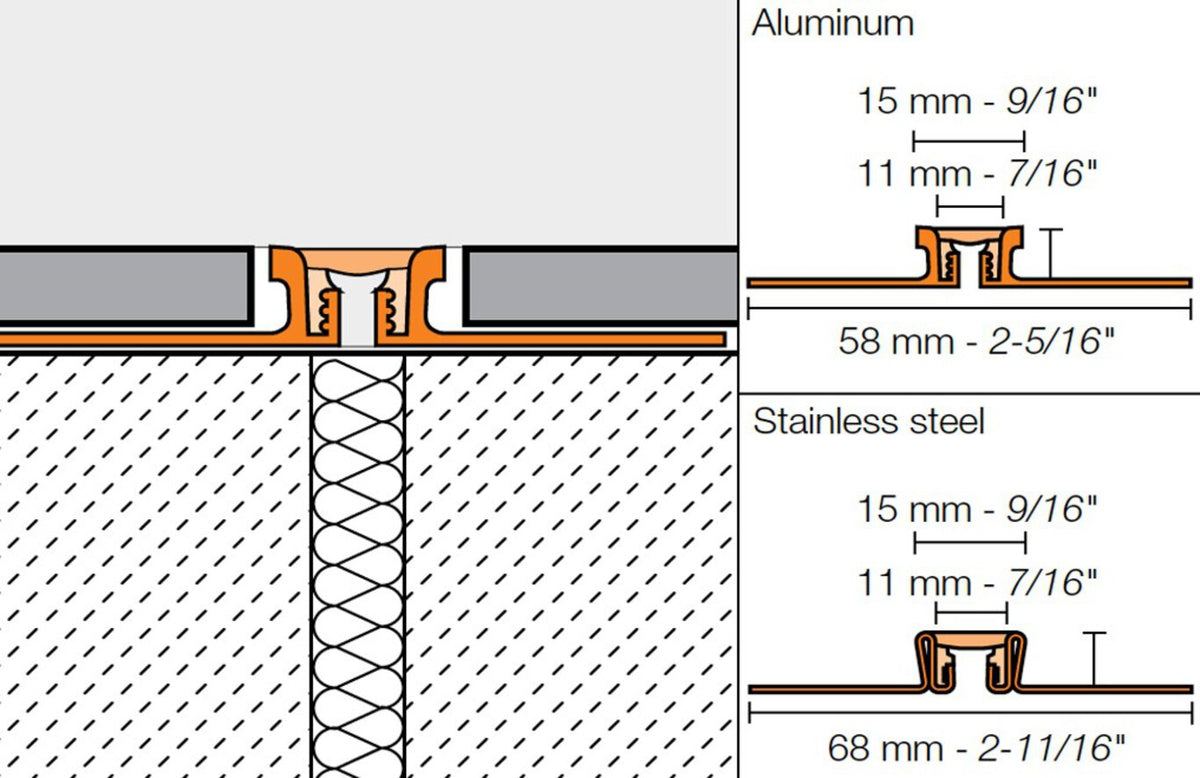

Specifications Table:
| Specification | Details |
|---|---|
| Profile name | Schluter-DILEX-KSN |
| Material | Stainless steel anchoring legs with soft thermoplastic rubber movement zone |
| Color | Stone Grey (movement zone) |
| Visible surface width | 7/16 in (11 mm) |
| Overall height (typical) | 9/16 in (15 mm) |
| Overall width (stainless steel version) | 2-11/16 in (68 mm) |
| Overall width (aluminum version) | 2-5/16 in (58 mm) |
| Length | 98.5 in |
| Function | Surface and expansion joint for tile coverings; provides edge protection and accommodates movement |
| Maintenance | Maintenance-free; no caulking required |
| Replaceable insert | Thermoplastic rubber movement zone can be replaced |
| Applications | Large tiled areas; heavy-duty commercial traffic environments |
Frequently Asked Questions (FAQ):
Q: What does the 0.375-in width refer to?
A: It refers to the nominal exposed trim width; the profile includes a 7/16 in (11 mm) movement zone that forms the visible surface.
Q: Is this profile suitable for heavy traffic areas?
A: Yes. The stainless steel anchoring legs are designed for surfaces exposed to heavy-duty commercial traffic like warehouses and shopping malls.
Q: Do I need to caulk the joint?
A: No. The integrated thermoplastic rubber movement zone eliminates the need for caulking.
Q: Can the center insert be replaced?
A: Yes, the thermoplastic rubber movement zone is replaceable if it becomes damaged.
Q: What tile thicknesses does it work with?
A: Refer to the DILEX-KSN data sheet for selection by tile thickness; both aluminum and stainless variants are available with 9/16 in (15 mm) overall height options.
Sleek Strength for Seamless Stone Floors
This profile draws a refined line through expansive tile fields, delivering both structure and subtlety. The stone-grey movement zone reads modern and tailored, while the stainless legs whisper industrial confidence. Run it through generous foyers or gallery-like corridors to choreograph continuity without visual clutter. It’s the quiet luxury detail that keeps large-format floors flawless.
Elevate and protect your tile installation—add DILEX-KSN to your cart for durable, maintenance-free movement control.
