Schluter Systems
Schluter Systems DILEX-KSN 0.438-in W x 98.5-in L Grout Grey PVC Tile Edge Trim
Published price — same for everyone
In stock
SKU 1001050108
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

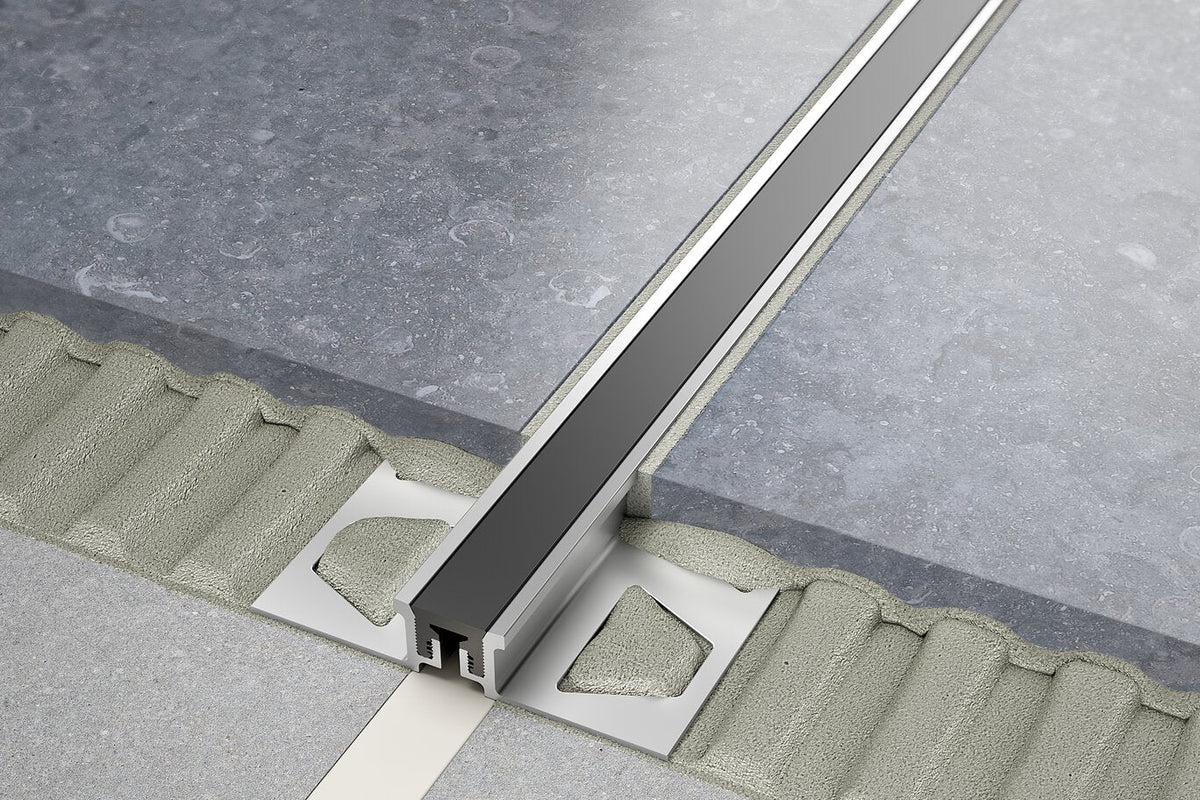

DILEX-KSN Grout Grey PVC Tile Movement/Edge Trim
Schluter DILEX-KSN is a movement joint profile with trapezoid-perforated anchoring legs and a 7/16-in soft thermoplastic rubber movement zone that also acts as the visible surface. It separates tiled fields, relieves stress, and protects tile edges in demanding installations.
Key Features:
- Movement Accommodation: 7/16-in (11 mm) soft thermoplastic rubber zone absorbs expansion and contraction to prevent cracking.
- Durable Construction: Anchoring legs in stainless steel or aluminum provide secure edge protection in high-traffic areas.
- Maintenance-Free: Eliminates the need for caulking while resisting cracking and delamination.
- Commercial-Grade Protection: Suitable for warehouses, production facilities, and shopping malls.
- Replaceable Insert: Thermoplastic movement zone can be replaced if damaged.
Please check the Product Data Sheet Here

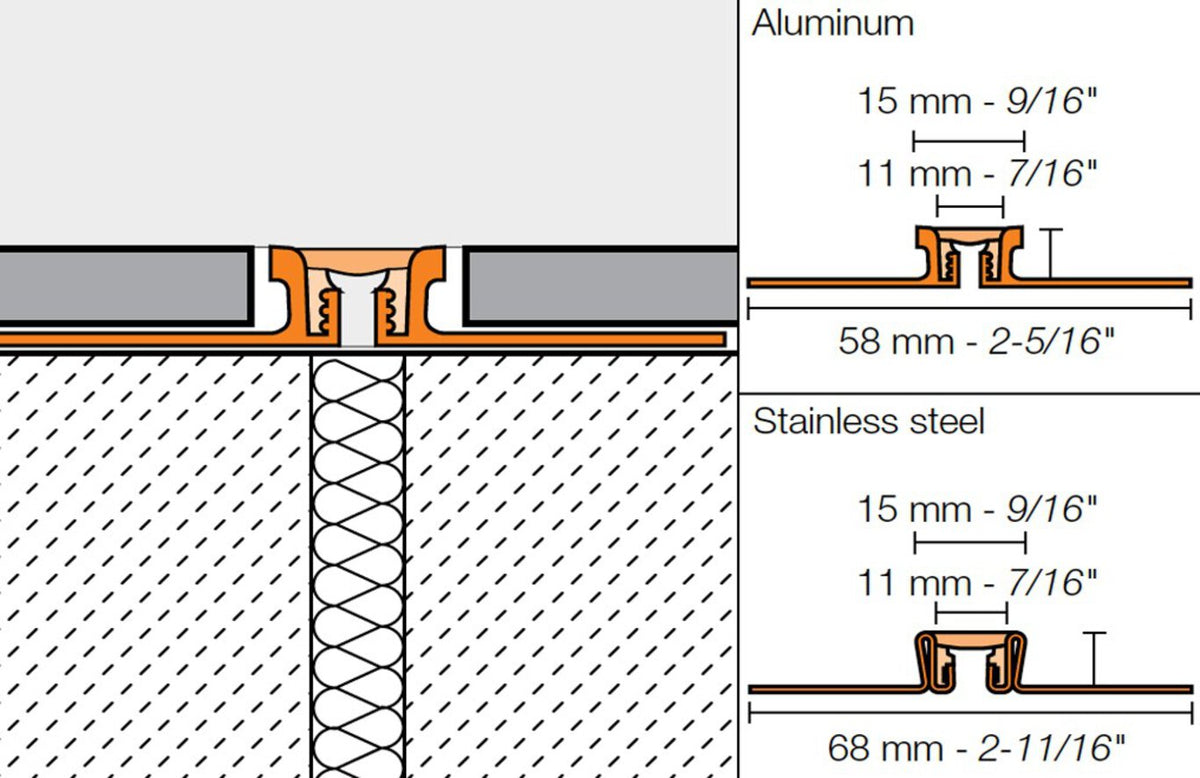

Specifications Table:
| Specification | Details |
|---|---|
| Model | DILEX-KSN |
| Profile type | Movement joint profile; surface and expansion joint |
| Movement zone width | 11 mm (7/16 in) |
| Overall visible width (aluminum) | 58 mm (2-5/16 in) |
| Overall visible width (stainless steel) | 68 mm (2-11/16 in) |
| Top surface width | 15 mm (9/16 in) |
| Anchoring legs material options | Stainless steel or aluminum |
| Center insert material | Soft thermoplastic rubber; replaceable |
| Key benefits | Allows movement, reduces stress, prevents cracking and delamination; eliminates caulking; maintenance-free |
| Recommended use | Large tiled areas; heavy-duty commercial traffic such as warehouses, production facilities, shopping malls |
| Color (variant) | Grout Grey |
| Dimensions (variant) | 0.438 in W x 98.5 in L |
Frequently Asked Questions (FAQ):
Q: What tile applications is DILEX-KSN suited for?
A: It’s designed for movement joints in large tiled areas, providing edge protection and stress relief in both commercial and residential floors.
Q: Is the center movement insert replaceable?
A: Yes, the soft thermoplastic rubber movement zone can be replaced if it becomes damaged.
Q: Does this profile require caulking?
A: No. The built-in movement zone eliminates the need for caulking at the joint.
Q: What materials are the anchoring legs made of?
A: They are available in stainless steel or aluminum to suit application requirements.
Q: What is the width of the movement zone?
A: 11 mm (7/16 inch).
Seamless Strength for Sophisticated Surfaces
This profile delivers an elegant, linear accent while quietly managing the movement of expansive tile fields. The slim 7/16-inch insert outlines the joint with a refined, architectural band, keeping surfaces pristine under heavy use. Pair it with large-format stone or porcelain to create gallery-like continuity across rooms. It’s the discreet detail that elevates durability to a luxury finish.
Protect your tile installation with DILEX-KSN—add it to your project for long-lasting, crack-free surfaces.
