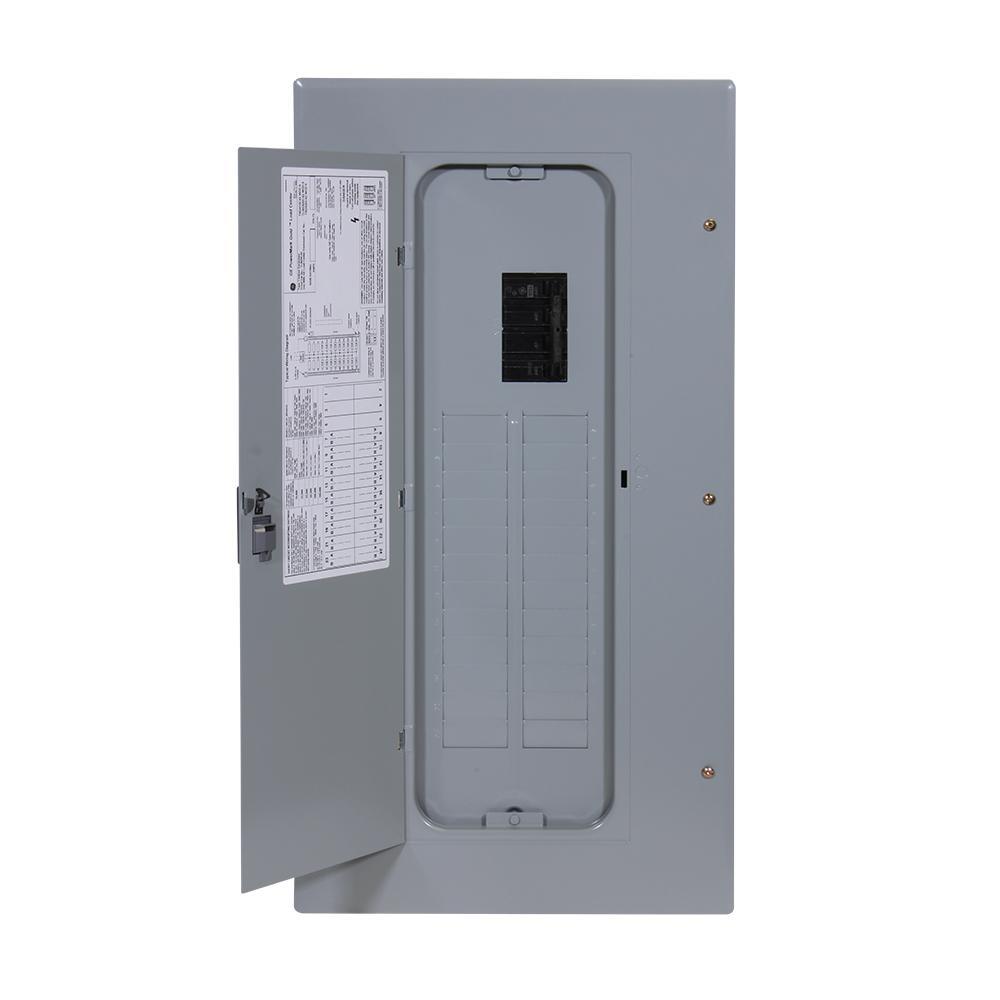

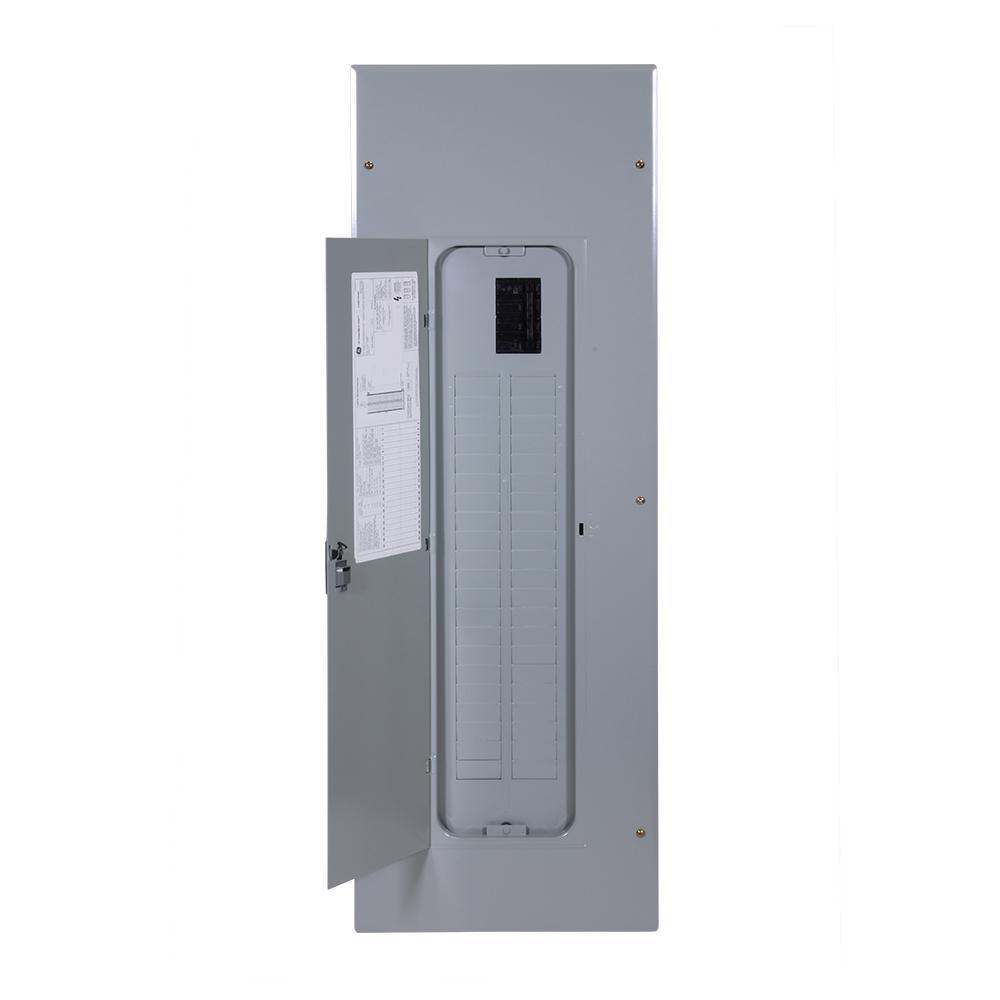

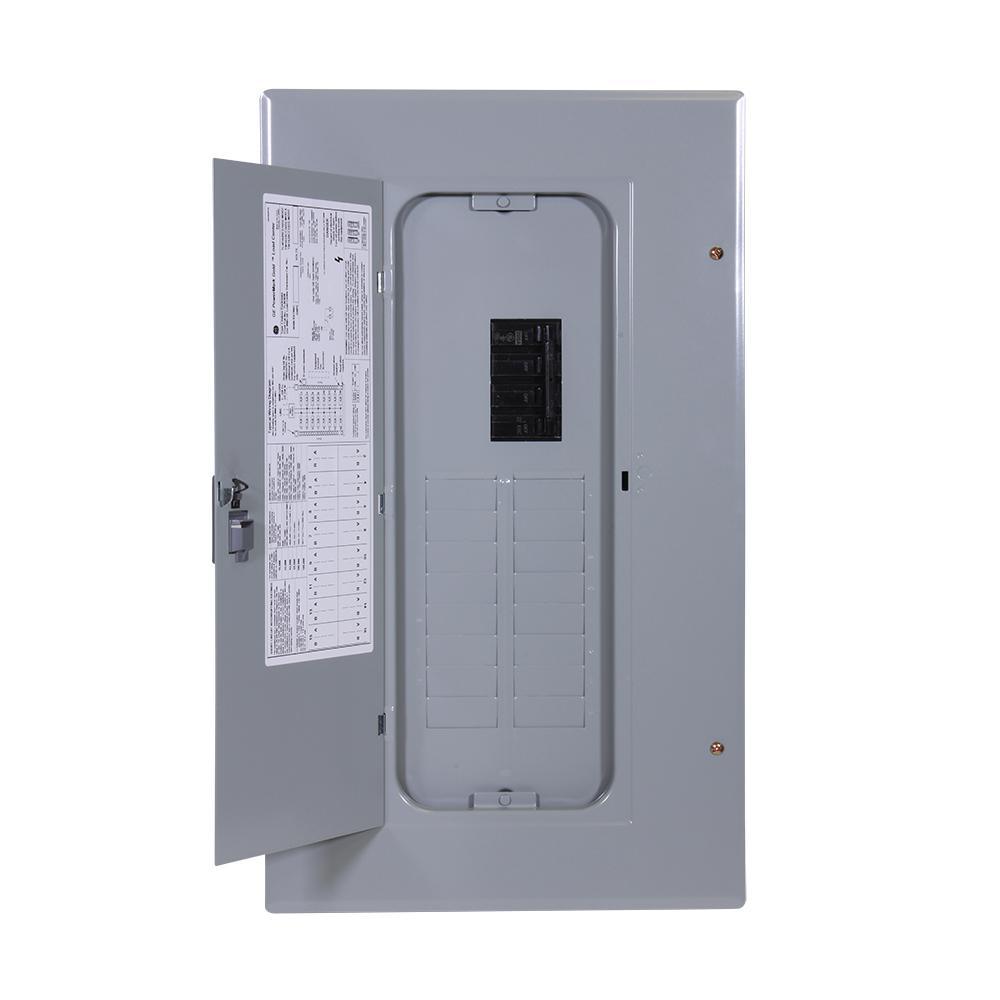

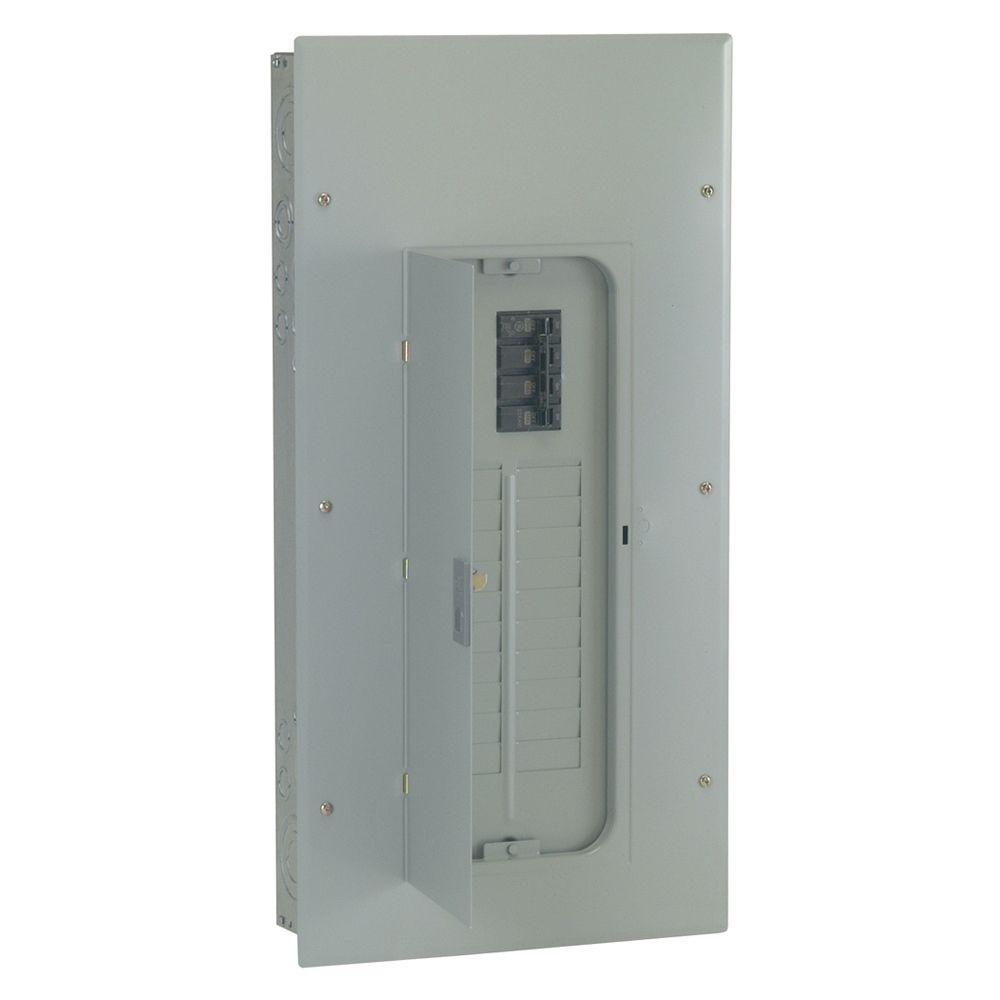

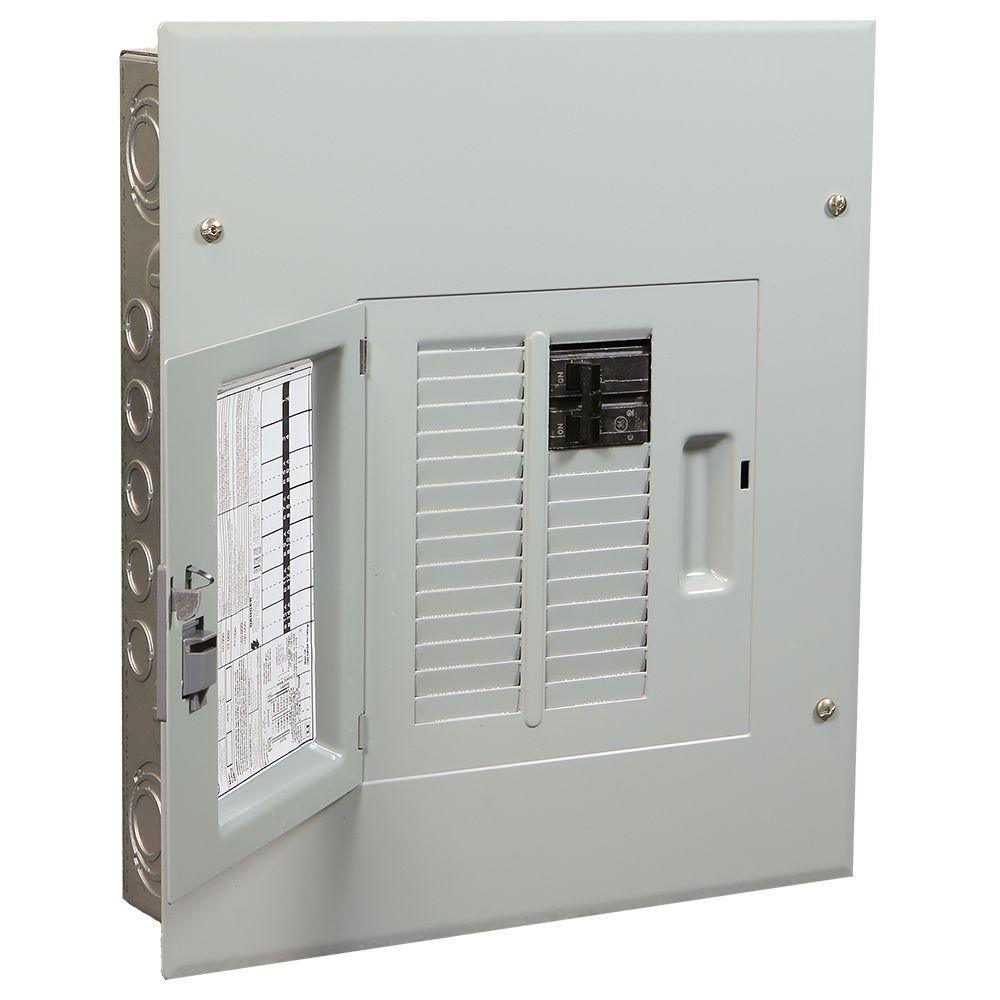

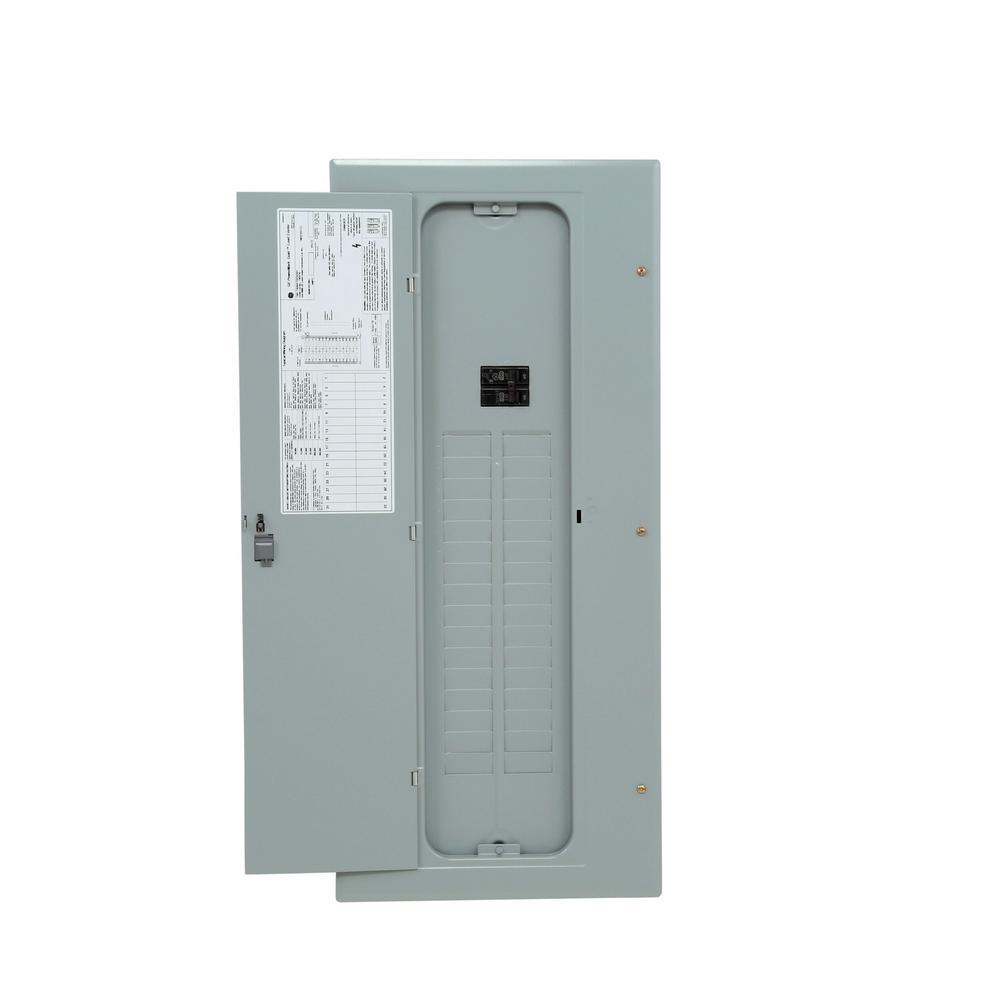

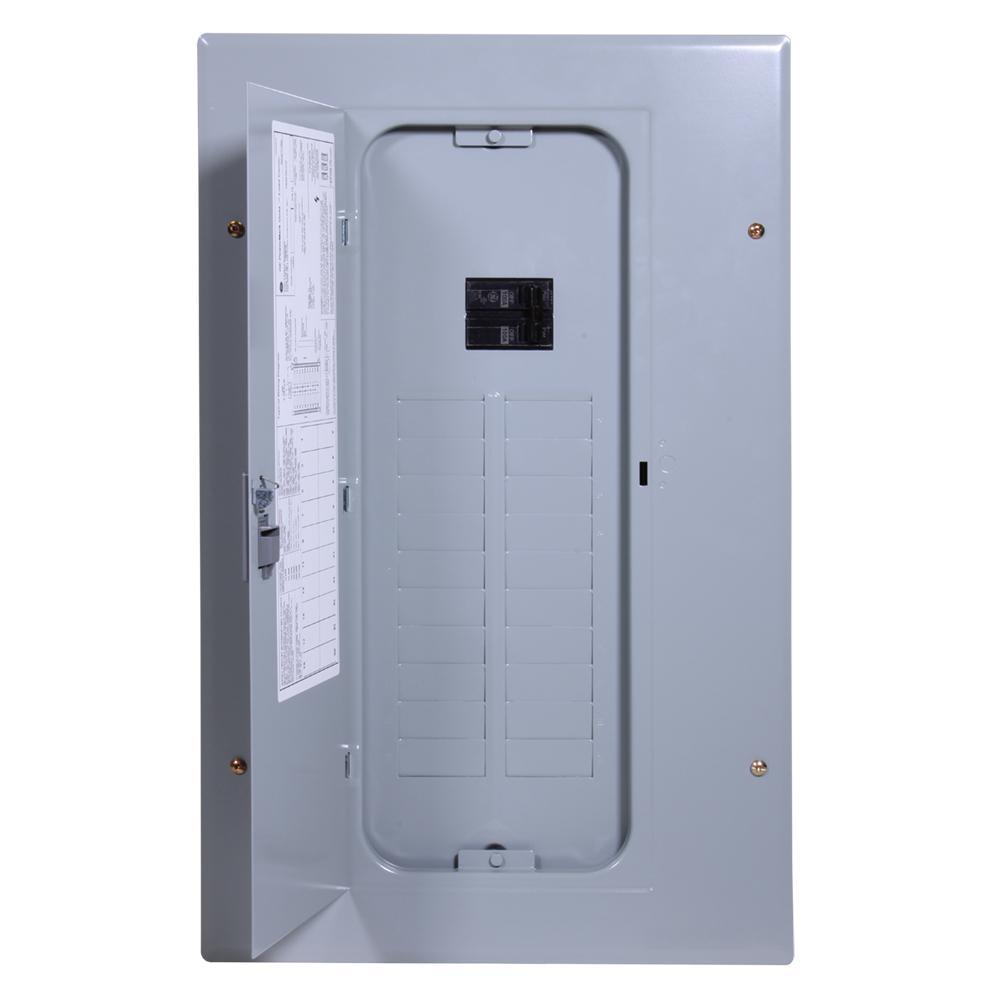

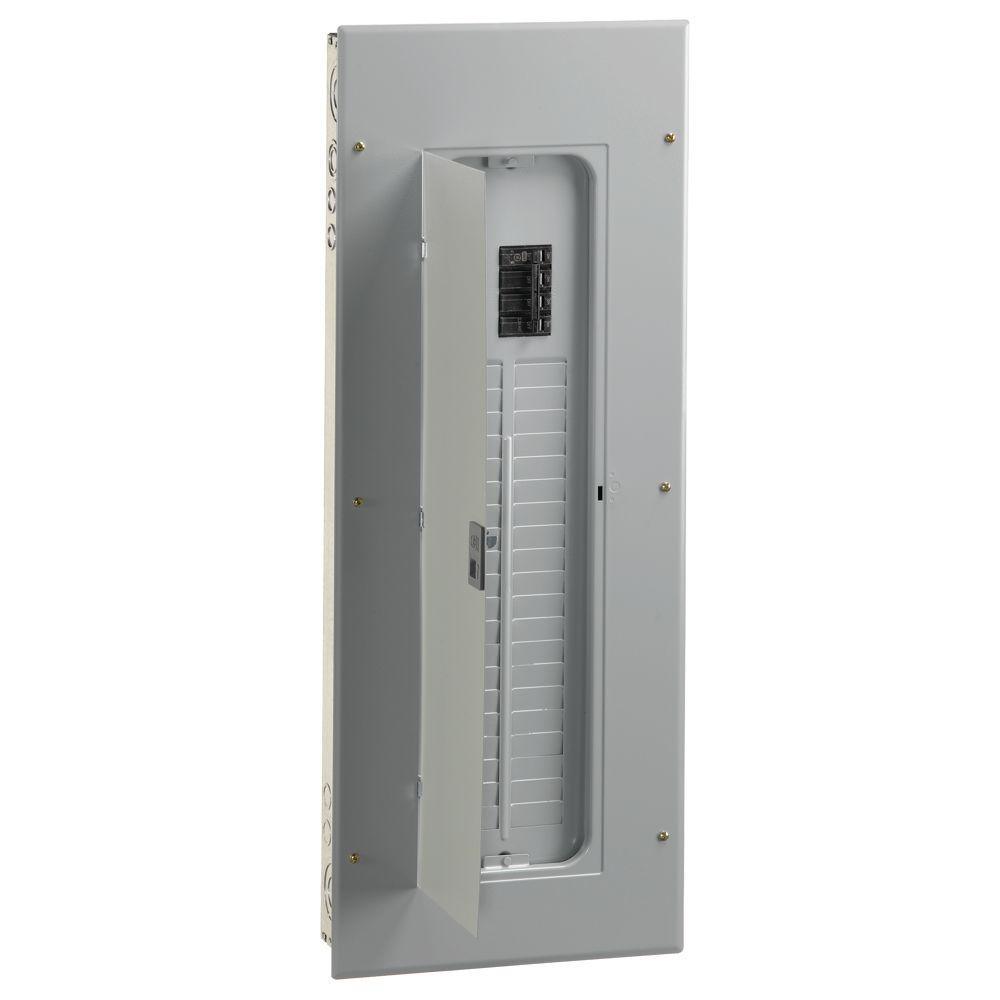

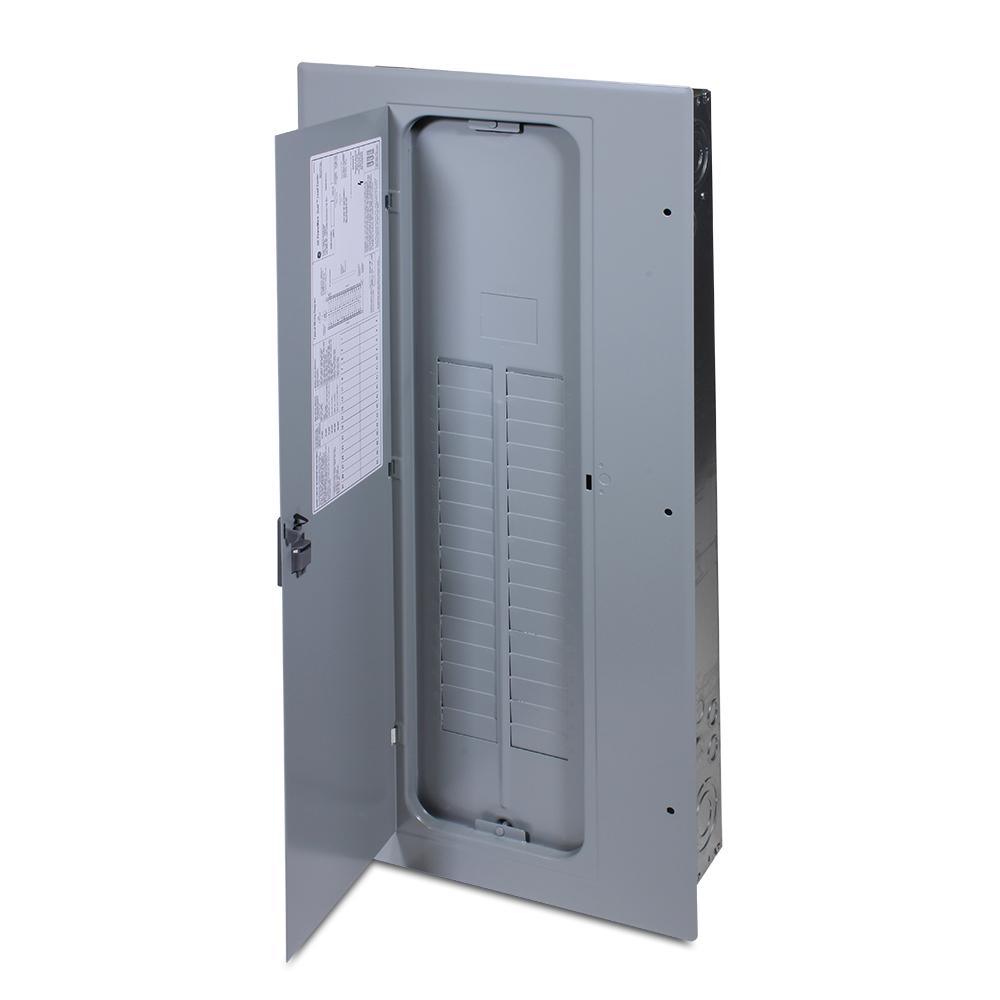

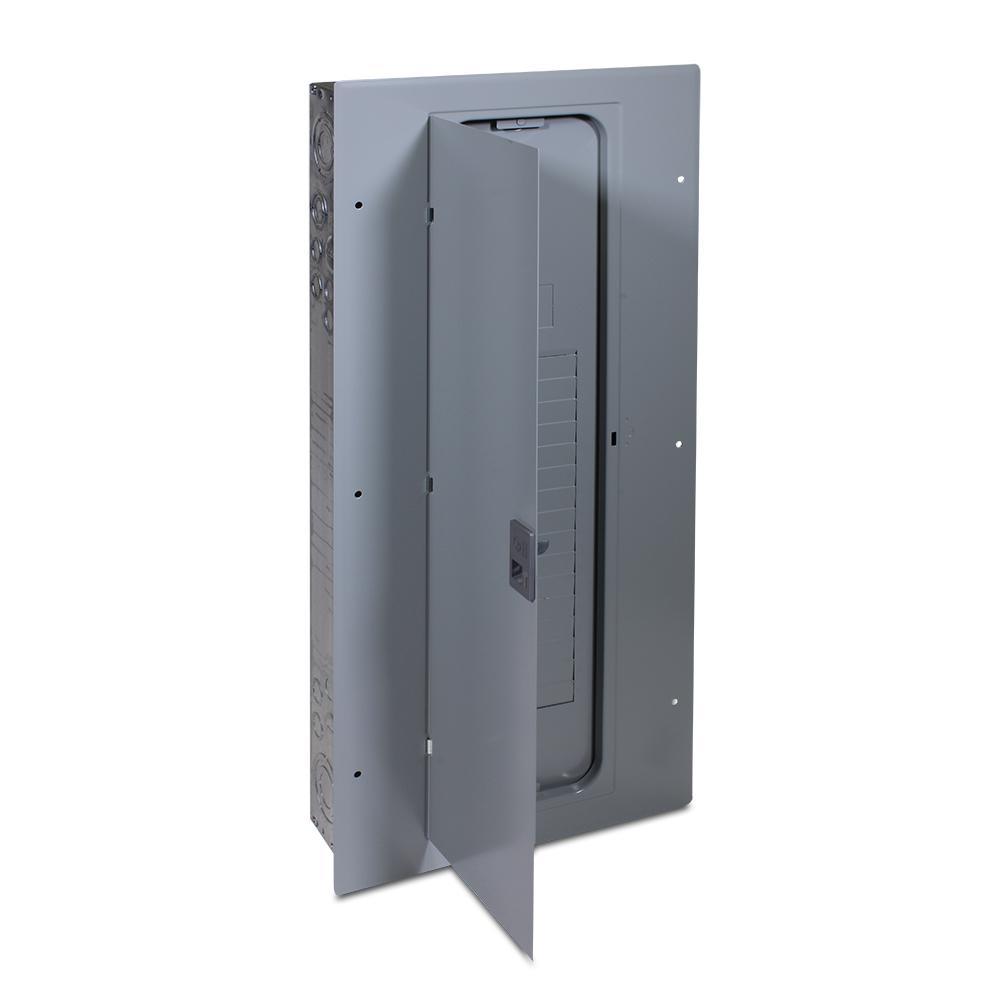

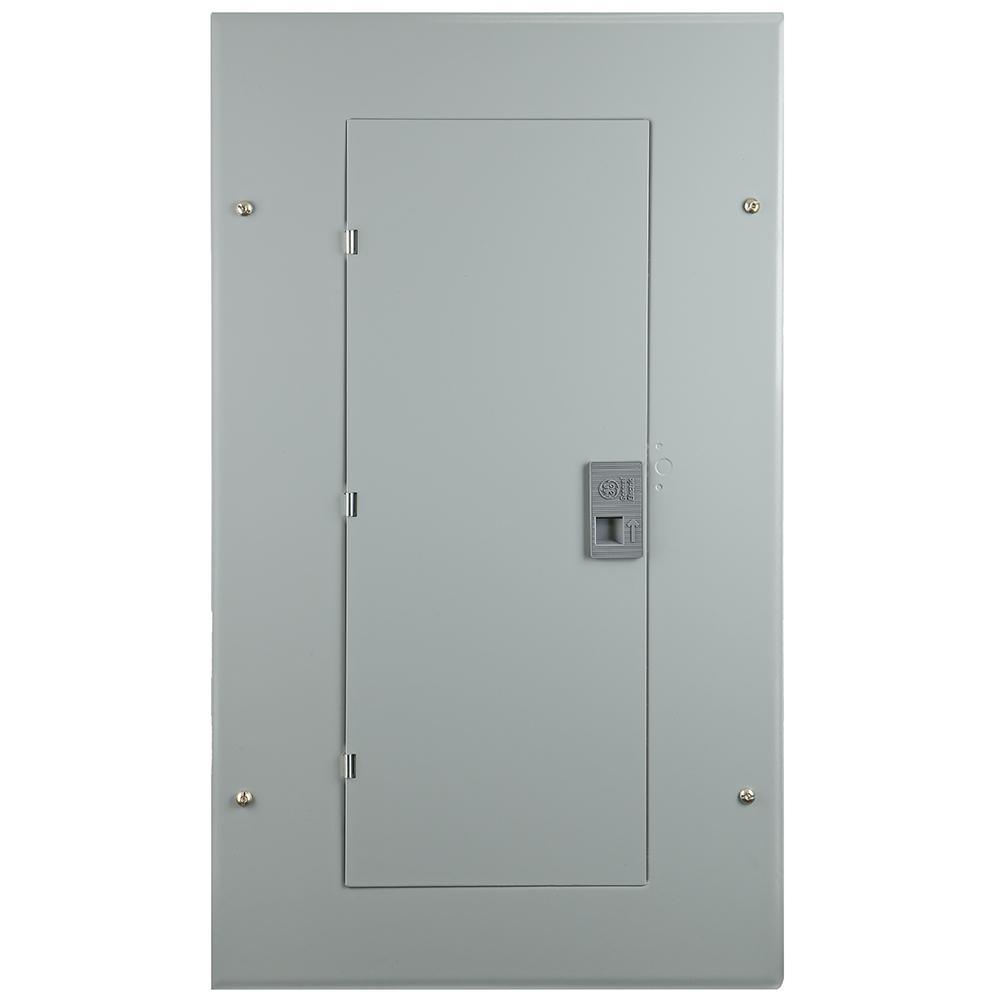

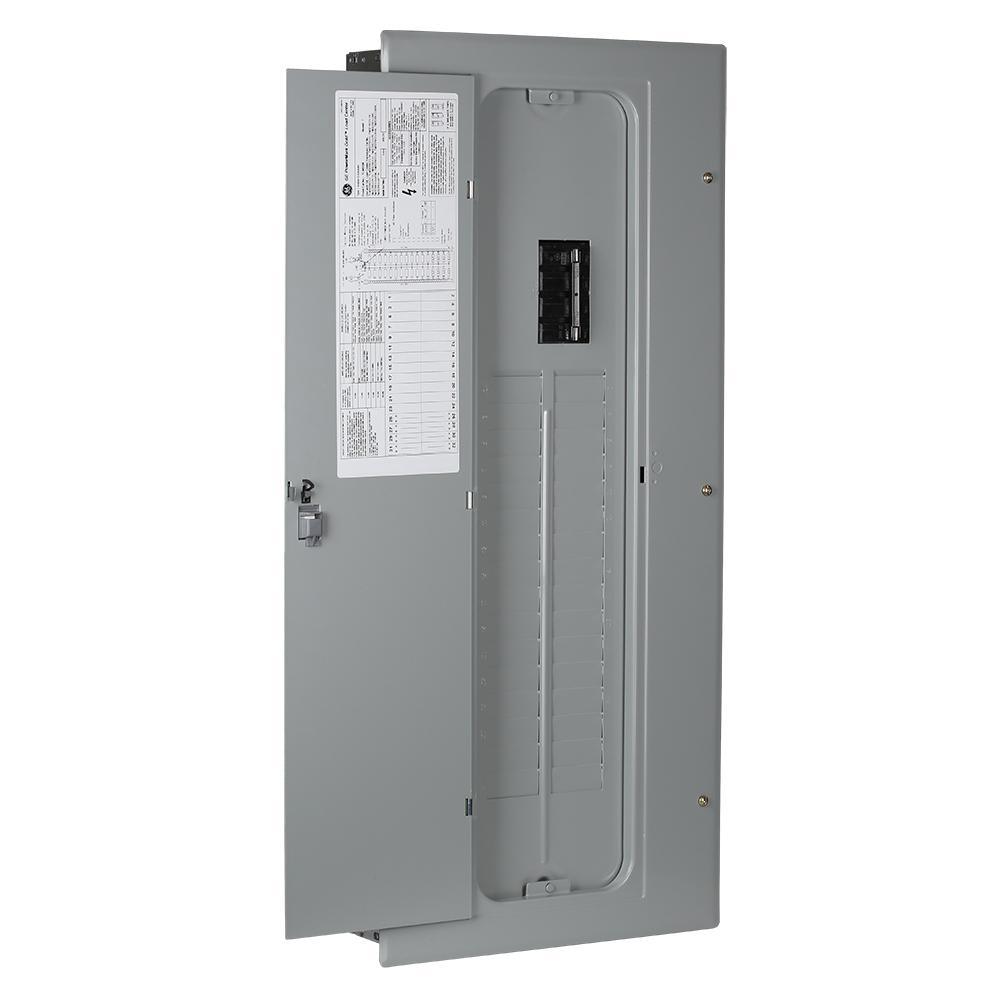

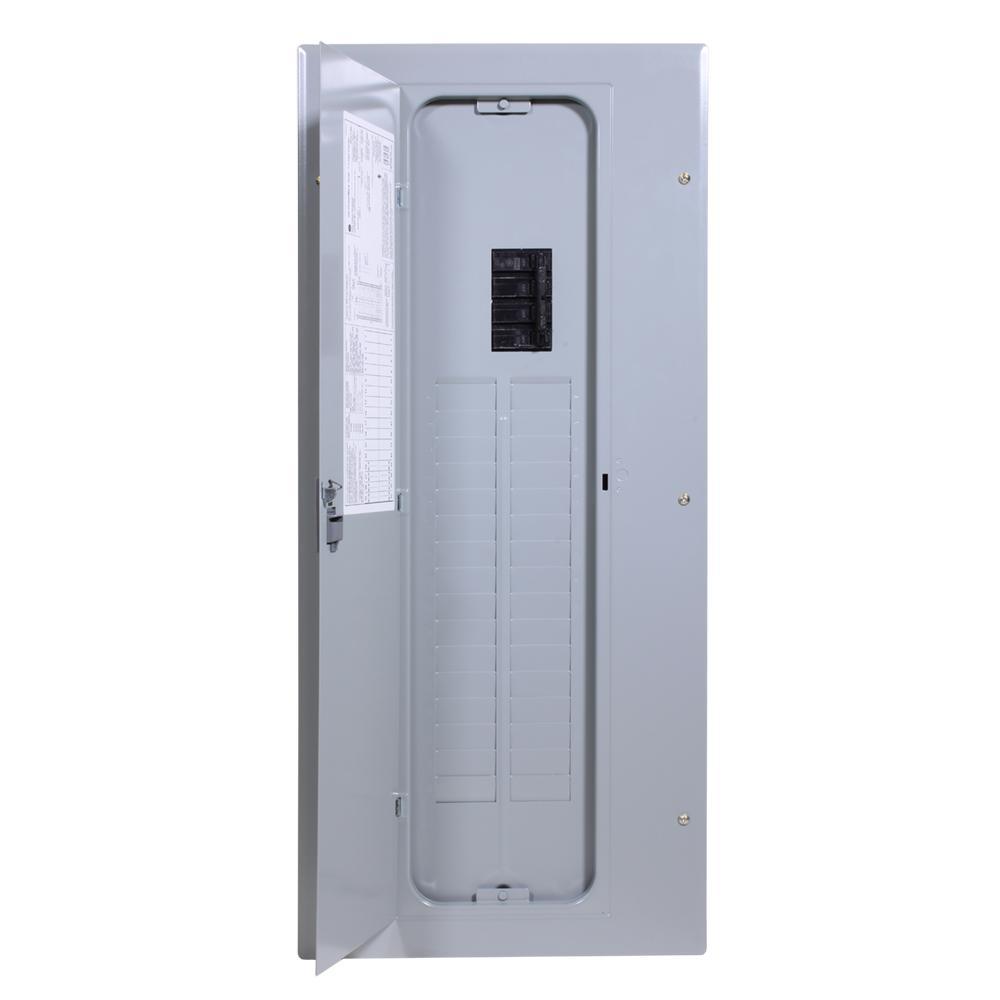

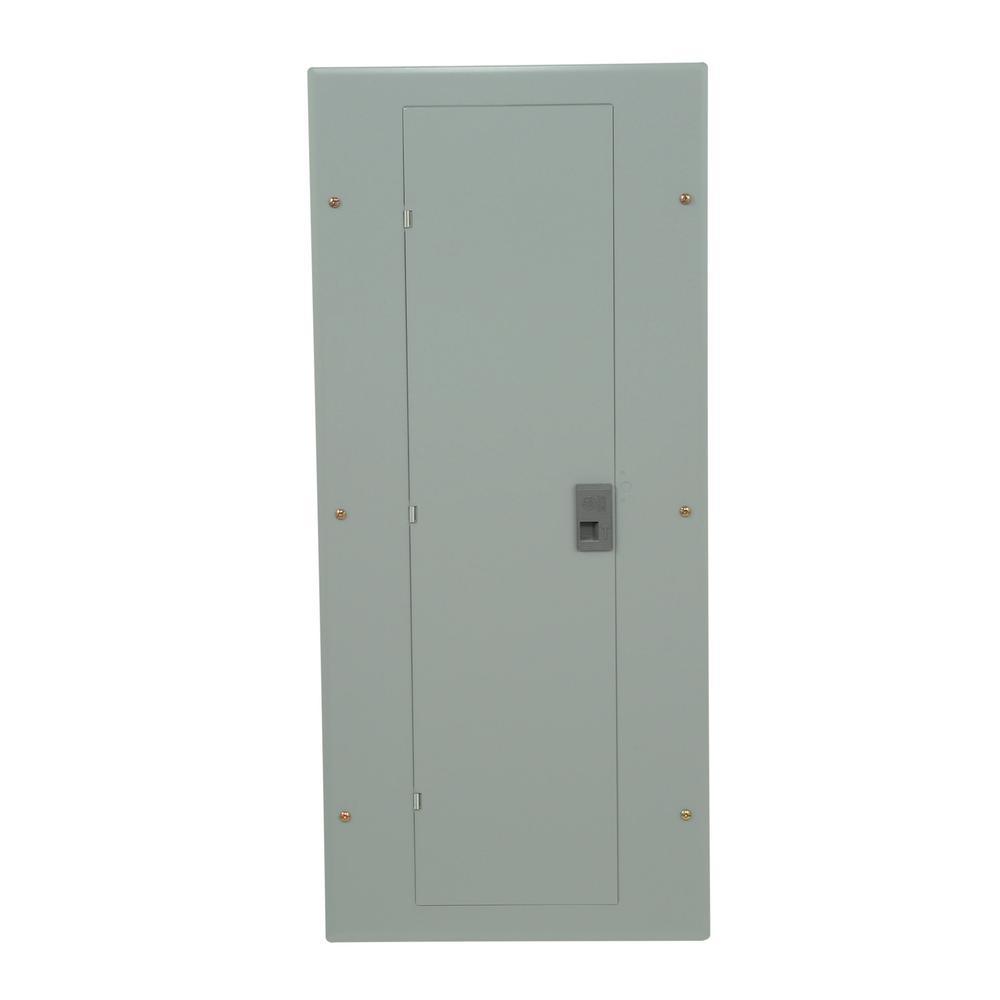

PowerMark Gold 100 Amp 32-Space 32-Circuit Indoor Main Breaker Circuit Breaker Panel
Not priced yet
In stock
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

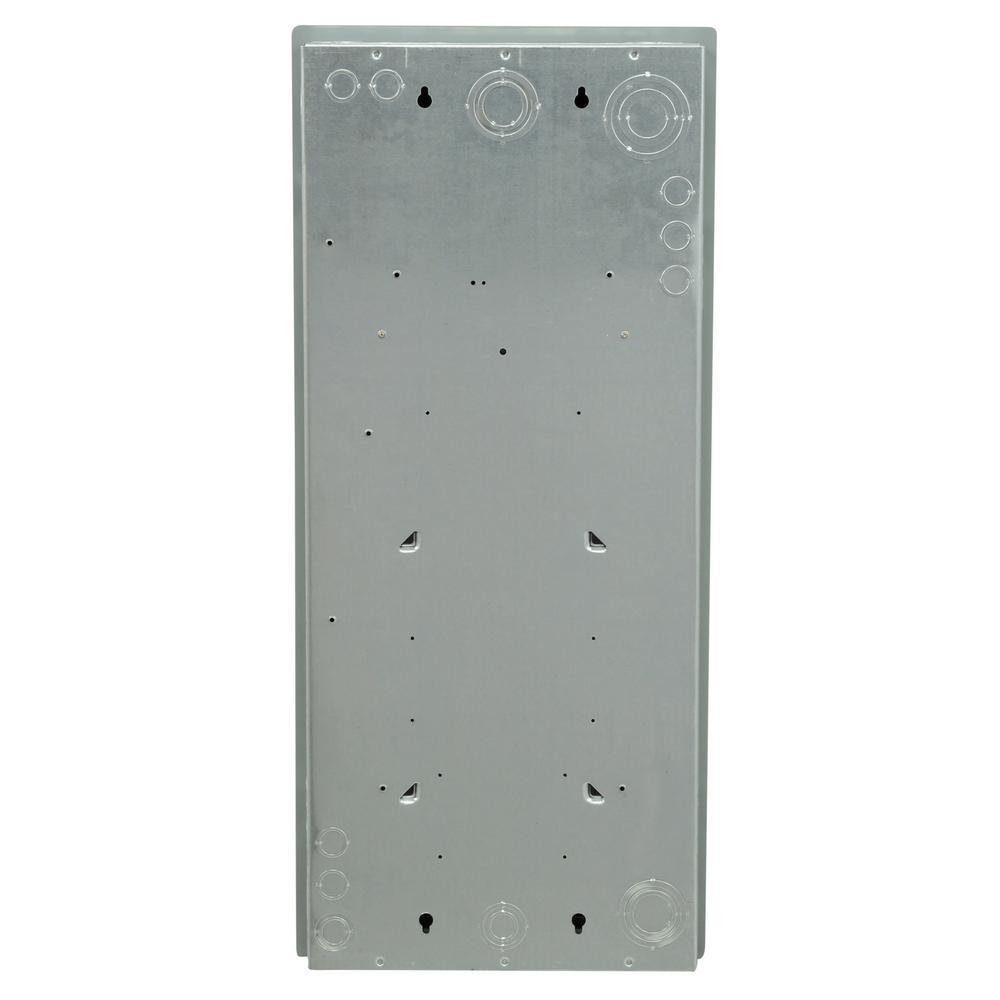

The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.
Features
- Rust-resistant galvanized box
- Highly conductive copper buss bar
- Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
- Indoor fronts for surface or flush installations
- 100% rated split neutral on each side
- Single phase, 3-wire, 120/240 VAC and 22K AIC rating
- All neutral holes are rated for 14 - 4 wire
- Accepts GE, GFCI and AFCI circuit breakers
- UL listed and ANSI certified
Features
| Item Weight | 32.4 |
| Maximum Amperage (amps) | 100 |
| Number of Spaces | 32 |
| Voltage (volts) | 240 |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Electrical Product Type | Load Center |
| Indoor/Outdoor | Indoor |
| Number of Circuits | 32 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Product Weight (lb.) | 32.1 |

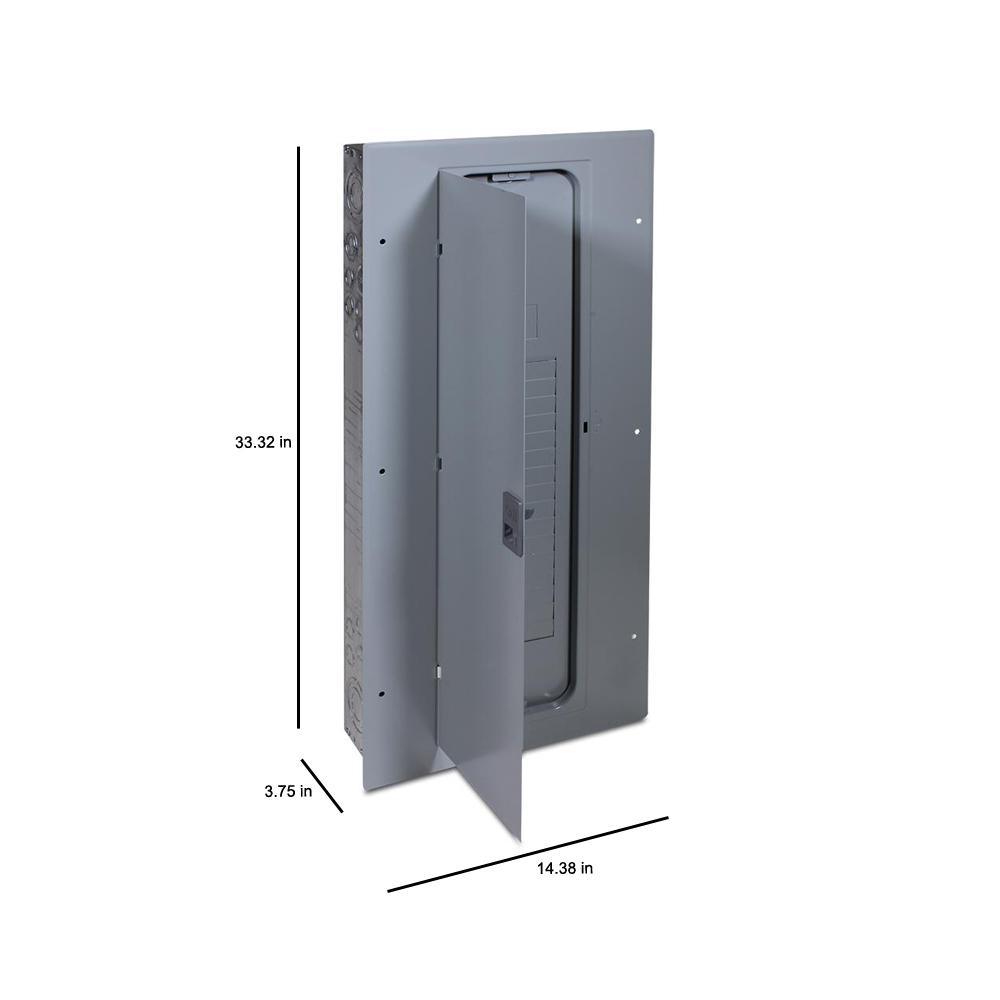

| Load center depth (in.) | 3.75 |
| Load center height (in.) | 33.32 |
| Load center width (in.) | 14.38 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
