Lawn Genie

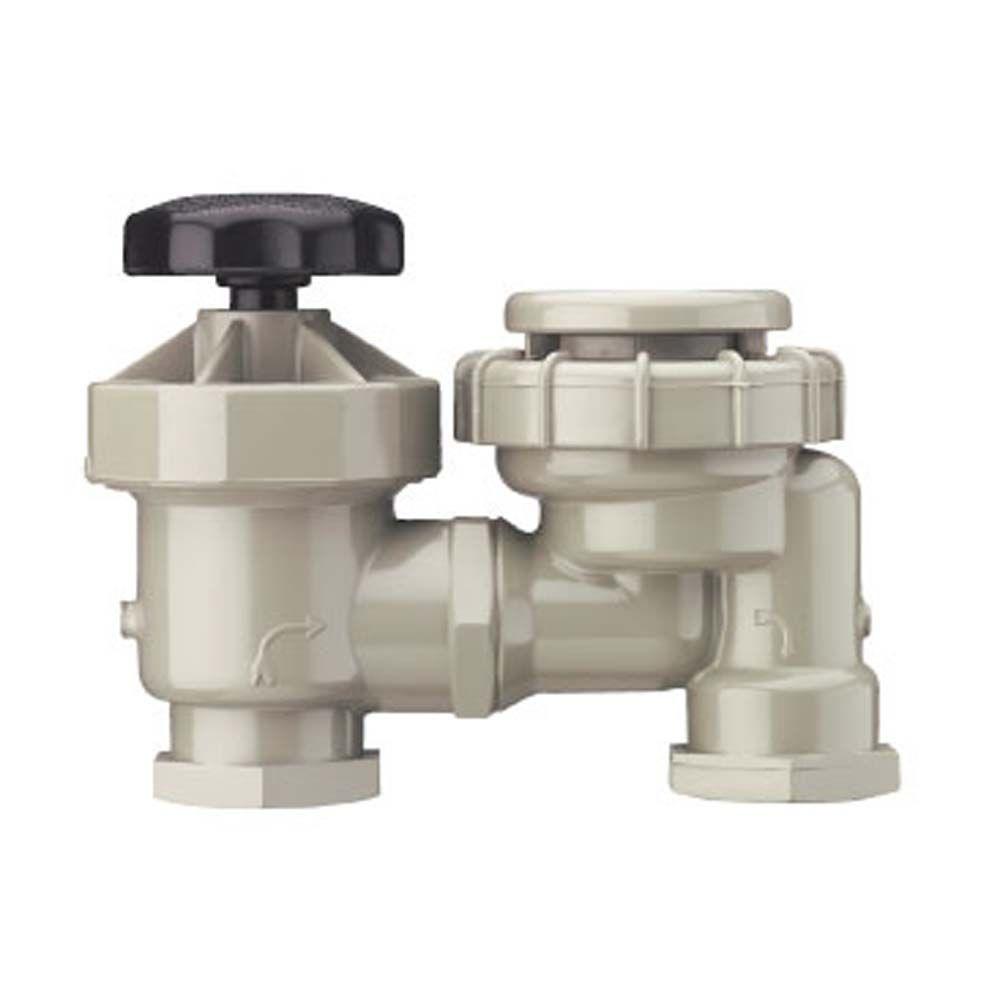

3/4 in. Manual Anti-Siphon Thread Valve
Not priced yet
In stock
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The Lawn Genie 3/4 in. anti-siphon valve manually activates zone sprinklers with the simple turn of a handle and provides optimum performance even in potable or dirty water conditions. This easy to use anti-siphon valve also offers a jar-top bonnet for convenient access to diaphragm for quick maintenance inspections. Designed to protect drinking and other household water from contamination, this valve also features unique built-in prevention.
Features
- California residents
- The built-in prevention is designed to protect drinking and other household water from contamination
- Featuring a jar-top bonnet for easy access to diaphragm for quick maintenance inspections
- 0-30 GPM flow range; 3/4 female NPT inlet and outlet
- Must be installed 6-12 in. above highest downstream outlet in sprinkler system
- 4 in. Footprint size (Center to center of inlet/outlet)
Features
| Item Weight | .67 |
| Installation | Above Ground |
| Product Weight (lb.) | .785 |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Connection | Female Pipe Thread |
| Returnable | 180-Day |
| Number of Outlets | 1 |
| Compatible Pipe Material | ABS |
| Thread Type | Female |
| Pressure Rating | N/A |
| Irrigation System Component | Valve |
| Maximum Working Temperature (F) | 120 |
| Maximum Pressure (psi) | 150 |
| Operation | Automatic |
| Valve Type | Anti-Siphone |
| Package Quantity | 1 |
| Product Length (in.) | 3.33 in |
| Outlet Size (in.) | 2 or less |
| Inlet Size (in.) | 0.75 |
| Product Height (in.) | 9 |
| Product Width (in.) | 7 in |
| Manufacturer Warranty | 1 YR |
