Schneider Electric

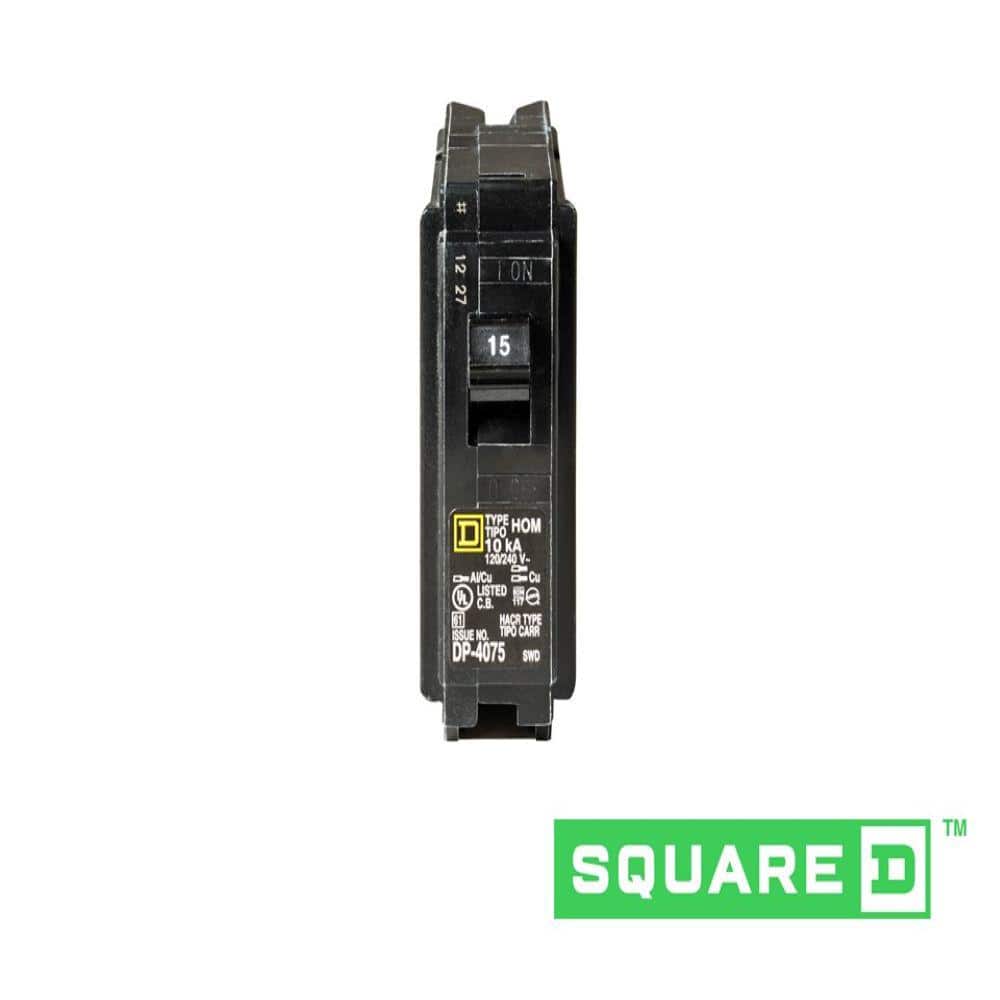

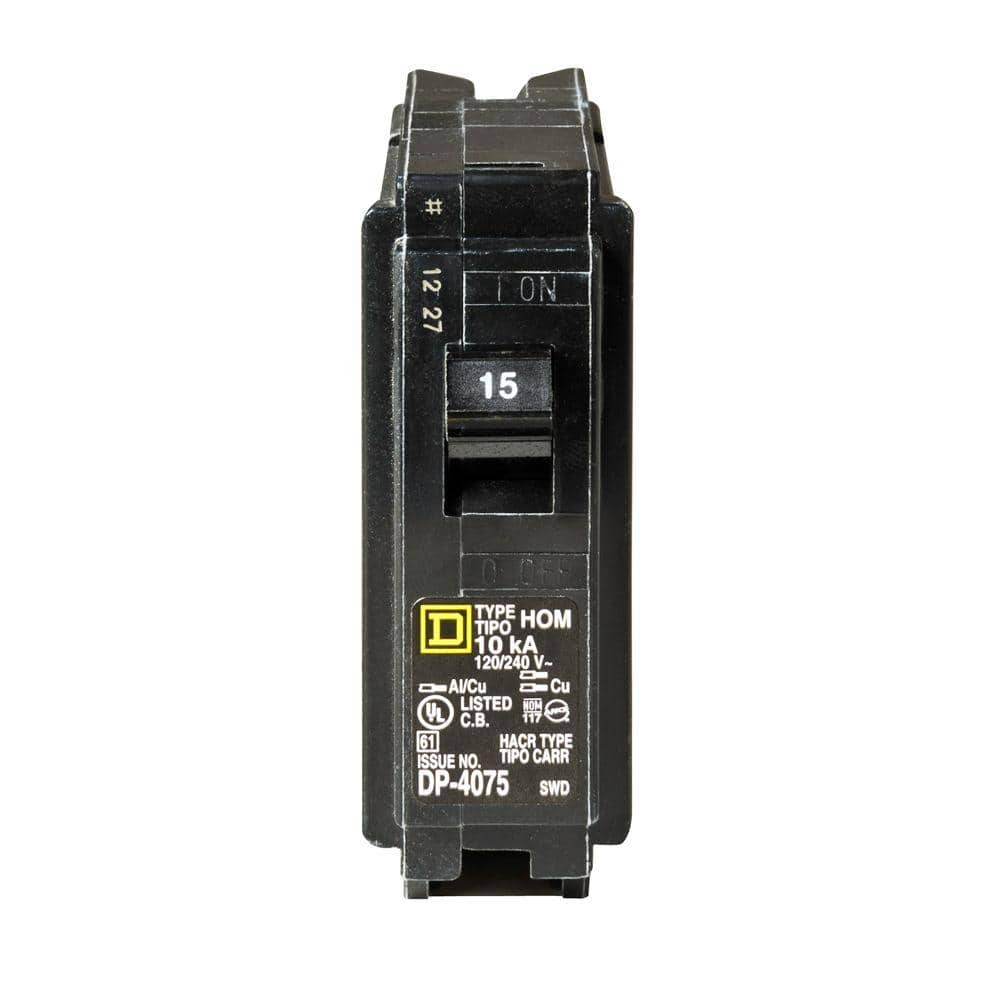

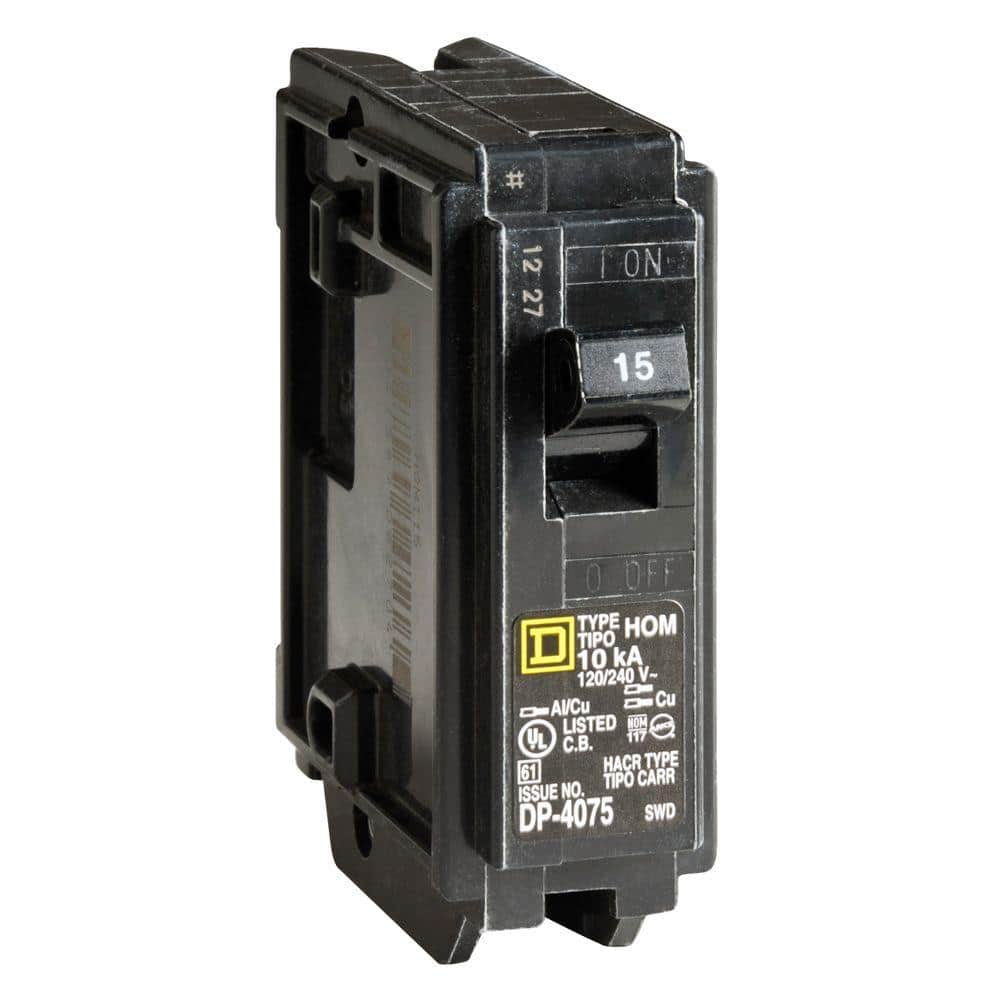

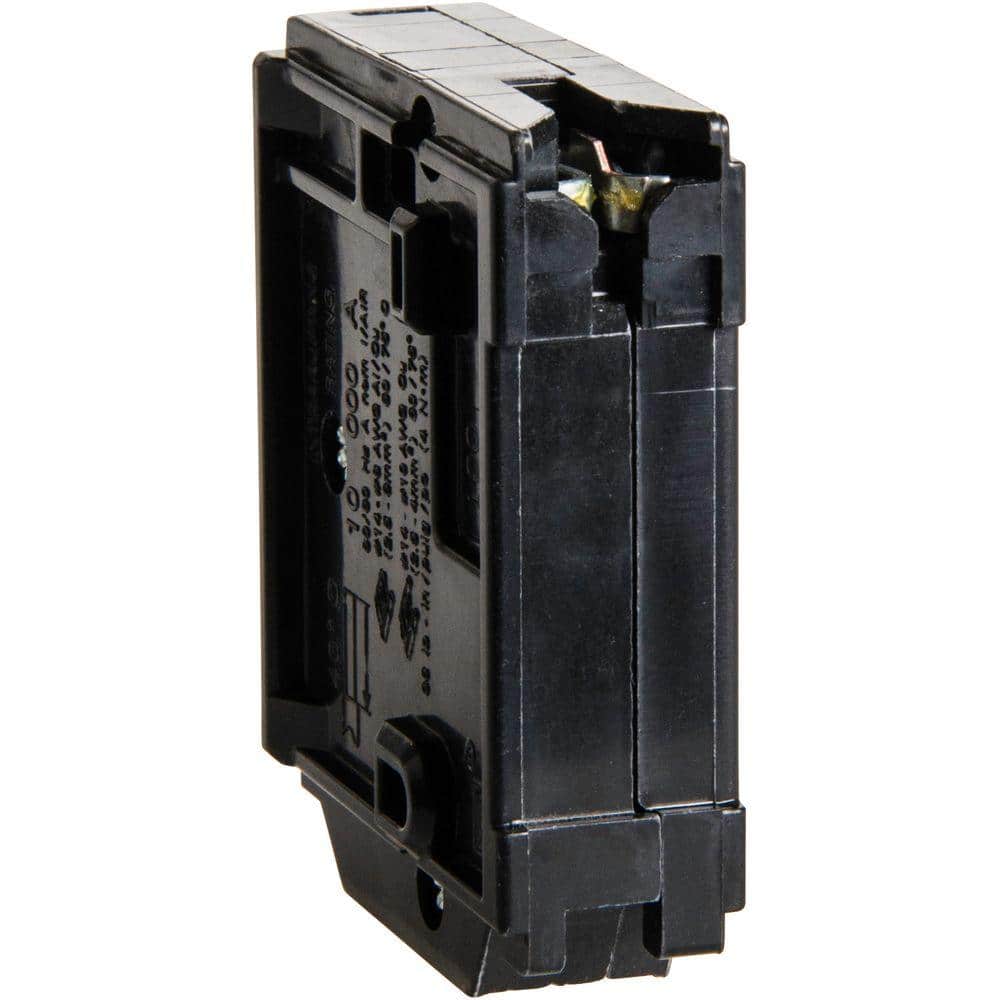

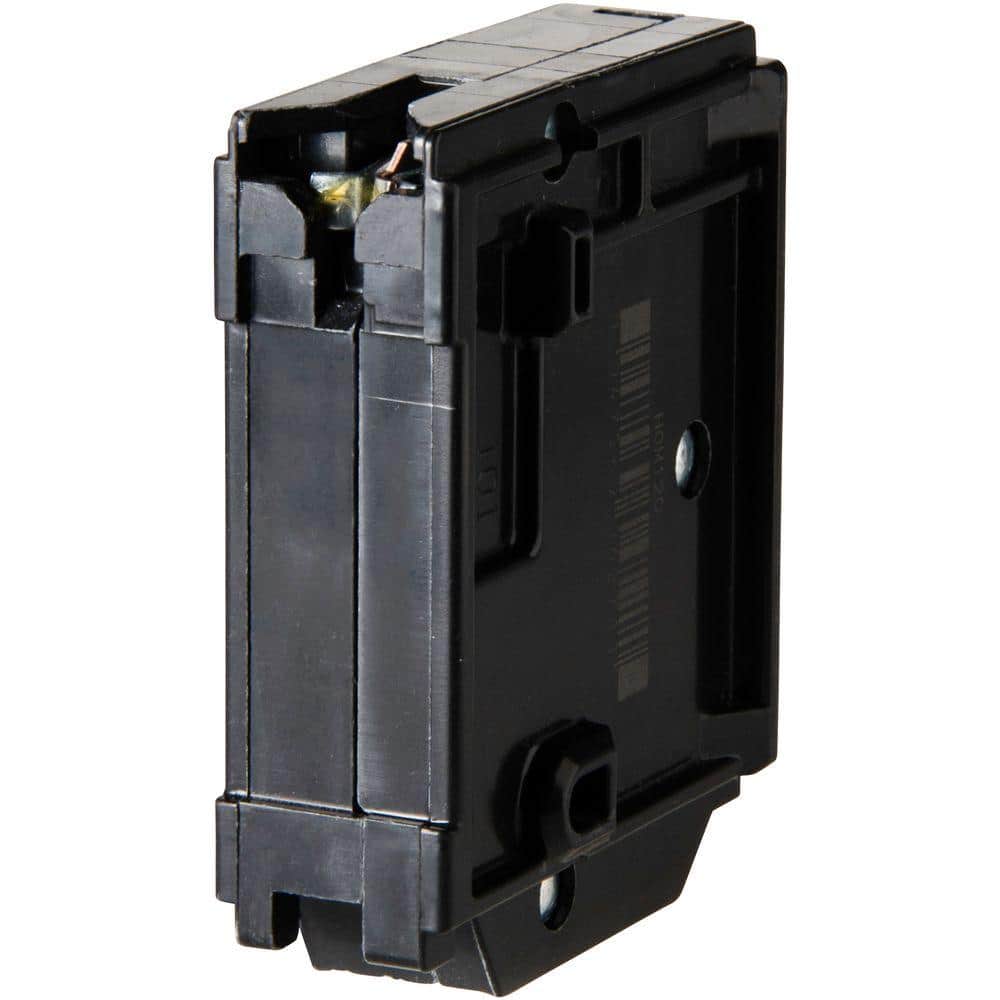

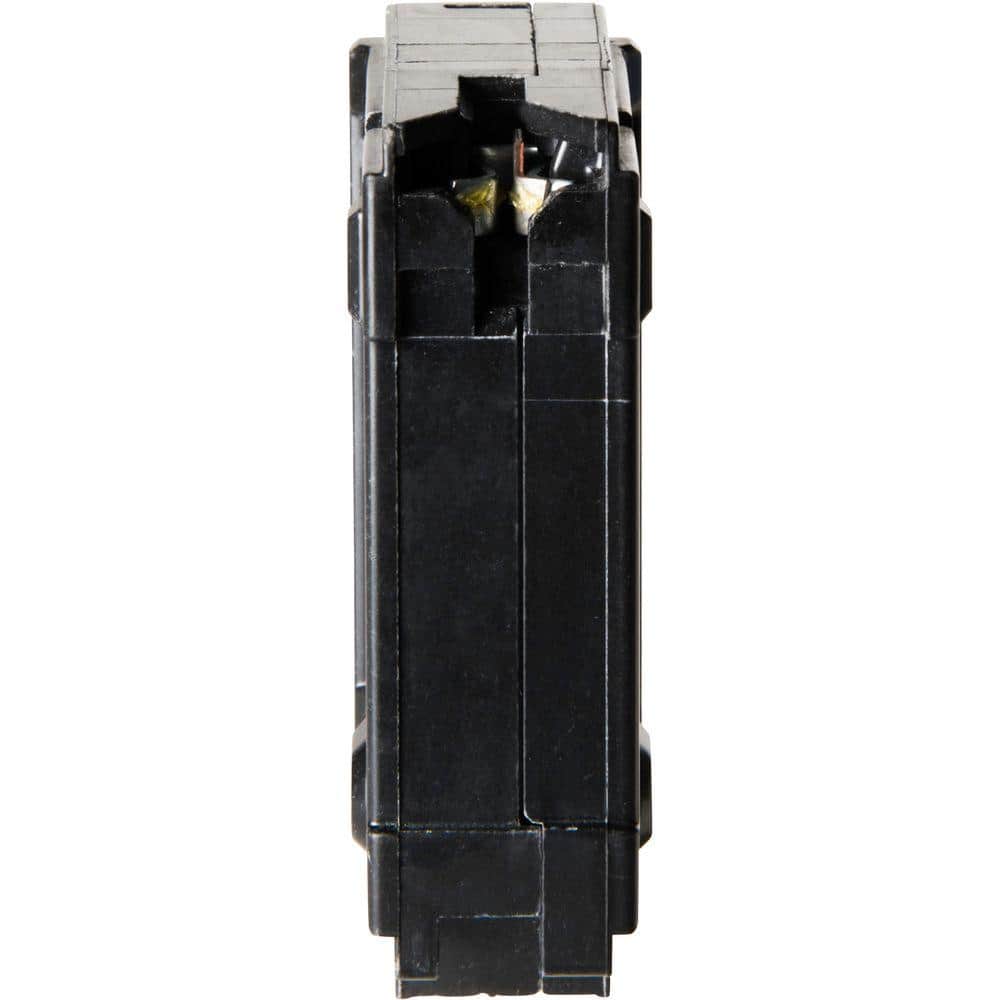

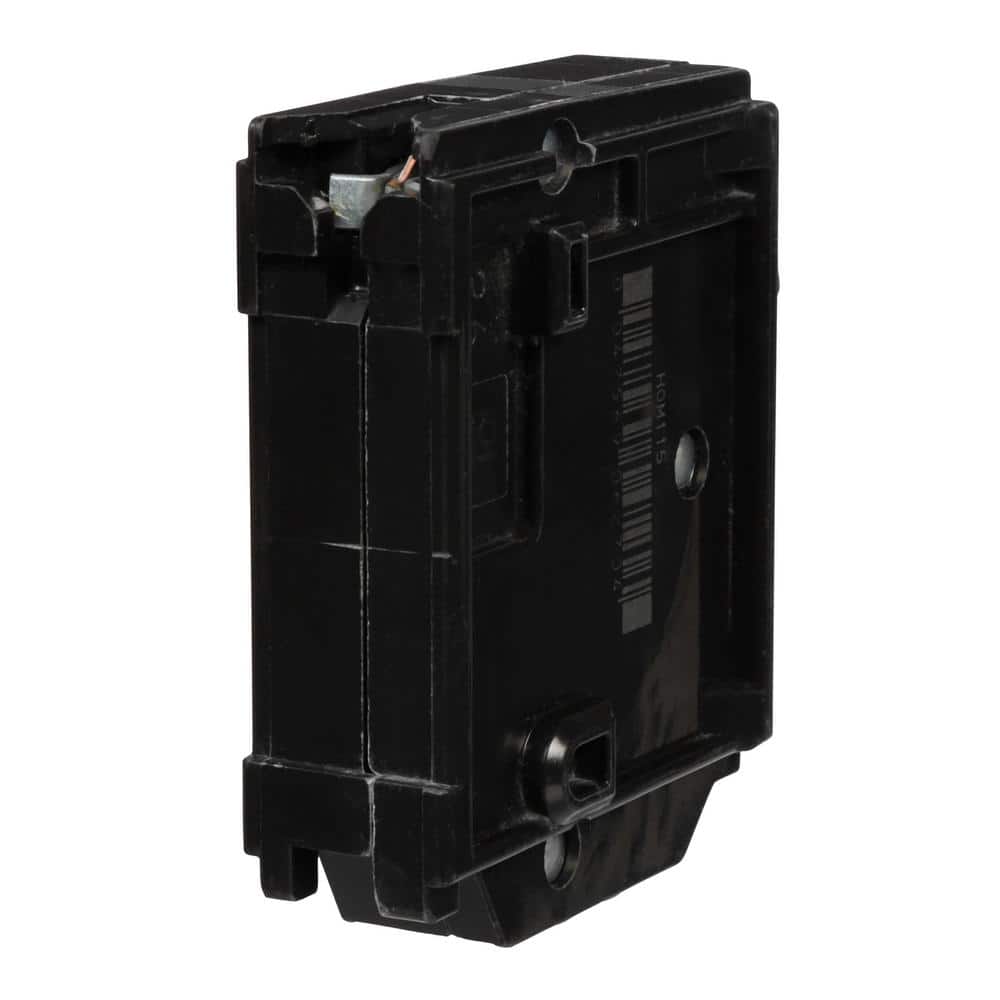

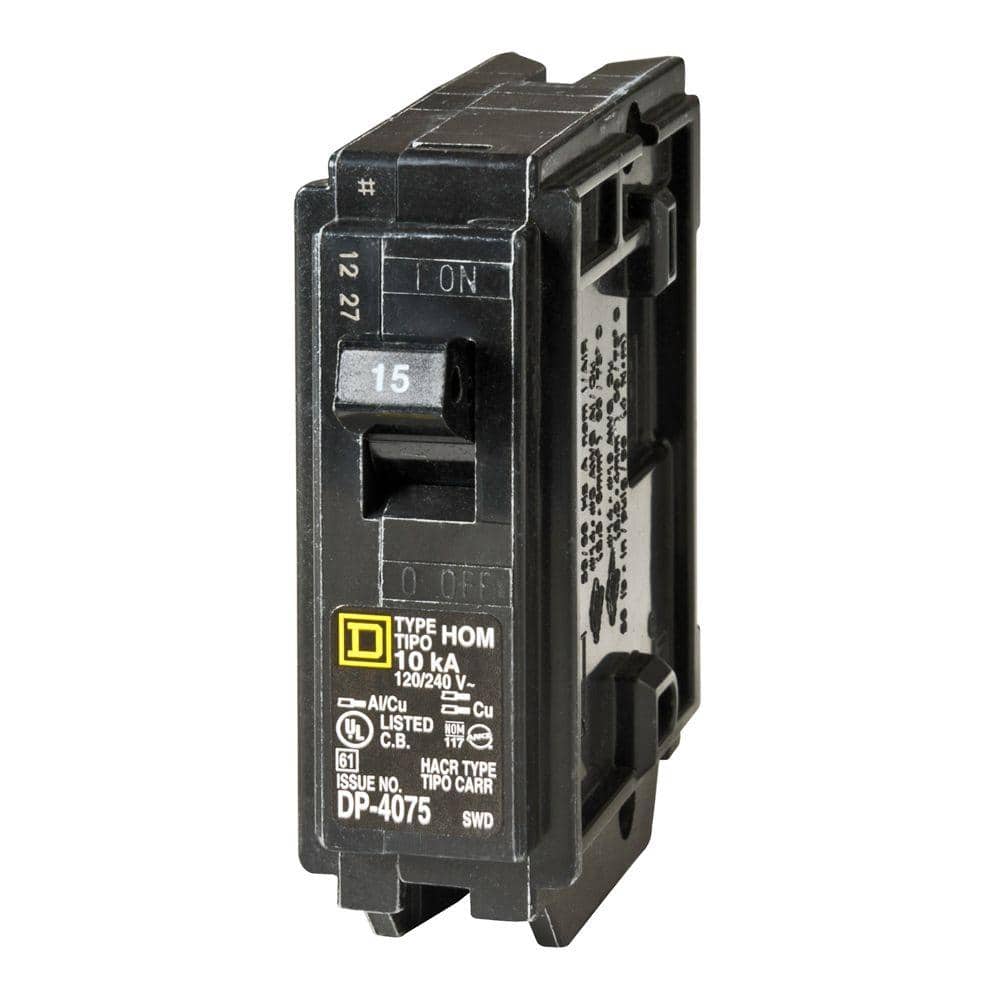

Square D Homeline 15 Amp Single-Pole Circuit Breaker, HOM115CP
Published price — same for everyone
In stock
SKU HOM115CP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
15A Homeline Single-Pole Circuit Breaker
Compact thermal-magnetic breaker designed to protect branch circuits from overloads and short circuits. Plug-on, single-pole design fits Homeline load centers and CSEDs, rated 120/240 VAC with 10 kA interrupting capacity.
Key Features:
- Thermal-Magnetic Protection: Standard trip unit safeguards against overloads and short-circuits
- Homeline Compatibility: Plug-on design fits Homeline panels and CSEDs using 1 space
- Reliable Performance: 10,000 AIC rating with 120/240-Volt AC operation
- Durable Build: UL Listed and ANSI certified for residential applications
- Compact Size: Slim 1 in. width simplifies additions or replacements
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard |
| Trip Unit | Thermal Magnetic |
| Maximum Amperage | 15 A |
| Poles | 1 (Single-Pole) |
| Spaces Required | 1 |
| Mounting Type | Plug-On |
| Voltage Rating | 120/240 V AC |
| Interrupt Rating (AIC) | 10,000 AIR |
| Connection Type | Non-Neutral |
| Certifications | UL Listed; ANSI certified |
| Dimensions (H x W x D) | 3.13 in x 1 in x 2.98 in |
| Pack Size | 1 |
| Switching Duty | SWD (for 15A 1-pole) |
| HACR Rated | Yes |
| Product Weight | 0.28 lb |
| Compatible Systems | Homeline load centers and CSED devices |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with my panel?
A: It is designed for Square D Homeline load centers and CSED devices; verify your panel is Homeline, not QO or other series.
Q: What is the interrupt rating?
A: 10,000 AIR at 120/240 VAC.
Q: How many poles and spaces does it require?
A: Single-pole breaker that occupies 1 space.
Q: What type of trip unit does it use?
A: Thermal magnetic, standard trip.
Q: Is there a warranty?
A: Limited lifetime warranty for use in a Homeline load center, per manufacturer terms.
Streamlined Safety with a Minimal Footprint
This breaker delivers crisp, functional design that keeps the visual clutter behind the panel sleek and orderly. I love the slim 1-inch profile—quietly efficient yet powerful at 15 amps. Pair it with a well-labeled Homeline panel for a clean, intuitive electrical layout. It’s the discreet essential that underpins a polished, modern home experience.
Upgrade your panel’s safety and reliability—add this 15A Homeline breaker to your cart today.
