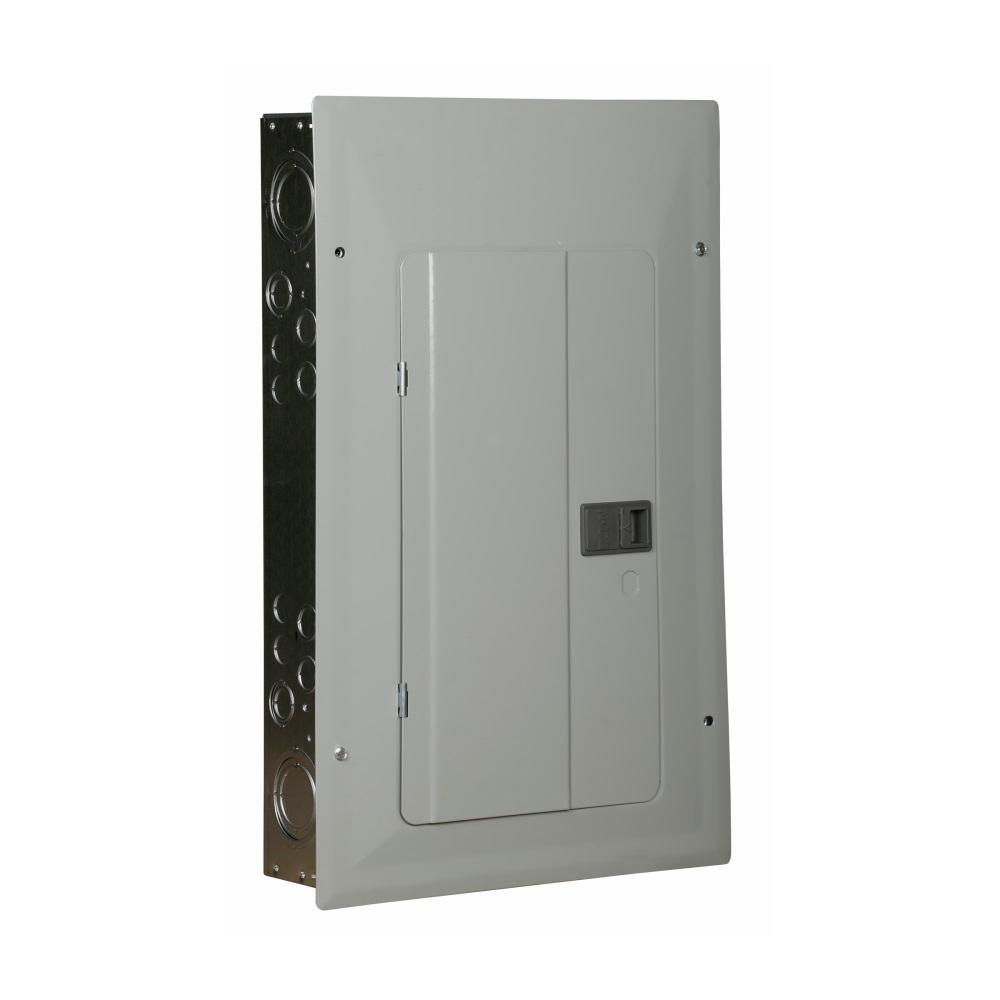

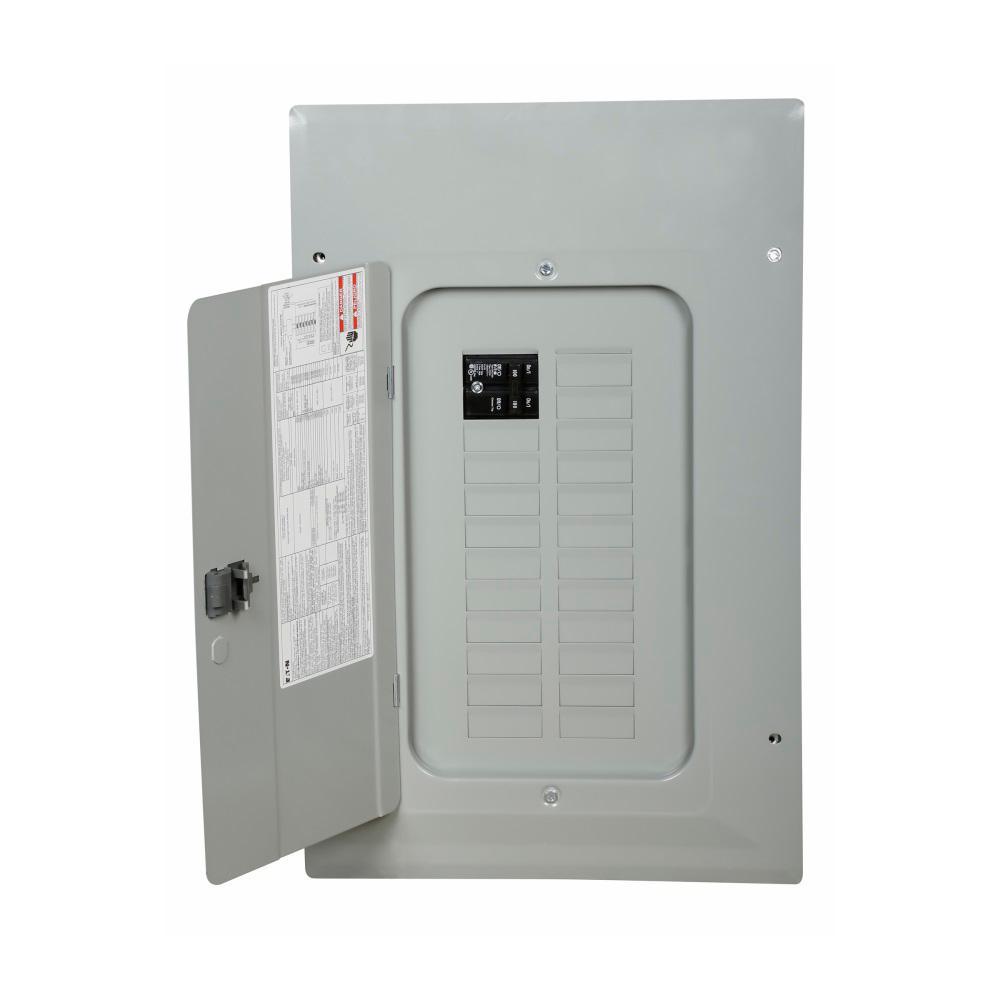

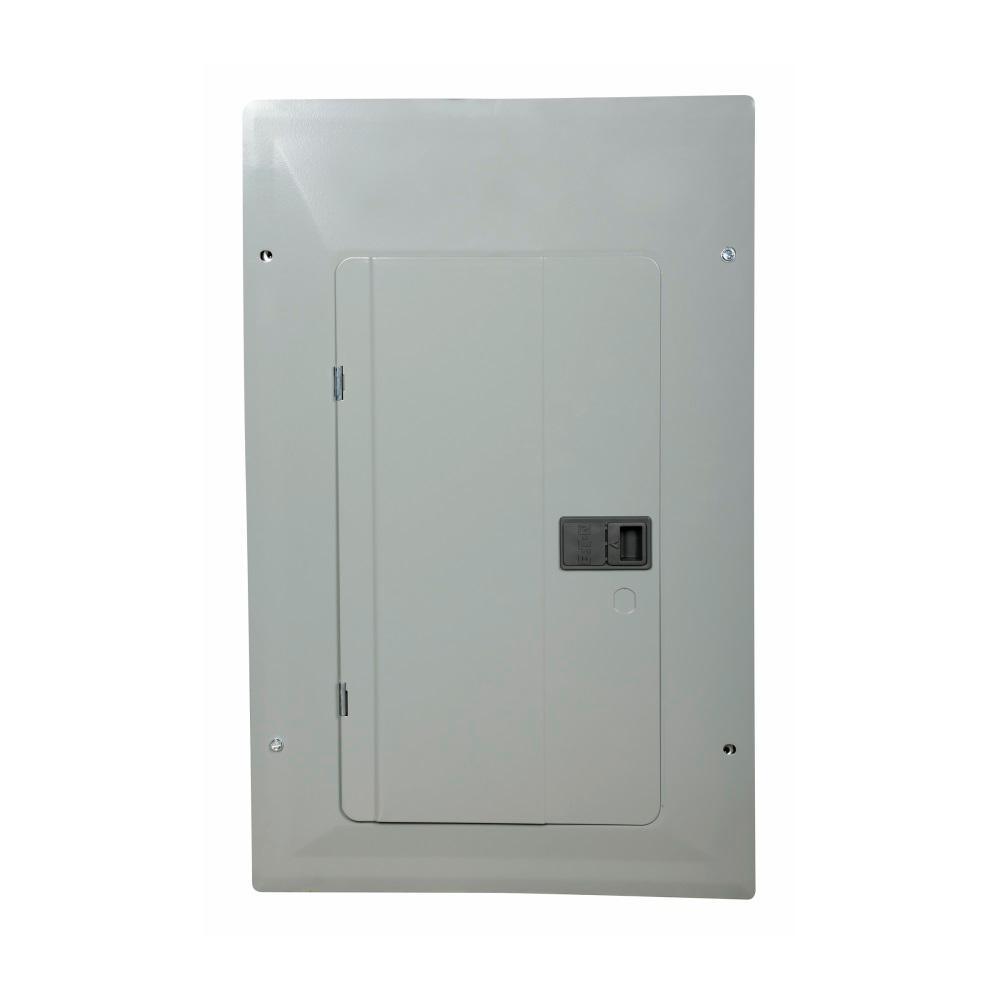

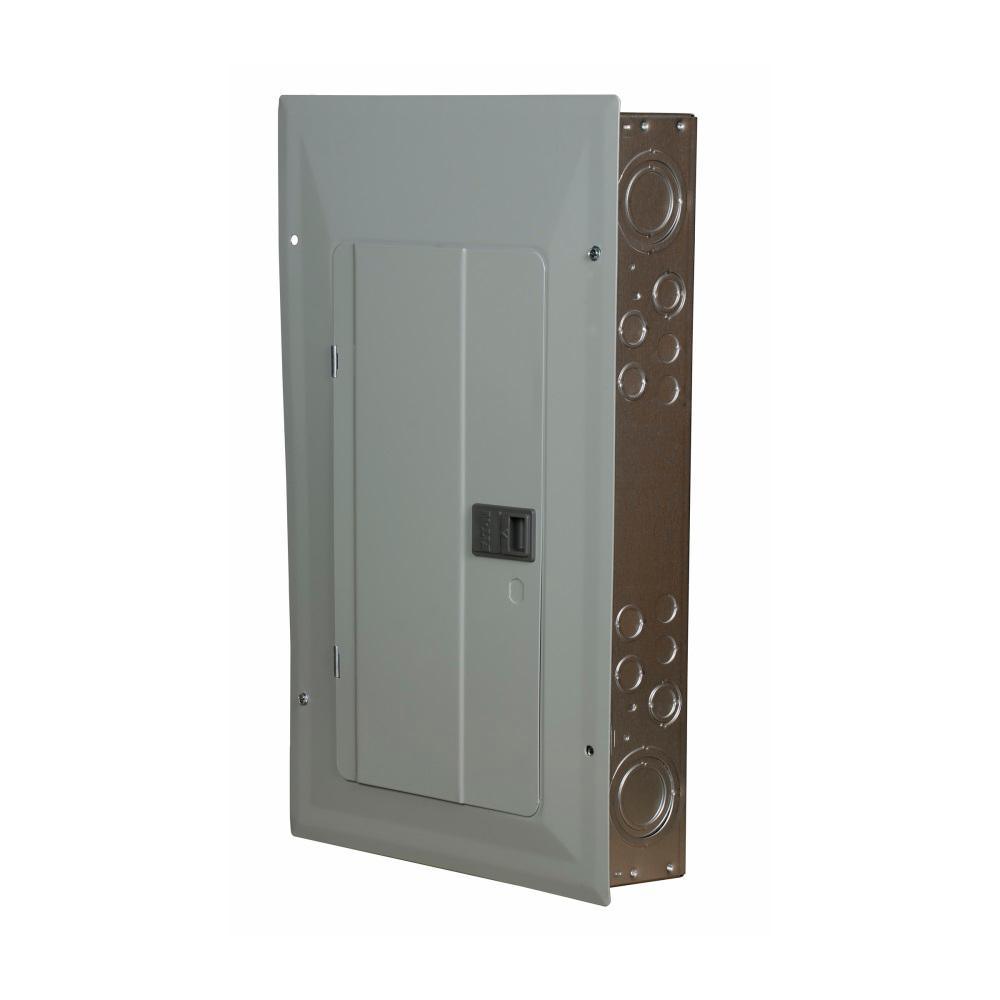

BR 100 Amp 20 Space 40 Circuit Indoor Main Breaker Loadcenter with Combination Cover Value Pack (6-BR120)

Not priced yet

In stock

Start your list

No published price on this one yet — put it on your list.

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

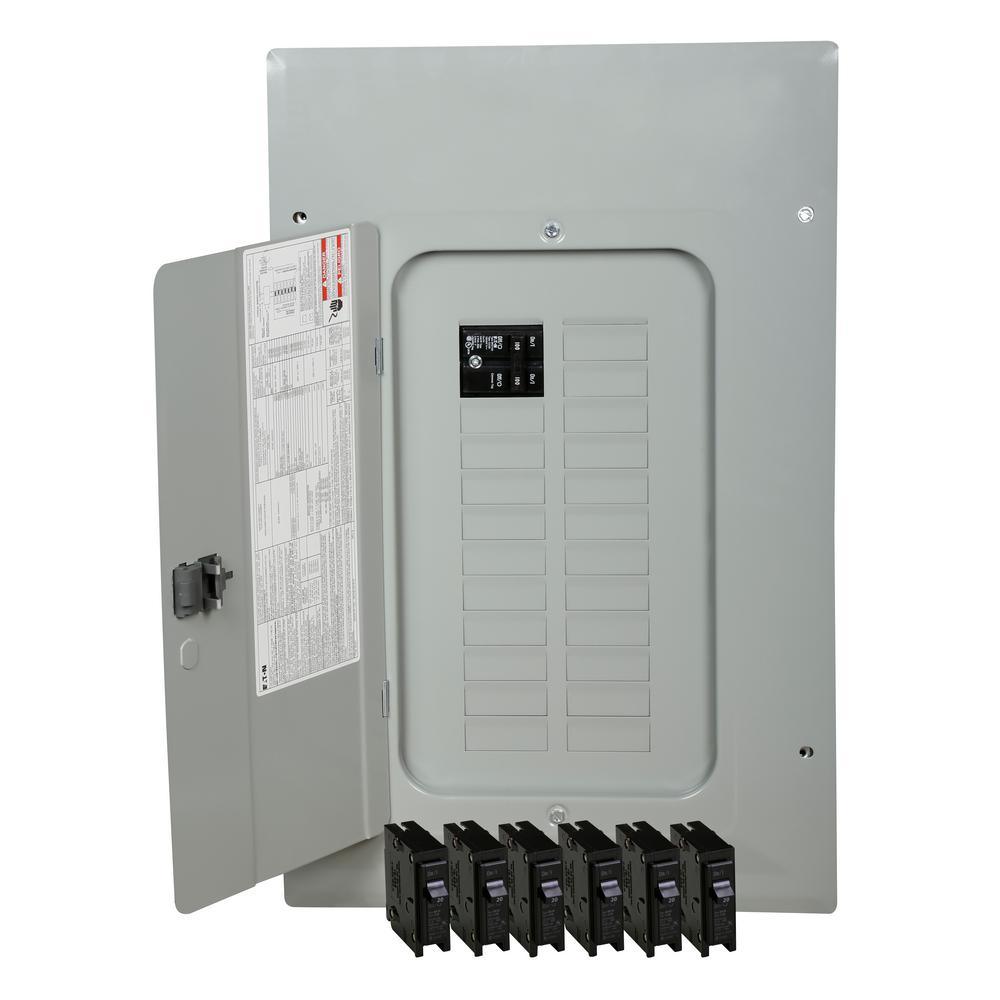

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect.The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR2040B100V9 is a 100 amp main breaker with 20 spaces and 40 circuits.It is a value pack for the cost conscious home owner or contractor. The value pack consists of the load center (and cover) plus 6-1P-20A circuit breakers.
  • Amperage rating: 100A
  • Bus material: Aluminum
  • Rated NEMA 1 for indoor use
  • Feed type: Bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: Combination
  • Number of circuits: 40
  • Number of spaces: 20
  • Phase: Single-phase

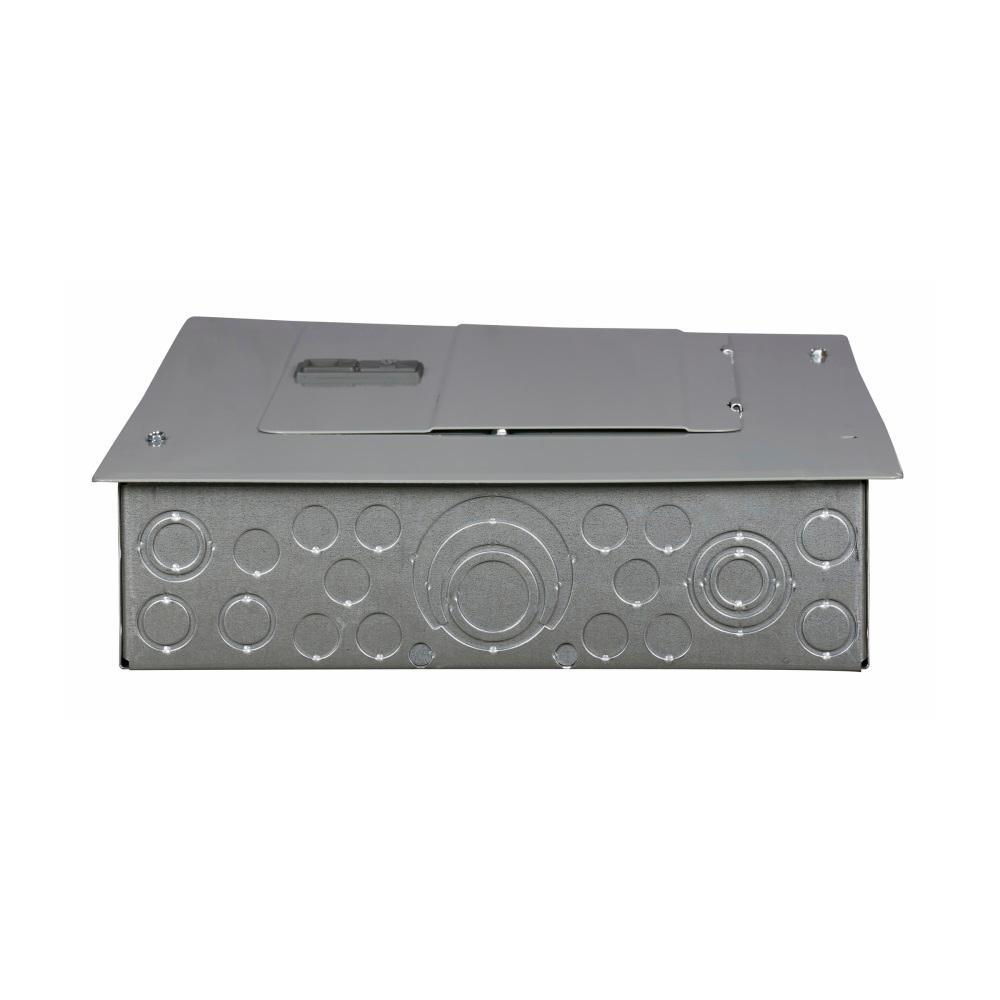

  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 Lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Type BR Residential Main Breaker Value Pack includes: 6-BR120s circuit breakers
  • Used With: Type BR breakers





Features
Item Weight 26.5
Mounting Type Bolt On
Maximum Amperage (amps) 100
Number of Spaces 20
Electrical Product Type Load Center and Breaker Kit
Voltage (volts) 120/240
Load Center Type Main Breaker
Indoor/Outdoor Indoor
Returnable 180-Day
Phase Type 1 Phase
Number of Circuits 40
Load Center Mounting Type Flush
Product Weight (lb.) 25.25
Load center depth (in.) 3.88
Load center height (in.) 23.0
Load center width (in.) 14.31
Certifications and Listings ANSI Certified,CSA Listed,UL Listed
Manufacturer Warranty 10 Years
