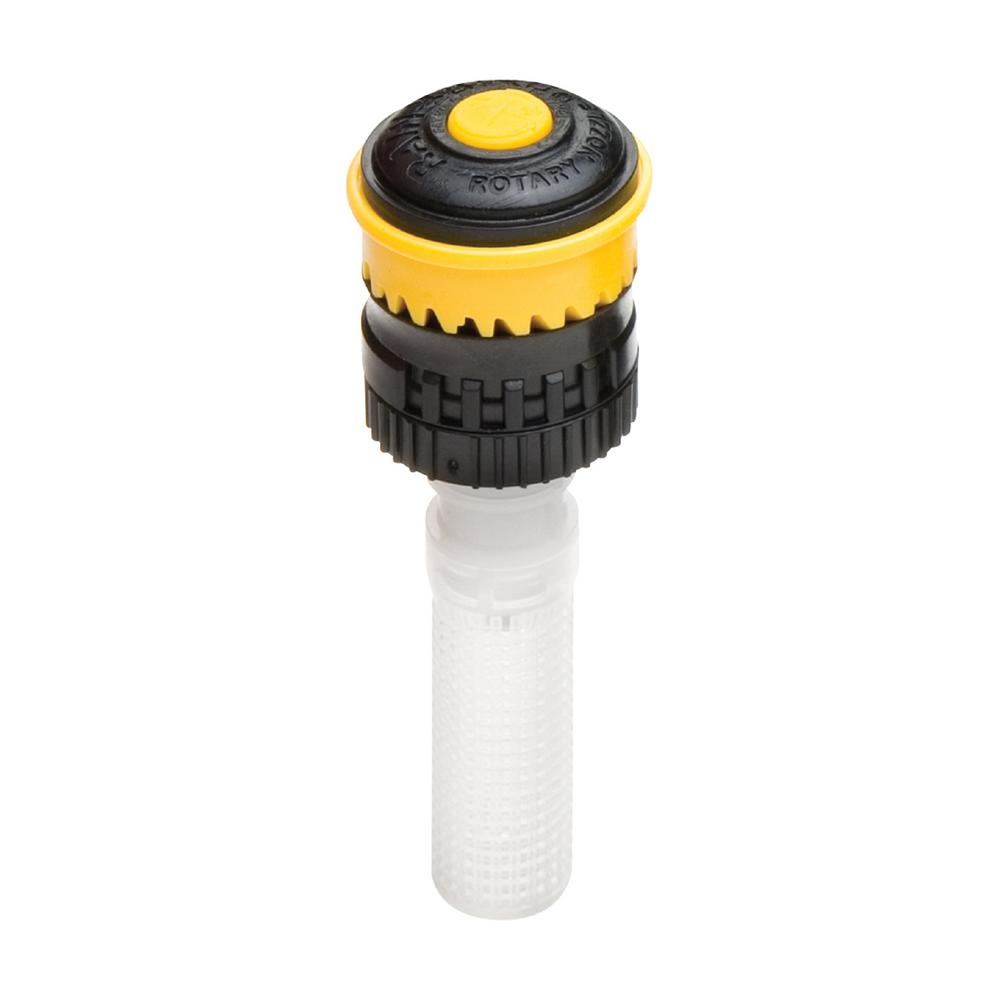

17 - 24 ft. Quarter Circle Rotary Nozzle
$5.78
Published price — same for everyone
Out of stock — available on backorder
SKU 695625915
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Rain Bird RN Series Rotating Nozzles deliver multiple, oscillating streams of water at a low precipitation rate that is gentle enough for newly seeded areas and hillsides, while covering more area than standard spray nozzles. They are ideal for correcting pop-up sprinkler coverage problems and will work with low water pressures.
Features
- Quarter pattern, multi-stream rotary sprinkler nozzle
- 17 - 24 ft. spray distance
- Up to 30% water savings compared to standard spray nozzles
- Easily replaces other Rain Bird nozzles or rotary nozzles – no digging required
- Slow distribution rate is ideal for slopes and hillsides where water run-off is an issue

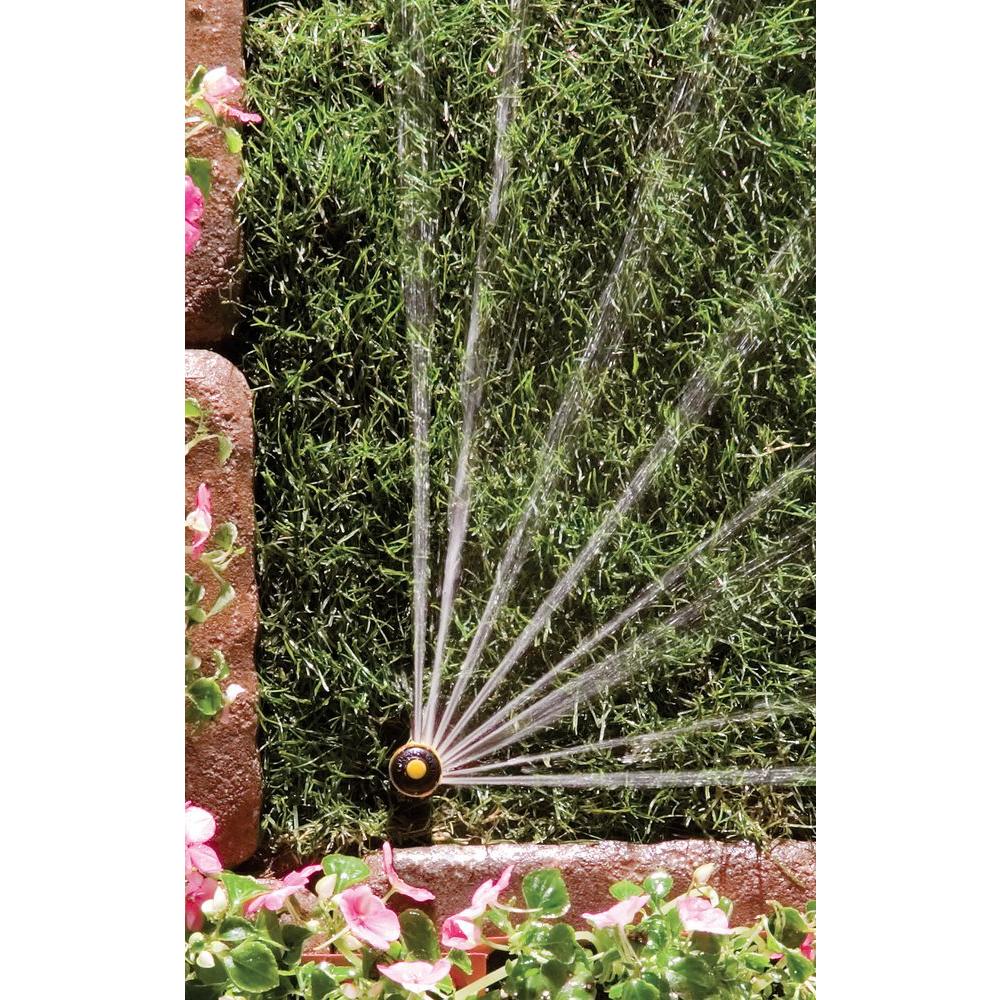

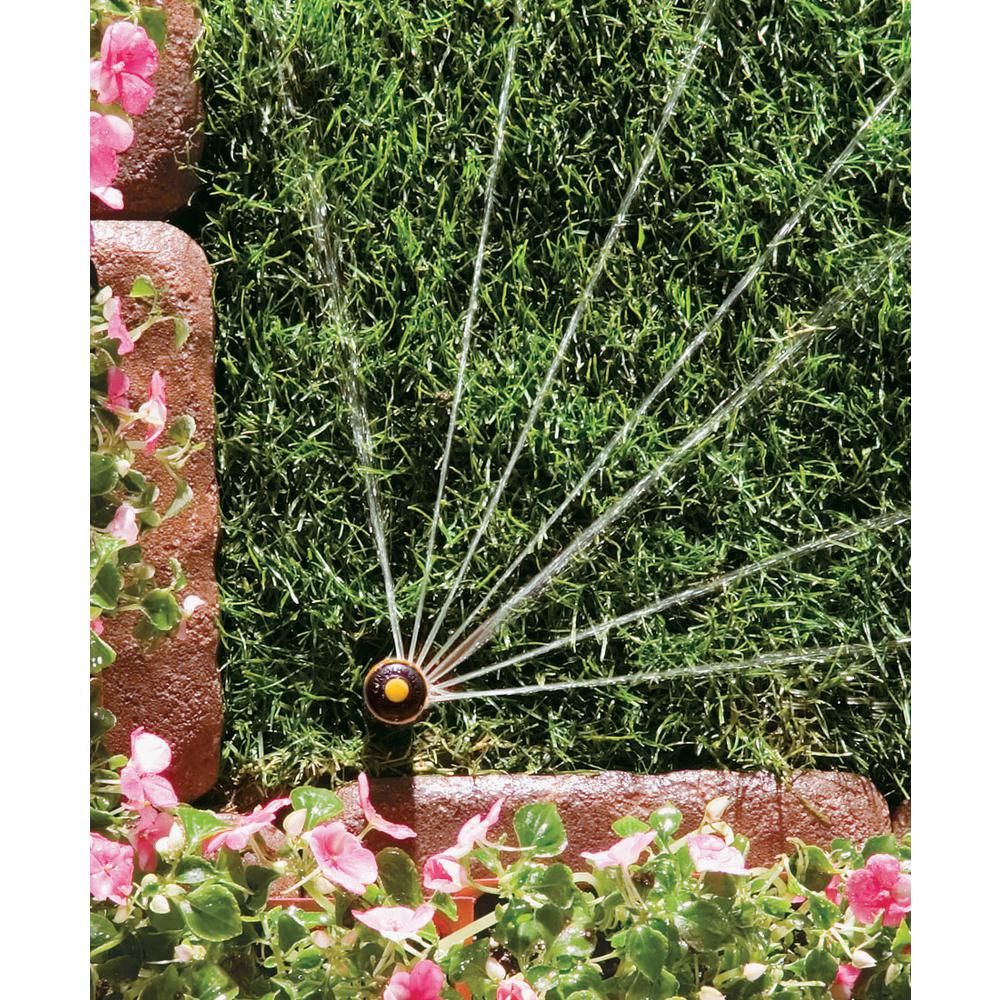

- Multiple, rotating streams uniformly distribute water throughout the radius range
- Extra large droplets resist windblown overspray
- To ensure matched precipitation rates, replacing all nozzles on a spray zone is recommended
- Operating pressure: 20 - 55 psi
- Watering distribution rate: 0.60 in/hr
Features
| Item Weight | 0.026 |
| Sprinkler Head Material | ABS Plastic |
| Sprinkler Head Type | Fixed,Rotating |
| Sprinkler Location | Below ground |
| Irrigation System Component | Sprinkler |
| Color Family | Blacks |
| Maximum Rotation (Degrees) | 90 |
| Maximum Spray Distance (ft.) | 24 |
| Pressure Rating | 20 - 55 psi |
| Pack Size | 1 |
| Mounting | In-Ground Install |
| Features | Rotating |
| Thread Type | Pipe Thread |
| Inlet Type | Female |
| Sprinkler Type | Rotary |
| Material | ABS Plastic |
| Riser | Riser Not Required |
| Returnable | 180-Day |
| Nozzle Material | ABS Plastic |
| Maximum Gallons Per Minute | 1 |
| Sprinkler Angle Minimum (Degrees) | 20 |
| Minimum Spray Distance (ft.) | 17 |
| Maximum Coverage Area (sq ft.) | 452 |
| Sprinkler Angle Maximum (Degrees) | 20 |
| Head Material | Plastic |
| Sprinkler Head Spray Pattern | Quarter Radius |
| Package Quantity | 1 |
| Inlet Size (in.) | .5 |
| Product Height (in.) | 5 in |
| Product Width (in.) | 3.5 in |
| Product Depth (in.) | 1 in |
| Manufacturer Warranty | If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund. |
