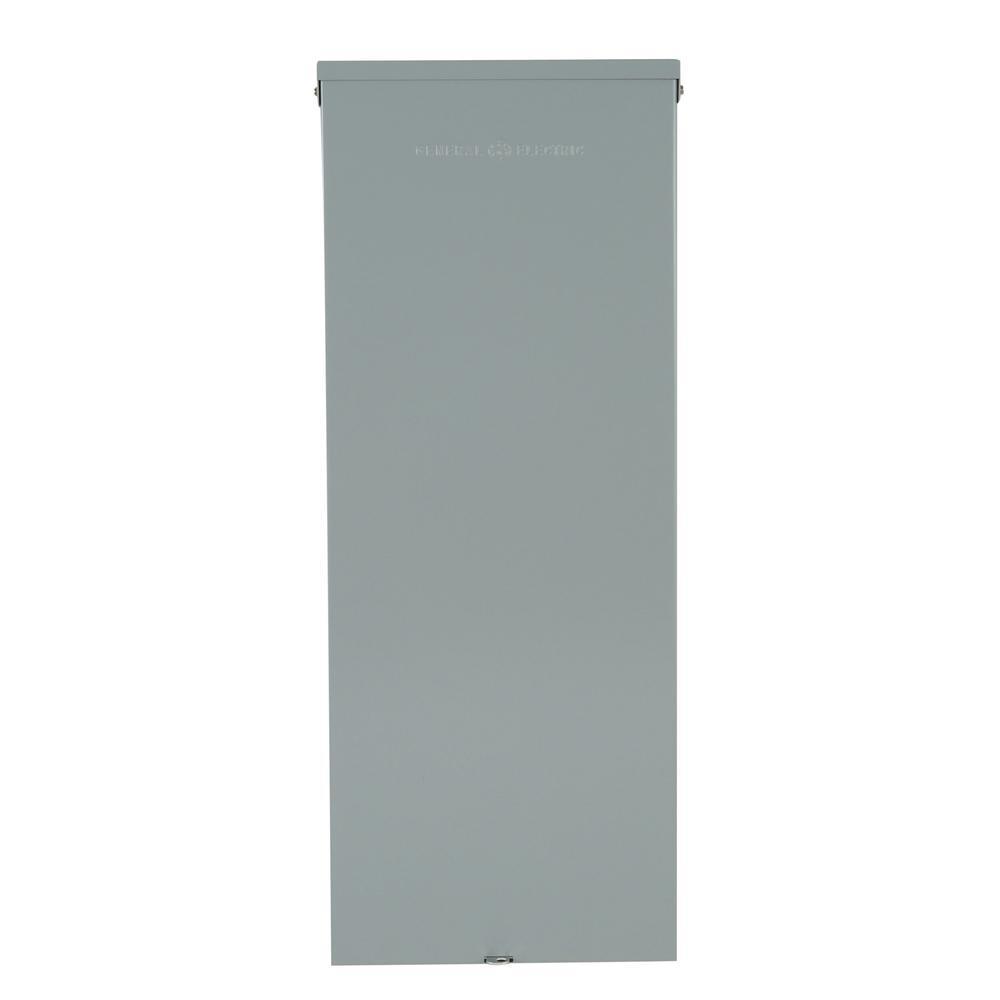

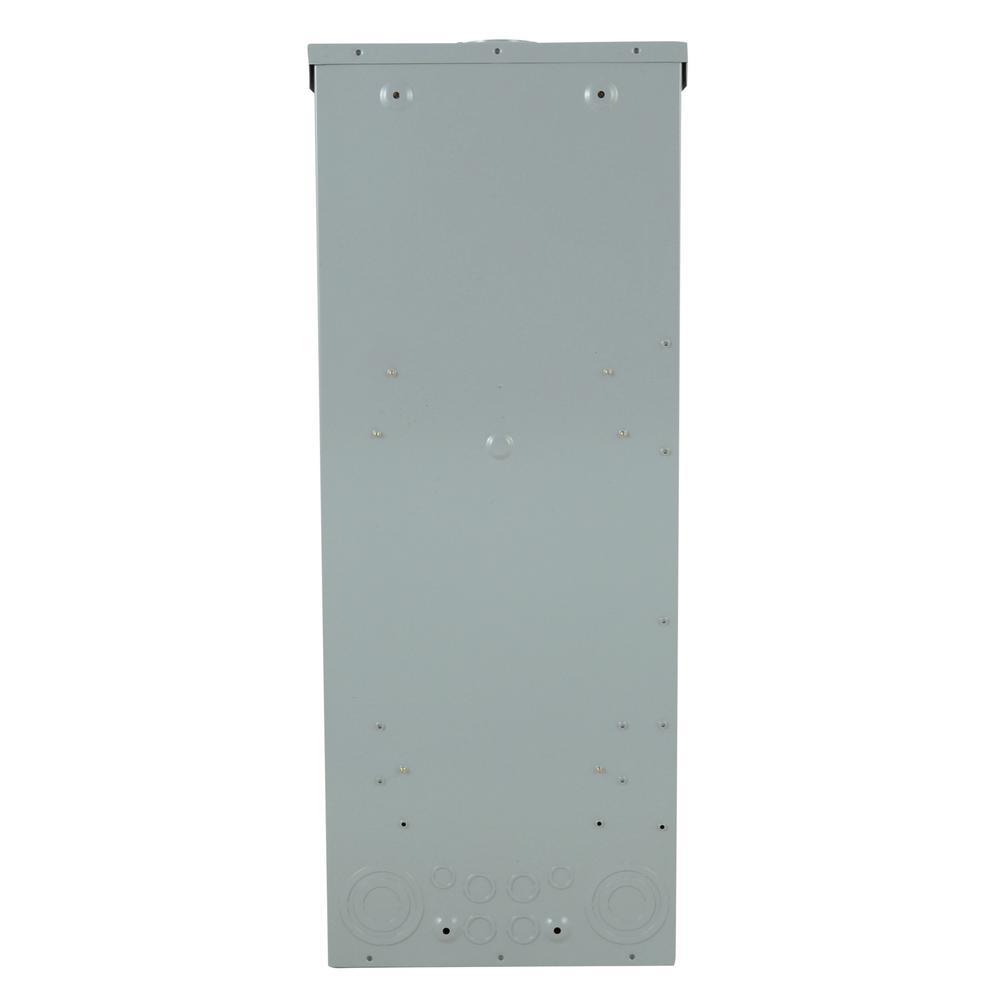

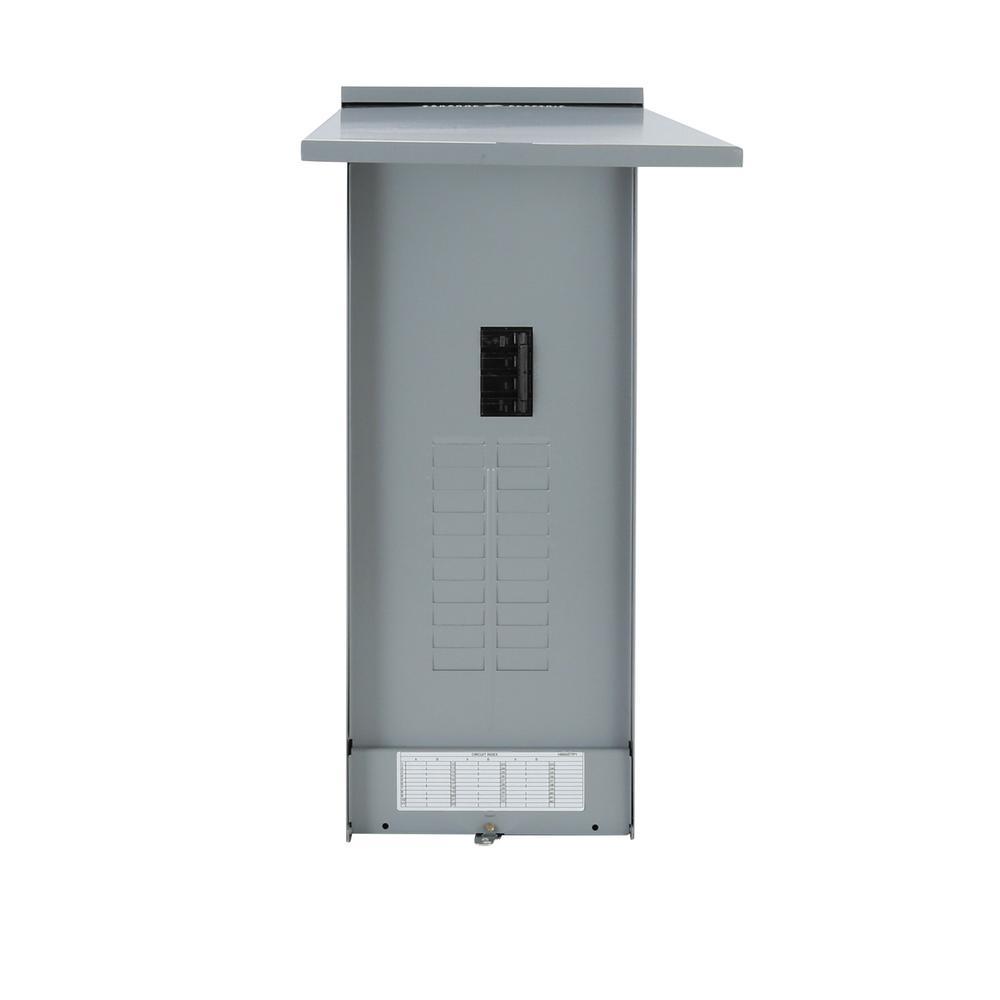

PowerMark Gold 200 Amp 20-Space 40-Circuit Outdoor Main Breaker Value Kit Includes Select Circuit Breaker
Not priced yet
In stock
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

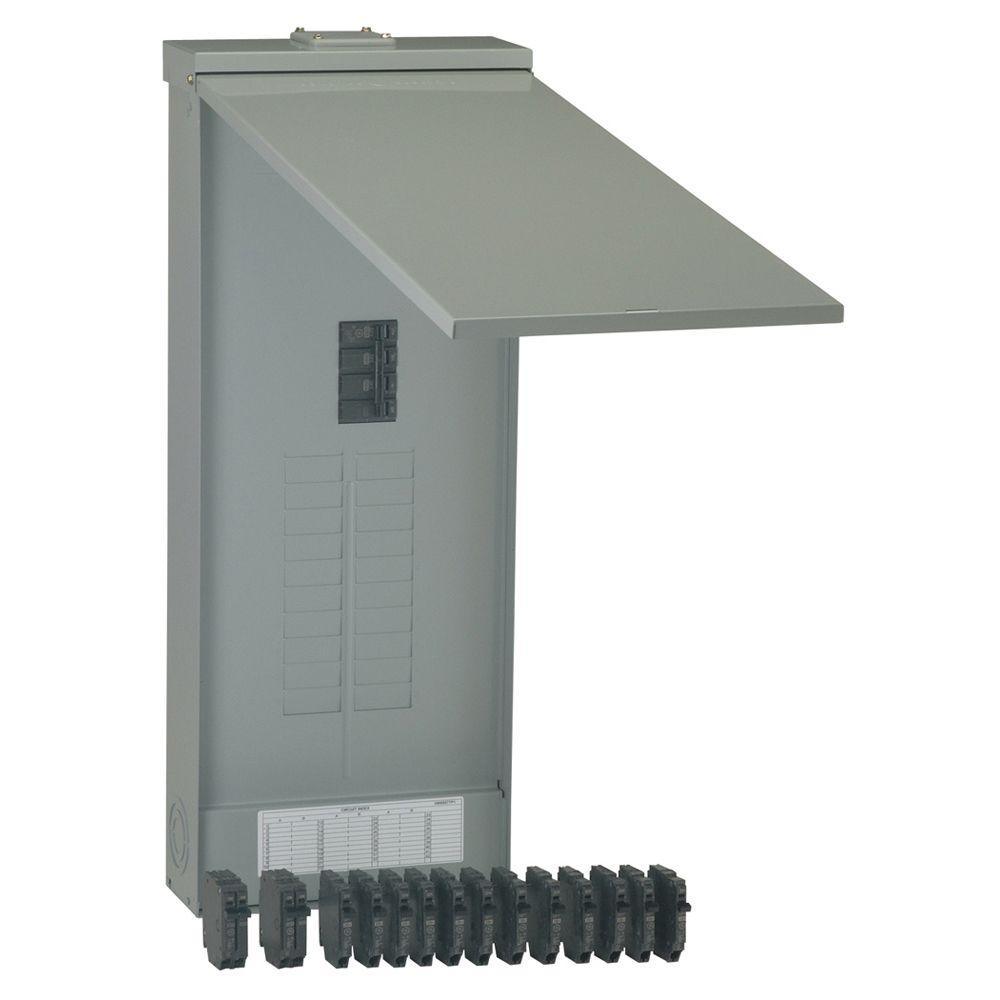

This value kit includes 12 20 Amp Single-Pole, 1 30 Amp Double-Pole, 1 50 Amp Double-Pole THQP 1/2 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Outdoor NEMA 3R enclosure. This load center is UL listed and ANSI Certified.
Features
- Use as an outdoor main breaker load center
- Galvanized box for rust resistance with a self-adjusting dead-front cover
- Copper buss for increased conduction
- Full-length neutral bars for faster and easier wiring
- 100% split neutral holes on each side are rated for #14-4 wire
- Top or bottom feed
- 240 VAC and 22,000 AIC rating
- Compatible with GFCI, AFCI and standard circuit breakers
- ANSI certified and UL listed
- Includes 12 THQP-120 20 Amp single-pole circuit breakers, 1 THQP-230 30 Amp double-pole circuit breaker and 1 THQP-250 50 Amp double-pole circuit breaker
- Closure caps included, hubs ordered separately
Features
| Item Weight | 32.0 |
| Voltage (volts) | 240 |
| Number of Spaces | 20 |
| Electrical Product Type | Load Center and Breaker Kit |
| Load Center Type | Main Breaker |
| Load Center Mounting Type | Surface |
| Indoor/Outdoor | Outdoor |
| Product Weight (lb.) | 33.975 |
| Returnable | 180-Day |
| Phase Type | 1 Phase |
| Mounting Type | Plug-On |
| Maximum Amperage (amps) | 200 |
| Number of Circuits | 40 |

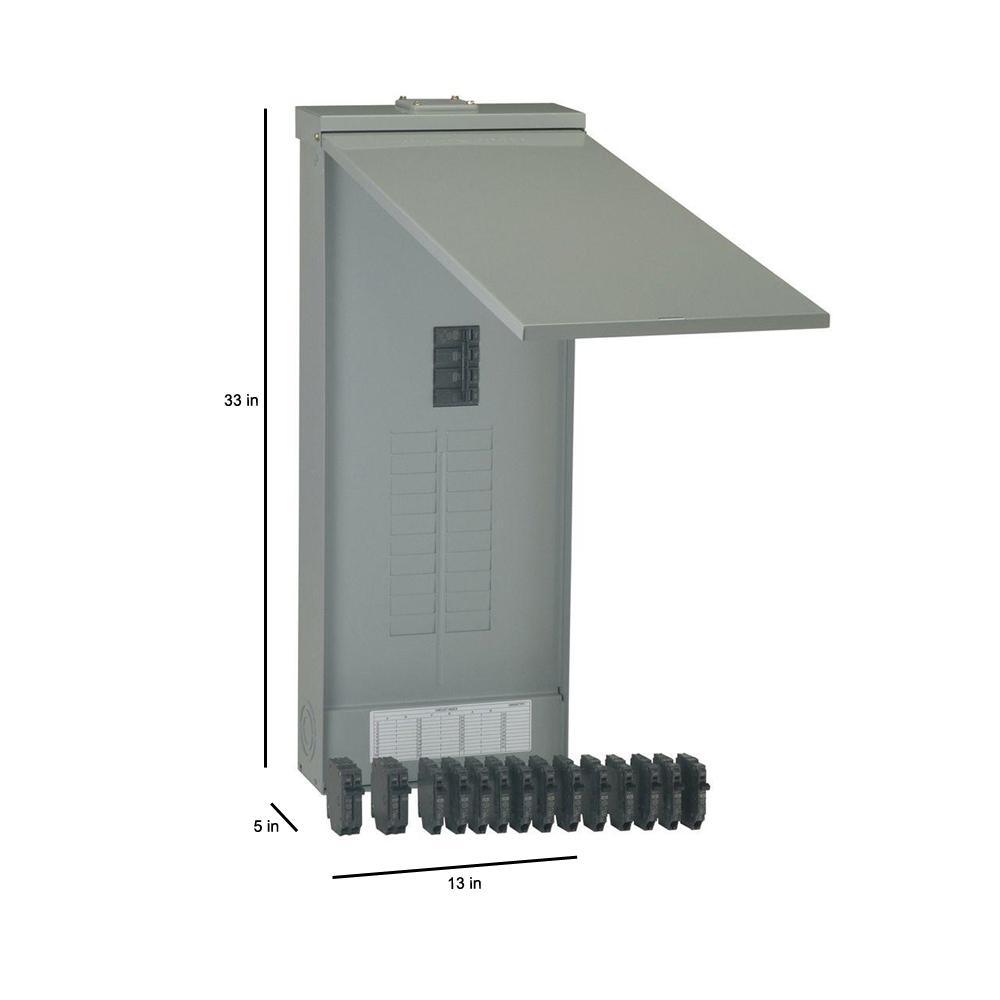

| Load center depth (in.) | 5 |
| Load center height (in.) | 33 |
| Load center width (in.) | 13 |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | One year warranty from first use |
