SharkBite 1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Straight Stop Valve
Published price — same for everyone
In stock
SKU UR23037
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

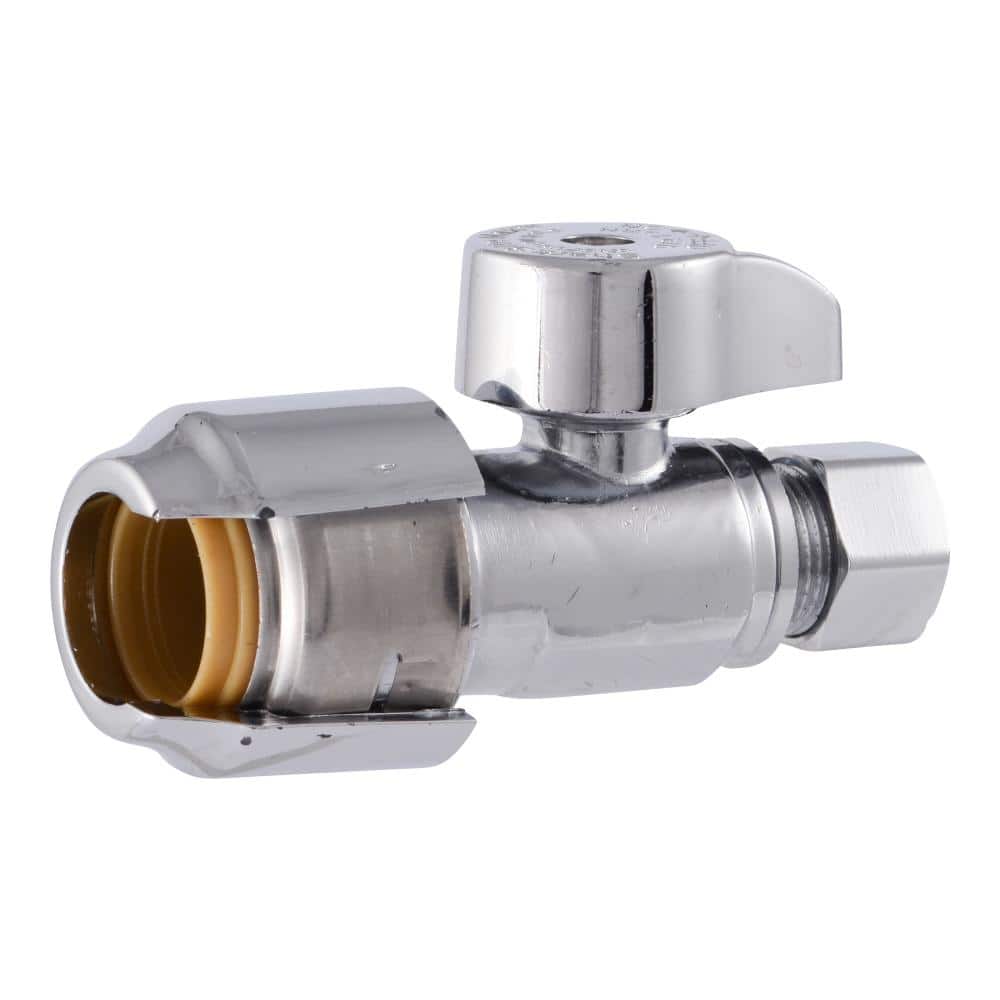

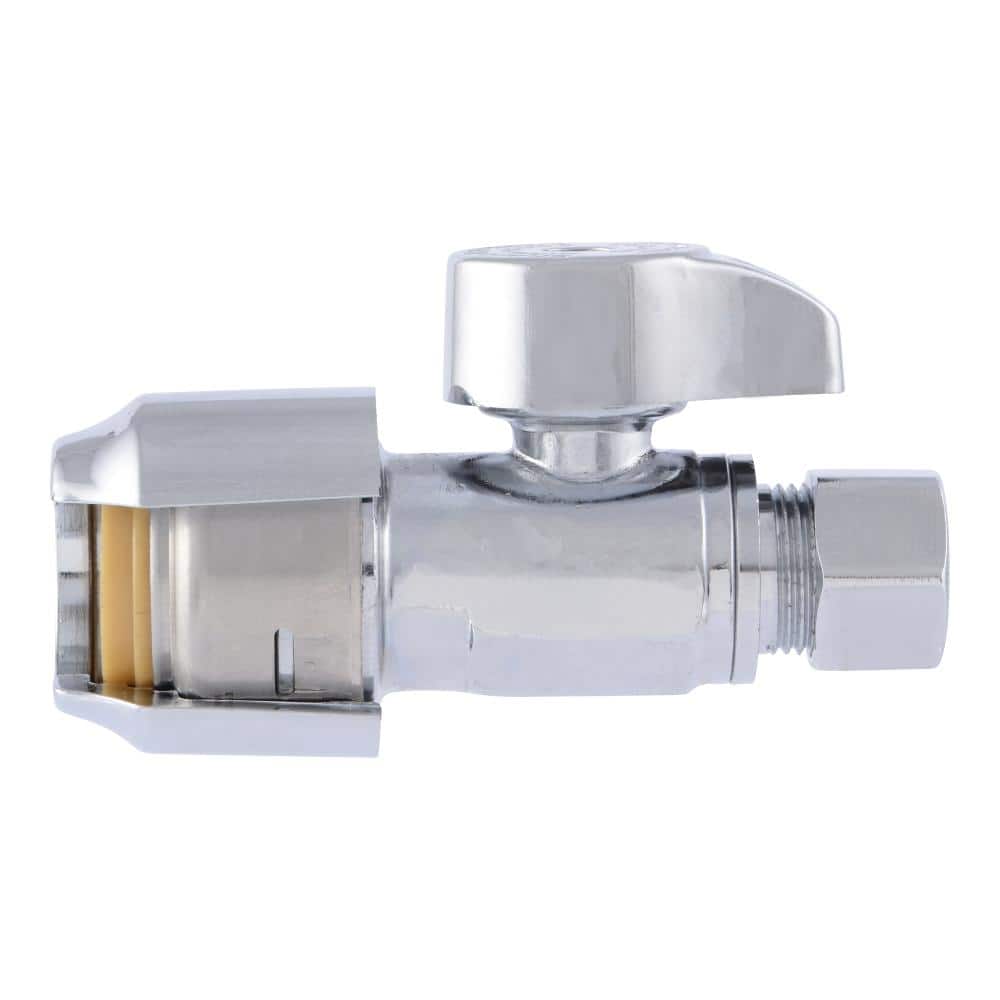

1/2 in. PTC x 3/8 in. Comp Quarter-Turn Straight Stop Valve
Chrome-plated brass stop valve with push-to-connect inlet and 3/8 in. O.D. compression outlet for fast, tool-free shutoff connections to faucets or toilets. Compatible with PEX, copper, CPVC, and PE-RT, this quarter-turn valve installs on wet lines and can be rotated after installation. Engineered with stainless steel retainer and O-ring seal for durable, leak-tight performance.
Key Features:
- Quick Push-to-Connect: Installs without tools, solder, crimping, or glue on wet or dry lines
- Versatile Compatibility: Works with PEX, copper, CPVC, PE-RT; 1/2 in. PTC inlet x 3/8 in. O.D. compression outlet

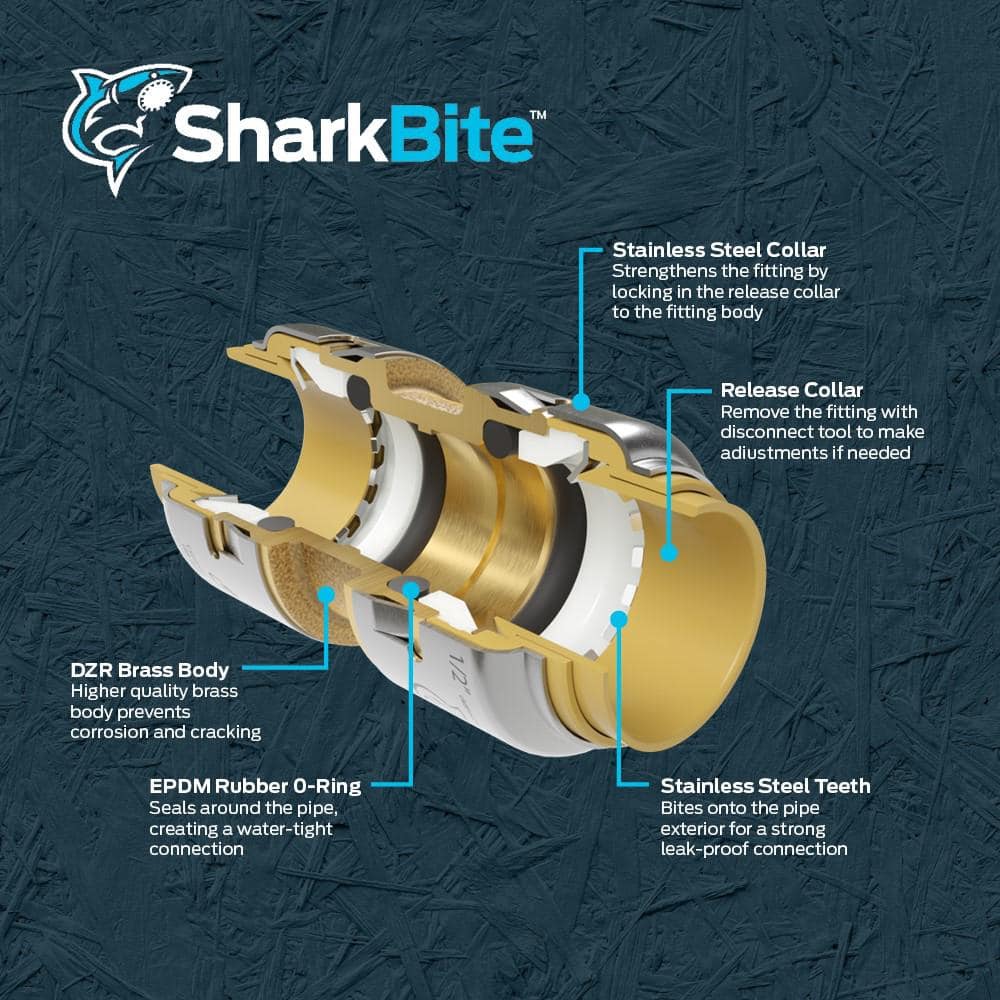

- Durable Construction: DZR lead-free brass body with stainless steel retainer and EPDM O-ring
- High Performance: Rated up to 160°F and 125 PSI; quarter-turn handle for fast shutoff
- Code Approved & Reusable: Suitable for behind-the-wall and underground (wrapped) use; removable with disconnect tool
Specifications Table:
| Specification | Details |
|---|---|

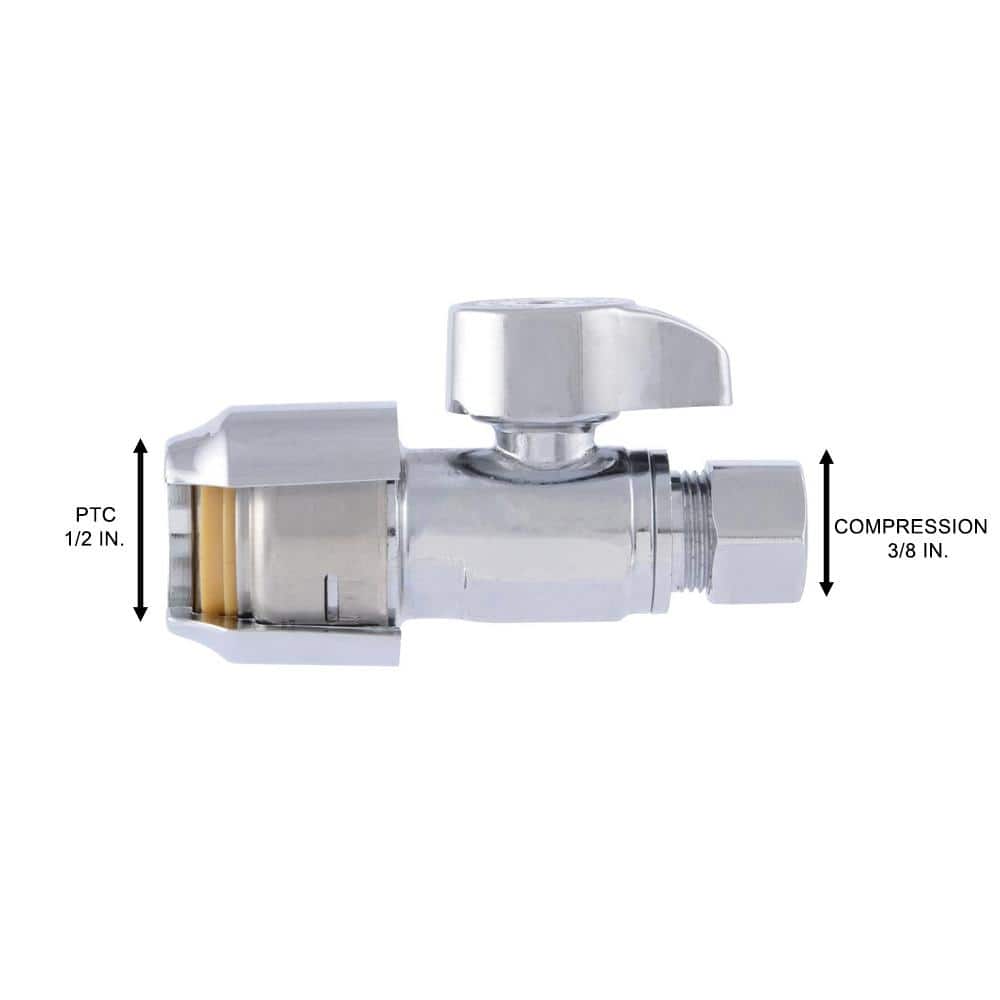

| Connection | 1/2 in. Push-to-Connect x 3/8 in. O.D. Compression |
| Stop Valve Type | Straight |
| Valve Type | Stop |
| Valve Configuration | Straight |
| Inlet Fitting End Type | Push to Connect |
| Outlet Fitting End Type | OD Compression |
| Material | DZR lead-free brass body; stainless steel retainer; EPDM O-ring |
| Color/Finish | Chrome |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT (also noted HDPE SDR-9 with different warranty) |
| Application | Potable Water |
| Indoor/Outdoor | Indoor; approved for underground applications (wrap for burial) |
| Features | Removable with disconnect tool; can be rotated after installation; no tube liner required for PEX |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160°F |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. |
| Product Dimensions | Depth/Length 2.618 in; Height 1.614 in; Width 1.142 in |
| Pack Size | 1 |
| Product Weight | 0.247 lb |
| Warranty | 25-year when installed on PEX, copper, CPVC, PE-RT; 5-year with HDPE SDR-9 |
| Compliance | Third-party listed; compliant with applicable U.S. and Canadian plumbing codes |
Frequently Asked Questions (FAQ):
Q: What pipe types does this valve connect to?
A: It connects to 1/2 in. CTS PEX, copper, CPVC, and PE-RT via push-to-connect and outputs to a 3/8 in. O.D. compression connection.
Q: Can it be installed on a wet line?
A: Yes, it can be installed on wet lines and pressure tested immediately.
Q: What are the temperature and pressure ratings?
A: Rated to 160°F and 125 PSI.
Q: Is any special tool required?
A: No special tools are needed; use a SharkBite disconnect tool if you need to remove or adjust the valve.
Q: What’s the warranty?
A: 25-year warranty when properly installed on PEX, copper, CPVC, and PE-RT; 5-year with HDPE SDR-9.
Sleek Control in a Polished Chrome Finish
This compact, chrome-plated stop valve lends a clean, tailored look beneath sinks while delivering effortless, quarter-turn control. The streamlined silhouette and polished sheen tuck neatly into modern or traditional baths and kitchens alike. Pair with braided stainless supply lines for a crisp, coordinated installation. It’s the discreet luxury detail that makes everyday function feel refined.
Upgrade your shutoff point with fast, tool-free installation and dependable SharkBite performance today.
