Schneider Electric

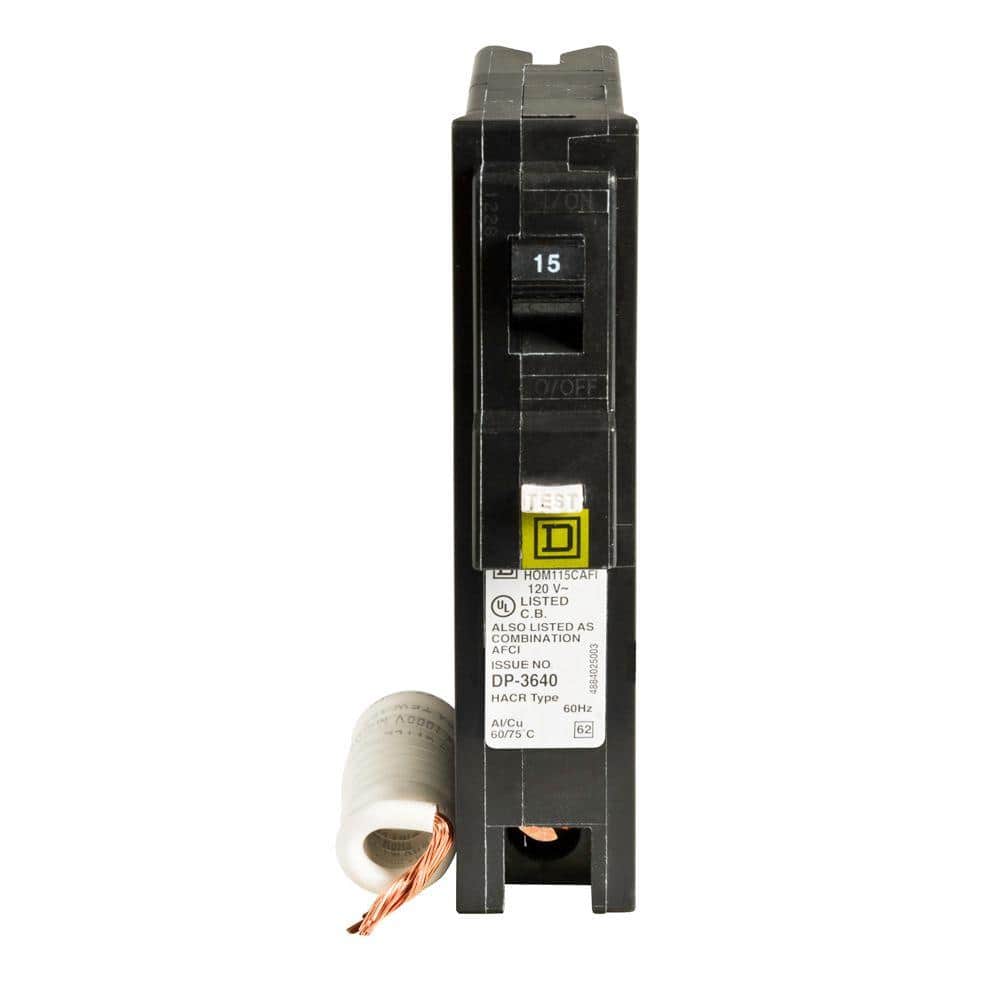

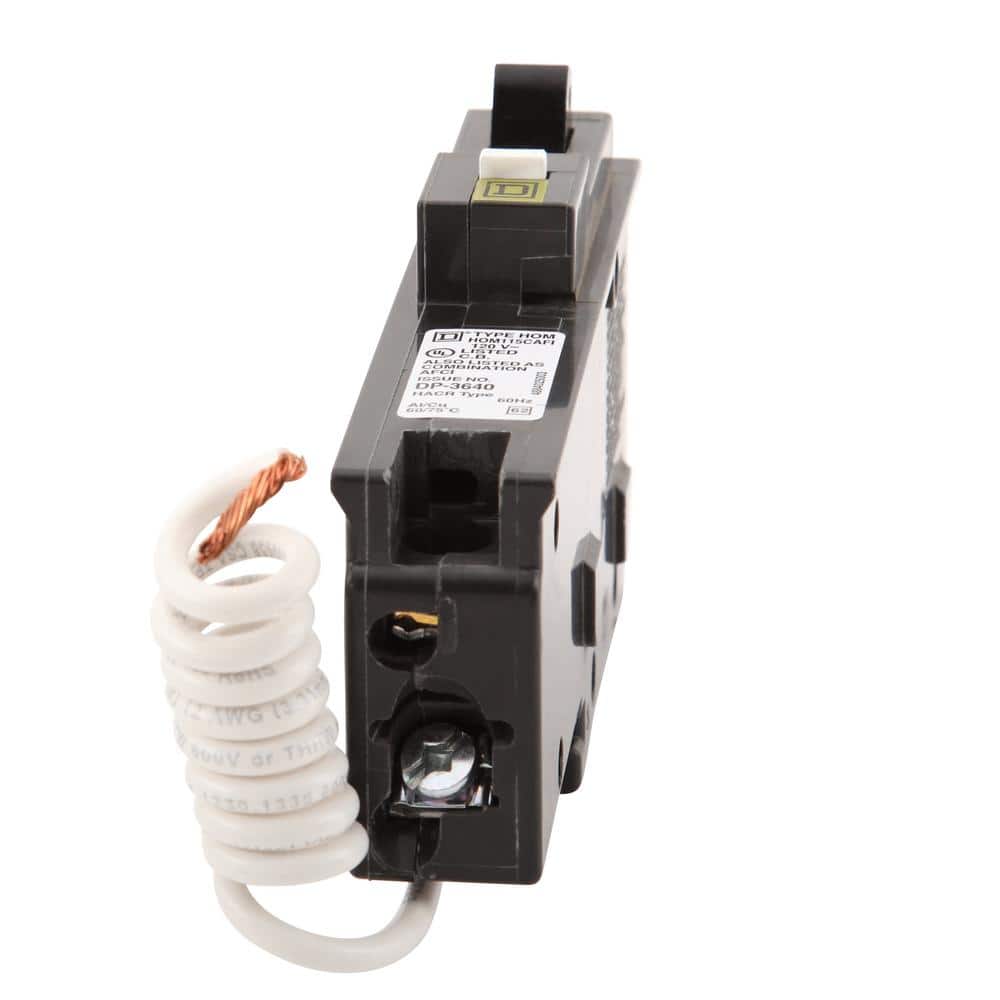

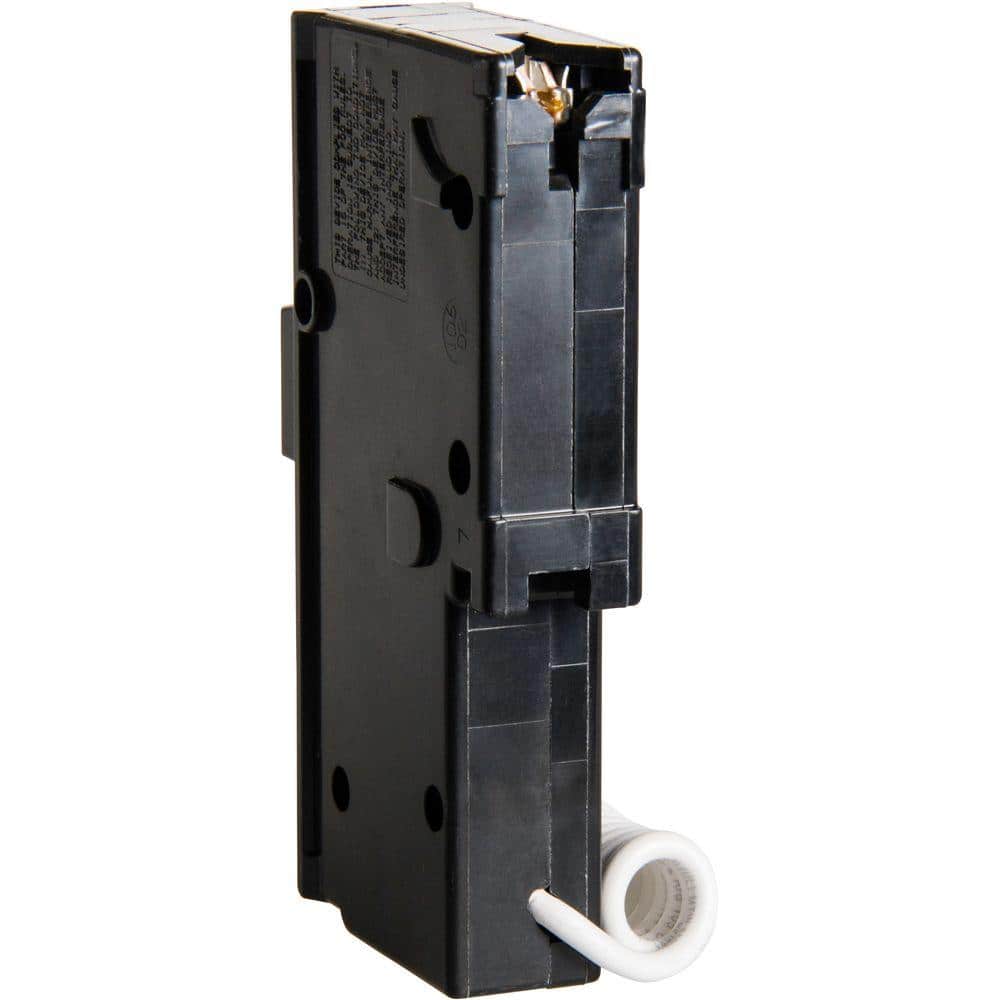

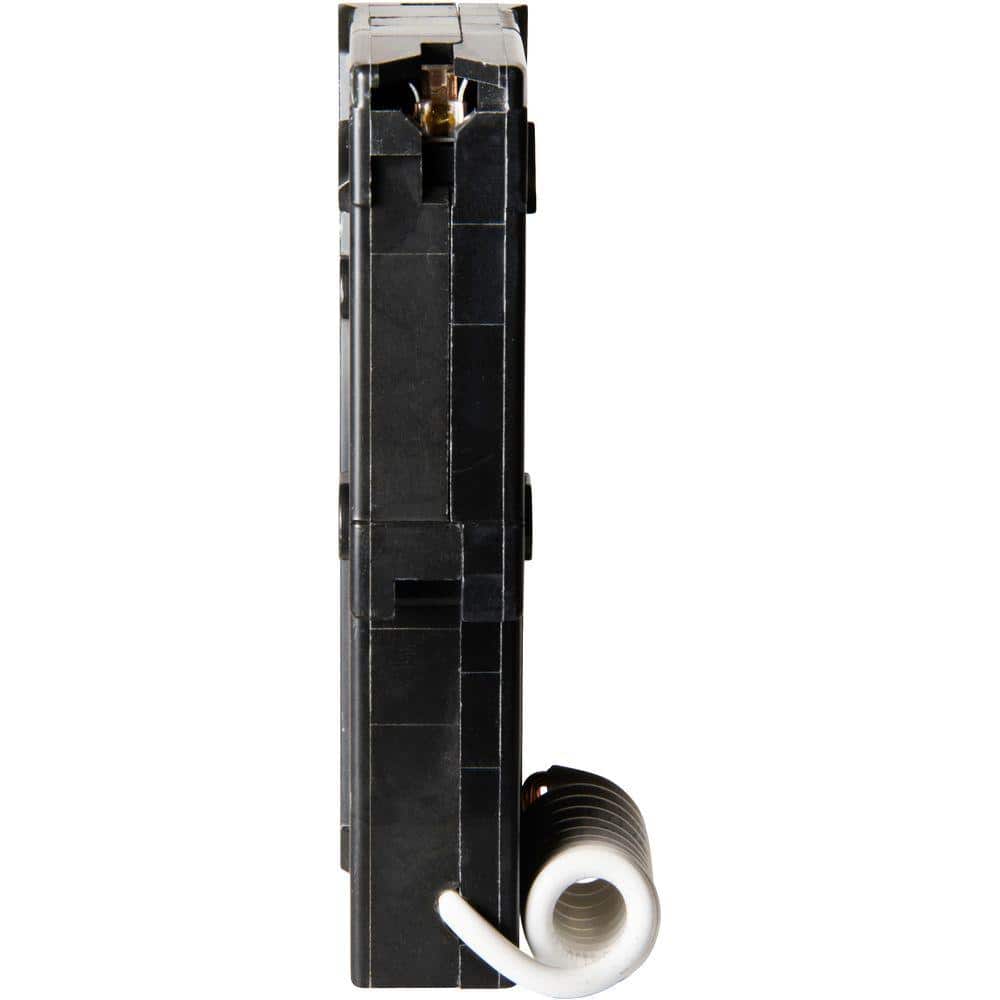

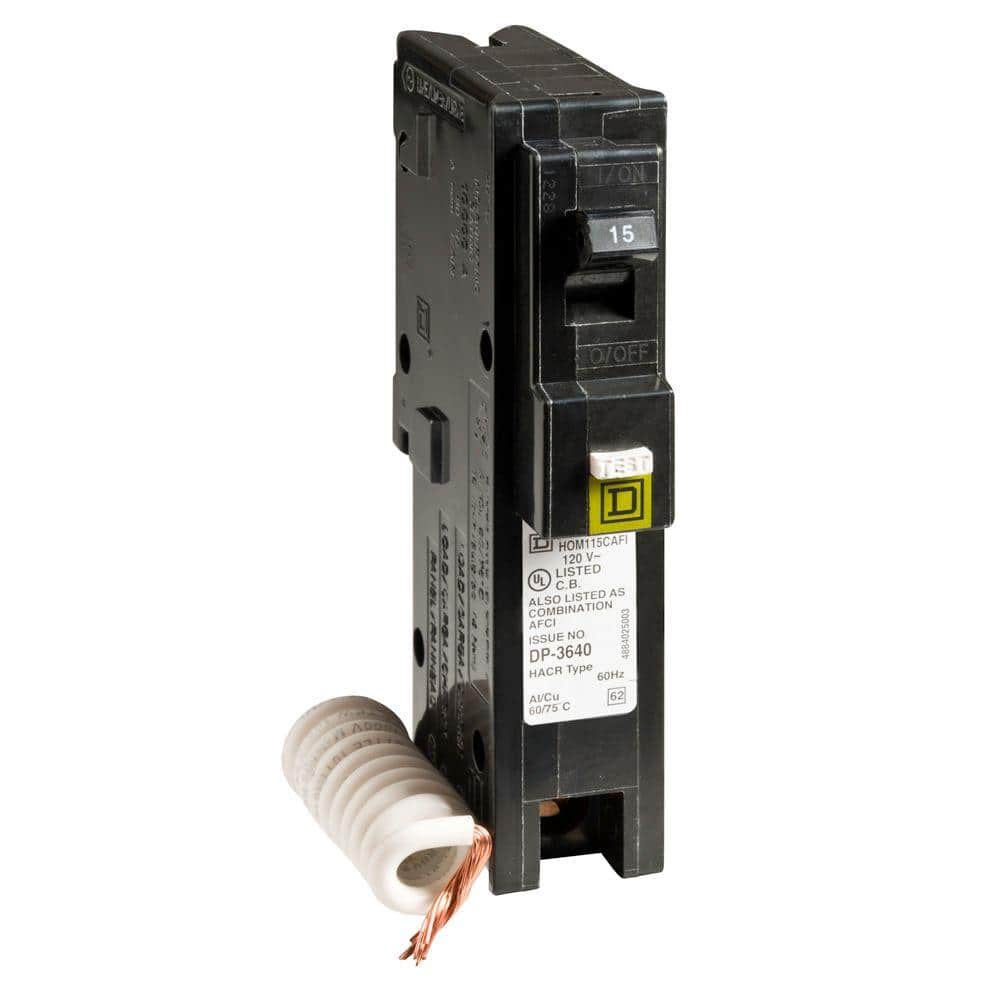

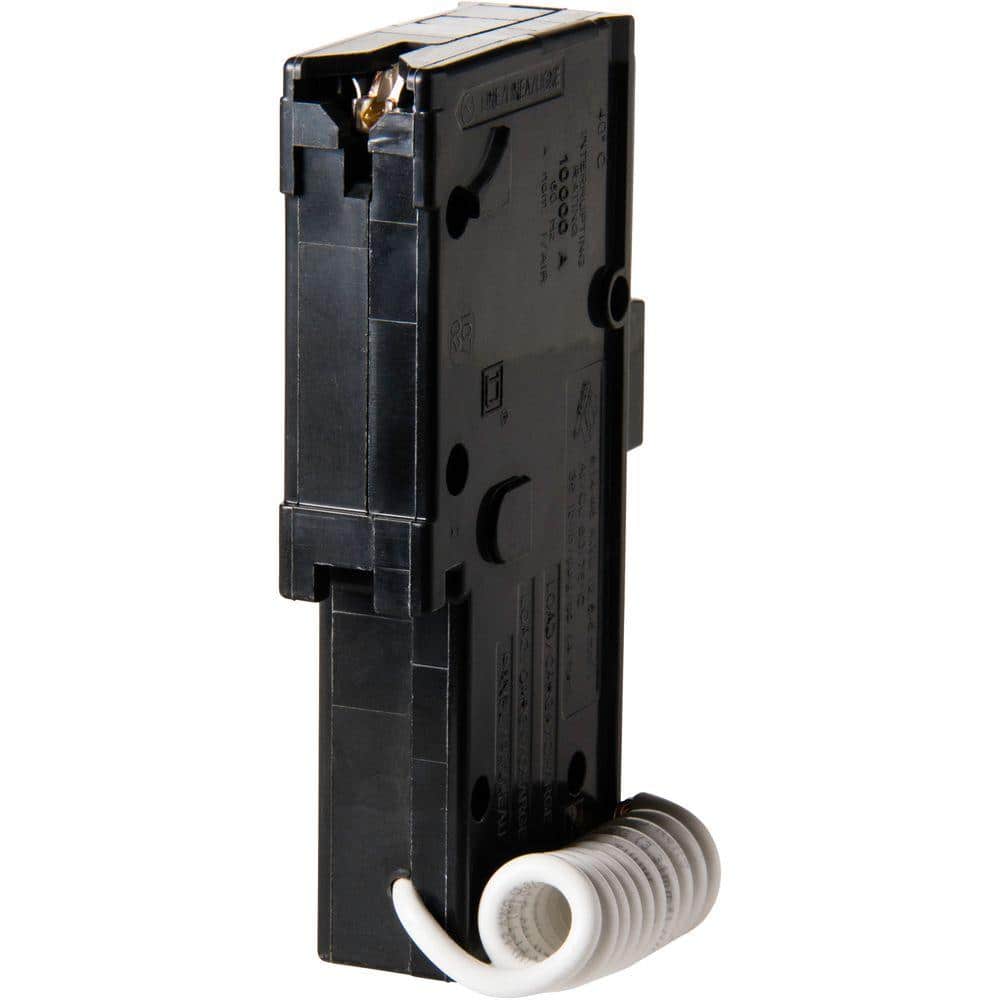

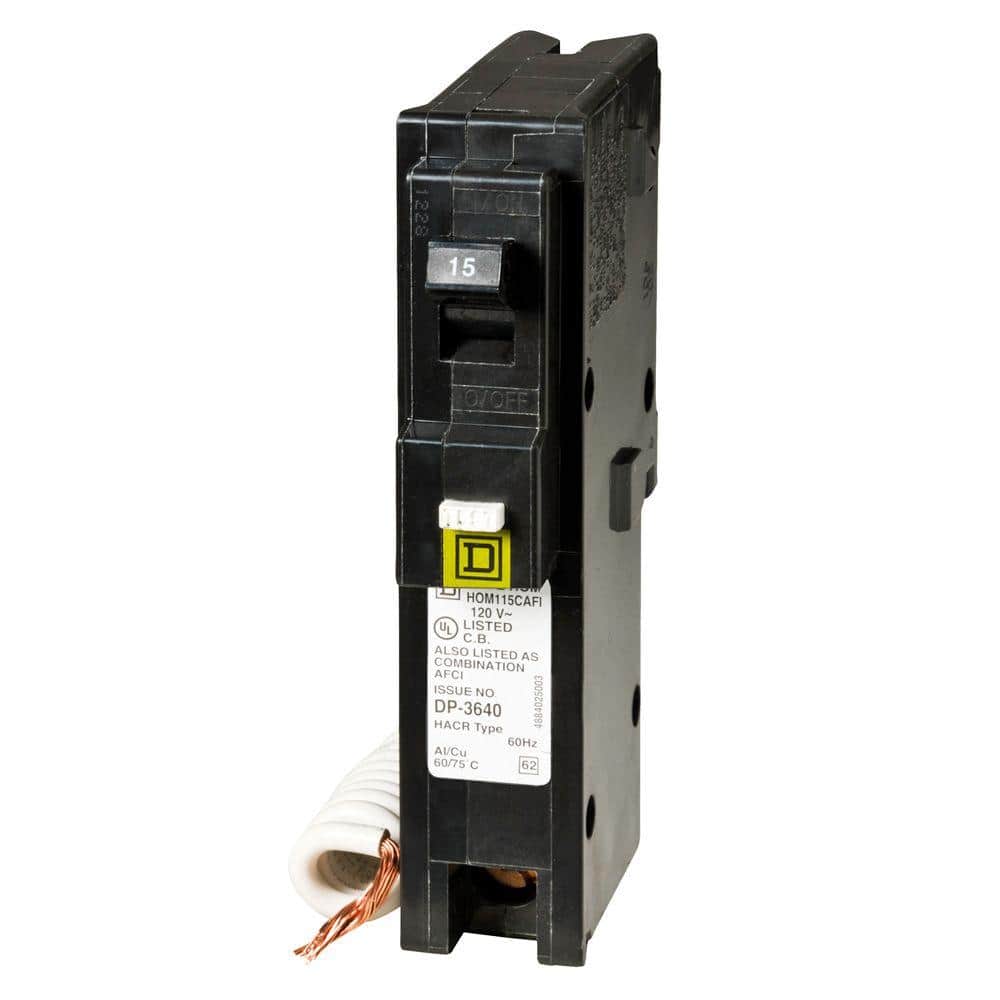

Square D Homeline 15 Amp Single-Pole Combination Arc Fault Circuit Breaker, HOM115CAFIC
Published price — same for everyone
In stock
SKU HOM115CAFIC
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 15A Single-Pole Combination AFCI Breaker
Single-pole 15A Homeline CAFCI breaker designed to protect branch circuits from parallel and series arcing faults while providing overload and short-circuit protection. Plug-on, pigtail connection fits Square D Homeline load centers and CSEDs, delivering UL Listed safety and Time-Saver Diagnostics for faster troubleshooting.
Key Features:
- Enhanced Arc-Fault Protection: Combination AFCI defends against parallel and series arcs to help prevent electrical fires
- Time-Saver Diagnostics: Built-in trip indication speeds troubleshooting and reduces downtime
- Homeline Compatibility: Plug-on design with pigtail neutral fits Homeline panels and CSEDs using 1 space
- Reliable Performance: 10kA AIC rating, electronic trip unit; UL Listed for residential use

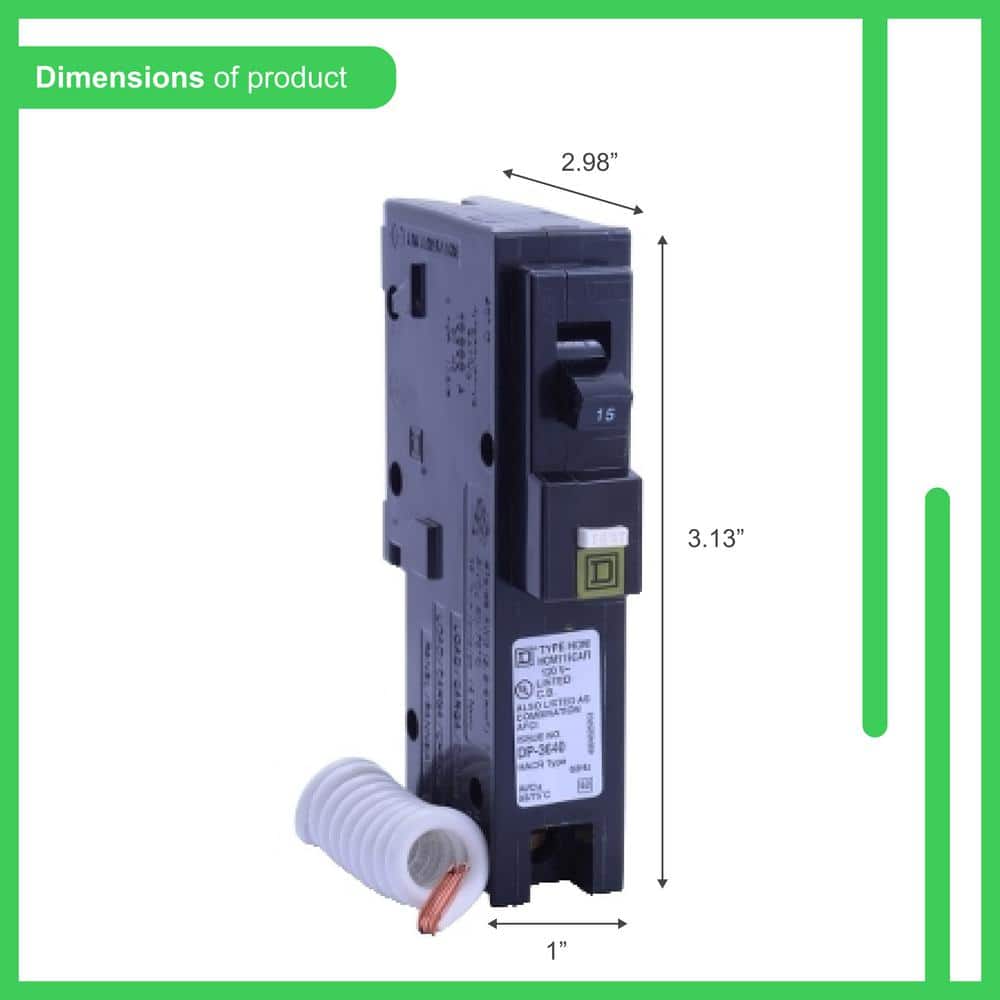

- Compact Dimensions: 3.13 in H x 2.98 in D x 1 in W; 0.68 lb for easy handling and installation
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Amperage | 15 A |
| Poles | Single-Pole |
| Interruption Type | Combination AFCI (CAFCI) |
| AIC Rating | 10,000 AIC |
| Voltage | 120/240 V |
| Trip Unit | Electronic |
| Mounting Type | Plug-On |
| Connection Type | Pigtail neutral |
| Number of Spaces Required | 1 |
| Pack Size | 1 |
| Certifications | UL Listed |
| Product Height | 3.13 in |
| Product Depth | 2.98 in |
| Product Width | 1 in |
| Product Weight | 0.68 lb |
| Power Distribution Features | Time-Saver Diagnostics |
| Manufacturer Warranty | Limited lifetime for the lifetime of the Homeline load center in which it is installed |
Frequently Asked Questions (FAQ):
Q: What panels is this breaker compatible with?
A: It is designed for Square D Homeline load centers and CSEDs and occupies one space.
Q: Does it include arc-fault protection?
A: Yes, it is a Combination AFCI (CAFCI) that protects against parallel and series arcing faults.
Q: What is the interrupt rating?
A: 10,000 AIC.
Q: How is the neutral connected?
A: It uses a pigtail neutral connection.
Q: Is it UL listed and warranted?
A: Yes, it is UL Listed and covered by a limited lifetime warranty for the lifetime of the installed Homeline load center.
A Sleek Safeguard for Smarter Power
This compact Homeline breaker refines the backbone of your home’s electrical story with quiet confidence. The signature Square D profile and bold test button feel purposeful, a streamlined detail that keeps the visual language clean inside your panel. Pair it with a tidy, well-labeled load center to elevate both function and finish behind the scenes. Consider it an essential layer of luxury—safety engineered with style.
Upgrade your panel with Homeline CAFCI protection today and safeguard your home with trusted Square D reliability.
