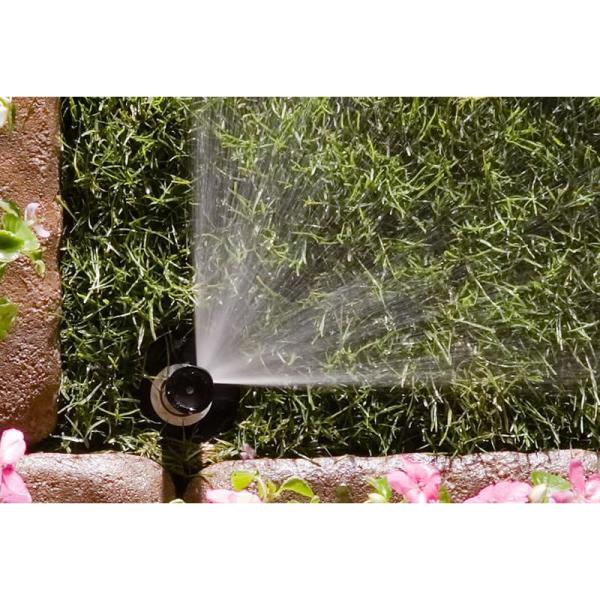

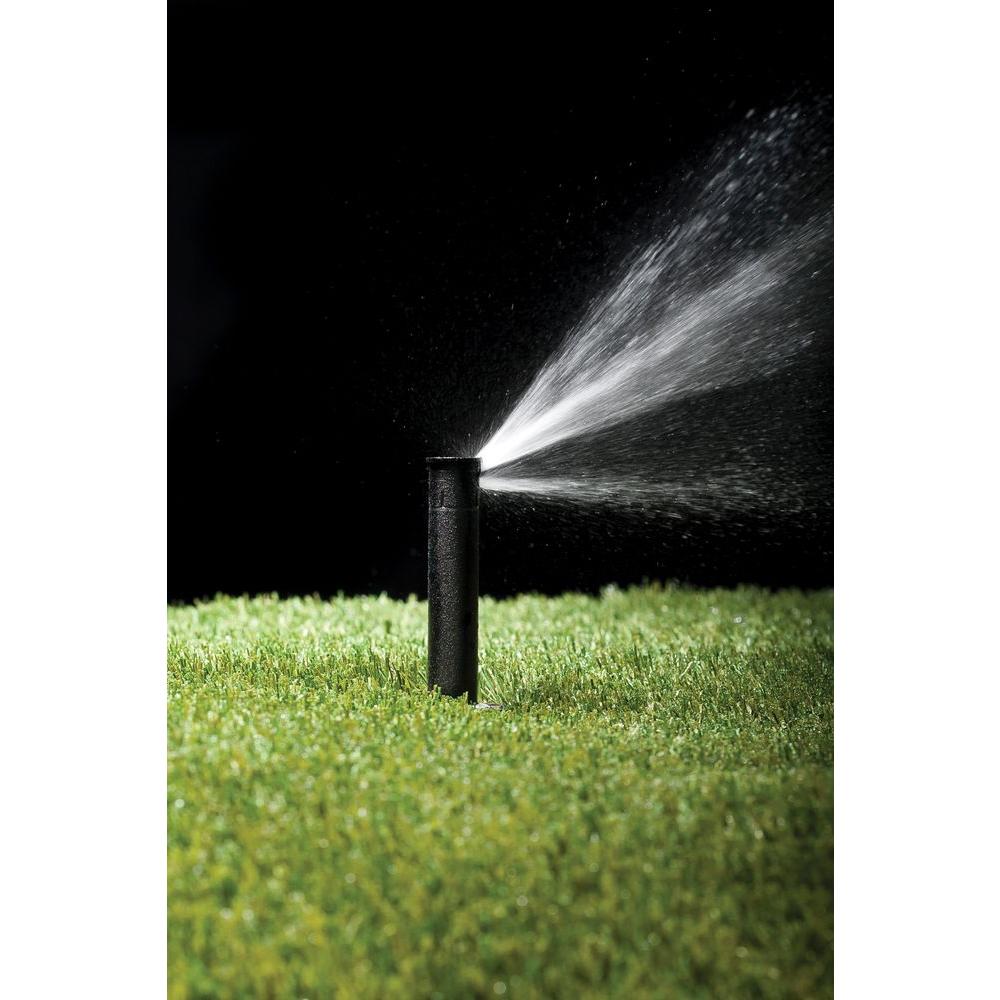

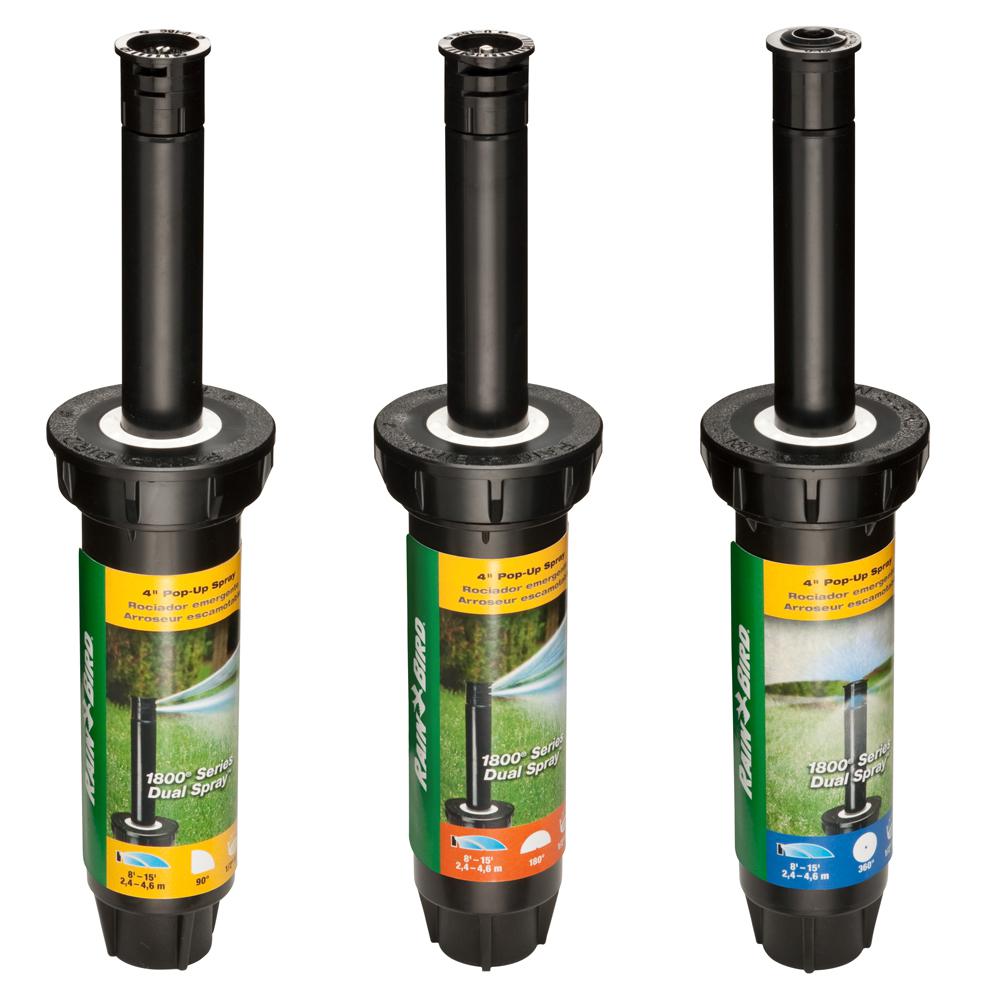

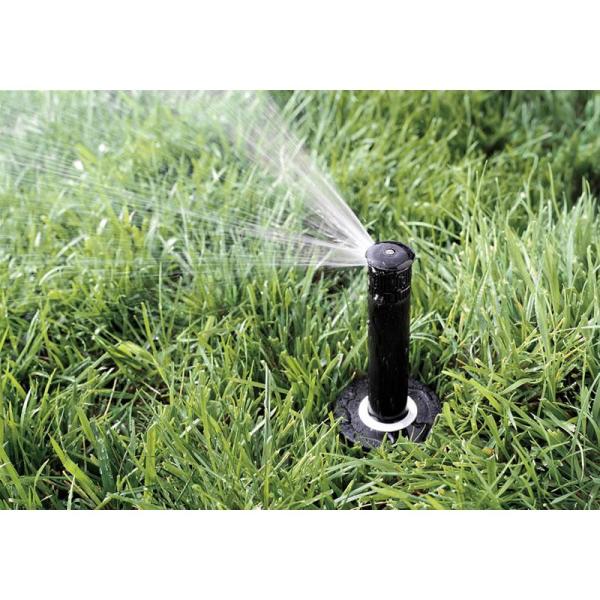

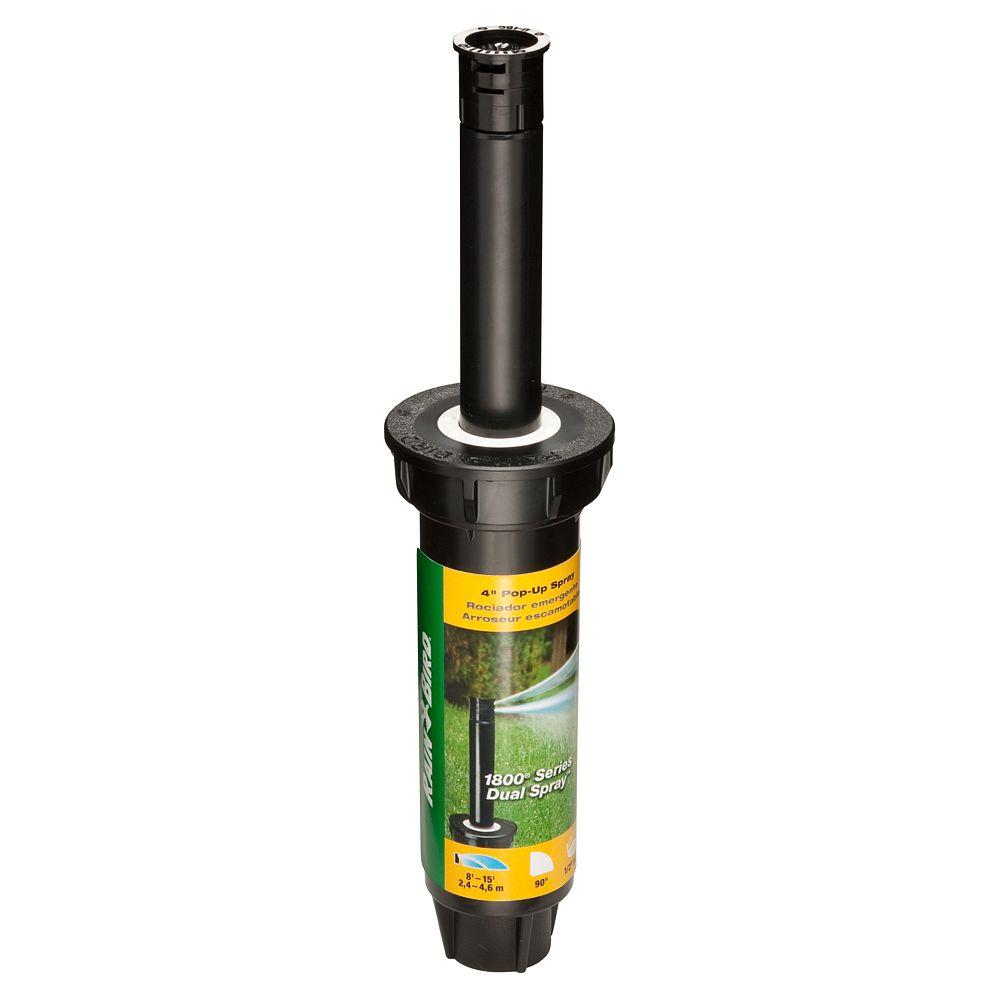

1804 Dual Spray Quarter Pattern 4 in. Pop-Up Spray Head

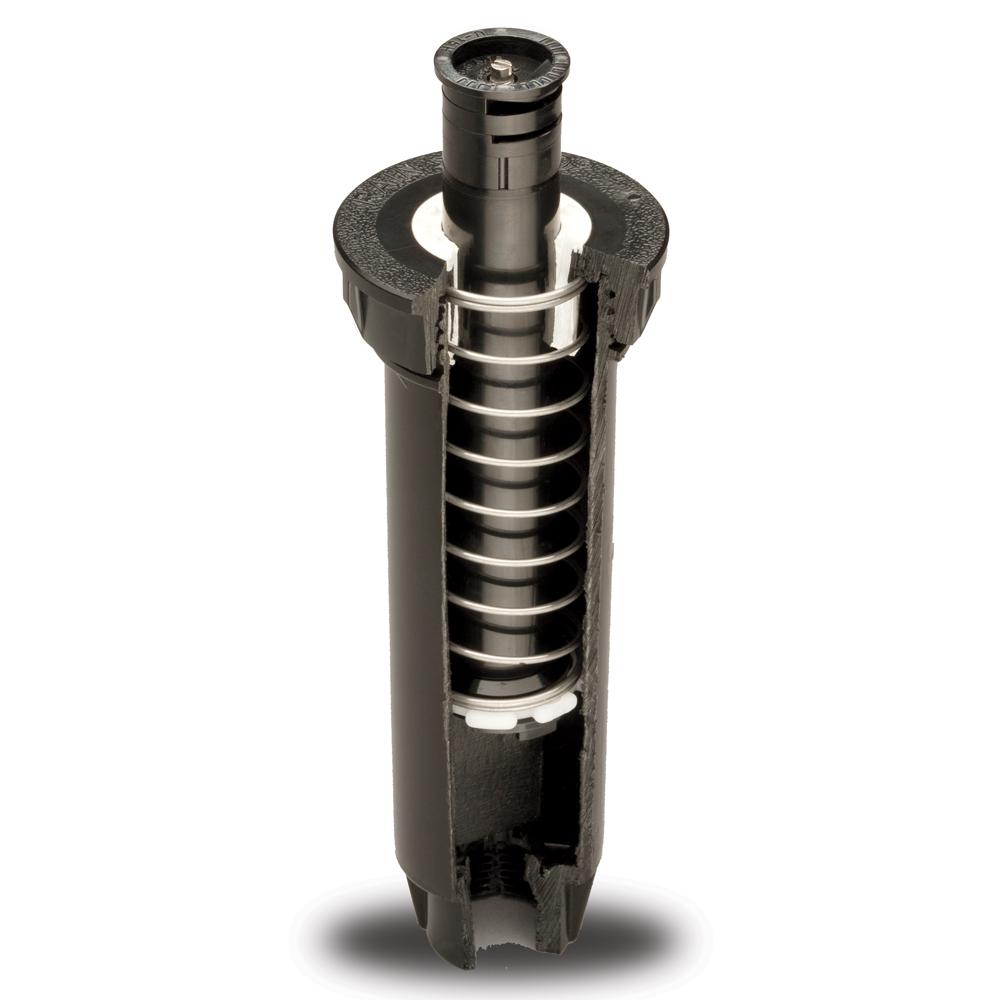

Installed in parks and backyards across the globe, Rain Bird’s 1800 Series is the #1 selling commercial-grade pop-up sprinkler in the world. Chosen for its reliability, heavy-duty materials and versatility, the 1800 Series offers a broad selection of spray heads for watering shrubs, small lawns and irregularly shaped planting areas. Precision spray heads and nozzles customize your watering system to cover virtually any configuration of lawn or garden - not the sidewalk or driveway. The 1800 Series offers Rain Bird’s patented pop-up mechanism for out-of-sight retraction into the lawn when not in operation. A wide choice of nozzles provides full circle, partial circle coverage or infinite pattern adjustment for optimum head-to-head coverage.

Features

Item Weight	.2
Sprinkler Head Material	ABS Plastic
Sprinkler Location	Below ground
Irrigation System Component	Sprinkler
Color Family	Blacks
Maximum Coverage Area (sq ft.)	177.0
Maximum Rotation (Degrees)	90
Sprinkler Angle Minimum (Degrees)	23
Pack Size	1
Sprinkler Type	Fixed,Pop-Up
Riser	Riser Required
Mounting	In-Ground Install
Thread Type	Pipe Thread
Inlet Type	Female
Material	ABS Plastic
Returnable	180-Day
Features	Retraction Spring
Nozzle Material	ABS Plastic
Maximum Gallons Per Minute	1
Pressure Rating	70 psi
Minimum Spray Distance (ft.)	12
Head Material	Plastic
Sprinkler Angle Maximum (Degrees)	23
Maximum Spray Distance (ft.)	15.0
Sprinkler Head Type	Fixed,Spray
Sprinkler Head Spray Pattern	Quarter Radius
Package Quantity	1
Inlet Size (in.)	.5
Product Height (in.)	2.25 in
Product Depth (in.)	6 in
Product Width (in.)	2.25 in
Manufacturer Warranty	If a purchaser of any new Rain Bird consumer product becomes dissatisfied with it for any reason, he may return it to the retailer where it was purchased within a reasonable time for a full refund.
