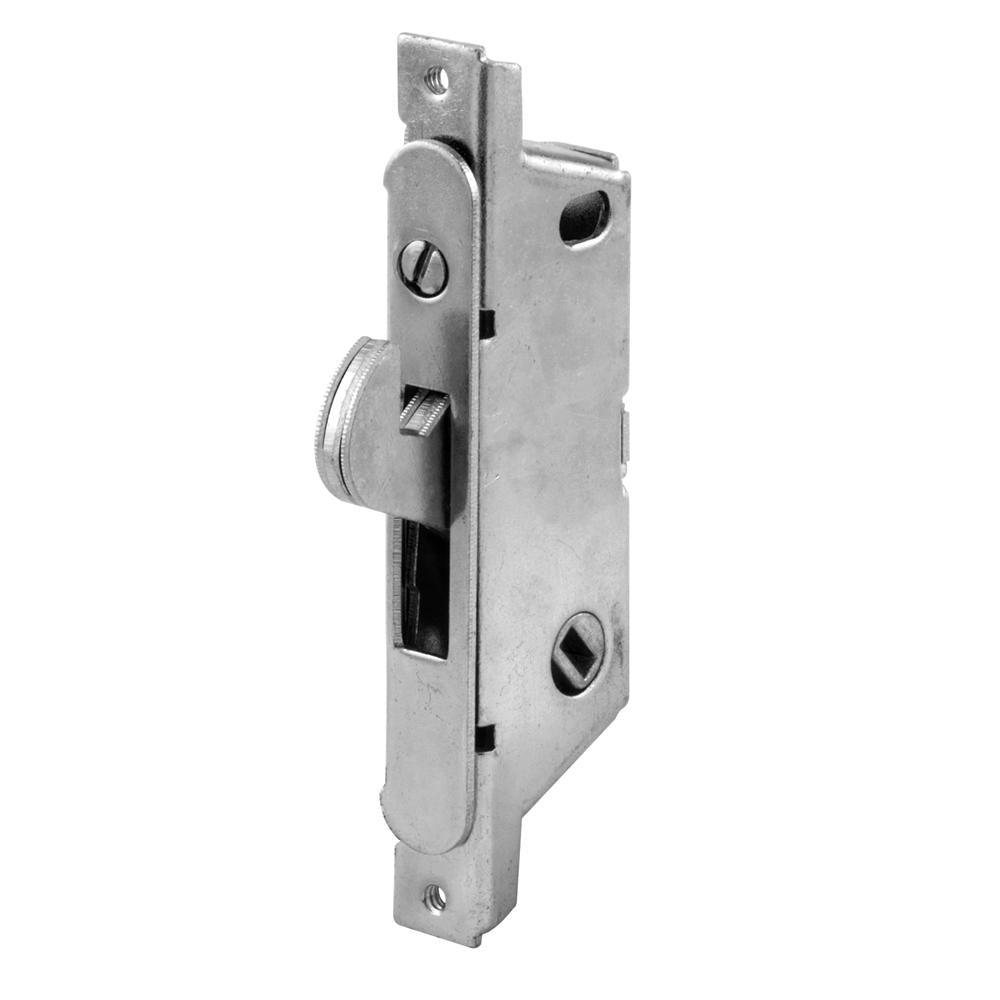

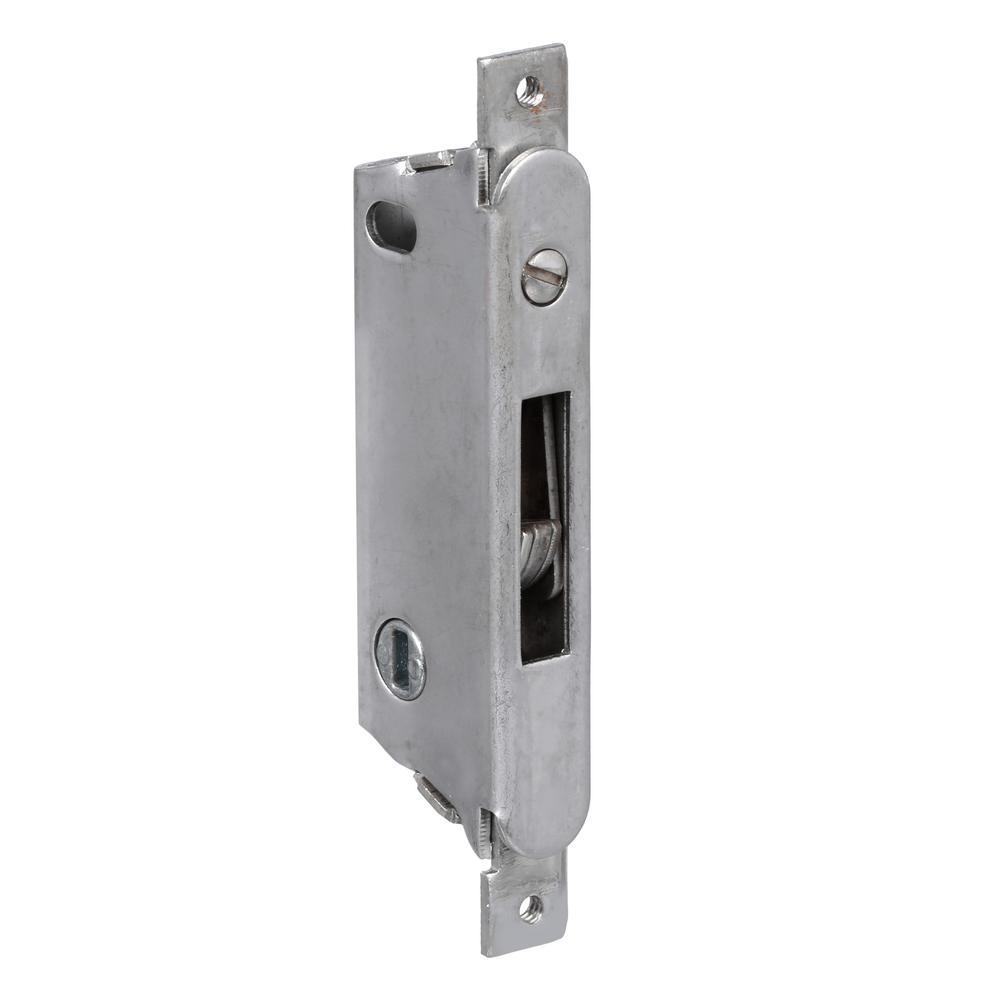

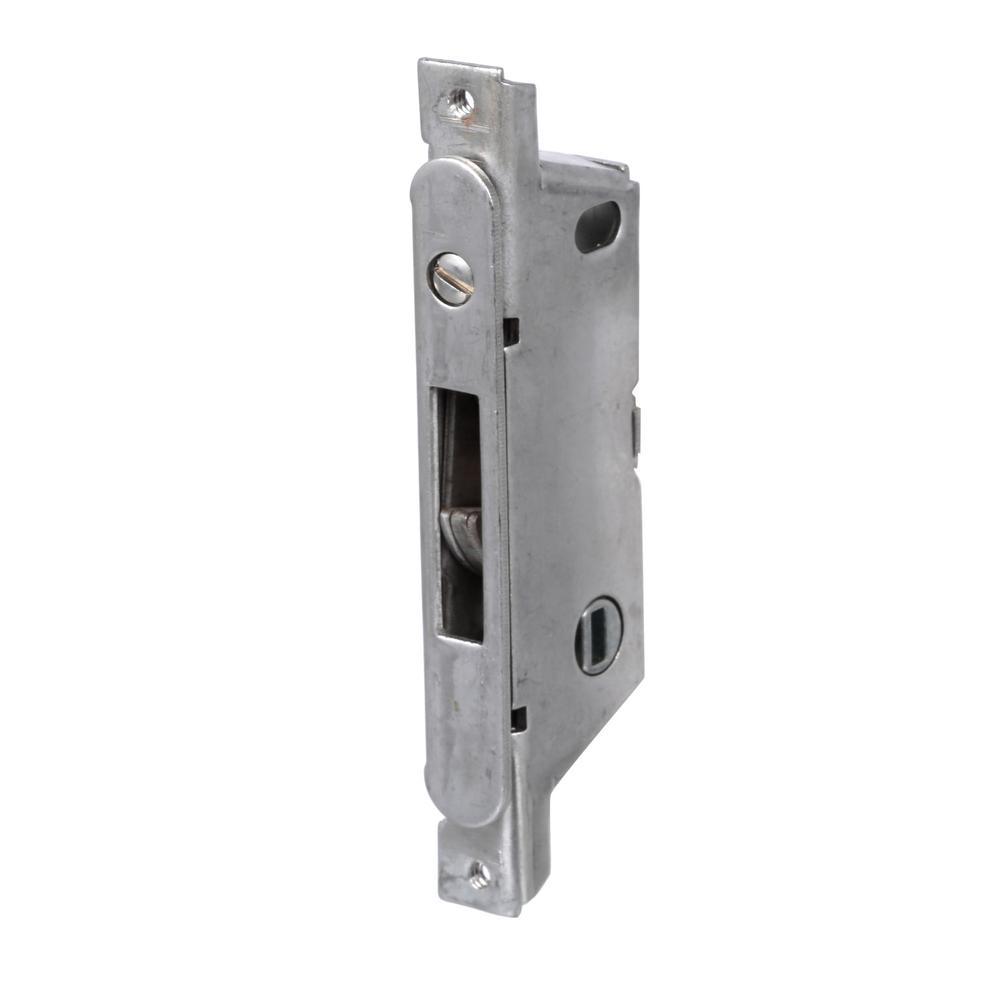

45 Degree, Stainless Steel, Round Face Mortise Lock
$21.58
Published price — same for everyone
In stock
SKU 202890821
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
This sliding door lock is constructed from stainless steel. It features a steel hook with adjustable projection. This lock fits on Adams Rite sliding glass doors. It features a round end faceplate, and the keyway is in the 45 degree position with hook fully extended.
Features
- Used by Adams Rite sliding patio doors
- Mounting holes are 3-11/16 in. on center
- 45 degree keyway
- Steel construction
- Features a spring-loaded adjustable hook
- All the necessary mounting hardware is included for a quick and easy installation
- A Phillips head screwdriver is required for installation

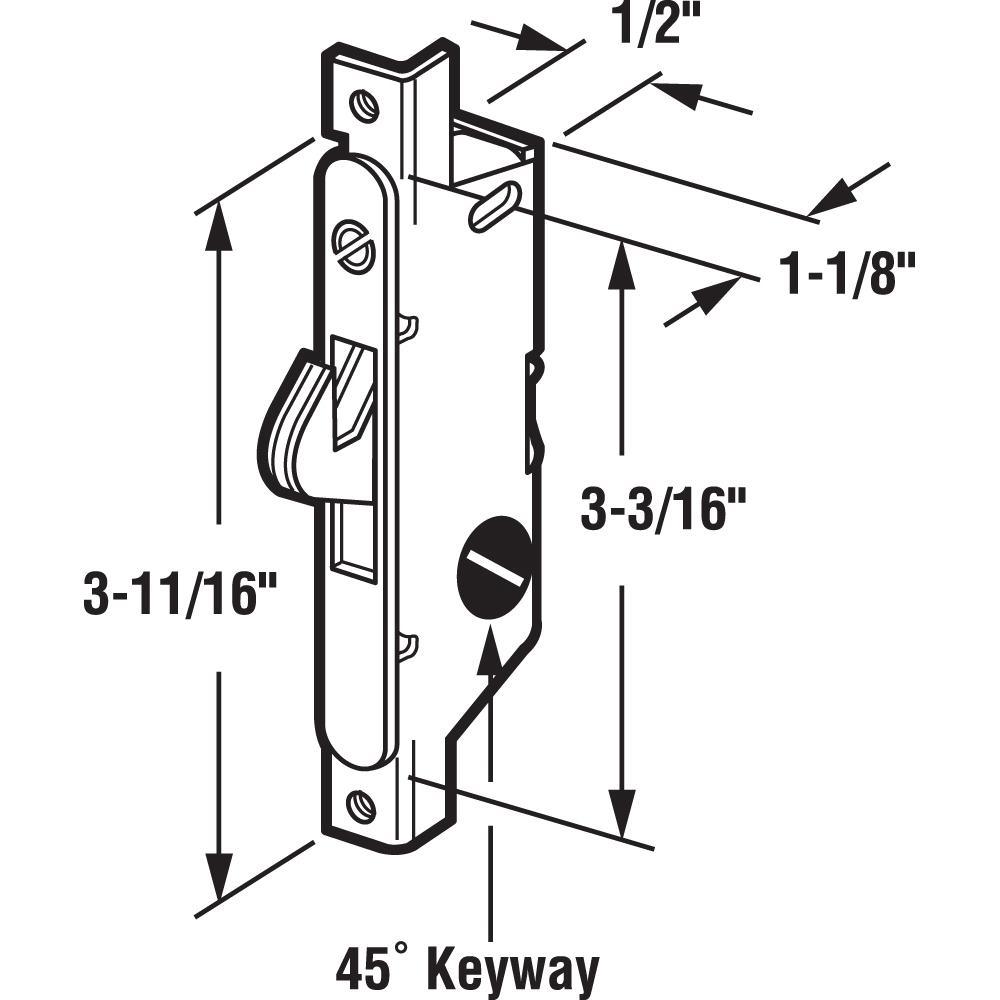

- For further dimensional information, please see the line drawing
Features
| Item Weight | 0.275 |
| Product Weight (lb.) | .29 |
| Included | Installation Instructions |
| Door Locks & Knobs Product Type | Mortise Locks |
| Material | Steel |
| Security/ANSI Grade | N/A |
| Interior/Exterior | Interior |
| Commercial/Residential | Residential |
| Door Lock Style | Modern |
| Finish | Stainless Steel |
| Returnable | 180-Day |
| Features | No Additional Features |
| Hardware Finish Family | Silver |
| Product Height (in.) | 3.5 |
| Product Depth (in.) | 1.125 |
| Chain/bar length (in.) | 0 |
| Product Width (in.) | .5 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Certifications and Listings | No Certifications or Listings |
Third-party marks are the property of their respective owners and do not indicate sponsorship or endorsement.
