Arctek

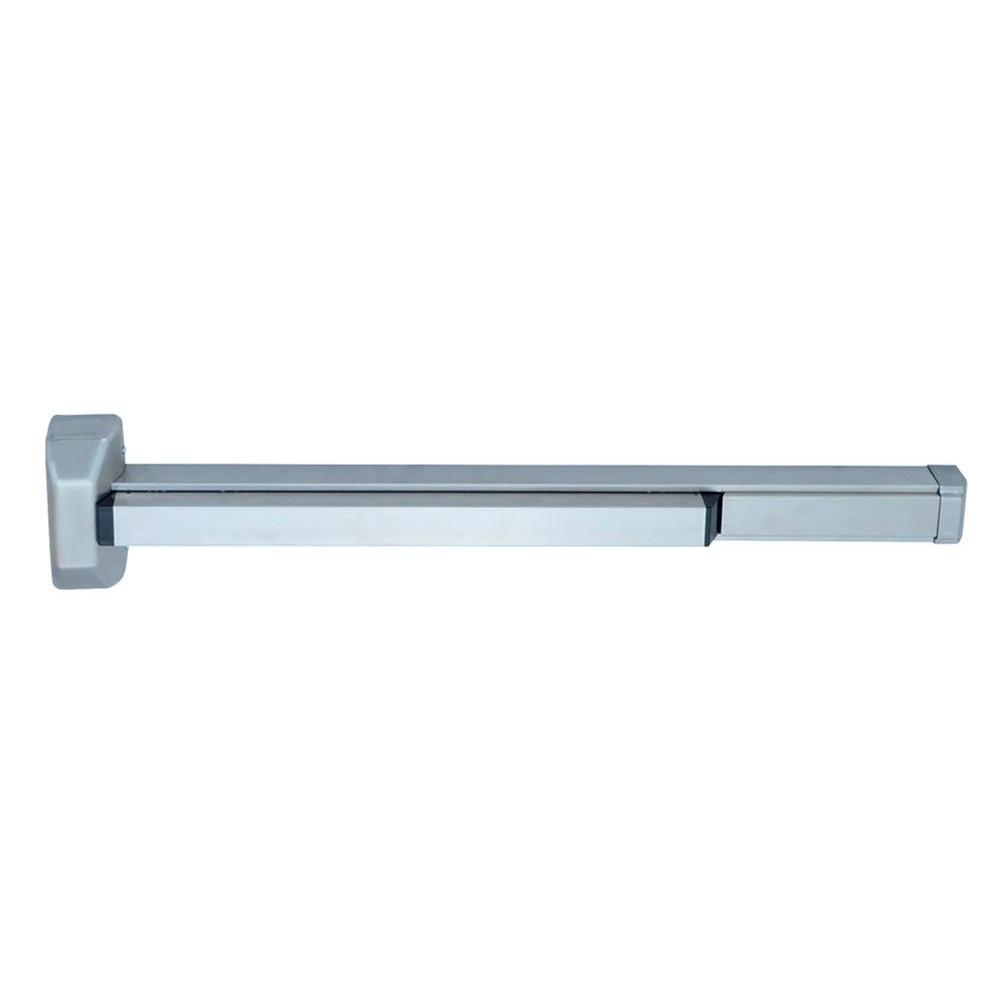

Silver Rim Type Push Bar Exit Device Fire Rate
$124.93
Published price — same for everyone
In stock
SKU 203680260
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The Arctek 7100 series fire rated panic bar is 36 in. long and comes in silver painted finish. Reversible for all functions and Arctek trims. For commercial use. The exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face.
Features
- California residents
- UL10C 3-hour fire rating
- Rating: fire rated
- Model type: rim type
- Latch: 5/8 in. throw, stainless steel
- Backset: 2-3/4 in. includes latch and strike filter plates
- Strike: surface mounted for 5/8 in. stop
- Handling: reversible, non-handed
- Door width: 3 ft. standard for door width of 2 ft. 8 in. to 3 ft. 0 in.
- For commercial use
- Mounting height: 40-5/16 in. from CL to finished floor recommended
- 10 year warranty
- ANSI A156.3 grade 1 certified
- For door: 1-3/4 in. thick of wood or metal door, specify thickness if other than 1-3/4 in.
Features
| Item Weight | 8.31 |
| Finish | Silver |
| Material | Metal |
| Door Handing | Universal |
| Builders Hardware Product Type | Exit Devices |
| Commercial/Residential | Commercial |
| Function | Exit Only |
| Returnable | 180-Day |
| Hardware Finish Family | Silver |
| Product Depth (in.) | 2.38 |
| Projection (in.) | 2.38 |
| Product Height (in.) | 32.94 |
| Product Width (in.) | 6.94 |
| Manufacturer Warranty | 10 Year Warranty |
