Schlage

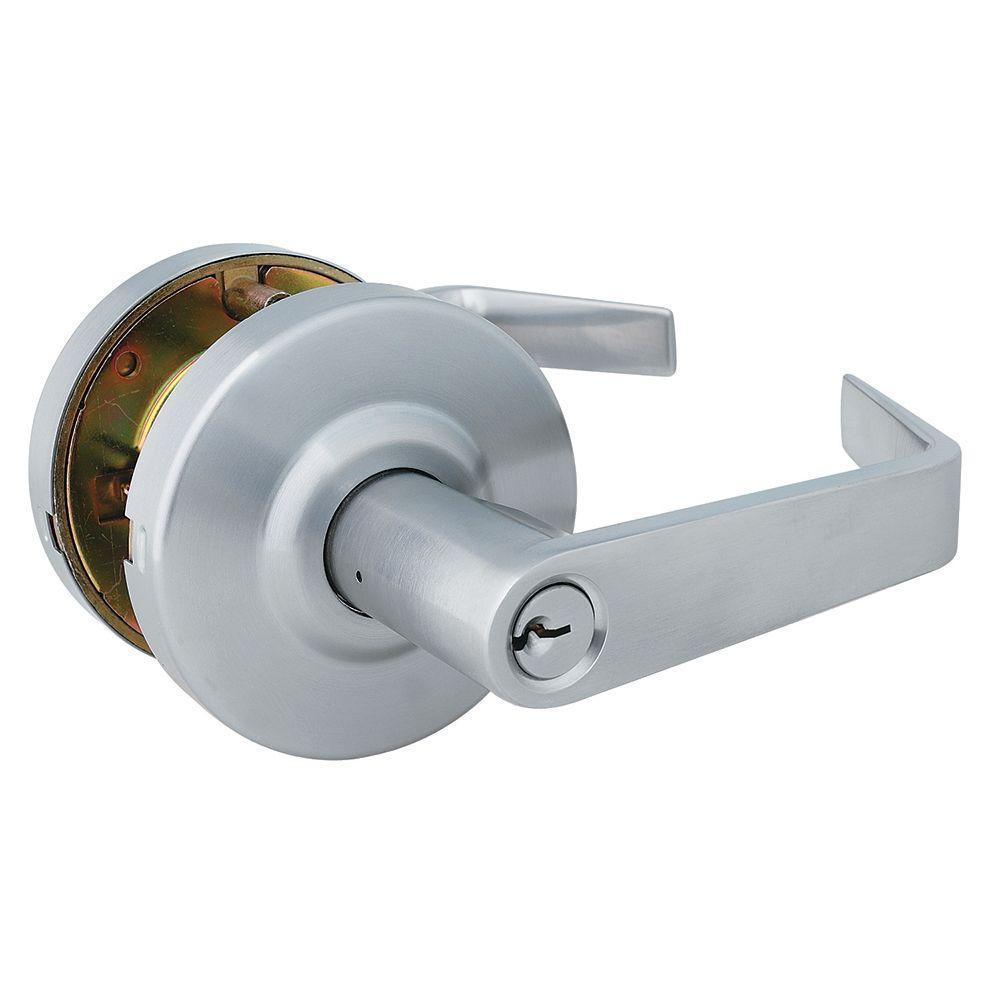

Commercial Steel Entrance Lockset Keyed Entry Door Lever
Not priced yet
In stock
SKU '203776678
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
LIFE Security Products Heavy Duty lever style Entrance function lockset is a cylindrical lockset that is ADA (American’s with Disabilities Act) compliant. The lock comes in a satin chrome finish and includes added thru-bolts for extra strength and security for the door assembly. Also features a SC 1 solid brass “C” Keyway.
Features
- Heavy duty grade 2 lockset
- Adjustable for 1-3/8 in. - 1-3/4 in. doors
- Schlage 6 pin keyway
- 2x 6 pin nickel plated keys included
- Stainless steel 1/2 in. latch projection
- Adjustable latch from 2-3/8 in. - 2-3/4 in. backset
- 4-7/8 ANSI strike included
Features
| Item Weight | 3.25 |
| Strike | Square corner |
| Door Handing | Universal |
| Material | Steel |
| Lock Type | Keyed |
| Total Number of Keys Included | 2 |
| Wired or Wireless | No electrical connectivity |
| Hardware Finish Family | Silver |
| Number of Pins | 6 |
| Backset size (in.) | 2-3/4 |
| Application Type | Entry |
| Keyway | C |
| Door Lock Style | Modern |
| Lock Type2 | Keyed Entry |
| Finish | Brushed Chrome |
| Lever material | Steel |
| Combo Pac | Lockset |
| Commercial/Residential | Commercial |
| Included | Drilling Template,Installation Instructions |
| Door Locks & Knobs Product Type | Keyed Levers |
| Minimum door thickness (in.) | 1.375 |
| Lever style | Straight |
| Interior/Exterior | Interior/Exterior |
| Features | Easy Installation |
| Electronic/Mechanical | Mechanical |
| Security/ANSI Grade | ANSI Grade 2 (Better) |
| Product Weight (lb.) | 3.25 |
| Housing Width (in.) | 3.5 |
| Assembled Width (in.) | 6.5 in |
| Projection (in.) | 2.5 |
| Strike width (in.) | 1.8 |
| Strike height (in.) | 4.875 |
| Maximum door thickness (in.) | 1.75 |
| Cross bore diameter (in.) | 1.50 |
| Throw length (in.) | .6250 |
| Housing height (in.) | 3.5 |
| Lever grip length (in.) | 5.5 |
| Assembled Height (in.) | 3.5 in |
| Assembled Depth (in.) | 3 in |
| Bore hole diameter (in.) | 2.125 |
| Certifications and Listings | ADA Compliant,UL Listed |
| Manufacturer Warranty | 25 Year Mechanical |
