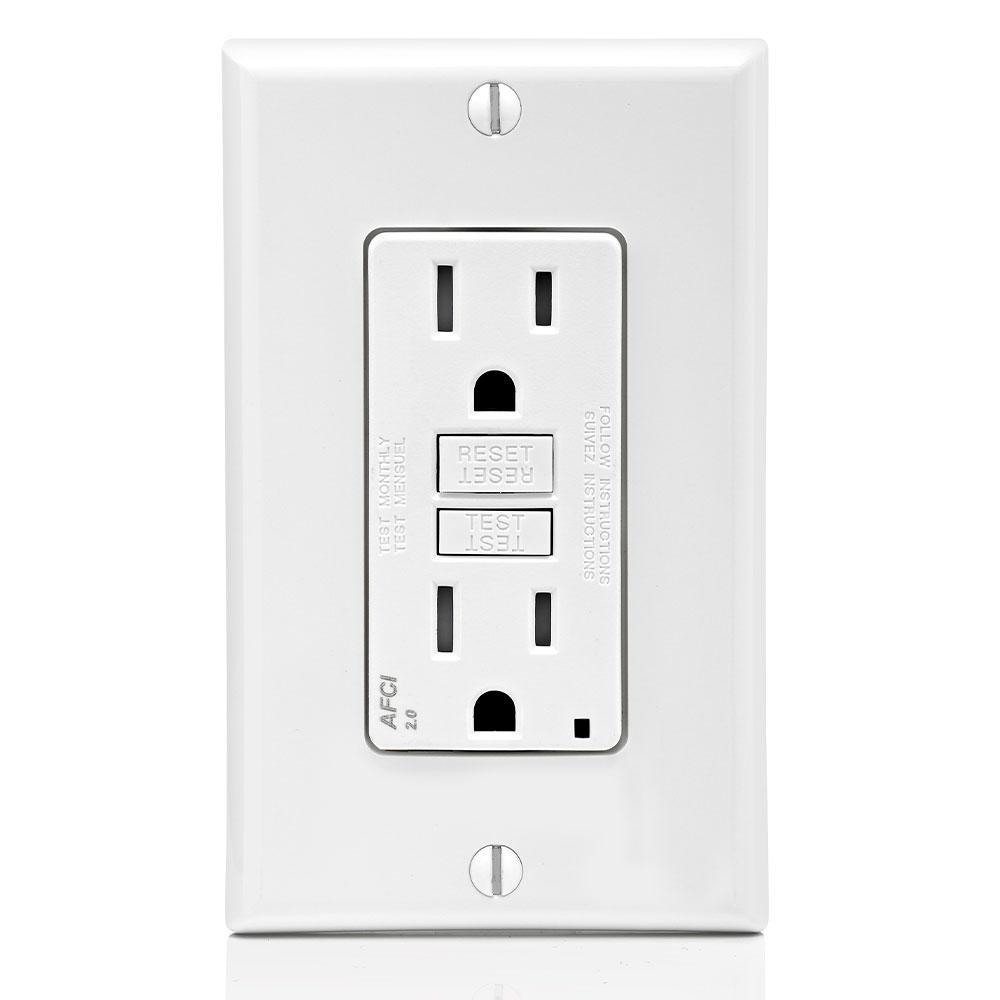

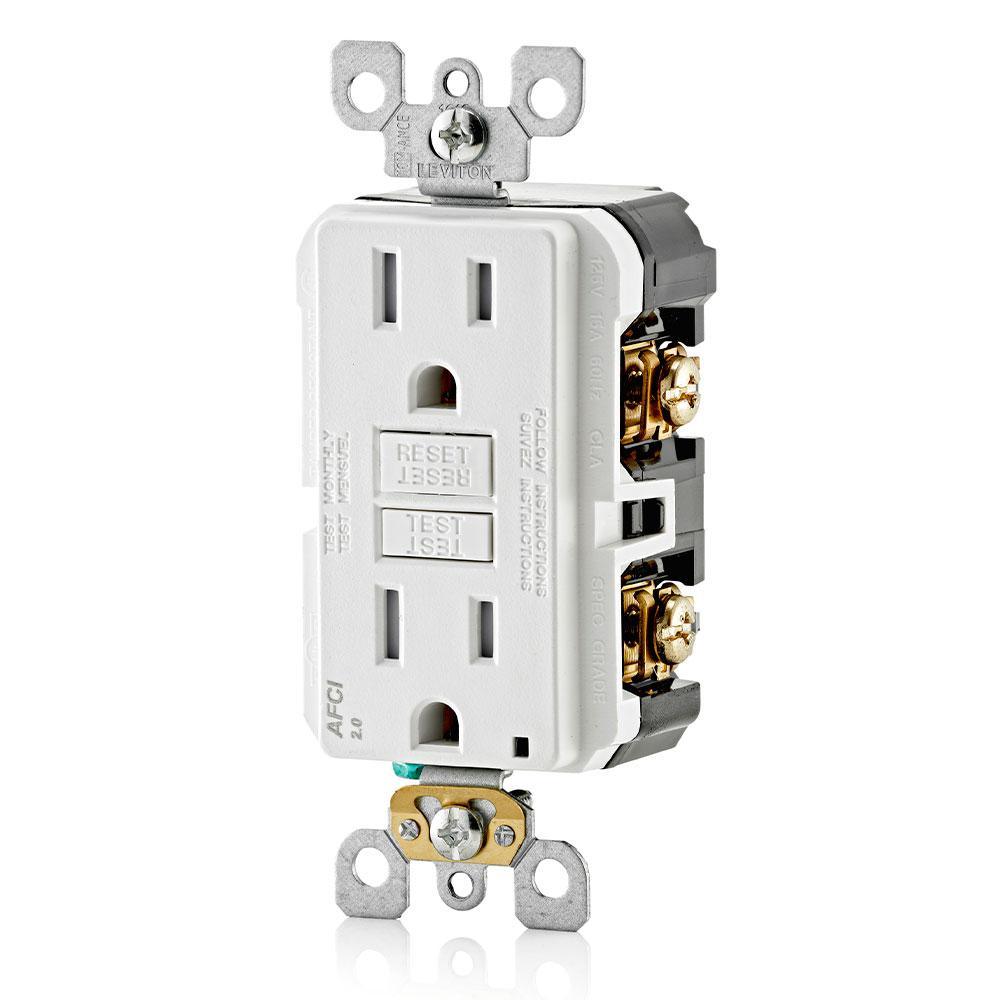

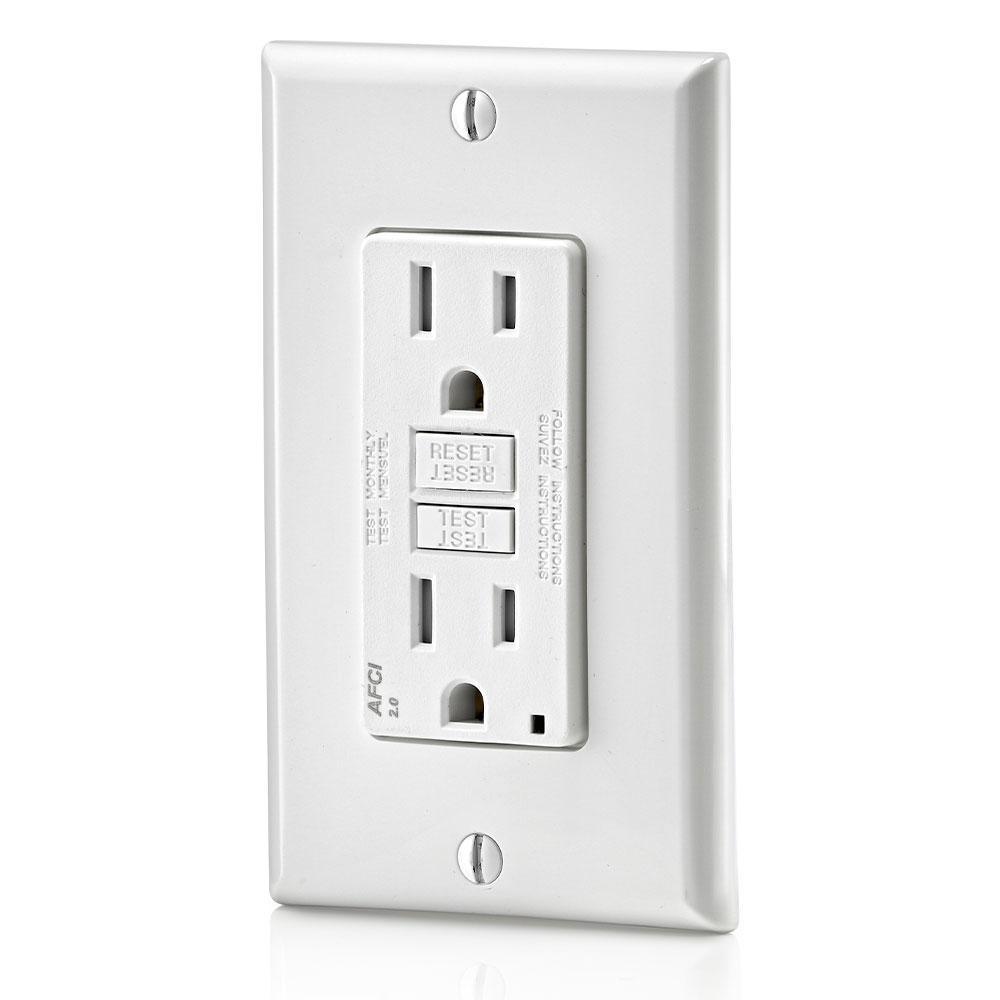

15 Amp Tamper Resistant AFCI Outlet, White
$22.71
Published price — same for everyone
In stock
SKU 204290242
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
The SmartlockPro Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home's electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home's electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCI's are now required by the National Electrical Code in many areas of the home.
Features
- California residents
- Use of test and reset buttons is similar to traditional GFCI receptacles of which consumers have become familiar with this means greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the reset button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices
Features
| Item Weight | 1.2 |
| Grounding | Self-Grounding |
| Maximum Amperage (amps) | 15 |
| Color/Finish | White |
| Outlet Type | AFCI |
| Outlet Location | Wall |
| Package Quantity | 1 |
| Returnable | 180-Day |
| Mounting Type | Screw-In |
| Rating | Tamper Resistant |
| Outlet Configuration | Duplex |
| UL Listing | 1-UL Listed |
| Electrical Features | No Additional Features |
| Number of Poles | 2 |
| Voltage | 125 volt |
| NEMA Configuration | Non-Nema |
| Indoor/Outdoor | Indoor |
| Wired or Wireless | Wired |
| Color Family | White |
| Outlet Material | Nylon |
| Number of Outlets | 2 |
| Electrical Product Type | Outlet |
| Outlet Depth (in.) | 2.25 |
| Outlet Width (in.) | 4 |
| Outlet Height (in.) | 6.188 |
| Manufacturer Warranty | 2-Year Limited |
| Certifications and Listings | UL Listed |
