Milwaukee
Milwaukee 3/16 in. Diamond MAX Hole Saw, 1/4 in. Hex Shank
Published price — same for everyone
In stock
SKU 49-56-0503
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

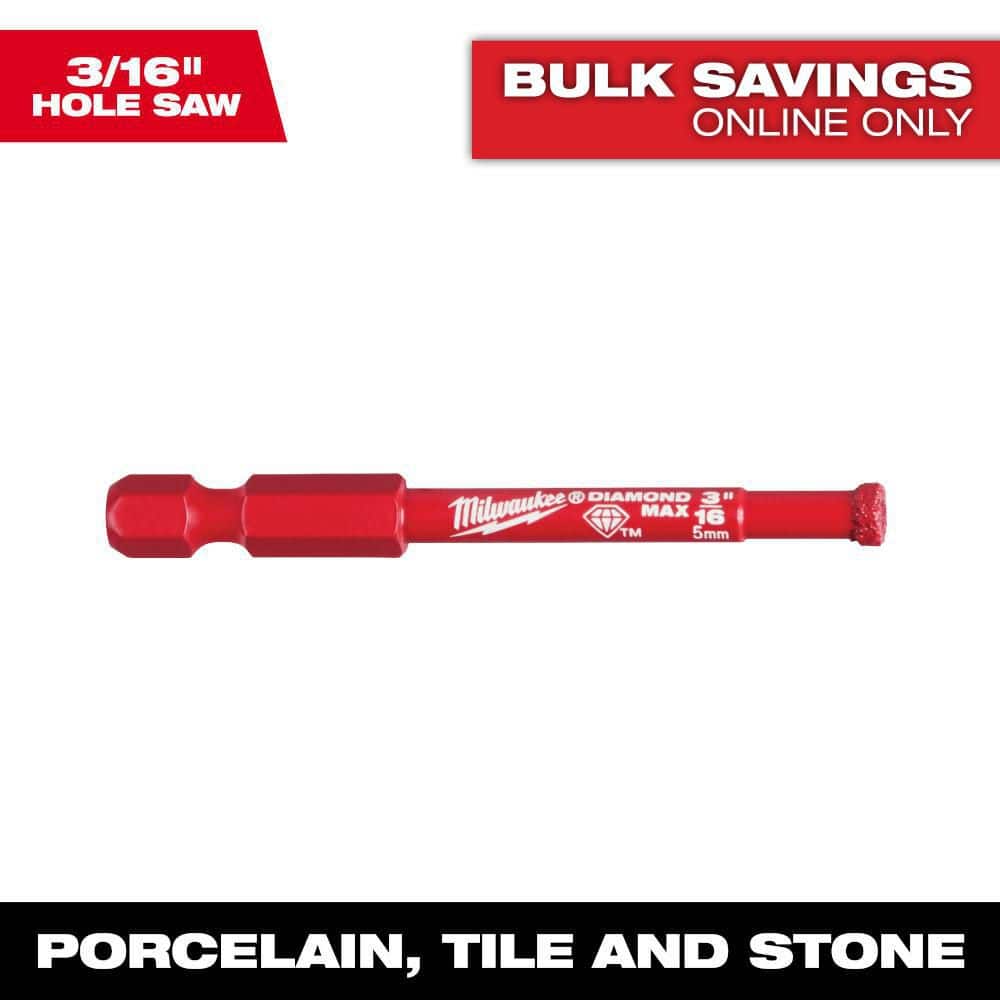

3/16 in. Diamond MAX Hole Saw
Milwaukee’s 3/16 in. Diamond MAX hole saw is engineered for fast, clean cuts in porcelain, tile, stone, and glass. A continuous brazed diamond edge with higher-grade diamonds boosts heat and fracture resistance for long life, while the 1/4 in. quick-change hex shank makes setup simple.

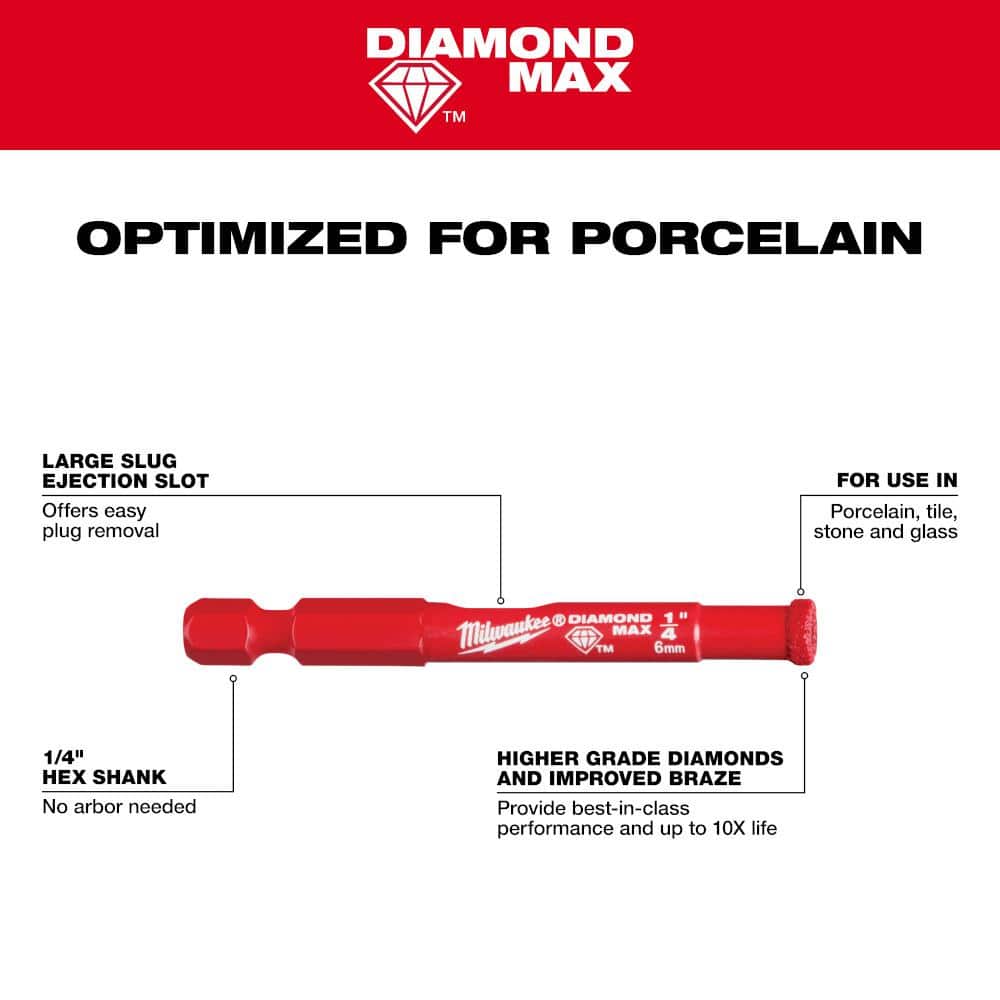

Key Features:
- Diamond MAX brazed edge: Up to 10X longer life in hard, abrasive materials
- Higher-grade diamonds: Heat and fracture resistant for best-in-class performance
- Large slug ejection slot: Speeds plug removal and productivity
- Versatile applications: Anchoring and clearance holes in tile, stone, and glass
- 1/4 in. hex shank: Quick-change compatibility; no arbor or pilot bit required
Specifications Table:
| Specification | Details |
|---|---|
| Hole Saw Diameter (in) | 3/16" |
| Bit Diameter | 3/16 in |
| Bit Length (in.) | 1 |
| Drilling Depth (in) | 1.8 |
| Shank Diameter | 1/4 in |
| Shank Style | Straight |
| Arbor Size | .25 |
| Arbor Included | No |
| Pilot Bit Included | No |
| Min Chuck Size Required | 1/4 In. |
| Drill Bit Type | Hole Saw |
| Drill Bit Type(s) Included | Hole Saw |
| Individual/Set | Individual |
| Material Cut | Multi-Purpose (tile, stone, glass) |
| Bit Material | Other (Diamond brazed edge) |
| Tools Product Type | Power Tool Accessory |
| Item Weight (lb) | 0.10 |
Frequently Asked Questions (FAQ):
Q: What materials can this hole saw cut?

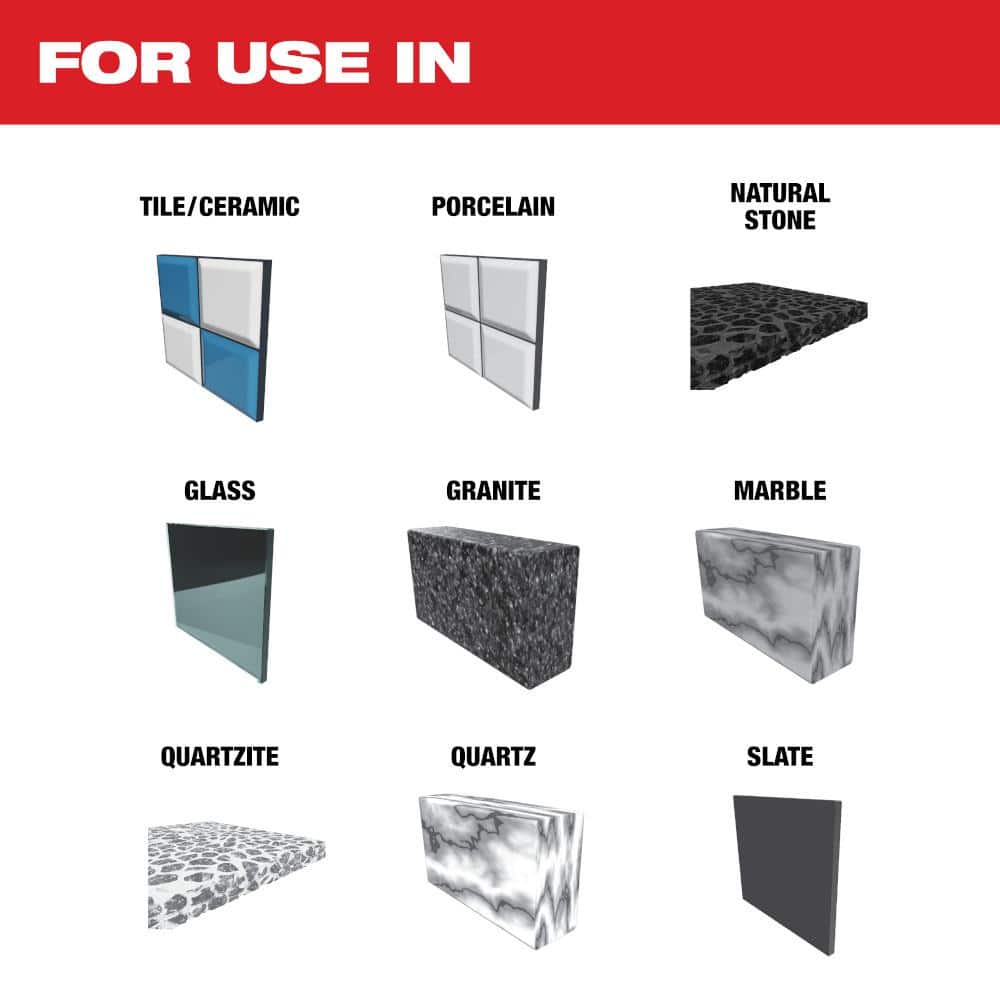

A: Porcelain, ceramic tile, natural stone, granite, marble, quartz, quartzite, slate, and glass.
Q: Do I need an arbor or pilot bit?
A: No. This one-piece design uses a 1/4 in. hex shank and does not include or require an arbor or pilot bit.
Q: What is the recommended drilling method?

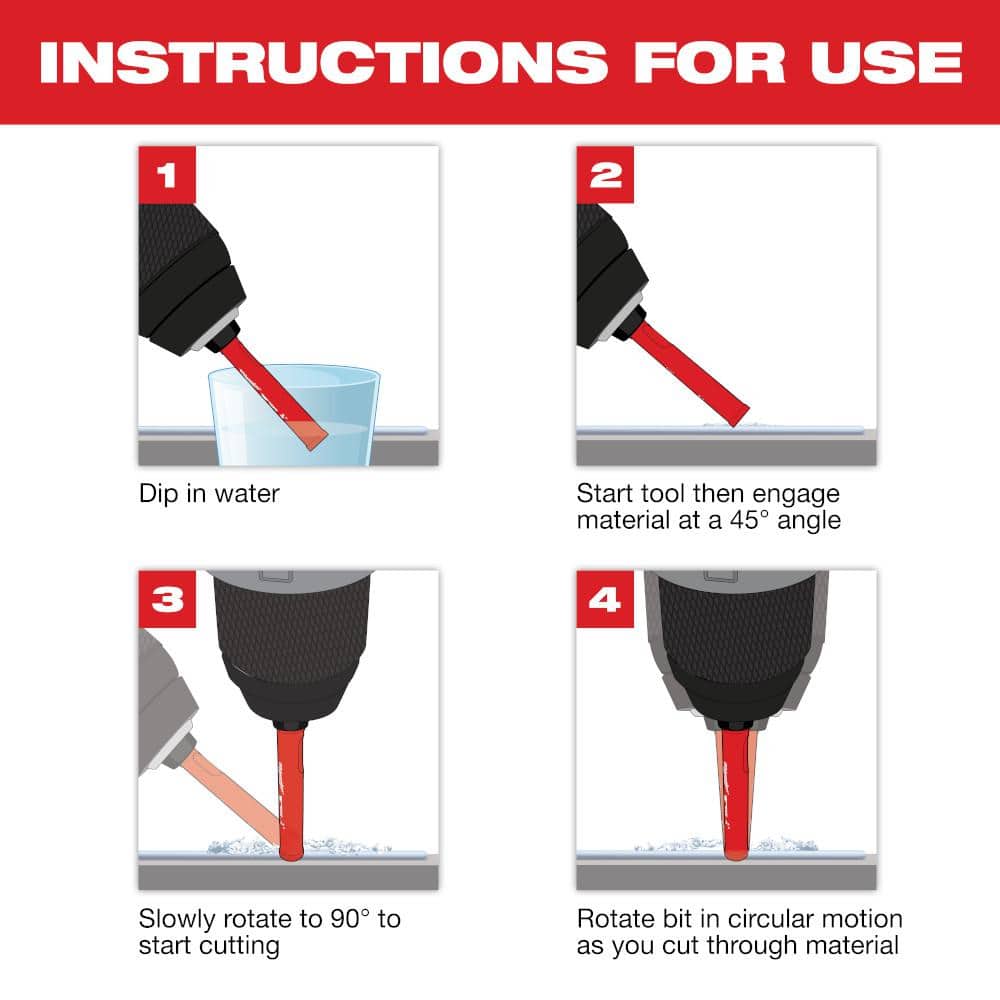

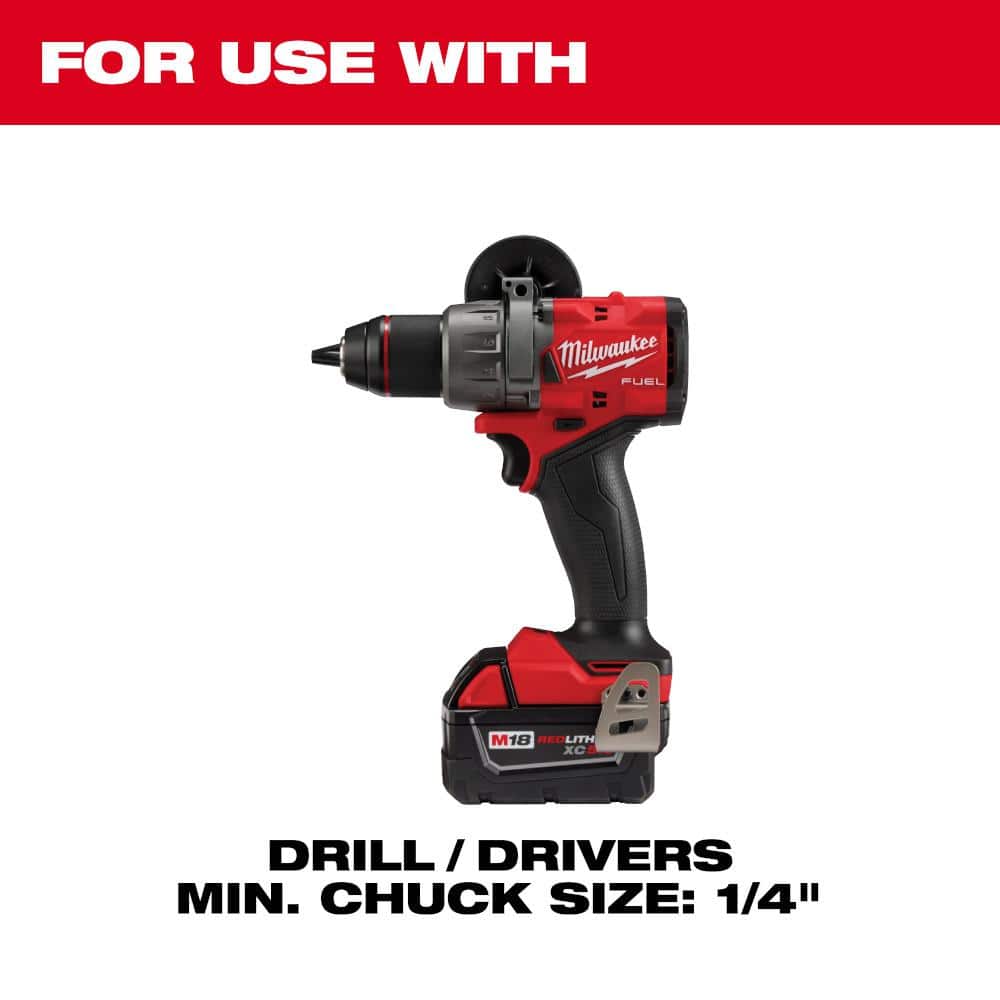

A: Use with a drill/driver (min. 1/4 in. chuck). Dip the bit in water, start at a 45° angle, rotate to 90°, and cut in a circular motion to maintain cooling.
Q: What is the drilling depth and diameter?
A: Hole saw diameter is 3/16 in.; drilling depth is 1.8 in.
Q: Is this for dry or wet cutting?
A: Wet use is recommended to extend life and improve performance.
Precision Cuts for Polished Surfaces
This compact diamond hole saw glides through porcelain and stone, allowing hardware and fixtures to sit flawlessly on finished tile. The continuous brazed diamond edge delivers a crisp, refined opening that feels tailored. Style it with matte-black hooks or brass bath accessories—perfect, chip-free holes keep the look pristine. It’s a small, indispensable detail that elevates every luxe surface.
Upgrade your tile drilling with Diamond MAX durability—add this 3/16 in. hole saw to your kit today.
