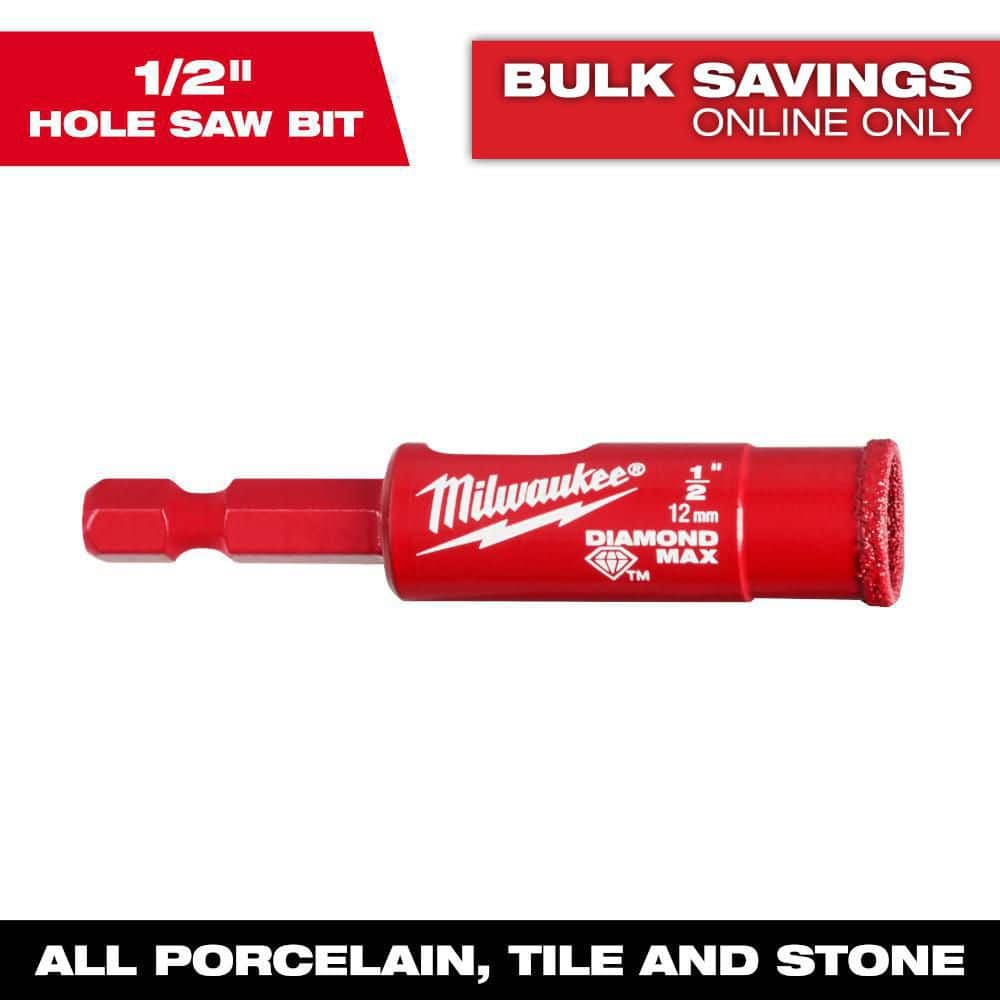

Milwaukee 1/2 in. Diamond MAX Hole Saw with 1/4 in. Hex Shank

1/2 in. Diamond MAX tile/stone hole saw bit

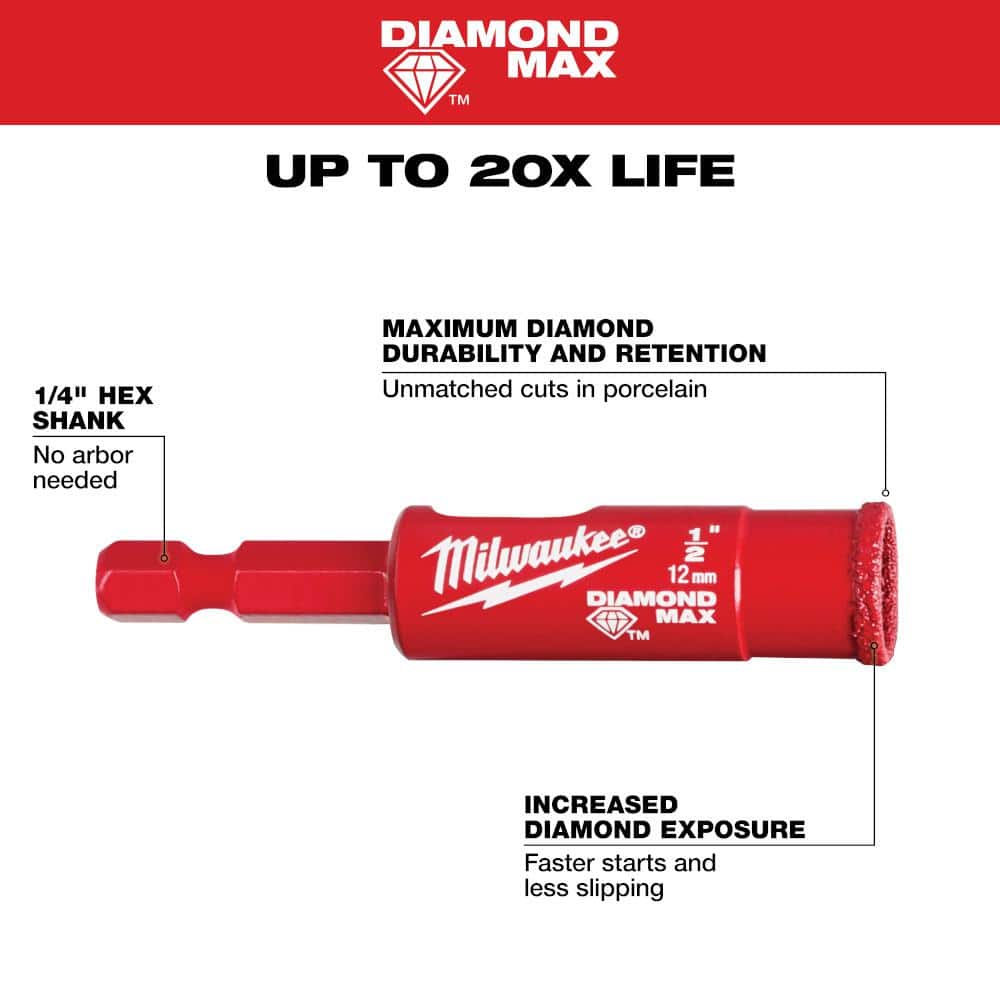

Milwaukee’s 1/2 in. Diamond MAX hole saw delivers fast, clean holes in porcelain, tile, stone, and glass. Its high‑grade diamond grit and improved continuous brazed edge boost durability and heat resistance, while the one‑piece design with 1/4 in. quick‑change hex shank simplifies setup and ejection.

---

Key Features:

• Diamond MAX Durability: High‑grade diamonds and improved braze for heat and fracture resistance and long life
• Clean, Fast Cuts: Continuous brazed edge provides smooth holes in porcelain, tile, stone, and glass
• Easy Plug Removal: Large slug ejection slot speeds workflow
• One‑Piece, No Arbor Needed: 1/4 in. quick‑change hex shank fits standard drill/drivers
• Precise Start: Increased diamond exposure helps reduce slipping and speeds starts

---

Specifications Table:

Specification	Details
Hole Saw Diameter (in)	1/2"
Bit Diameter	1/2 in
Bit Length (in.)	1.625 in (approx. 1.62 in)
Drilling Depth (in)	1.8
Shank Style	Hex
Shank Size	1/4 in quick‑change
Shank Diameter	3/8 in
Arbor Size	.25
Arbor Included	No
Pilot Bit Included	No
Material Cut	Multi‑Purpose (porcelain, tile, stone, glass)
Drill Bit Type	Hole Saw
Drill Bit Type(s) Included	Hole Saw
Individual/Set	Individual
Teeth Per Inch	0
Tools Product Type	Power Tool Accessory
Minimum Chuck Size Required	1/4 in
Item Weight	0.10 lb

---

Frequently Asked Questions (FAQ):

Q: What materials can this bit cut?

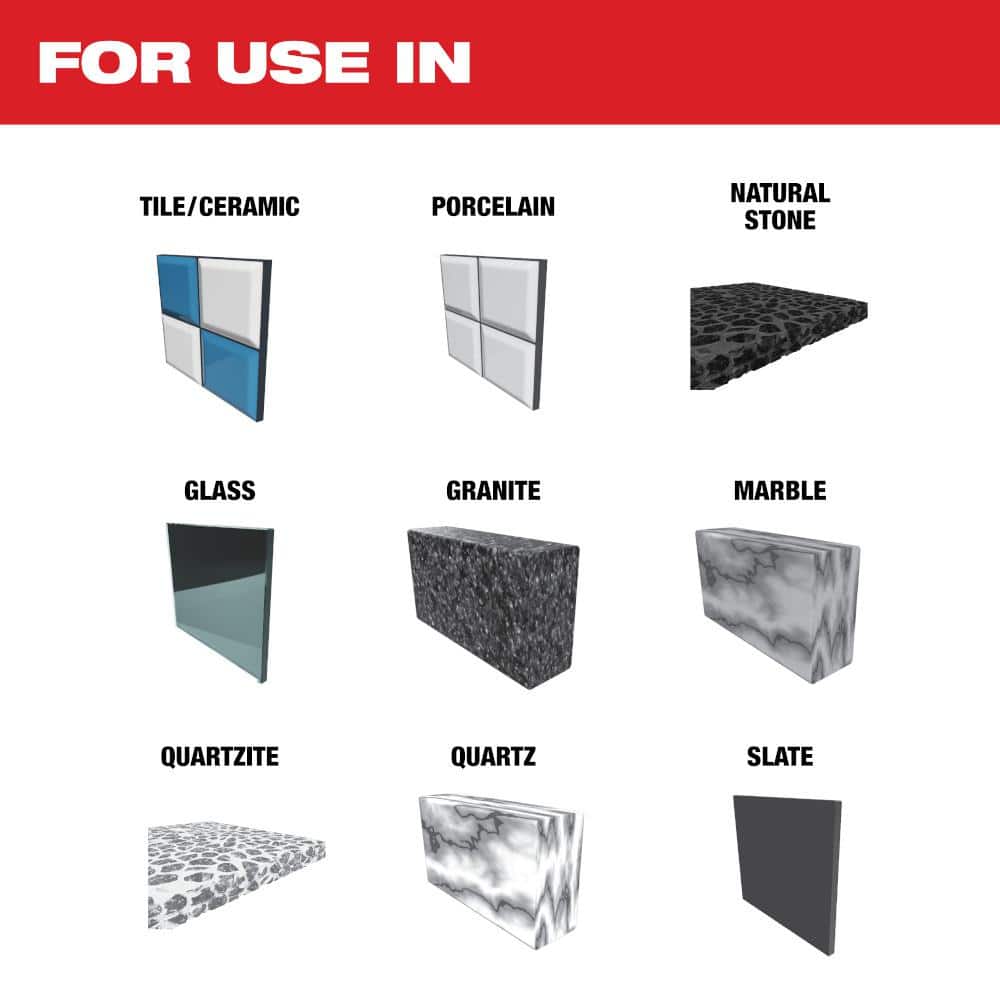

A: Designed for porcelain, ceramic tile, natural stone, granite, marble, quartzite, quartz, slate, and glass.

---

Q: Do I need a separate arbor?
A: No. It features a built‑in 1/4 in. hex shank; no arbor or pilot bit is required.

---

Q: What drill is required?

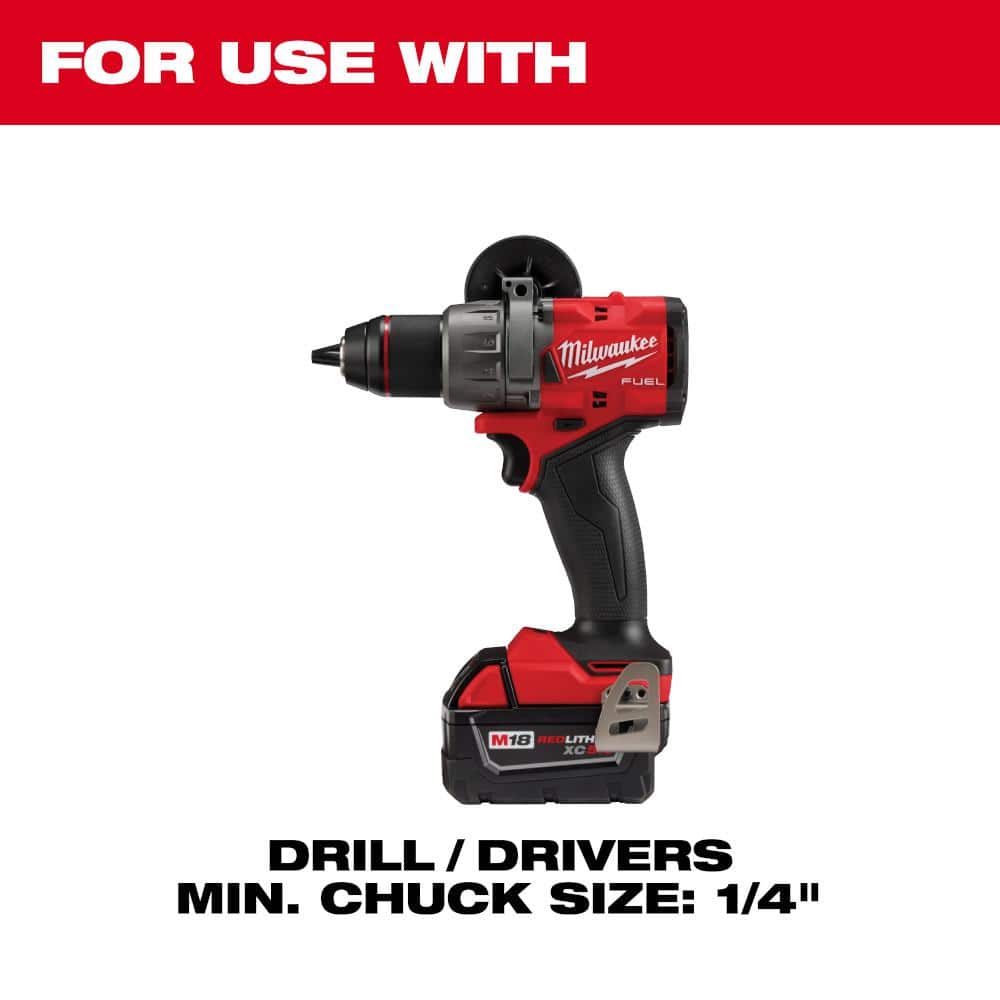

A: Use with standard drill/drivers with a minimum 1/4 in. chuck.

---

Q: How should I use it for best results?

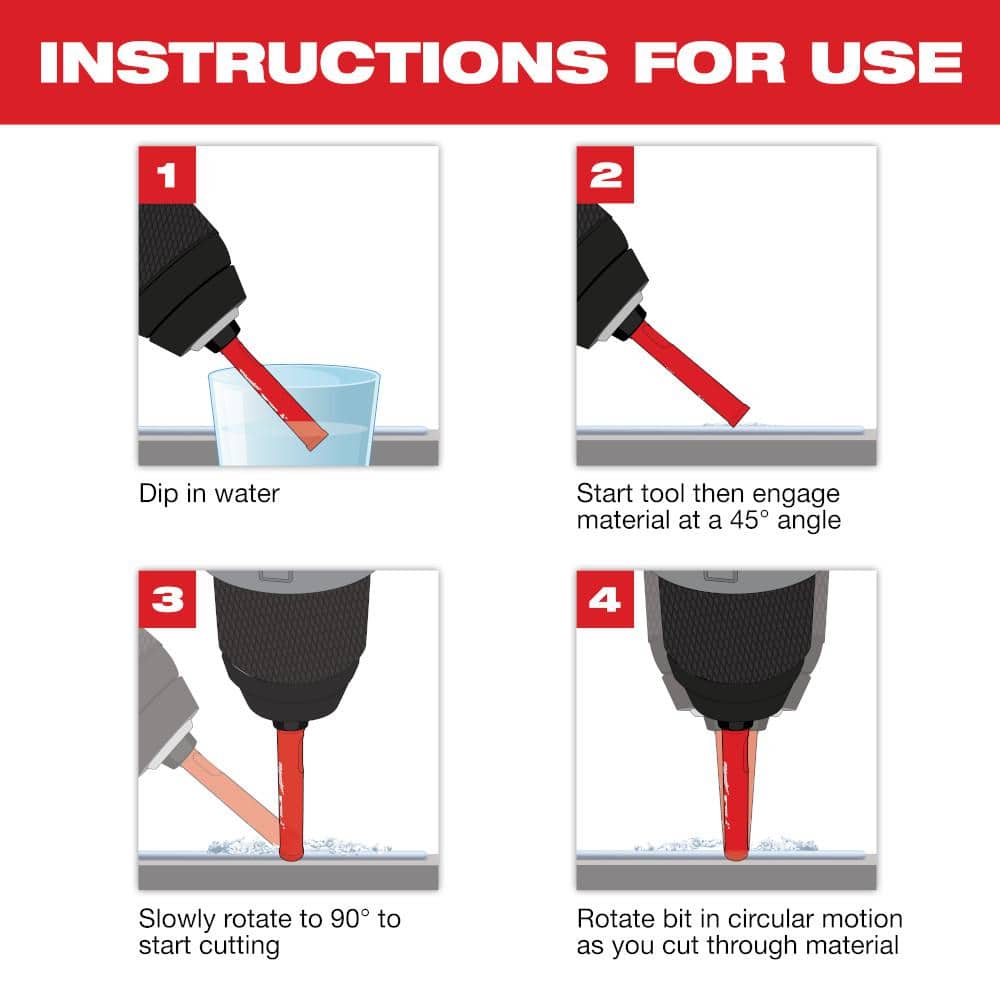

A: Dip the bit in water, start at a 45° angle, rotate to 90° to continue, and use a gentle circular motion while cutting.

---

Q: What is the drilling depth?
A: Approximately 1.8 in. with a bit length of about 1.62 in.

---

Cut With Confidence on Every Finish

This compact diamond hole saw brings refined precision to hard finishes—think polished marble, glass, and dense porcelain. The continuous brazed edge glides through surfaces, preserving clean lines and crisp openings for hardware and fixtures. Style your bath or kitchen upgrades with seamless anchor points for hooks and accessories. It’s a small, luxurious essential that ensures installations look impeccably tailored.

---

Upgrade your kit with Diamond MAX and make clean, precise holes in tile, stone, and glass the first time.
