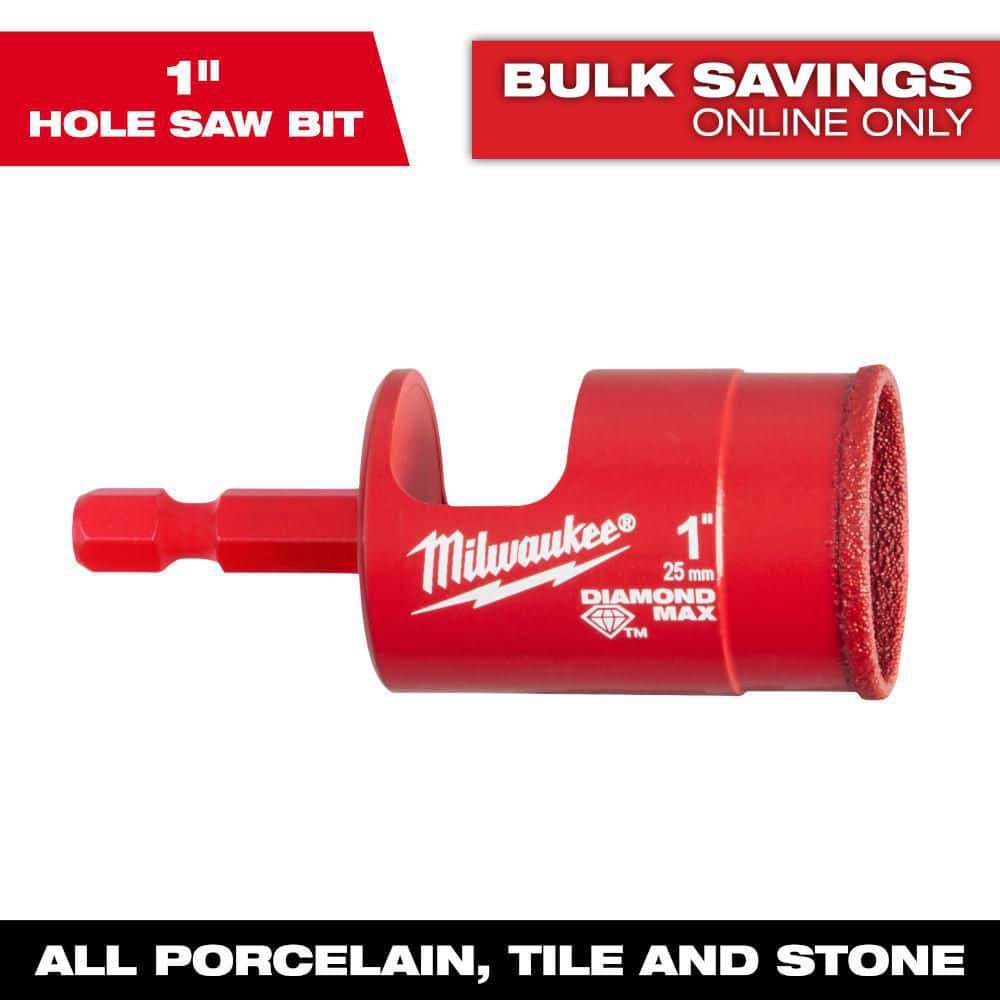

Milwaukee 1 in. Diamond MAX Hole Saw Bit, 1/4 in. Hex Shank

1 in. Diamond MAX Hole Saw Bit

Milwaukee’s Diamond MAX hole saw delivers long life and fast cutting in tile, stone, and glass. The one-piece design with 1/4 in. hex shank requires no arbor and features a large slug-ejection slot for quick plug removal.

---

Key Features:

• Diamond MAX durability: Higher-grade diamonds for heat and fracture resistance on abrasive materials
• One-piece, 1/4 in. hex shank: Quick-change design—no separate arbor needed
• Easy plug removal: Large slug-ejection slot speeds workflow

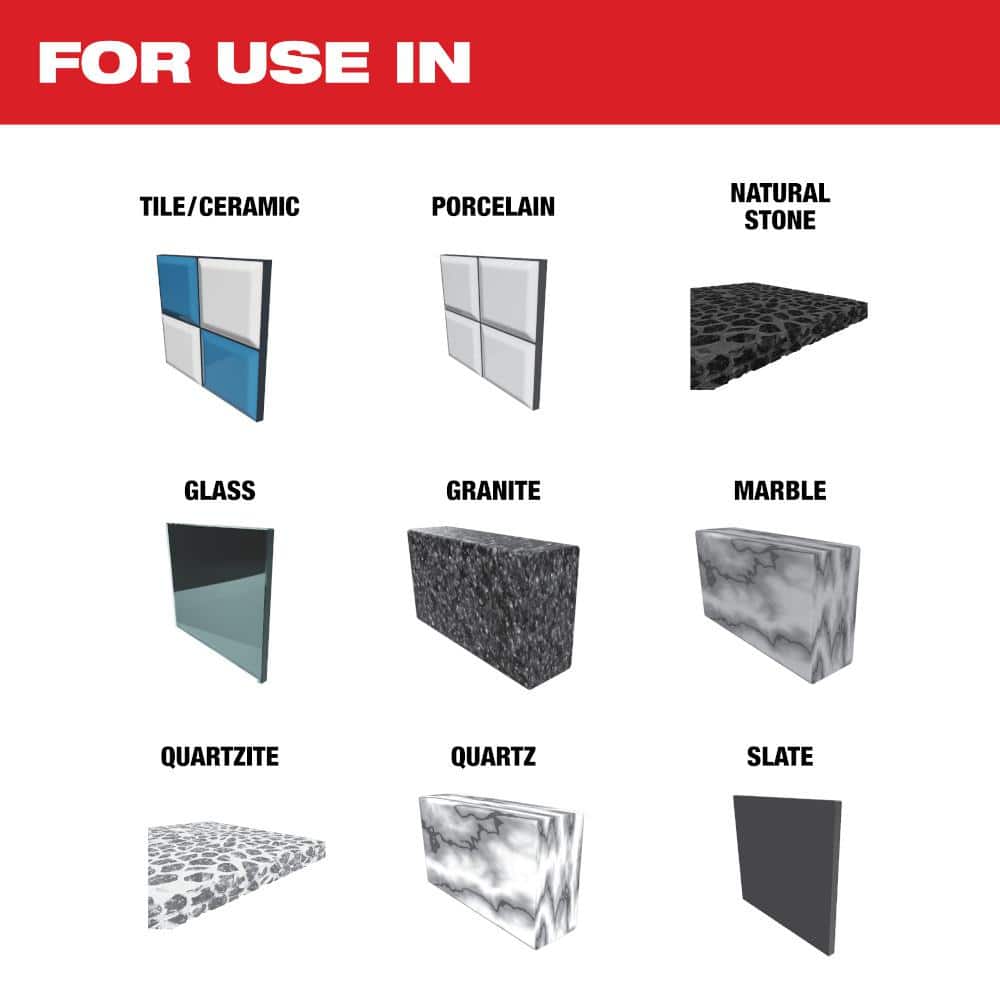

• Versatile applications: Cuts porcelain, ceramic, natural stone, glass, granite, marble, quartzite, quartz, and slate
• Fast, clean holes: Continuous brazed edge improves diamond retention and start-up performance

---

Specifications Table:

Specification	Details
Item Weight	.10 lb
Individual/Set	Individual
Drill Bit Type(s) Included	Hole Saw
Bit Material	Other
Arbor included	No
Pilot Bit Included	No
Drill Bit Type	Hole Saw
Arbor Size	0.25
Shank Style	Hex
Tools Product Type	Power Tool Accessories
Min Chuck Size Required	1/4 in.
Teeth Per Inch	0
Material Cut	Multi-Purpose
Shank Diameter	3/8 in
Hole Saw Diameter (in)	1 in
Drilling Depth (in)	1.8
Bit Diameter	1 in
Bit Length (in.)	1.62 in

---

Frequently Asked Questions (FAQ):

Q: Does this hole saw require a separate arbor?
A: No. It has a 1/4 in. hex shank and is a one-piece design.

---

Q: What materials can it cut?
A: Tile/ceramic, porcelain, natural stone, glass, granite, marble, quartzite, quartz, and slate.

---

Q: What is the minimum chuck size needed?
A: 1/4 in. minimum chuck size.

---

Q: Is a pilot bit included?
A: No pilot bit is included or required for this design.

---

Q: What is the drilling depth?
A: Up to 1.8 in.

---

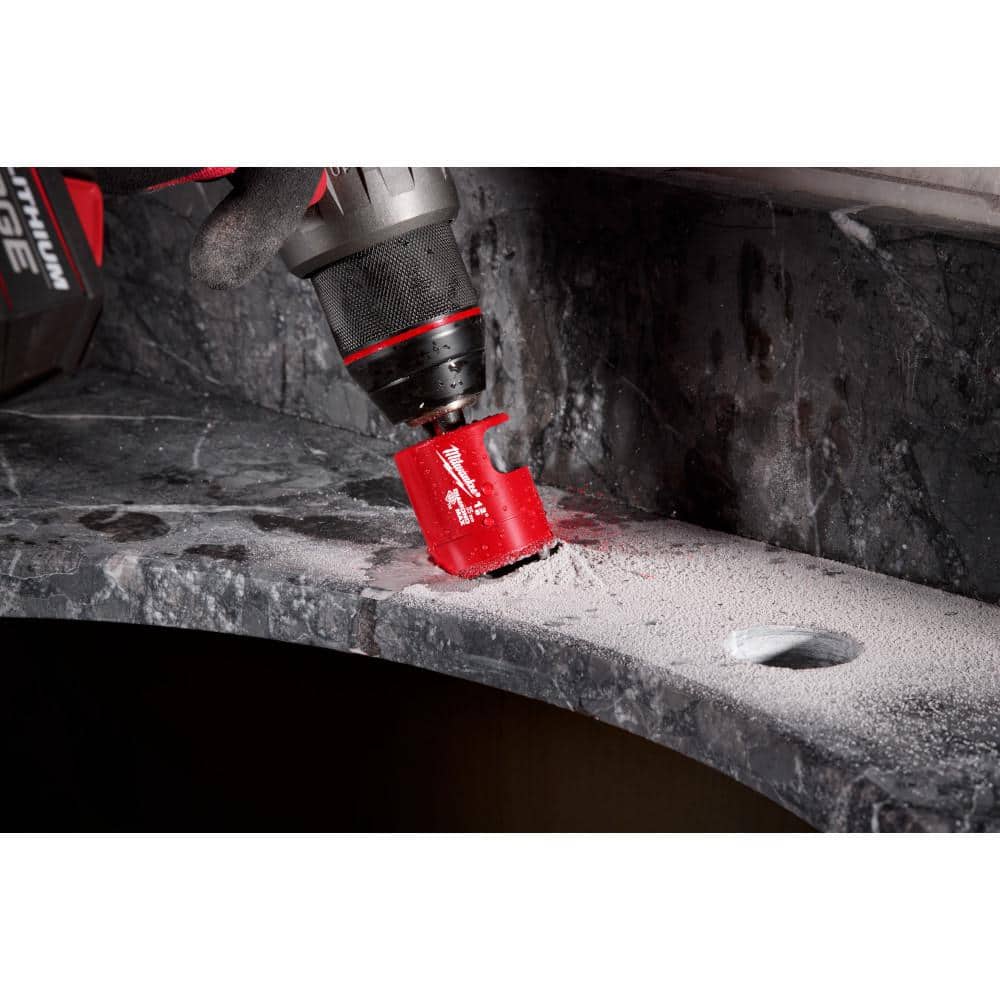

Cut Crisp, Luxe Openings Through Stone and Glass

This compact red hole saw brings precision to kitchens and baths, gliding through porcelain and stone with refined ease. The continuous diamond rim and bold one-piece profile feel tailored—clean, confident, and efficient. Use it to create perfect faucet or accessory openings in marble or quartz for a polished, custom finish. It’s an essential, high-performance accent for achieving elevated, luxurious details.

---

Upgrade your drilling setup with Diamond MAX performance and make clean, fast holes in tile and stone today.
