Siemens

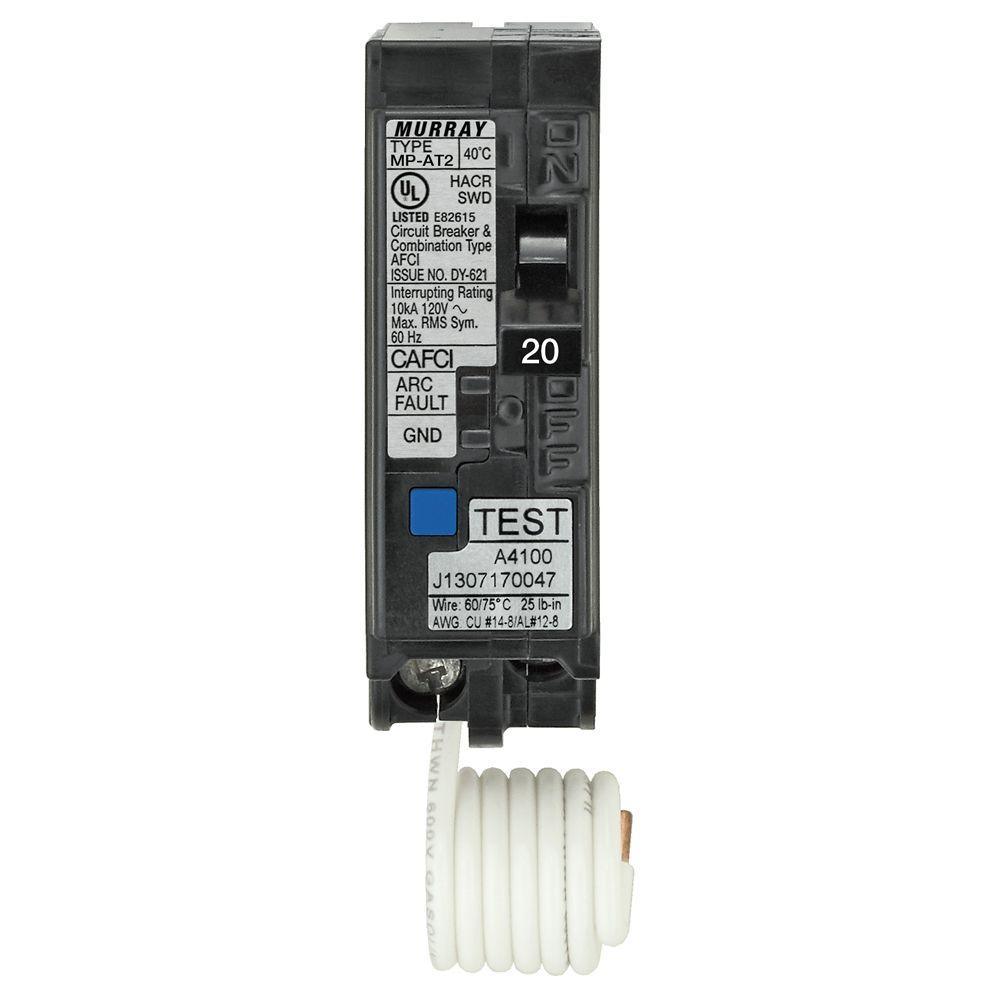

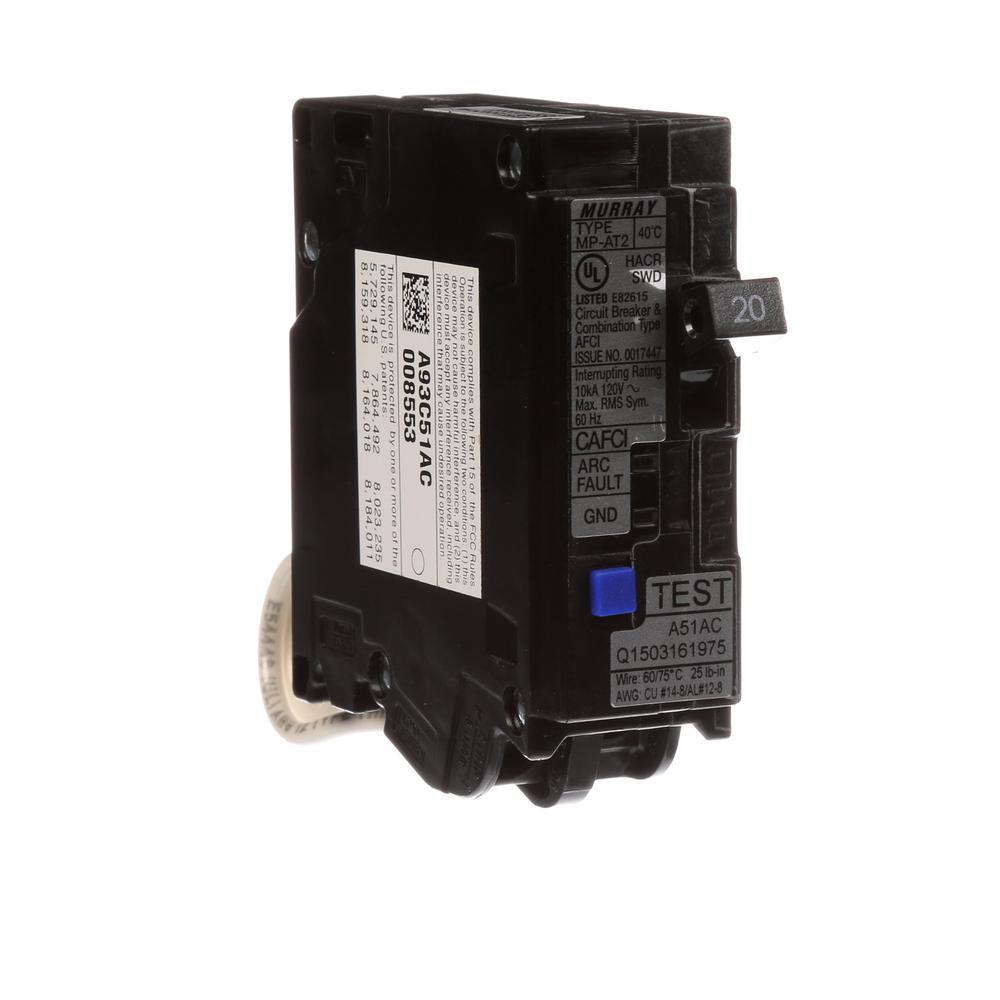

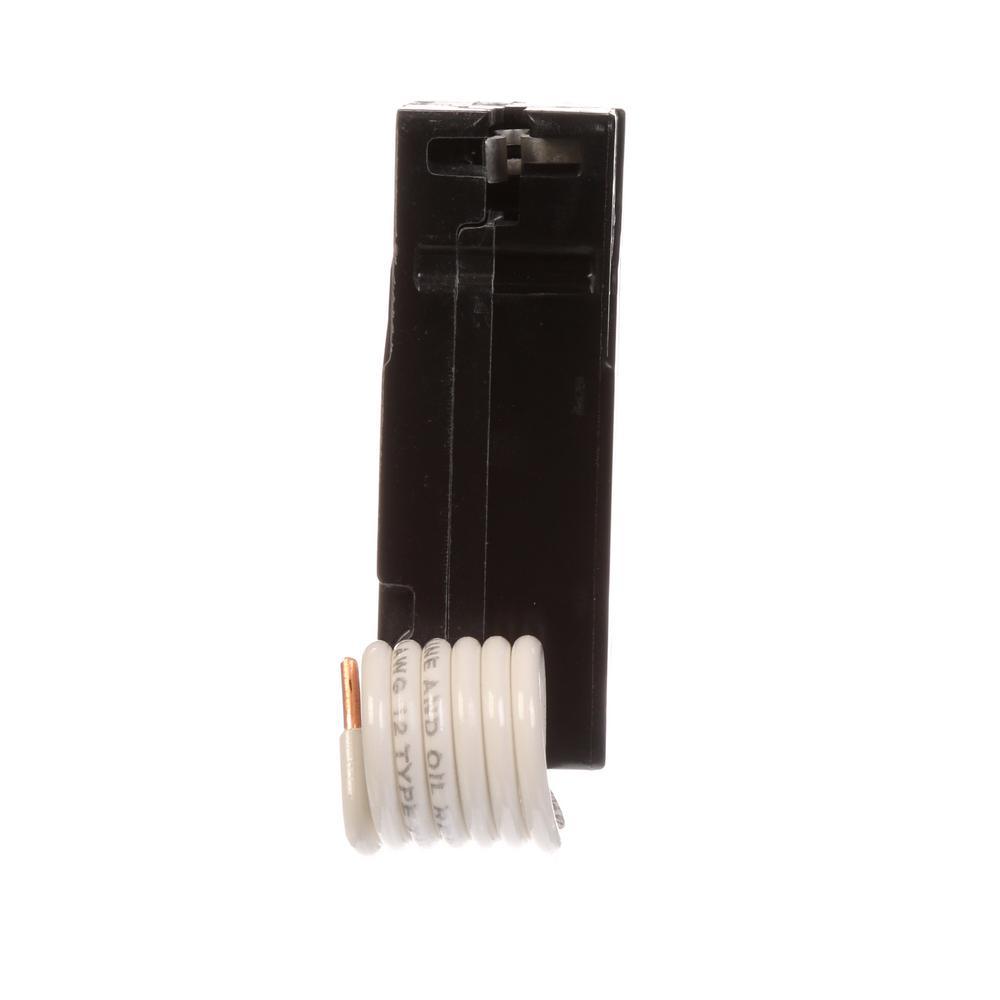

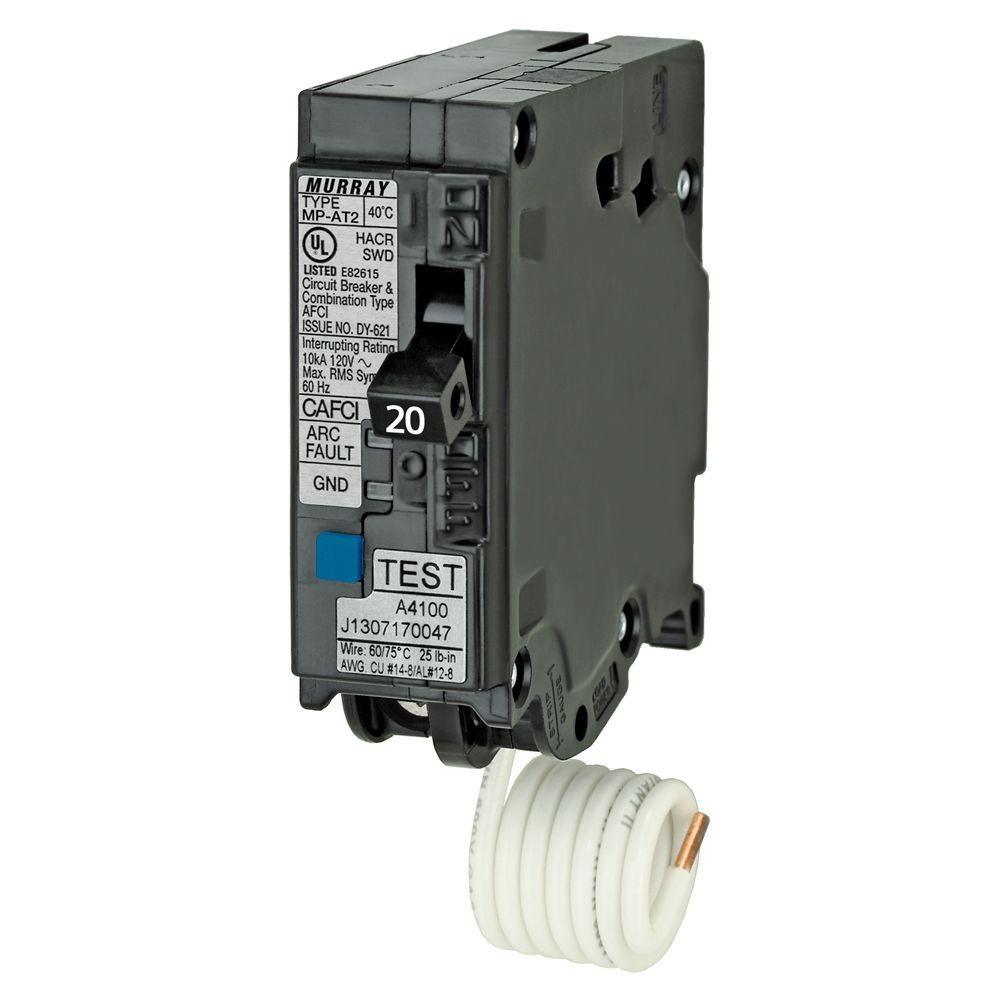

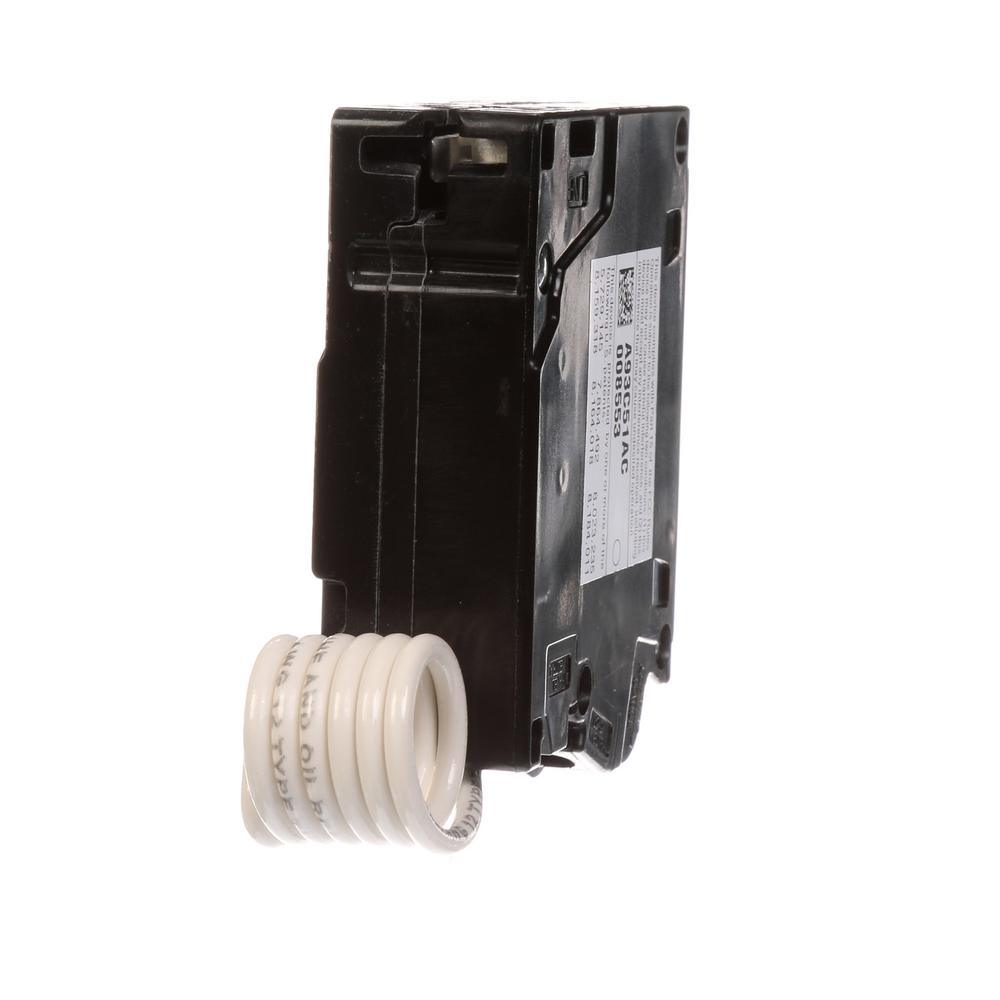

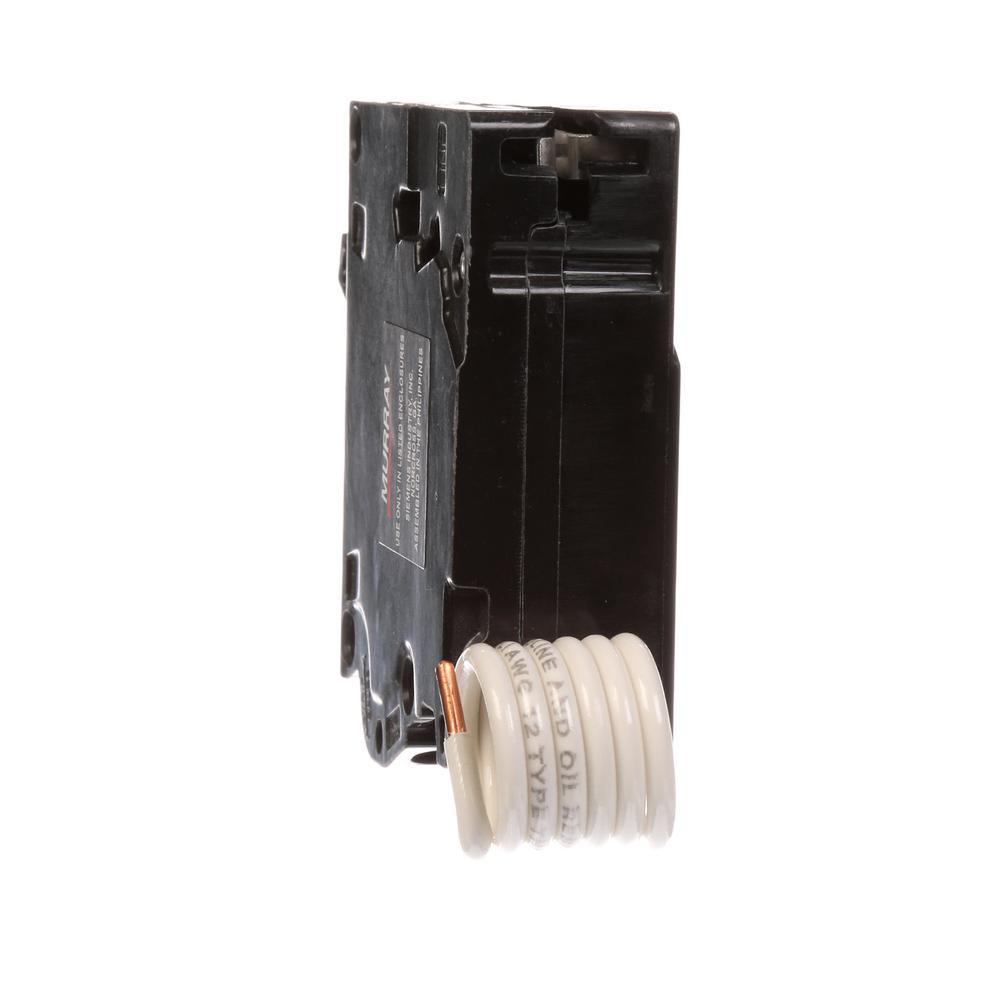

20 Amp 1 in. Single-Pole Combination AFCI Circuit Breaker
$38.57
Published price — same for everyone
In stock
SKU 205092435
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
This Murray 20 Amp 1 in. Single Pole Combination AFCI Circuit Breaker trips to the center position and features LED trip indicators. This combination breaker is intended for use as a circuit breaker and AFCI device. This breaker is UL listed.
Features
- 1/4 in. more wiring bend space than the previous design
- LED trip indicators
- Both lugs at the same angle for easier wiring
- 120 VAC and available with interrupting rating of 10kA, 22kA, or 65kA
- Plug-In branch circuit breakers for Murray single phase load centers
- Bolt-on branch circuit breakers for Siemens panelboards
- #14 - #8 AWG copper, #12 - #8 AWG aluminum wire range
- Torque rating: 25 lb. in.
- UL listed
- LED Trip Indicators identify the cause of the last AFCI trip
- Protects from dangerous electrical arcing caused by damaged wire
Features
| Item Weight | 0.4 |
| Voltage (volts) | 120 |
| Interruption Type | CAFCI |
| Pack Size | 1 |
| Number of Poles | 1 |
| Power Distribution Features | No Additional Features |
| Returnable | 180-Day |
| Mounting Type | Plug-On |
| Breaker Type | Single Pole |
| Maximum Amperage (amps) | 20 |
| Electrical Product Type | Breaker |
| Product Weight (lb.) | 0.4 lb |
| Product Depth (in.) | 1.5 in |
| Product Width (in.) | 6.5 in |
| Product Height (in.) | 6.5 in |
| Manufacturer Warranty | 1 Year |
| Certifications and Listings | UL Listed |
