Schneider Electric

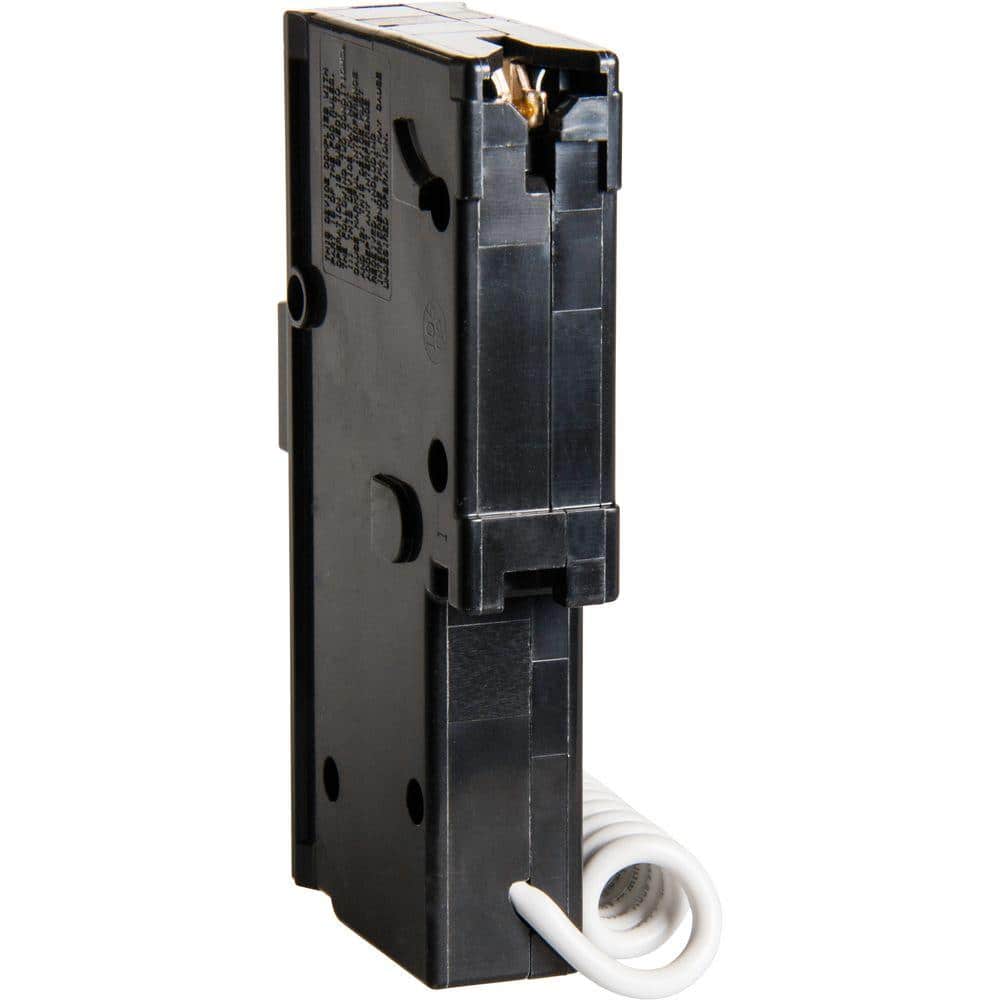

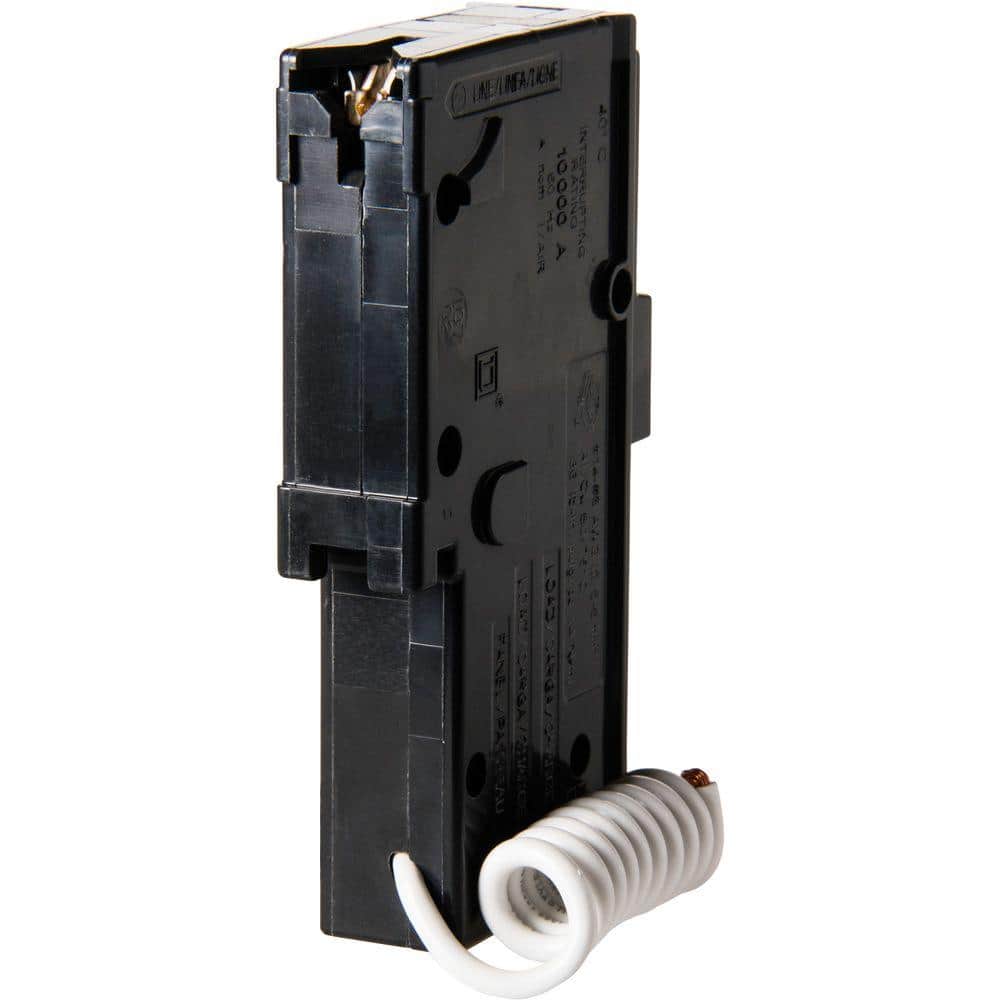

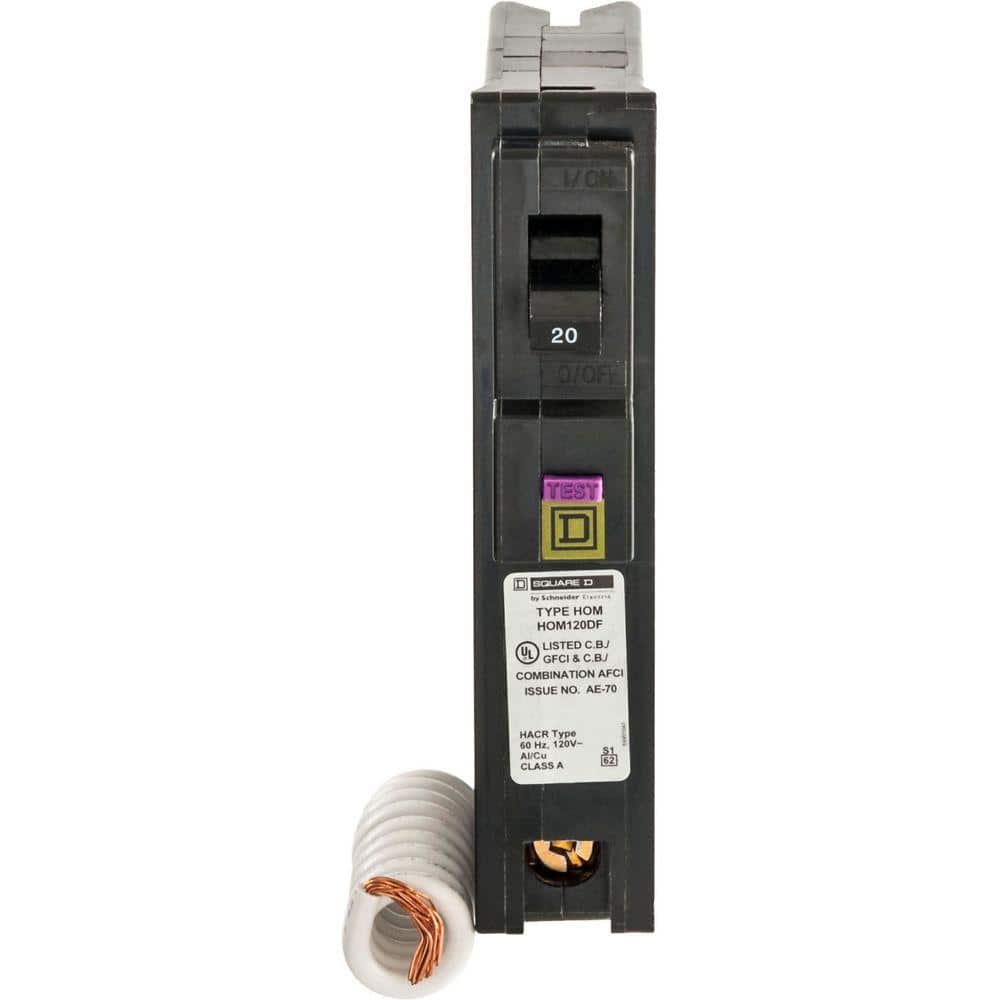

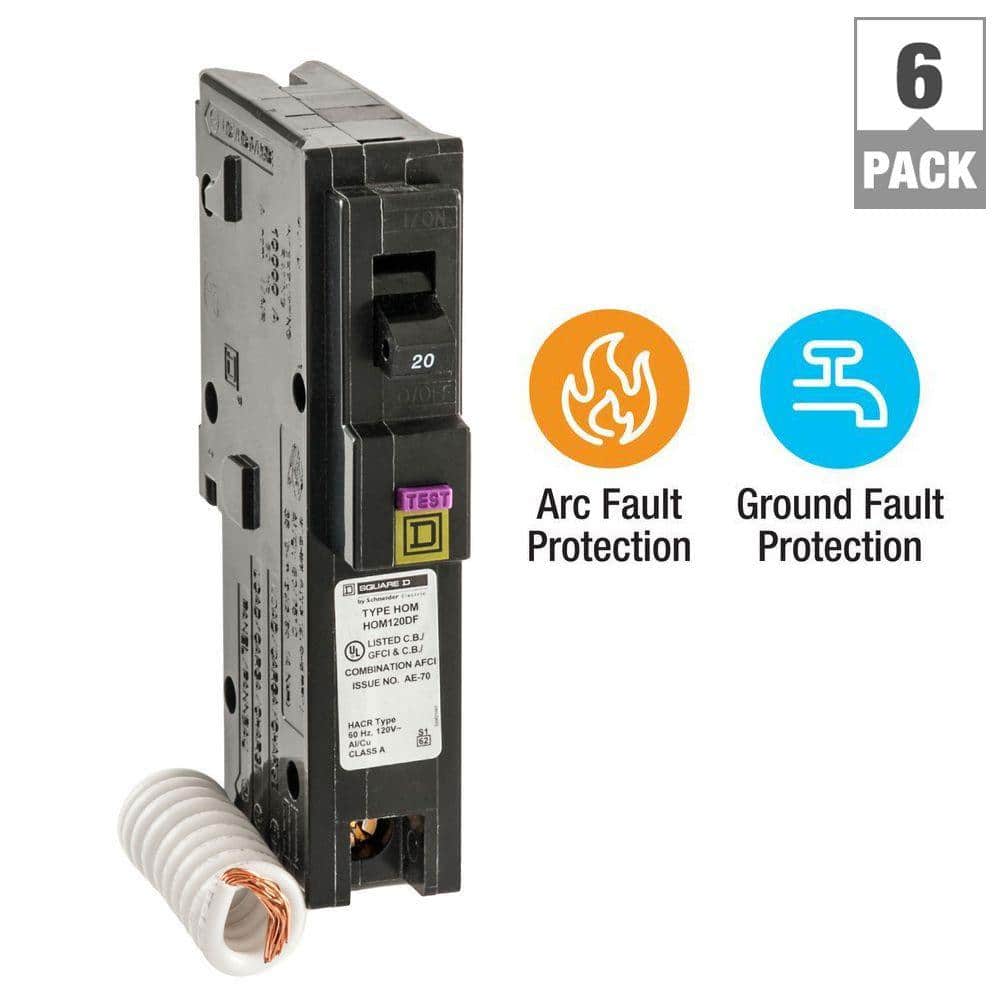

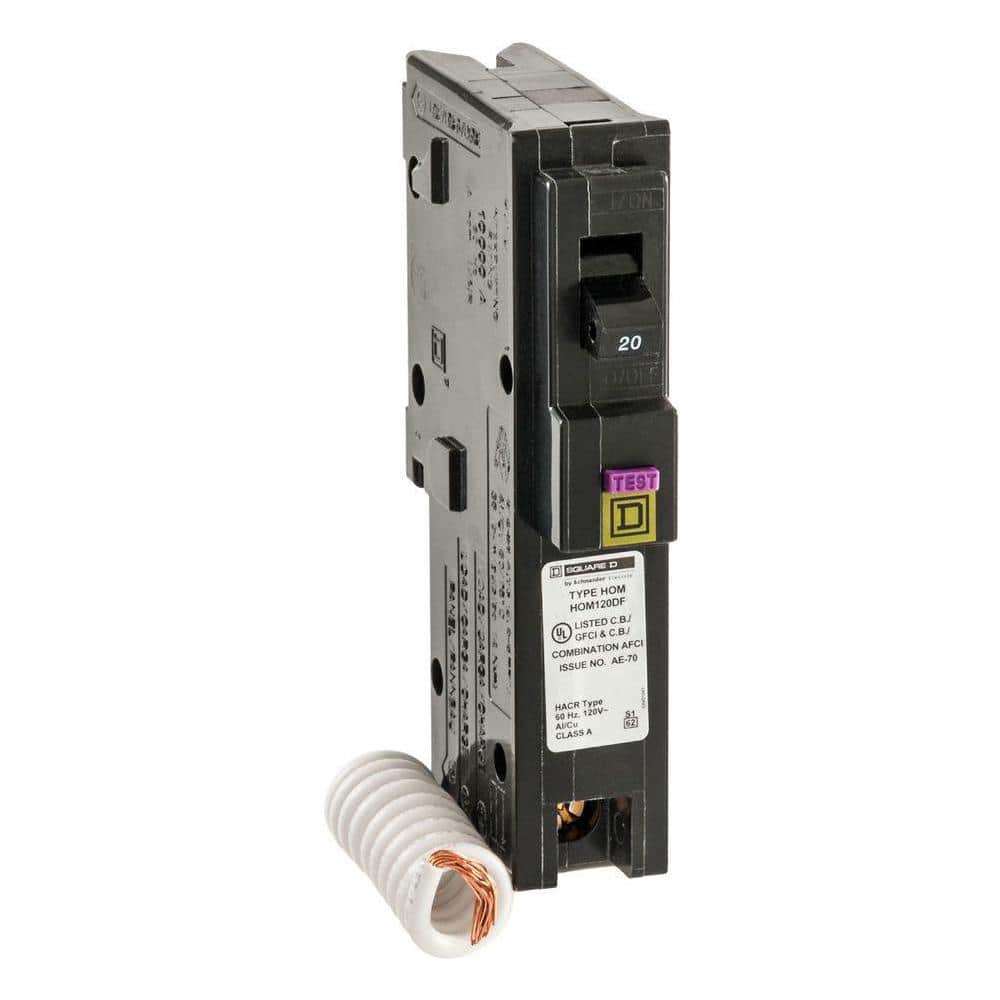

Homeline 20 Amp Single-Pole Dual Function (CAFCI and GFCI) Circuit Breaker (6-Pack)
Published price — same for everyone
In stock
SKU HOM120DFC6
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

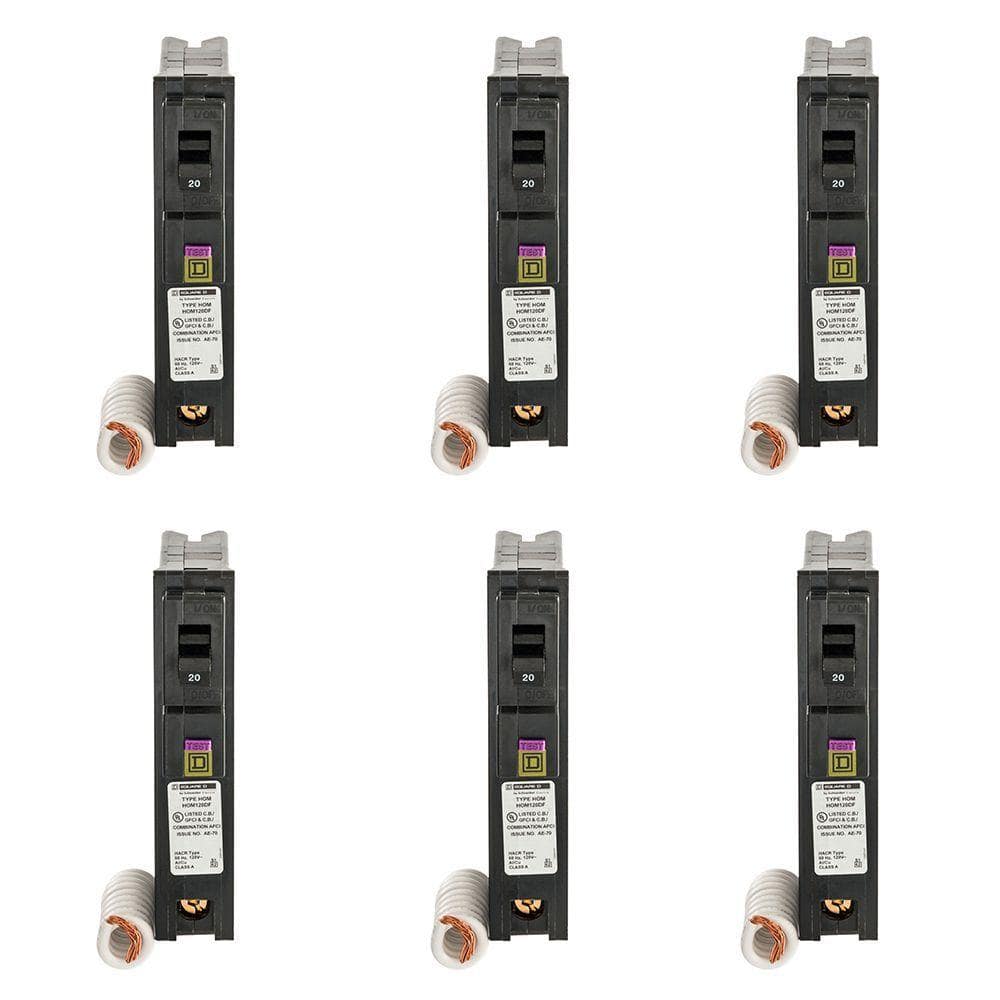

Homeline 20A Single-Pole Dual-Function Breaker, 6-Pack

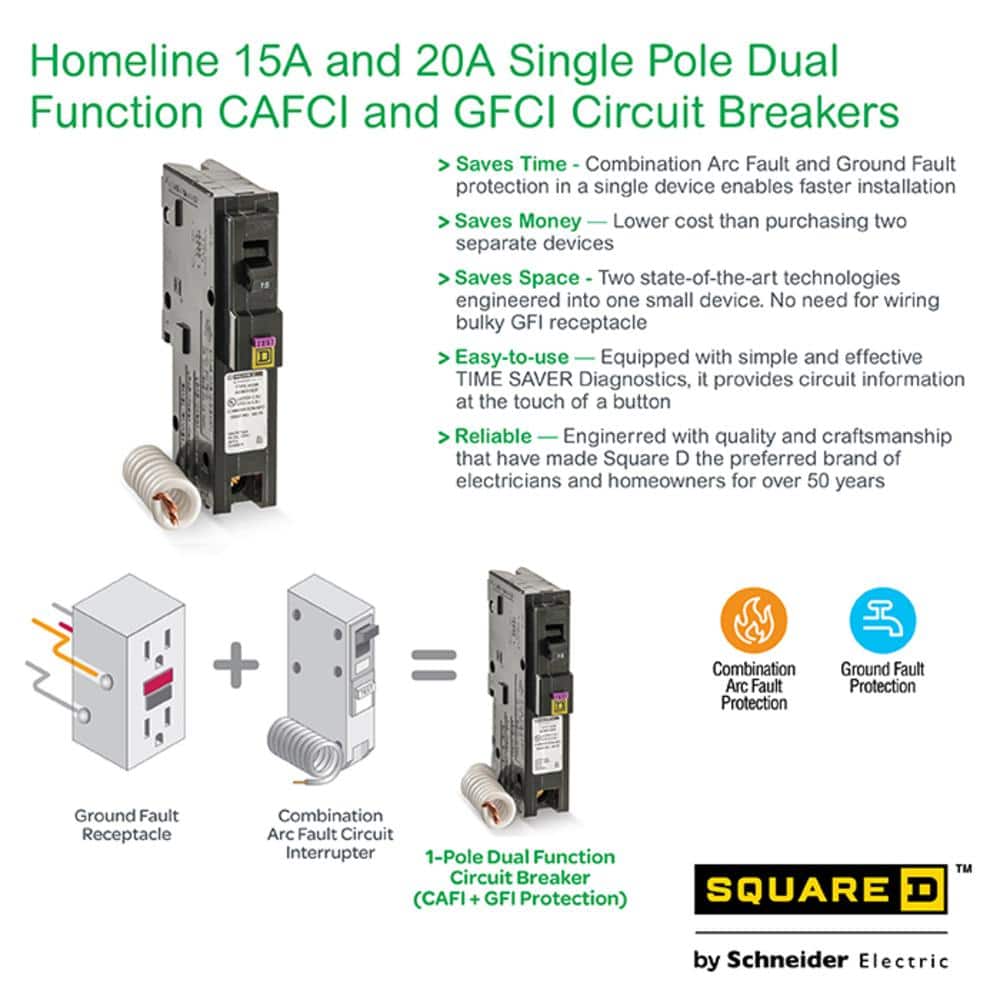

This Square D by Schneider Electric Homeline 20A single-pole breaker delivers dual protection—Combination AFCI and Class A GFCI—in one easy-to-install device. It streamlines code compliance for kitchens, laundry areas, and similar circuits while saving panel space and troubleshooting time with built-in Time Saver Diagnostics.
Key Features:
- Dual Protection: Combines CAFCI and Class A GFCI in one breaker for NEC-compliant safety
- Time Saver Diagnostics: Built-in feature speeds troubleshooting at the touch of a button
- Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs in one space
- Reliable Performance: 10,000 AIR rating; UL Listed and ANSI certified
- Contractor-Friendly: Reduces need for separate GFCI receptacles to save time, cost, and space
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard |
| Function | Dual Function (CAFCI and GFCI) |
| Poles | Single-Pole |
| Maximum Amperage | 20 A |
| Voltage | 120/240 V |
| AIC Rating | 10,000 AIR |
| Mounting Type | Plug-On |
| Connection Type | Non-Neutral |
| Trip Unit | Electronic |
| Number of Spaces | 1 |
| Pack Size | 6 |
| Product Width | 1 in |
| Product Height | 3.13 in |
| Product Depth | 2.98 in |
| Certifications and Listings | UL Listed, ANSI Certified |
| Warranty | Limited lifetime warranty for the lifetime of the Homeline load center in which installed |
| Features | Time Saver Diagnostics; includes neutral pigtail lead |
Frequently Asked Questions (FAQ):
Q: What panels is this compatible with?
A: It is designed for Square D Homeline load centers and CSEDs that accept single-space breakers.
Q: What type of protection does it provide?
A: Combination Arc Fault (CAFCI) and Ground Fault (Class A GFCI) protection in a single breaker.
Q: What is the voltage and amperage rating?
A: Rated 20 amps for 120/240V circuits; single-pole configuration.
Q: Is neutral pigtail required?
A: Yes, the breaker includes a coiled neutral pigtail lead for connection.
Q: Does it include a warranty?
A: Covered by a limited lifetime warranty for the lifetime of the Homeline load center in which it’s installed.
Safety, Streamlined
Elevate the backbone of your home’s electrical design with a breaker that marries intelligence and elegance. Its slim Homeline profile hides robust dual protection, keeping kitchens and laundry zones code-forward and clutter-free. Pair with a neatly labeled panel and clean conduit runs for a refined, purposeful utility space. It’s the quiet luxury of protection you can trust, executed with modern simplicity.
Upgrade your panel with dual-function protection and streamline code compliance—add this 6-pack to your project today.
