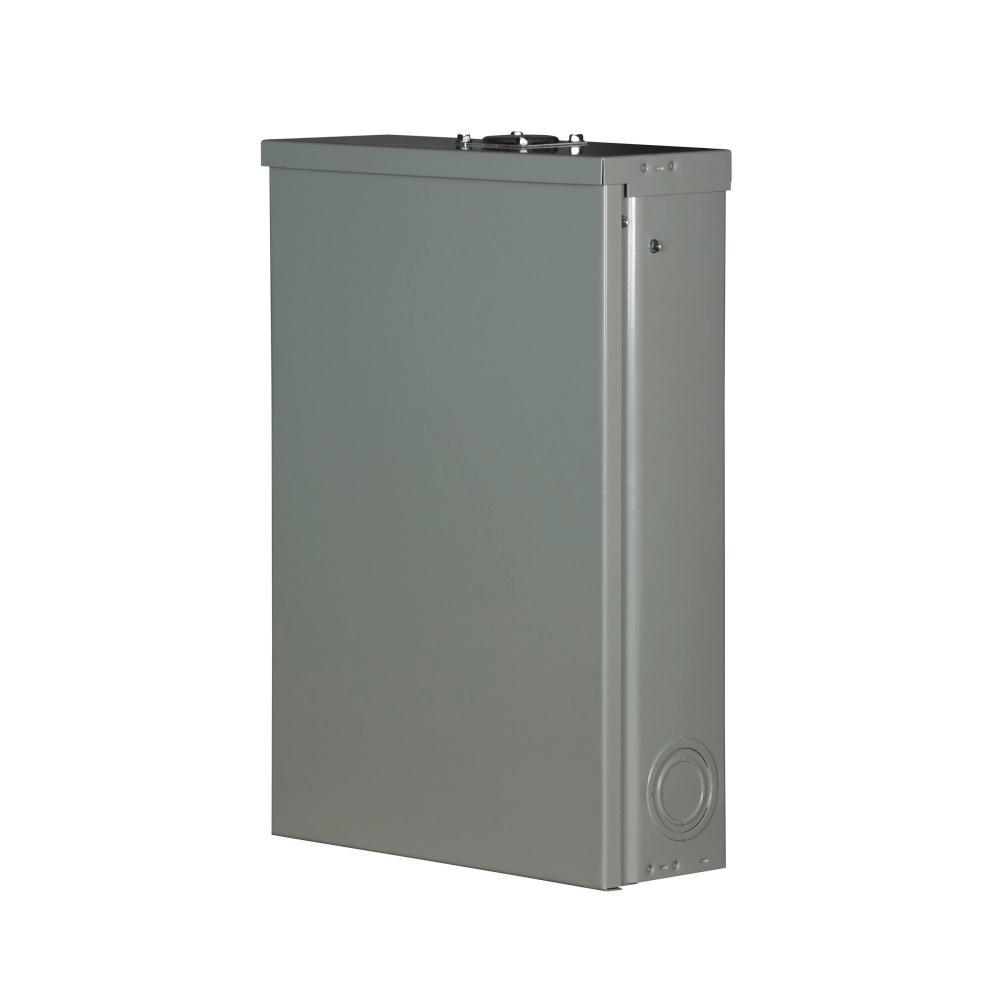

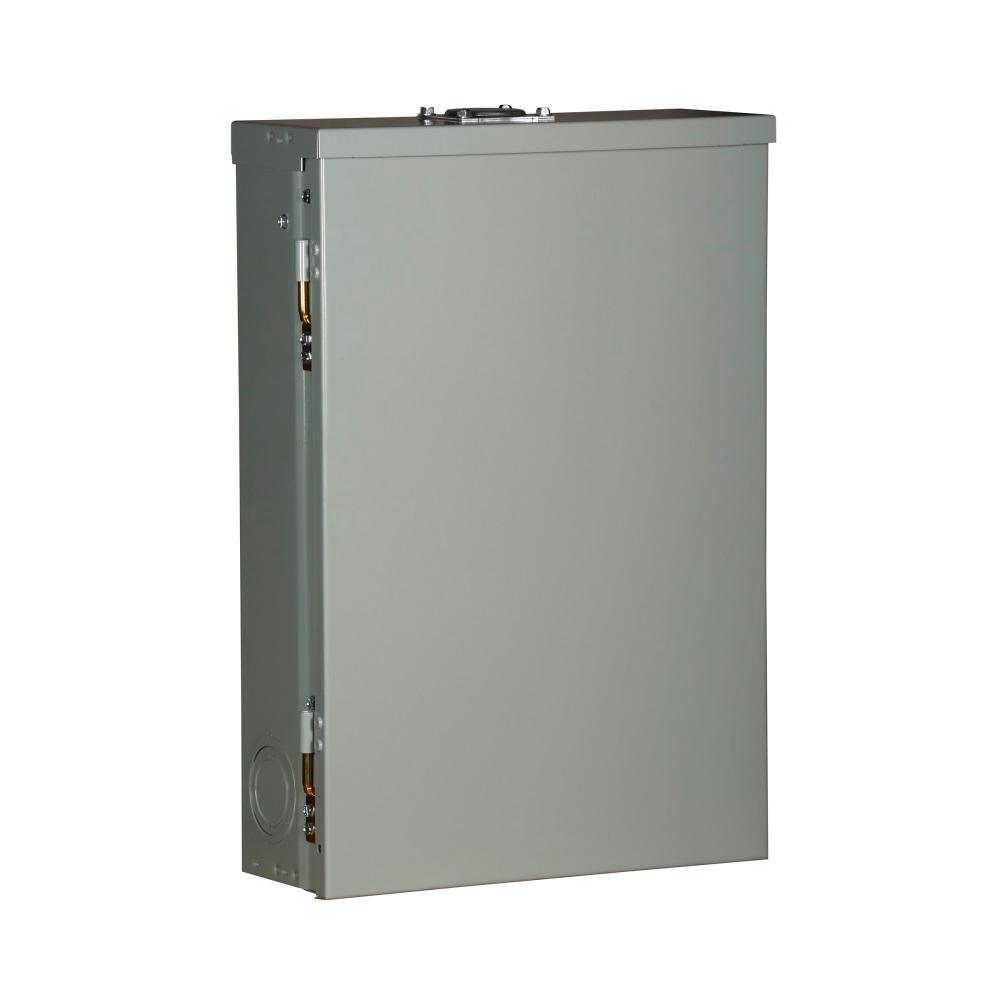

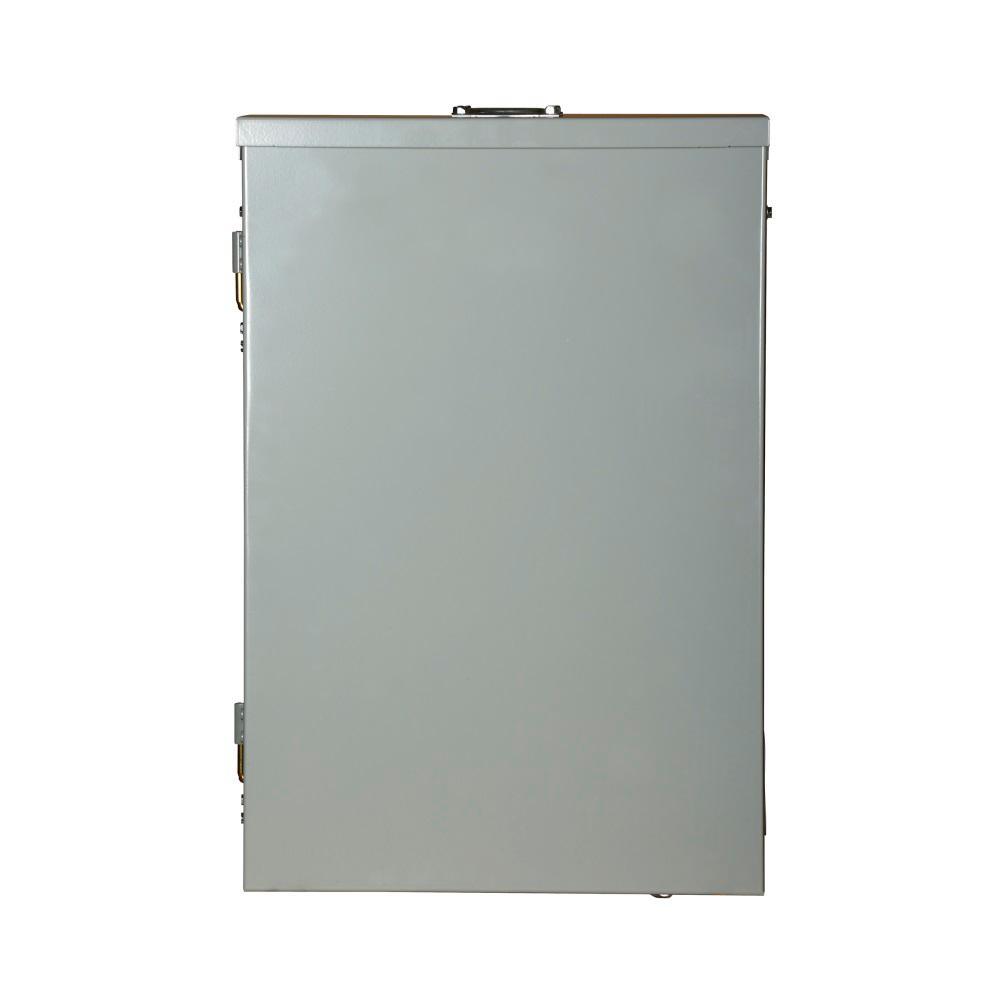

CH 100 Amp 22-Space 22-Circuit Outdoor Main Breaker Loadcenter with Cover

Not priced yet

In stock

Start your list

No published price on this one yet — put it on your list.

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH22B100R is an outdoor 100 amp main breaker with 22 spaces and 22 circuits.
  • Amperage rating: 100A
  • Bus material: copper
  • Rated Nema 3R for outdoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 10 kAIC
  • Mounting: combination
  • Number of Circuits: 22
  • Number of spaces: 22
  • Phase: single-phase

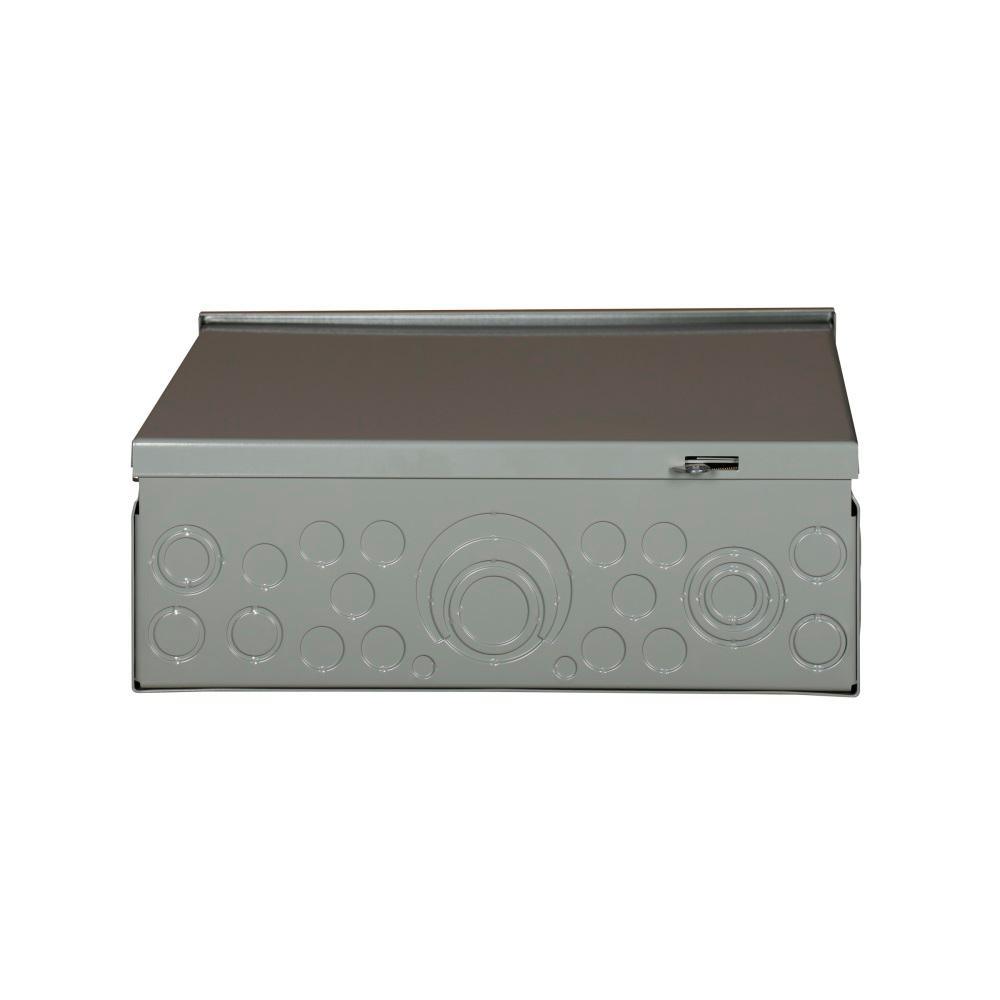

  • Tangential center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
  • 1 piece silver-flashed copper bus - provides superior conductivity, corrosion resistance and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling

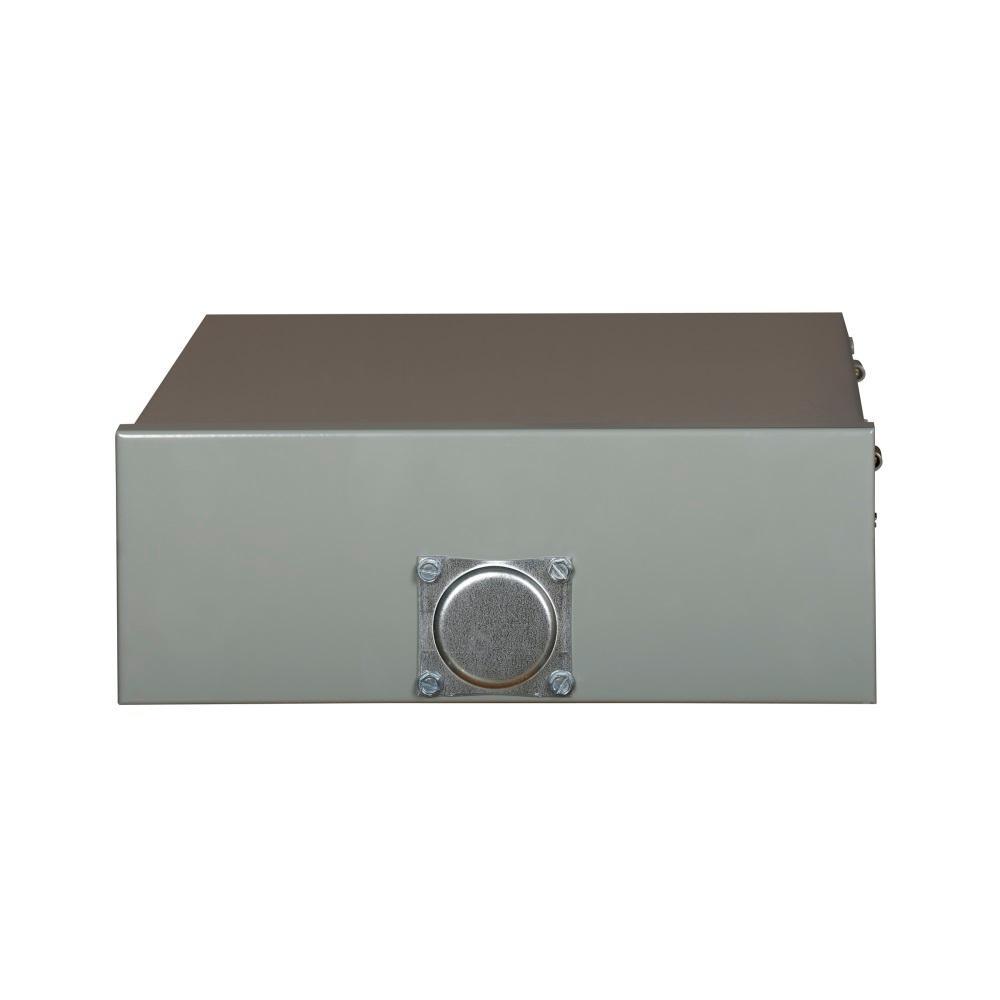

  • Rainproof panels are furnished with hub closure plates
  • Used with: type CH breakers


Features
Item Weight 25
Mounting Type Bolt On
Maximum Amperage (amps) 100
Number of Circuits 22
Voltage (volts) 120/240
Load Center Type Main Breaker
Electrical Product Type Load Center
Product Weight (lb.) 25
Number of Spaces 22
Indoor/Outdoor Outdoor
Returnable 180-Day
Phase Type 1 Phase
Load Center Mounting Type Flush
Load center depth (in.) 22.1
Load center width (in.) 15.6
Load center height (in.) 5.1
Certifications and Listings ANSI Certified,UL Listed
Manufacturer Warranty Limited Lifetime
