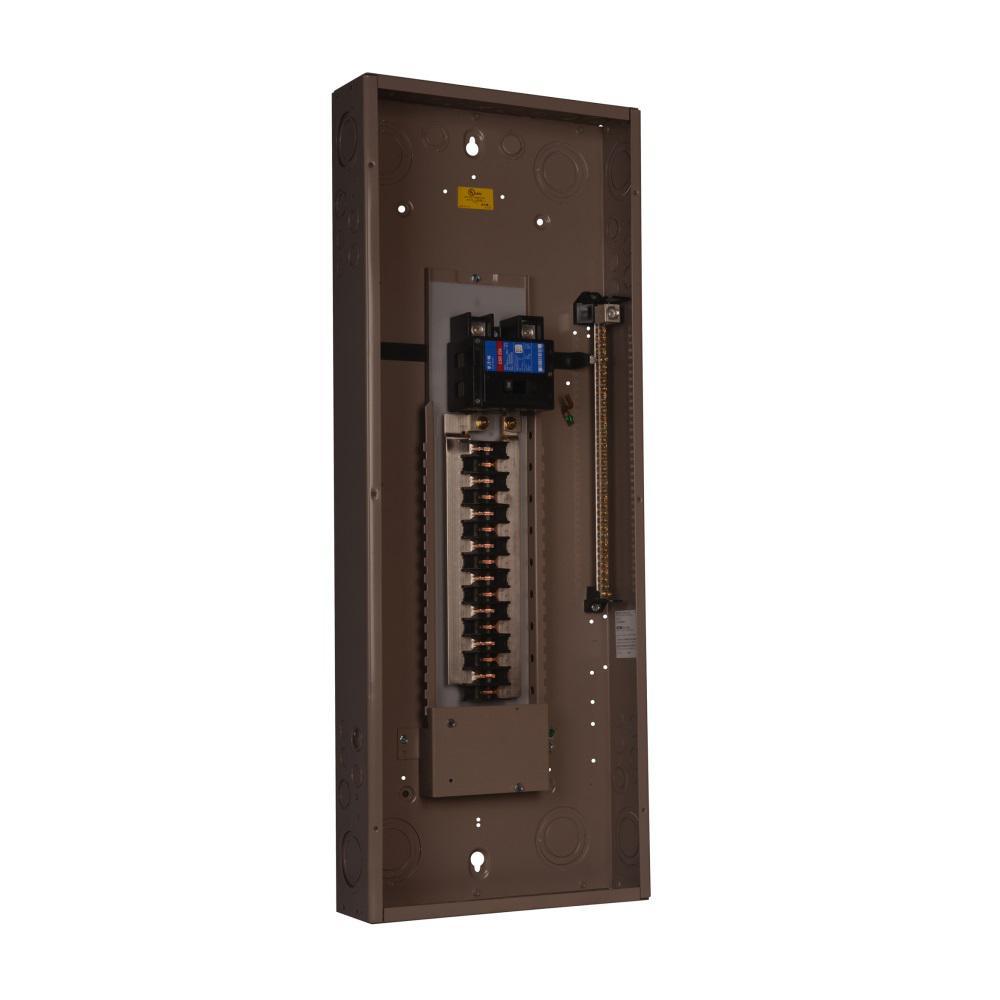

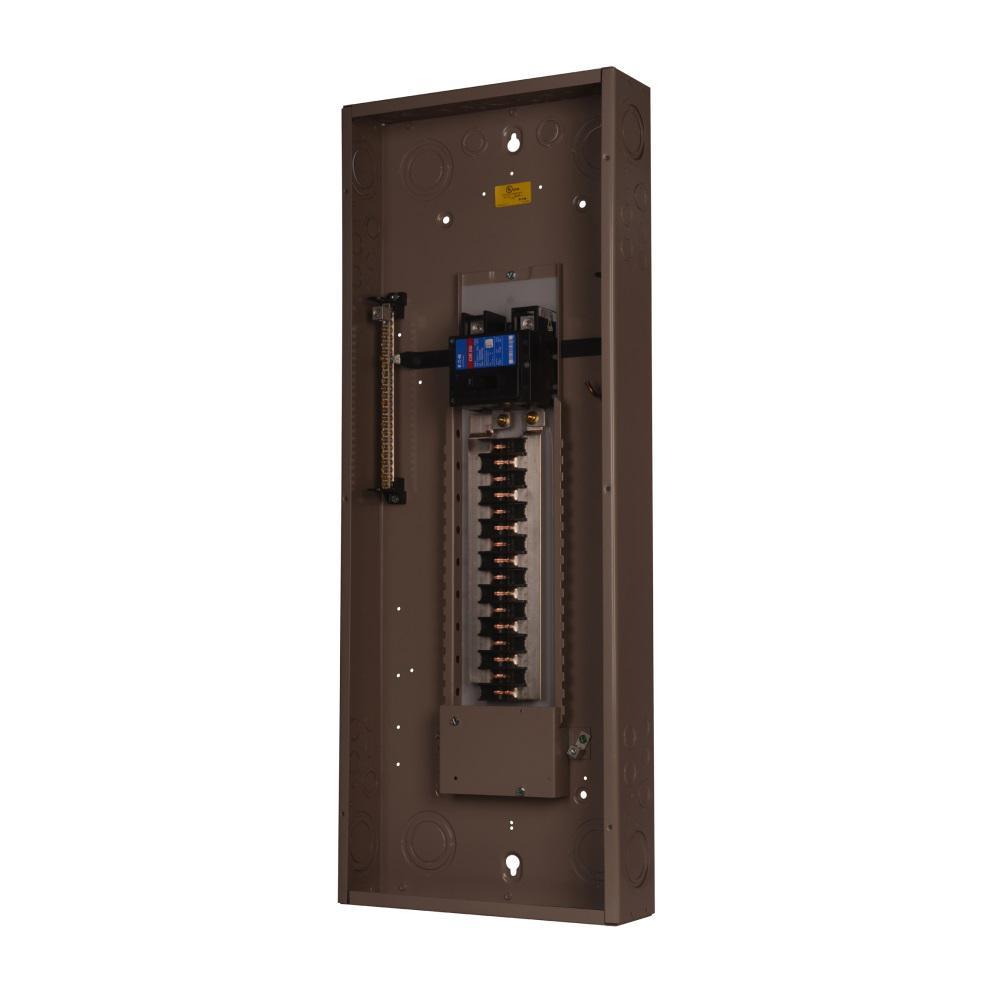

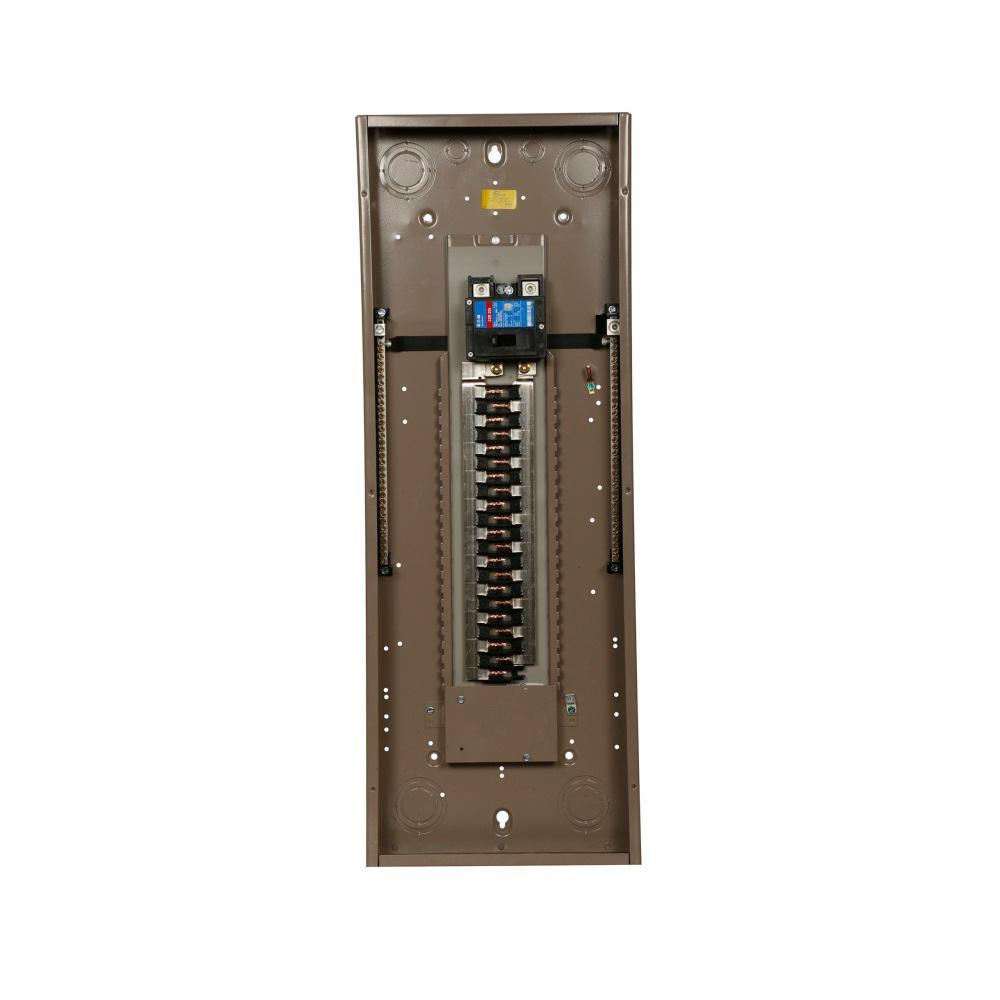

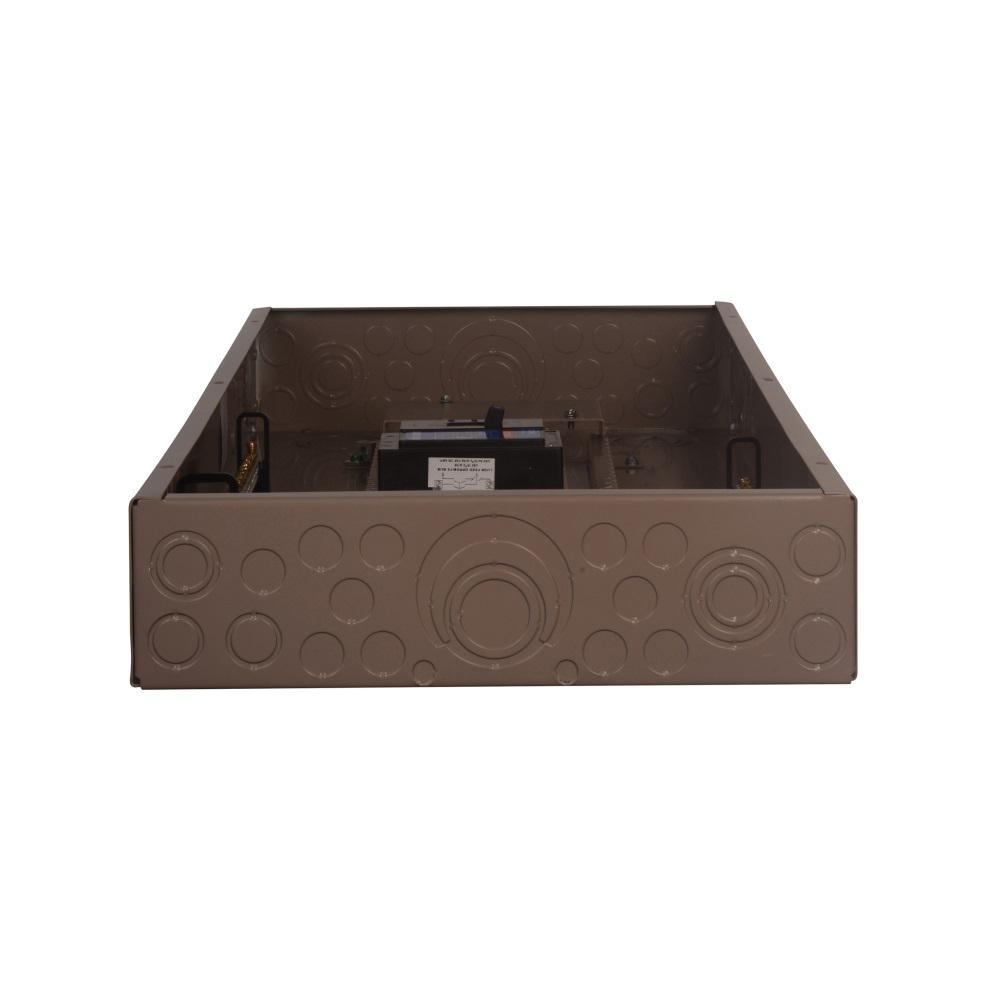

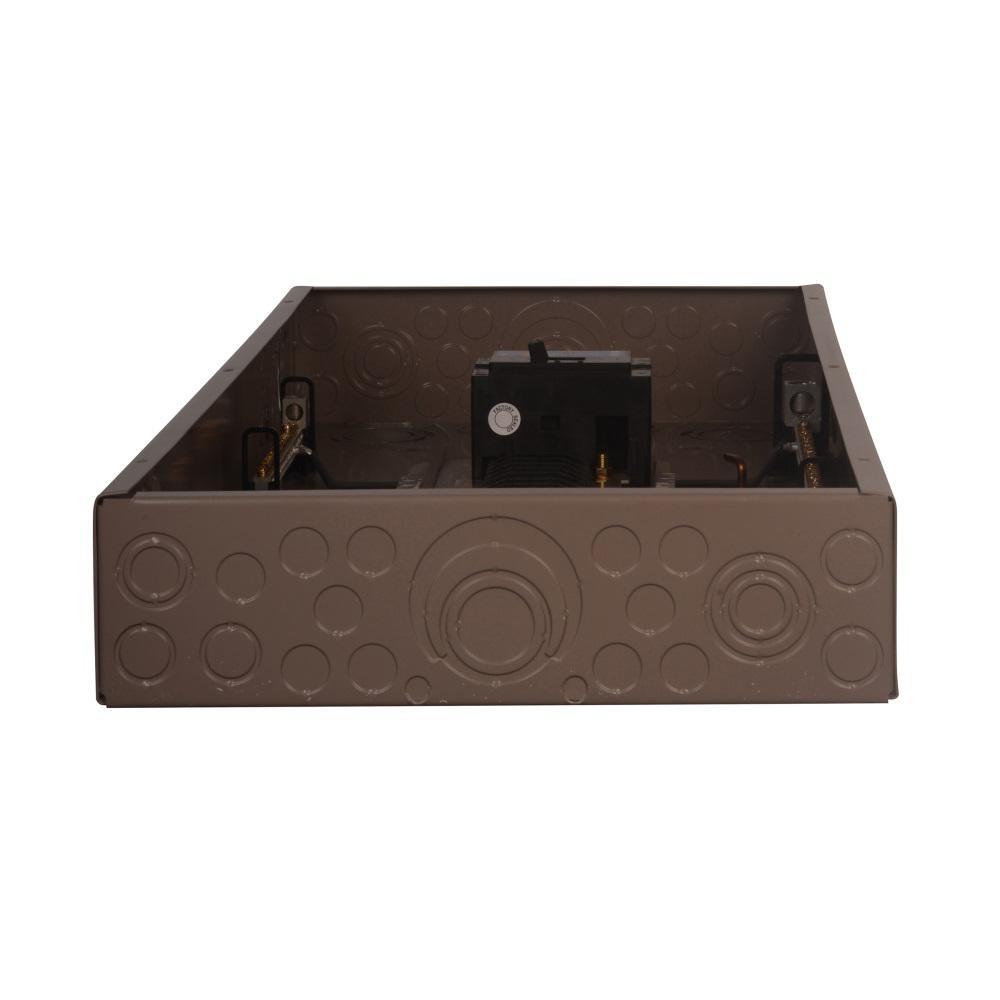

CH 200 Amp 32-Spaces 32-Circuits Indoor Main Breaker Surge Ready Loadcenter - Super Arbor

Eaton

From the Eaton hall The buying guide

CH 200 Amp 32-Spaces 32-Circuits Indoor Main Breaker Surge Ready Loadcenter

$269.88

Published price — same for everyone

In stock

SKU 302545792

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Eatons Type CH Surge ready Loadcenter provides a mounting provision for the CHSPT2Ultra (sold separately). Once the CHSPT2Ultra is installed in the surge ready loadcenter, it reduces the surge current, helping to protect sensitive home electronic equipment. A modified dead front cover (sold separately) allows for easy viewing of indicating lights.
  • Amperage rating: 200 Amp
  • Bus material: copper
  • Rated nema 1 for indoor use
  • Feed type: overhead or underground
  • Number of circuits: 32
  • Number of spaces: 32
  • Phase: single-phase
  • Voltage rating: 120/240-Volt
  • Tangential center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mountingsingle piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • CHSPT2 ultra, surge suppressor is sold separately
  • CHSUR8KF combination cover is sold separately
  • Used with: type CH breakers


Features
Item Weight 27
Number of Spaces 32
Mounting Type Bolt On
Voltage (volts) 120/240
Load Center Type Main Breaker
Electrical Product Type Load Center
Product Weight (lb.) 27
Indoor/Outdoor Indoor
Number of Circuits 32
Returnable 180-Day
Phase Type 1 Phase
Load Center Mounting Type Flush
Maximum Amperage (amps) 200
Load center height (in.) 3
Load center depth (in.) 32
Load center width (in.) 10
Certifications and Listings ANSI Certified,UL Listed
Manufacturer Warranty Limited Lifetime
