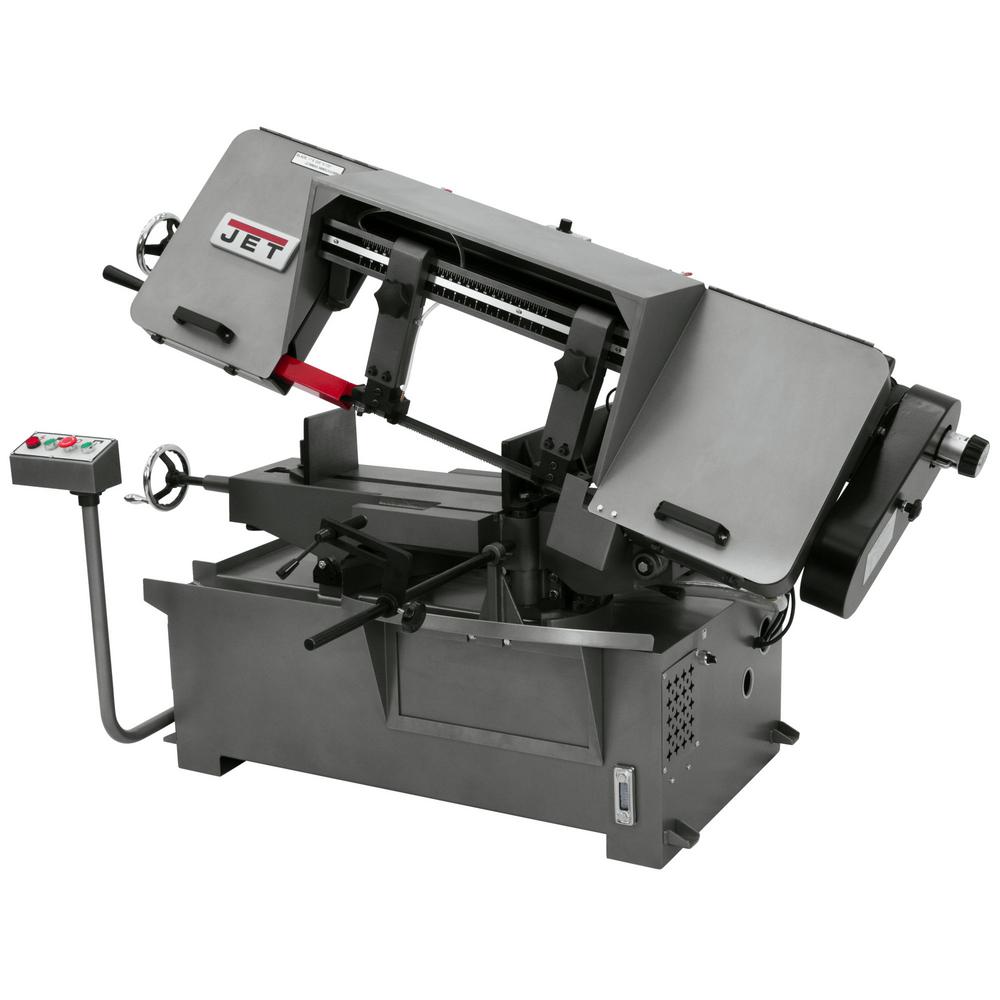

J-7020M Horizontal Mitering Bandsaw 1PH
$7,499.00
Published price — same for everyone
Out of stock — available on backorder
SKU 531534881
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Jet Mitering Horizontal band saws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading 2-year warranty, Jet mitering band saws are built to last and deliver precision results.
Features
- Mitering head swivels to cut any angle 0 - 45 while the work piece remains secured
- Swing away control panel houses major saw controls
- Variable speed drive system allows the operator to easily fine tune the blade speed
- Adjustable blade guide with 6 contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
- Blade rides on 2-load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
- Down feed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
- Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
- Cast iron blade wheels
- Coolant system
- Adjustable material stop
Features
| Item Weight | 1134.000 |
| Minimum Blade Length | 135 |
| Portability | Stationary |
| Maximum Speed (rpm) | 350 |
| Color Family | Gray |
| Included Accessories | Tool Only |
| Voltage (volts) | 115 |
| Product Weight (lb.) | 1134.000 |
| Table Tilt Left Max (degrees) | 45 |
| Table Tilt Right Max (degrees) | 90 |
| Returnable | 180-Day |
| Cordless/ Corded | Corded |
| PT Horsepower (Hp) | 1-1/2 |
| Construction Material | Steel |
| Table-Top Material | Cast-Iron |
| Tools Product Type | Power Tool |
| Bench & Stationary Tool Type | Band Saw |
| Dust Collection Method | None |
| Amperage (amps) | 22 |
| Condition | New |
| Band Saw Type | Horizontal |
| Cord Length (ft.) | 6 |
| Power Tool Features | Variable Speed |
| Cutting Capacity Width / Depth Of Throat(In.) | 10 |
| Cuts Through | Aluminum,Metal,Steel |
| Table Length (in.) | 79 |
| Product Depth (in.) | 76.000 |
| Maximum Blade Width | 1 |
| Maximum Blade Length | 135 |
| Table Width (in.) | 31 |
| Product Height (in.) | 48.000 |
| Work Table Surface | 79 in. x 31 in. |
| Product Width (in.) | 30.000 |
| Dust Port Size (In.) | 4 |
| Cutting Capacity Height / Height under Guide (In.) | 16 |
| Minimum Blade Width | 1 |
| Manufacturer Warranty | 2 Year Warranty |
| Certifications and Listings | No Certifications or Listings |
