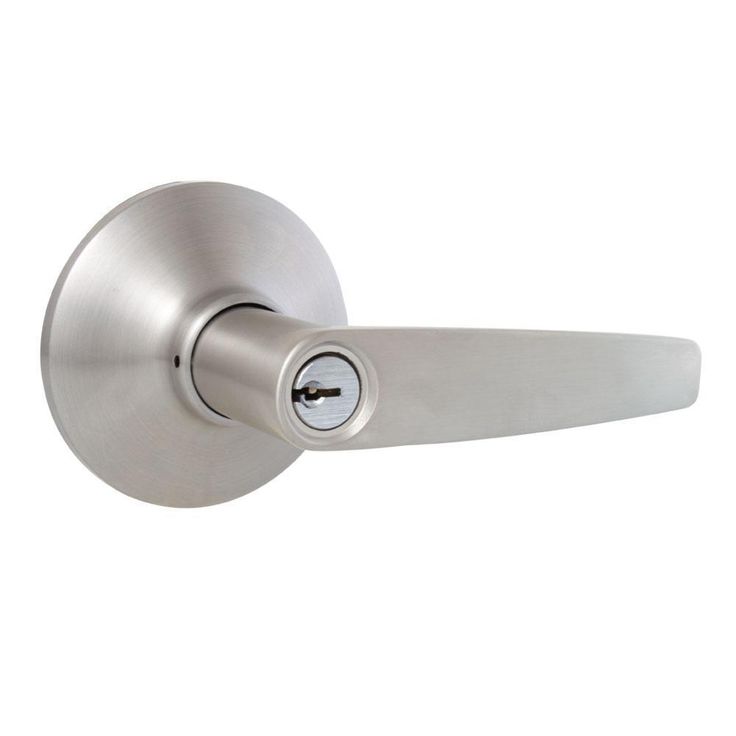

Olympic Stainless Steel Keyed Entry Door Lever Lock

Affordably outfit exterior doors with this Keyed entry lever set from Defiant. The Olympic Keyed Entry lever has been newly designed with a 70 mm Rose Plate that easily mounts to doors 1-3/8 in. to 1-3/4 in. thick with the included hardware. The new design provides coverage of paint rings left from previous installations of door hardware. It is perfect for entry, basement or garage doors beyond which security is needed. It features adjustable backsets and interchangeable faceplates for drive-in and traditional installations. The sturdy Lever nicely coordinates with other fixtures in your home for a cohesive look. A lifetime warranty ensures that this device will withstand frequent use.

Features

Item Weight	1.45
Lock Type	Keyed
Door Lock Style	Classic
Commercial/Residential	Residential
Total Number of Keys Included	2
Wired or Wireless	No electrical connectivity
Finish	Stainless Steel
Strike	Round corner
Number of Pins	5
Keyway	KW1
Product Weight (lb.)	1.63
Door Handing	Universal
Included	Drilling Template,Hardware,Installation Instructions,Mounting Hardware
Security/ANSI Grade	ANSI Grade 3 (Good)
Application Type	Entry
Features	Adjustable Backset,Easy Installation
Lock Type2	Keyed Entry
Backset size (in.)	Adjustable
Combo Pac	Non-Combo
Returnable	180-Day
Hardware Finish Family	Stainless Steel
Interior/Exterior	Exterior
Lever material	Zinc
Door Locks & Knobs Product Type	Keyed Levers
Minimum door thickness (in.)	1.375
Lever style	Straight
Material	Zinc
Electronic/Mechanical	Mechanical
Throw length (in.)	.5
Assembled Depth (in.)	6.30 in
Strike height (in.)	2.25
Maximum door thickness (in.)	1.75
Cross bore diameter (in.)	1.0
Lever grip length (in.)	3.06
Strike width (in.)	1.75
Housing Width (in.)	2.83
Assembled Width (in.)	4.95 in
Bore hole diameter (in.)	2.125
Housing height (in.)	2.83
Projection (in.)	.49
Assembled Height (in.)	2.83 in
Manufacturer Warranty	Limited Lifetime Warranty
