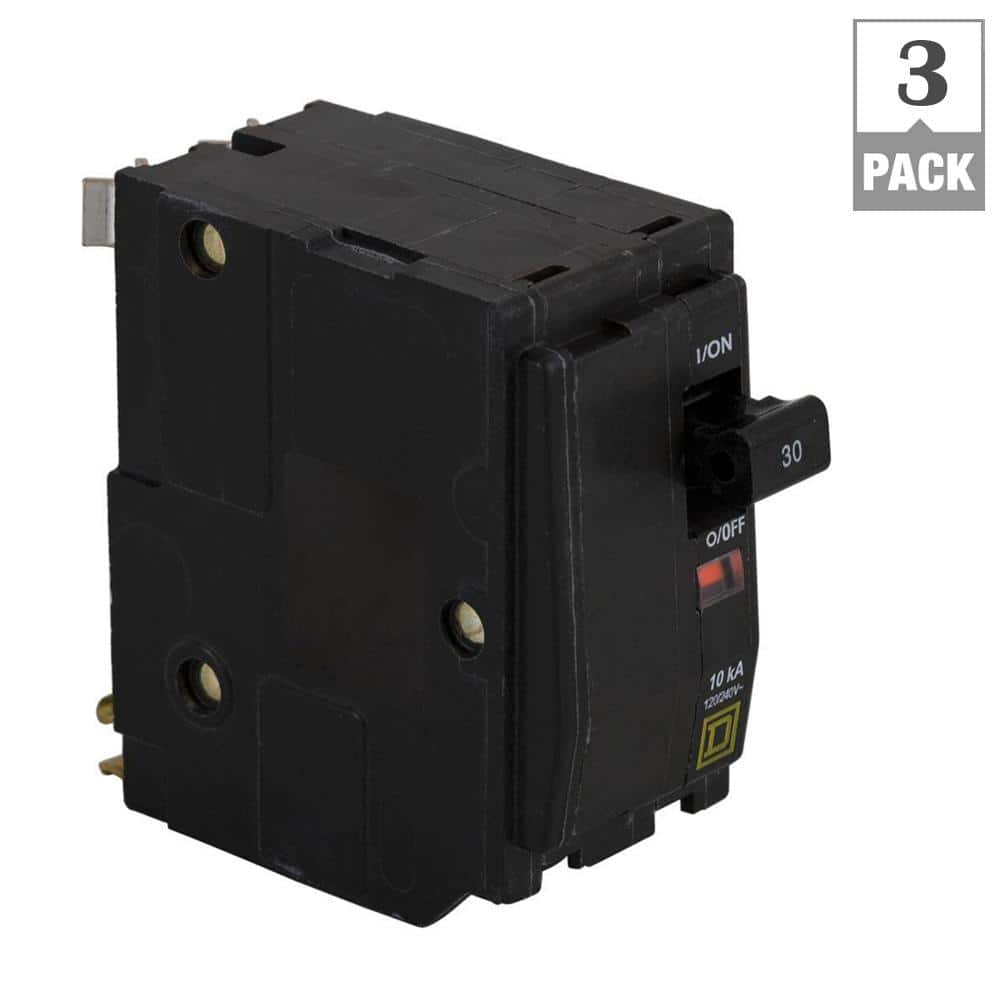

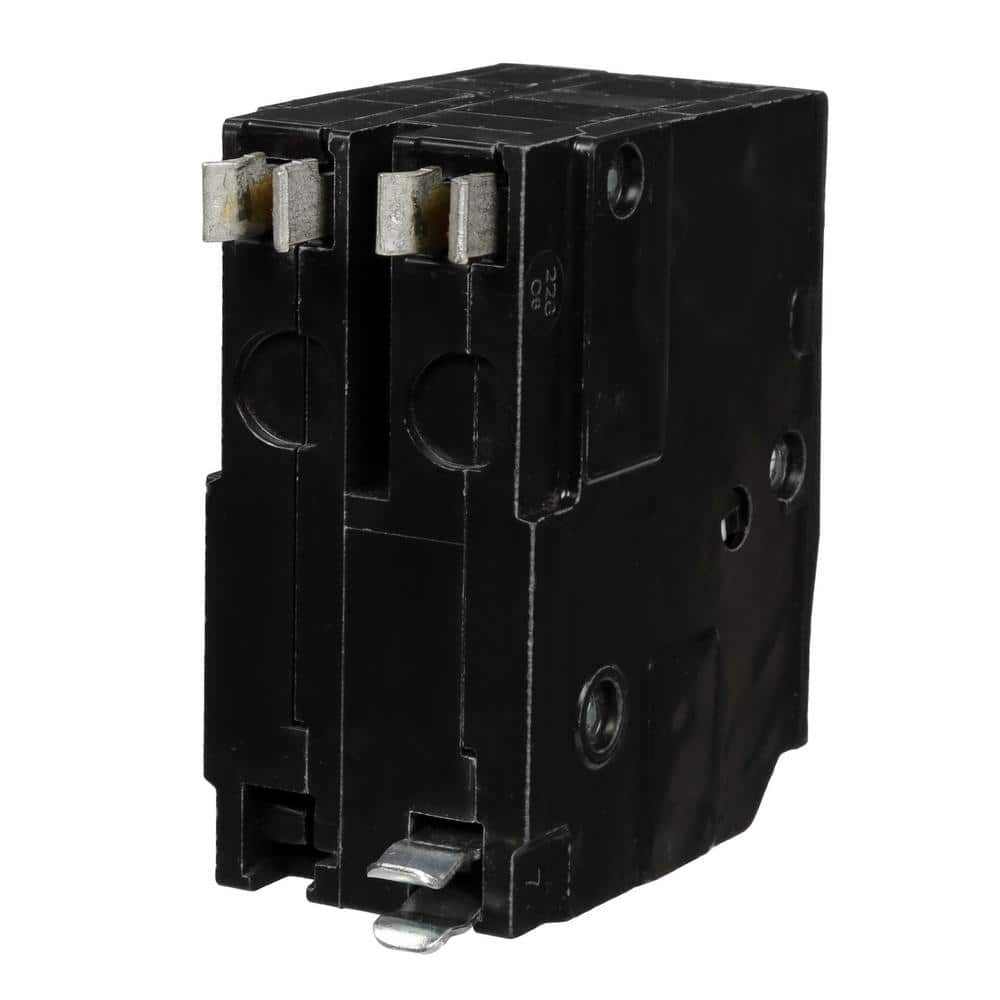

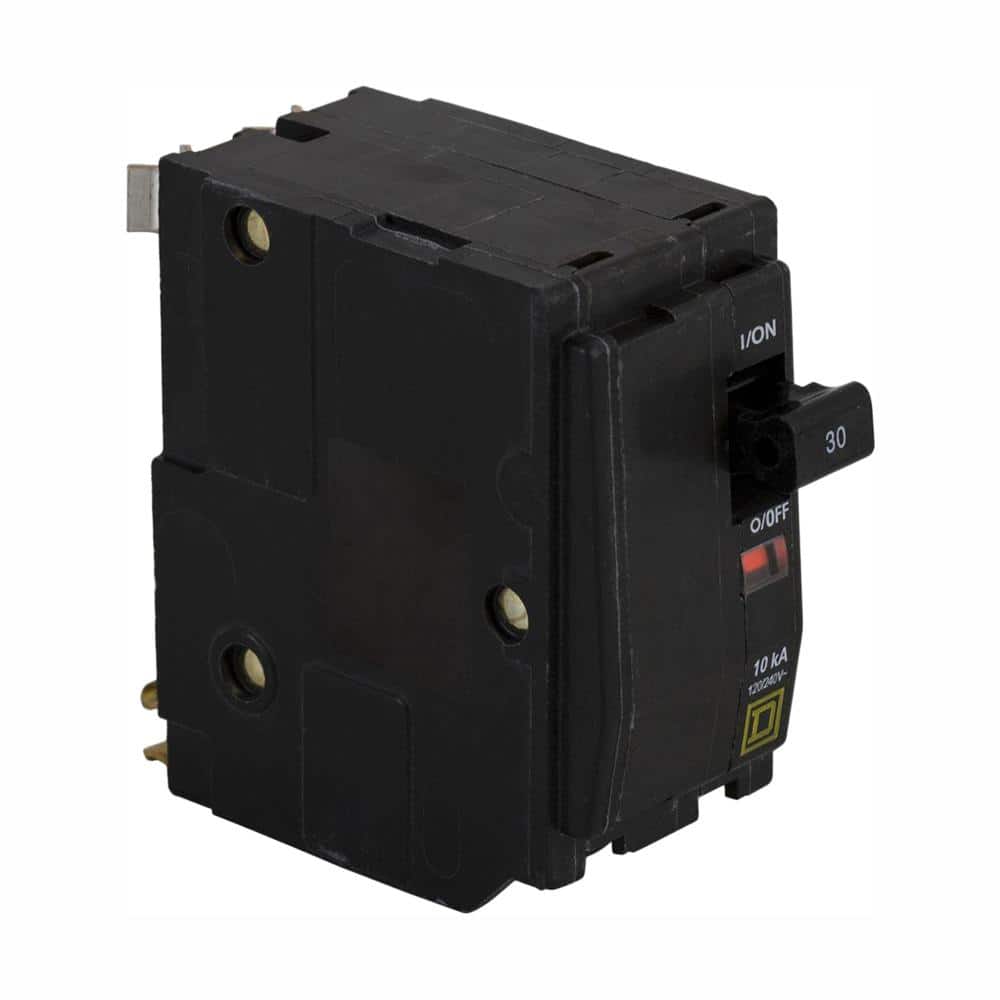

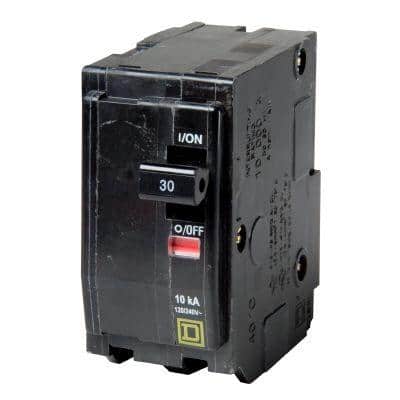

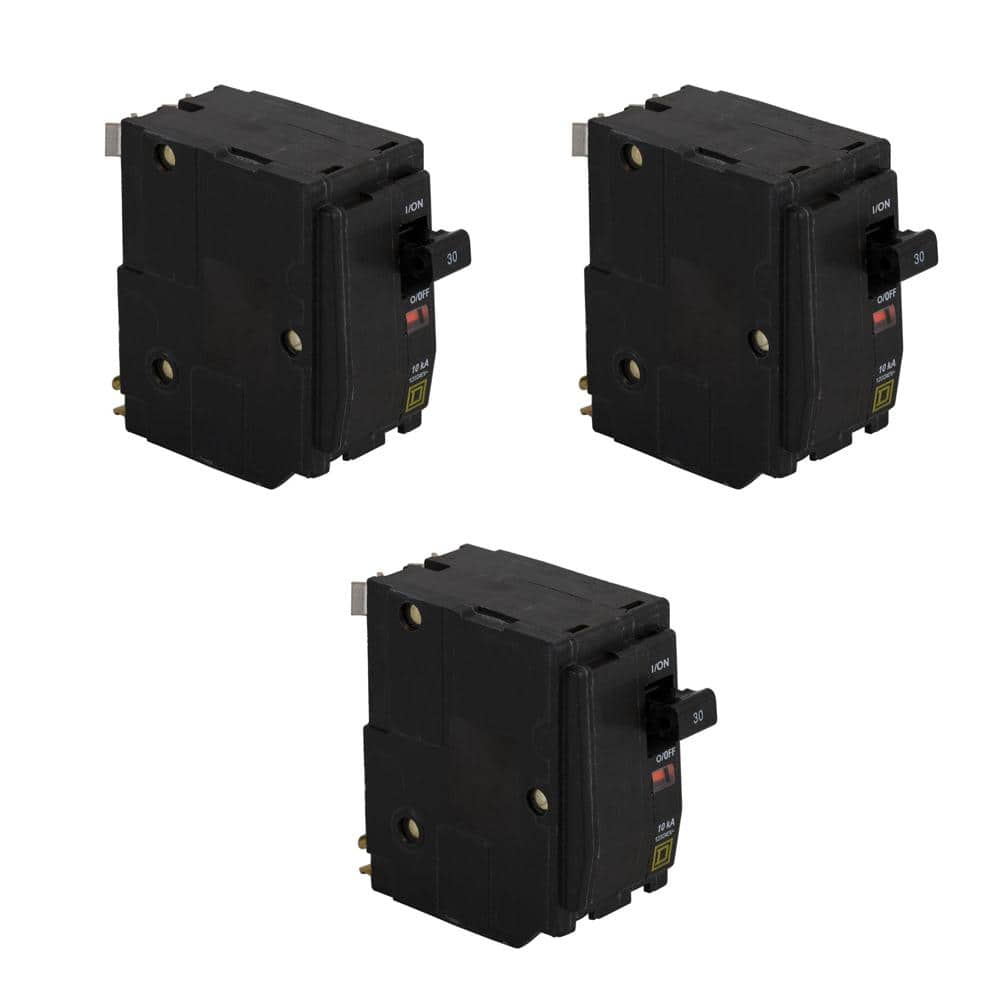

Schneider Electric Square D QO 30 Amp 2-Pole Circuit Breaker (3-Pack)

Square D QO 30A 2-Pole Circuit Breaker, 3-Pack

Square D QO thermal-magnetic circuit breakers provide reliable overload and short-circuit protection for 120/240V systems. This 30-amp, 2-pole plug-on breaker features the Visi-Trip indicator for quick identification of tripped circuits and is compatible with QO load centers and CSEDs.

---

Key Features:

• Reliable Protection: Thermal-magnetic trip unit guards against overloads and short-circuits
• Easy Identification: Visi-Trip red indicator shows which breaker has tripped
• Simple Installation: Plug-on design fits QO load centers, CSEDs, and NQOD panels
• High Interrupt Rating: 10,000 AIR with 120/240-Volt AC operation
• Durable Build: UL Listed and ANSI certified for dependable performance

---

Specifications Table:

Specification	Details
Series	QO
Breaker Type	Standard
Trip Unit	Thermal Magnetic
Maximum Amperage	30A
Poles	2-Pole
Mounting Type	Plug-On
Voltage	120/240 VAC
AIC Rating	10,000 AIR
Connection Type	Non-Neutral
Pack Size	3
Product Weight	0.55 lb
Product Height	3 in
Product Width	1.5 in
Product Depth	2.9 in
Certifications	UL Listed; ANSI certified
Interruption Type	Standard Trip
Compatibility	QO load centers, CSEDs, NQOD panelboards
Country of Origin	USA
Visi-Trip Indicator	Yes

---

Frequently Asked Questions (FAQ):

Q: Is this breaker compatible with my panel?
A: It is designed for Square D QO load centers, CSEDs, and NQOD panelboards; verify your panel is part of the QO series.

---

Q: What voltage and amperage does it support?
A: Rated for 120/240 VAC with a maximum amperage of 30A per 2-pole breaker.

---

Q: How do I know if the breaker has tripped?
A: The Visi-Trip feature moves the handle to a mid position and displays a red indicator to show the tripped breaker.

---

Q: What is the interrupt rating?
A: 10,000 AIR (AIC).

---

Q: Is hardware included?
A: This pack includes three 2-pole QO230 breakers; mounting is plug-on and uses the panel’s existing hardware.

---

Streamlined Power, Subtle Presence

The Square D QO breaker brings a crisp, architectural clarity to the unseen backbone of a home—its electrical panel. The slim, black silhouette pairs functionality with an iconic Visi-Trip accent, a thoughtful detail that simplifies maintenance. Group these in a neatly organized QO load center to keep your infrastructure elegant and efficient. It’s a quiet essential that underpins modern, luxurious living with confidence.

---

Upgrade your panel with dependable Square D QO protection—add this 3-pack to your project today.
