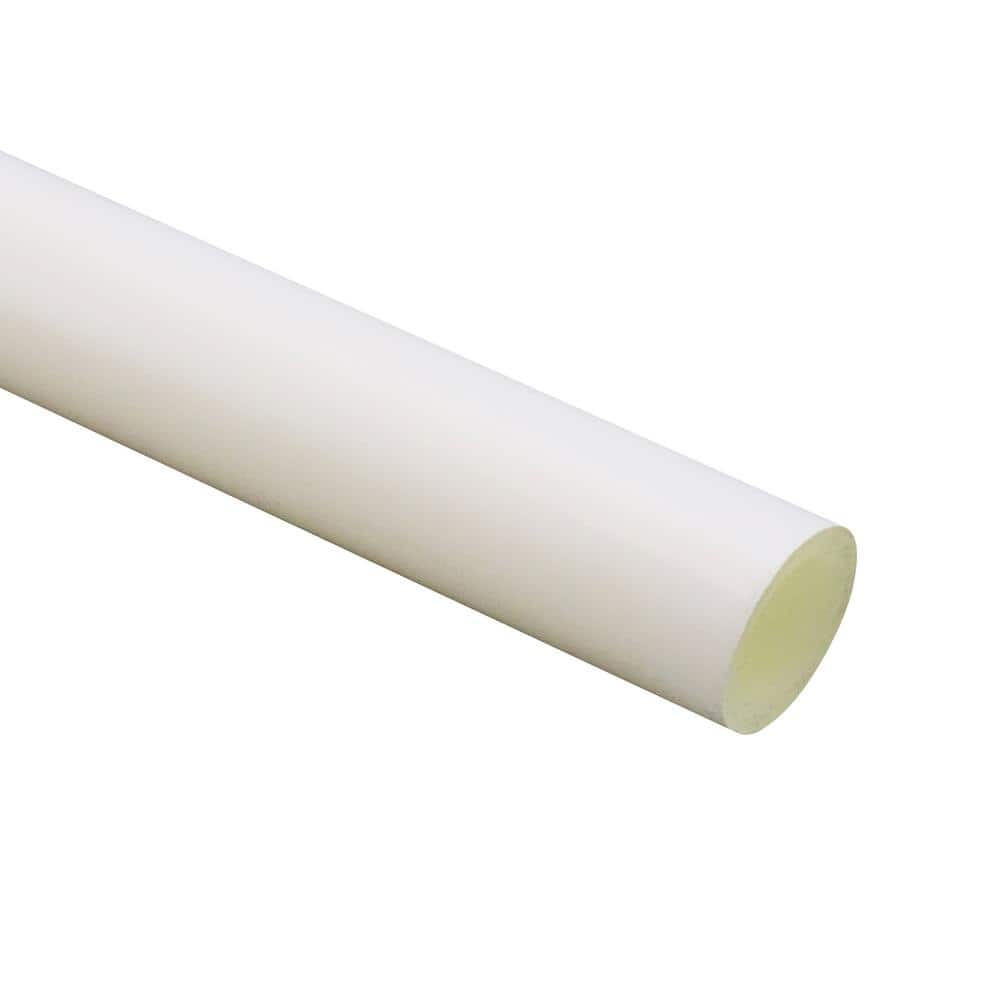

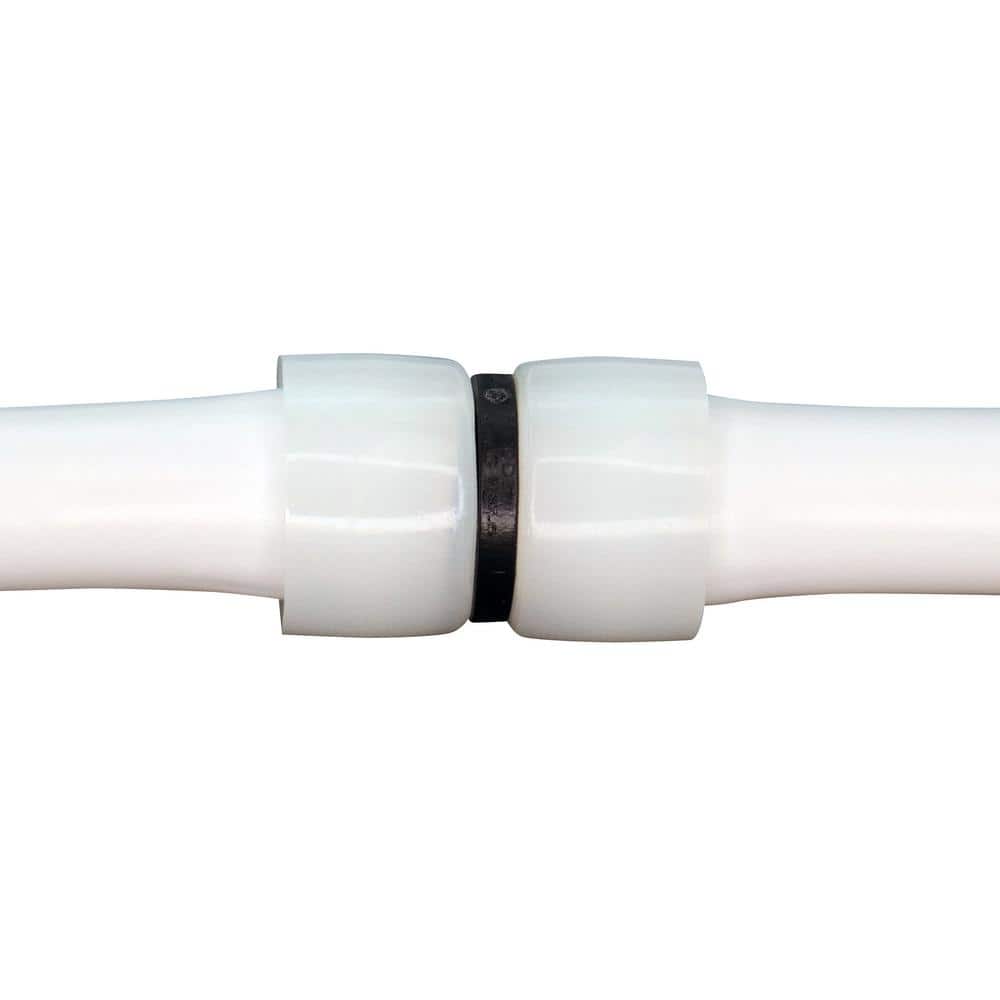

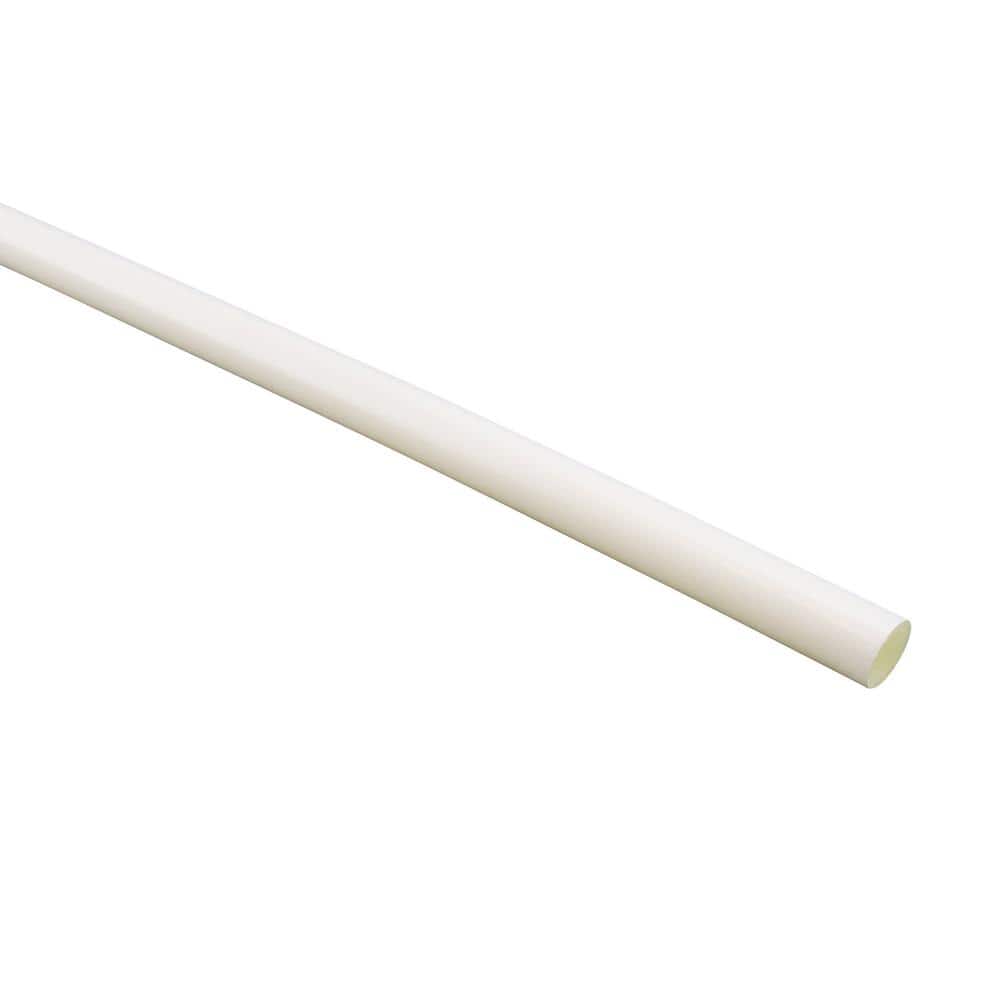

Apollo 1 in. x 5 ft. White PEX-A Expansion Pipe
Published price — same for everyone
In stock
SKU '302740667
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

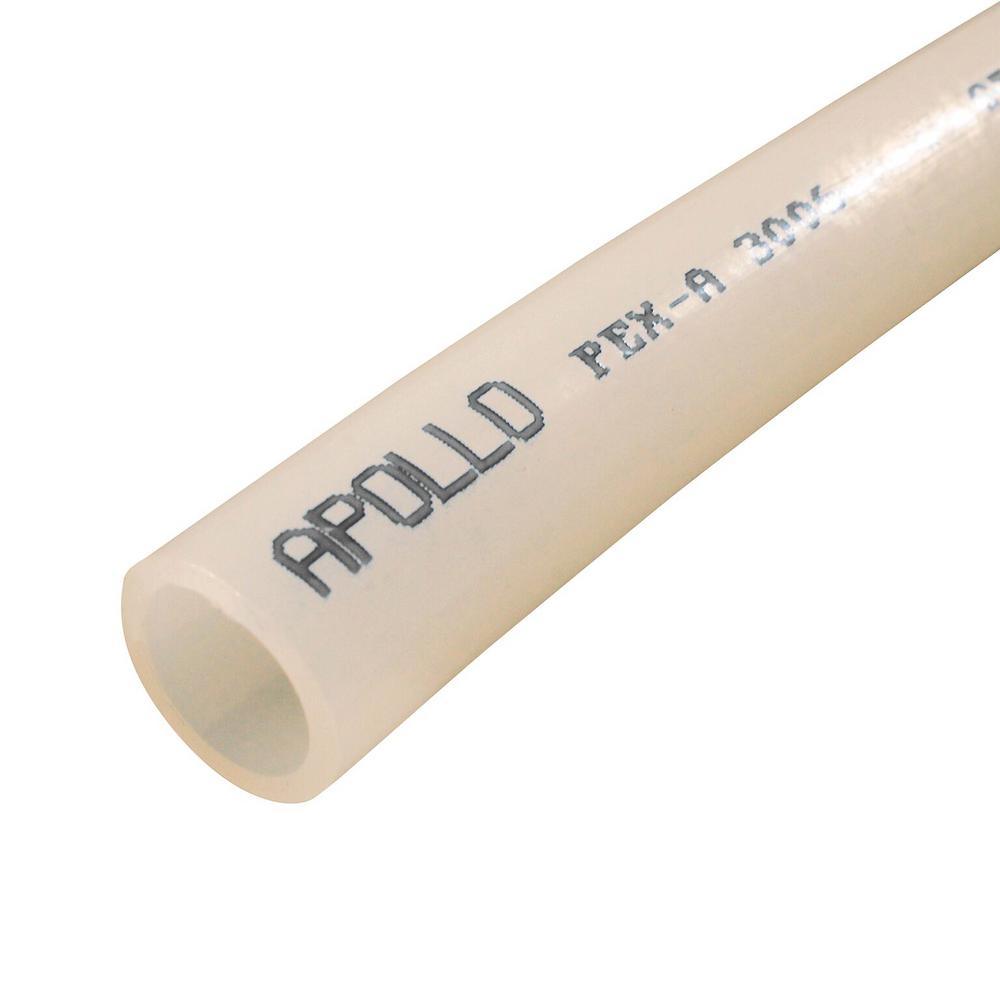

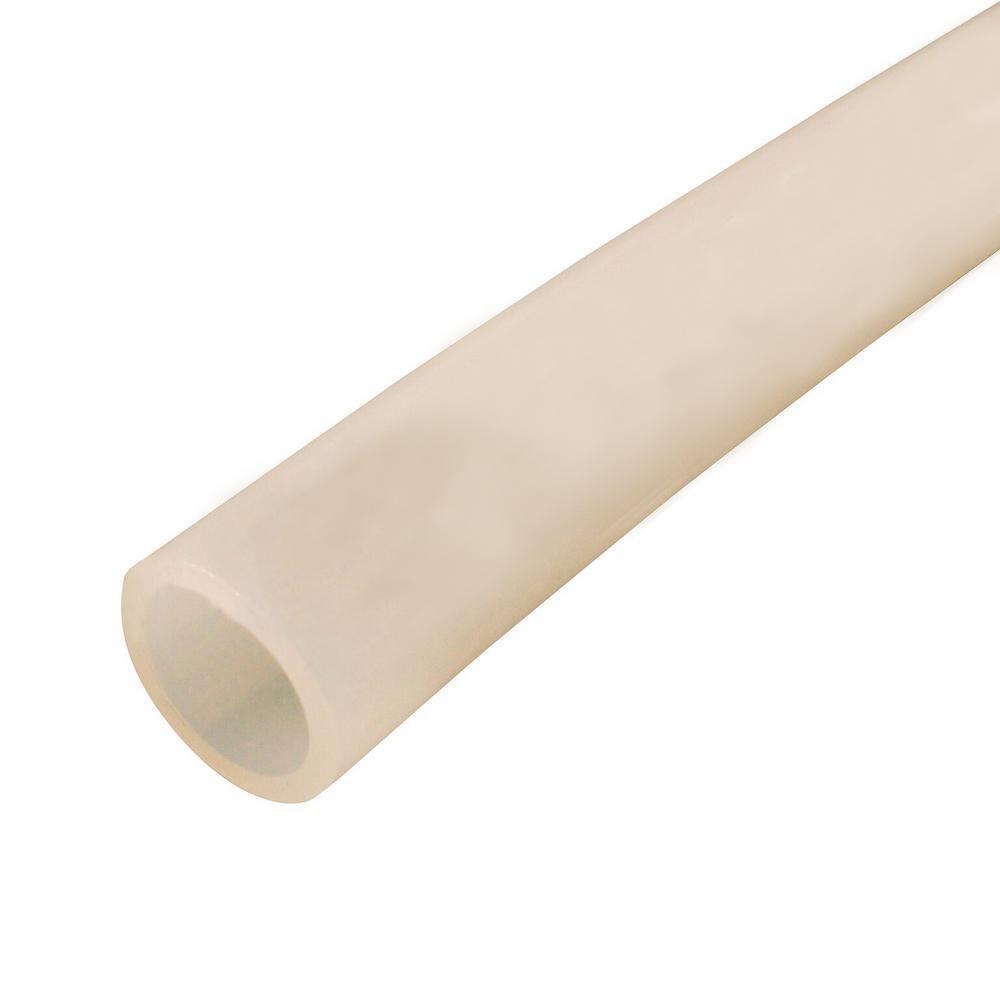

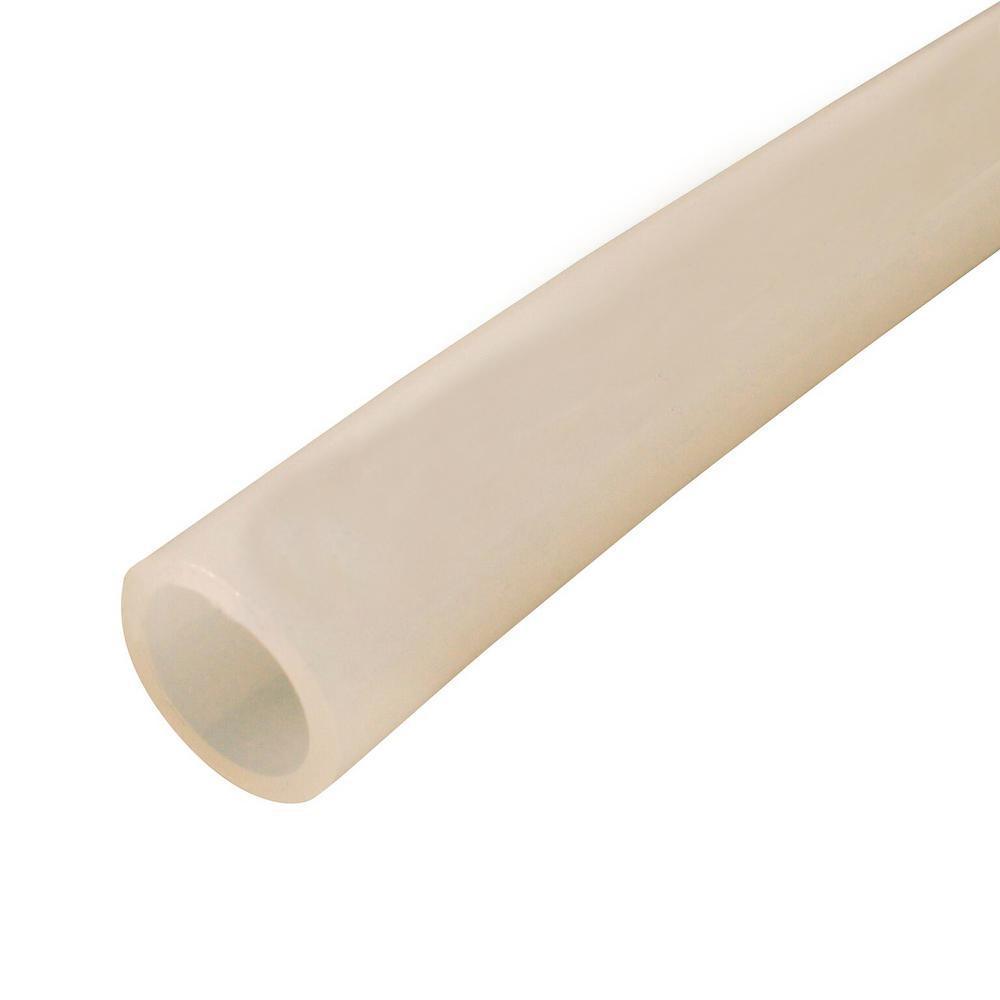

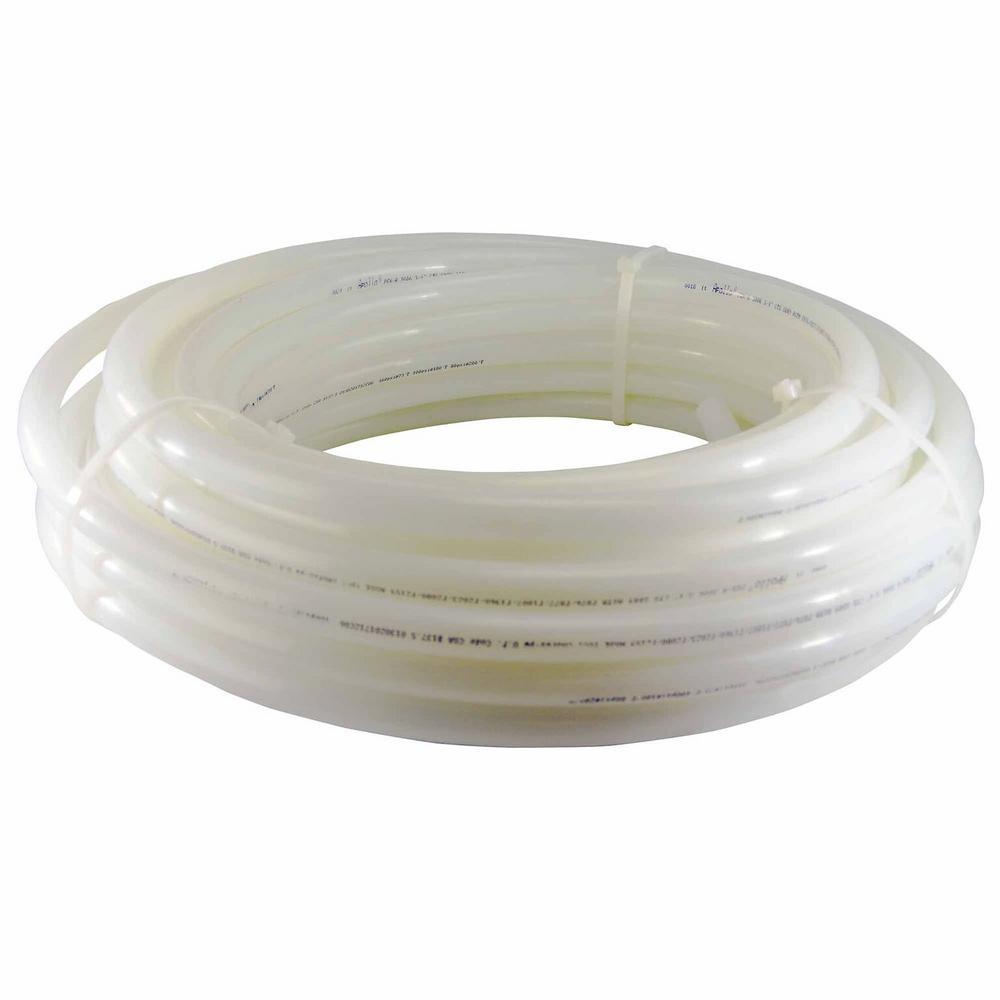

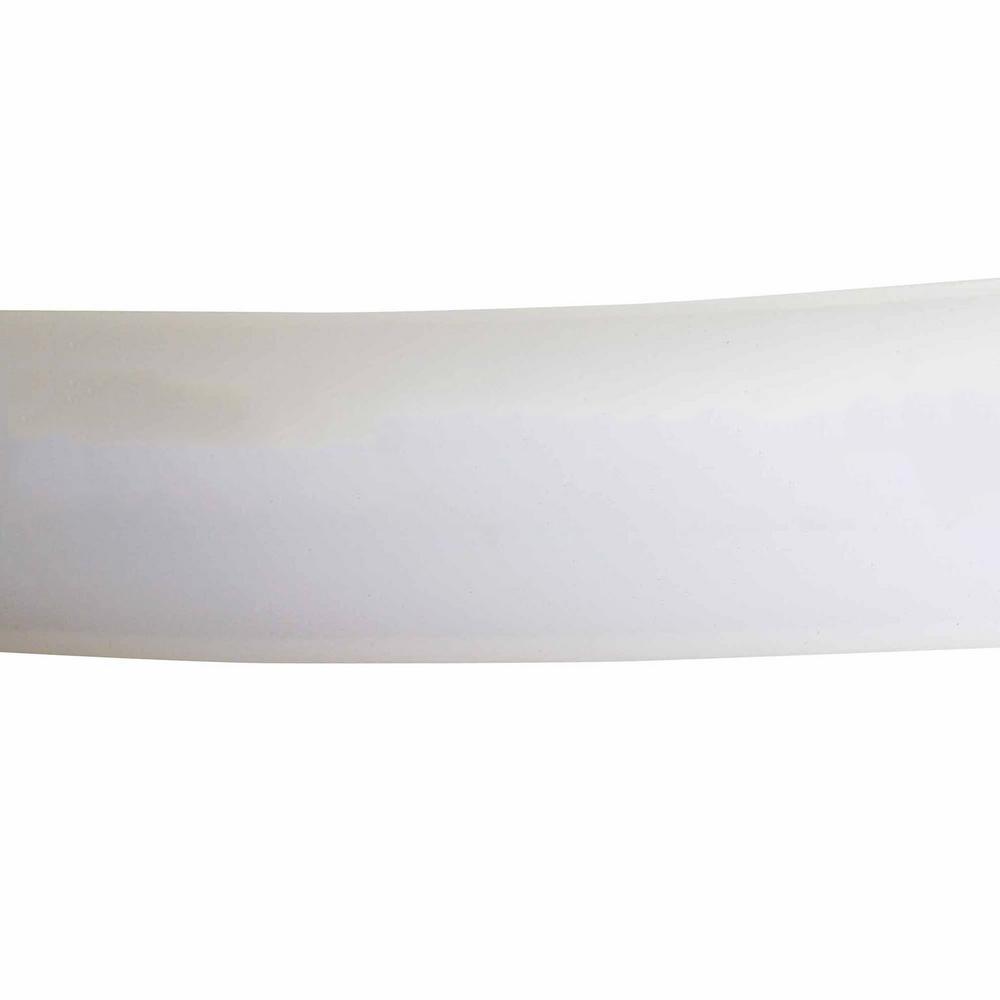

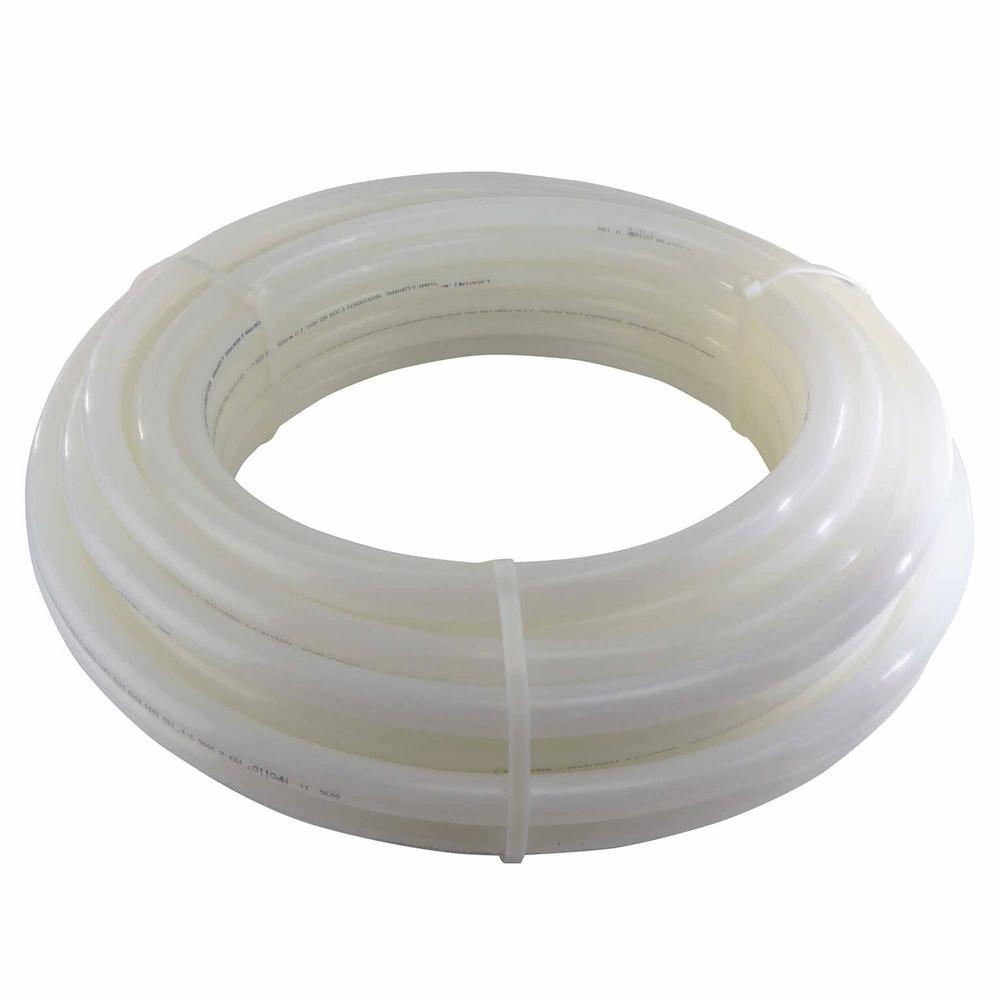

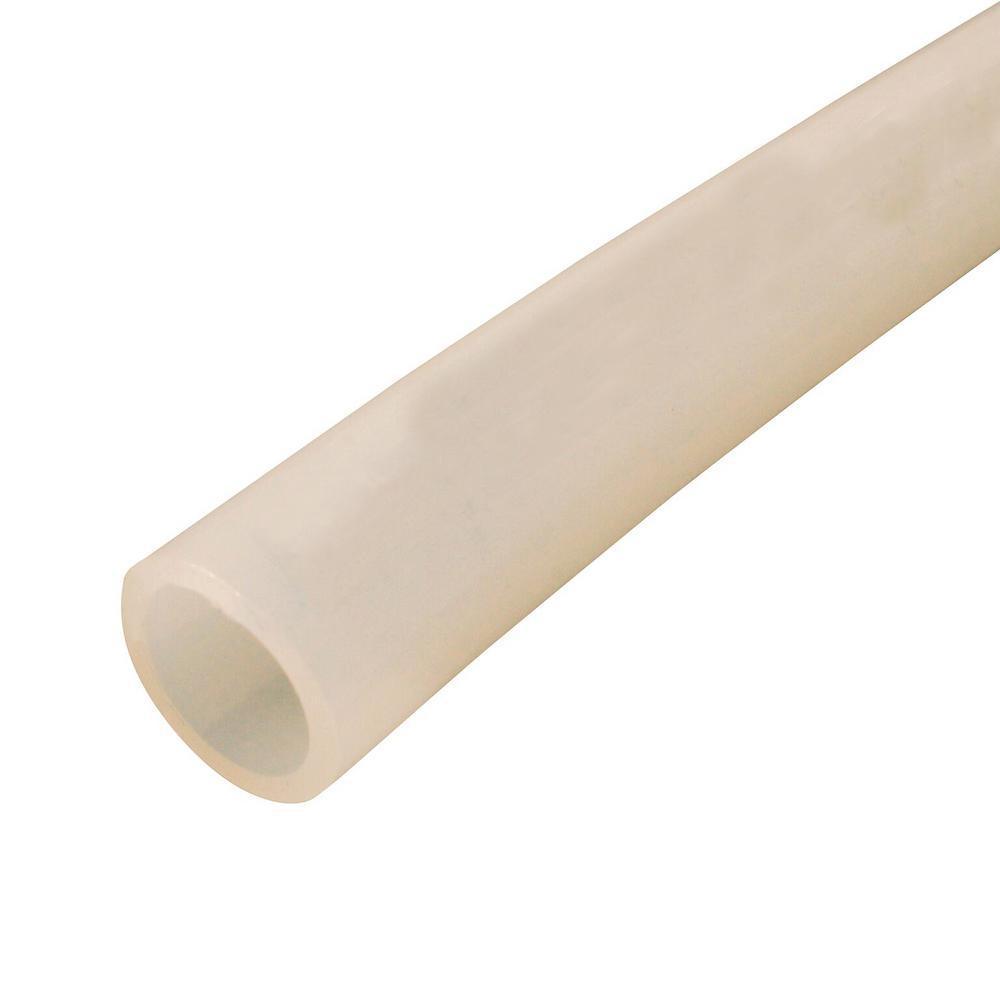

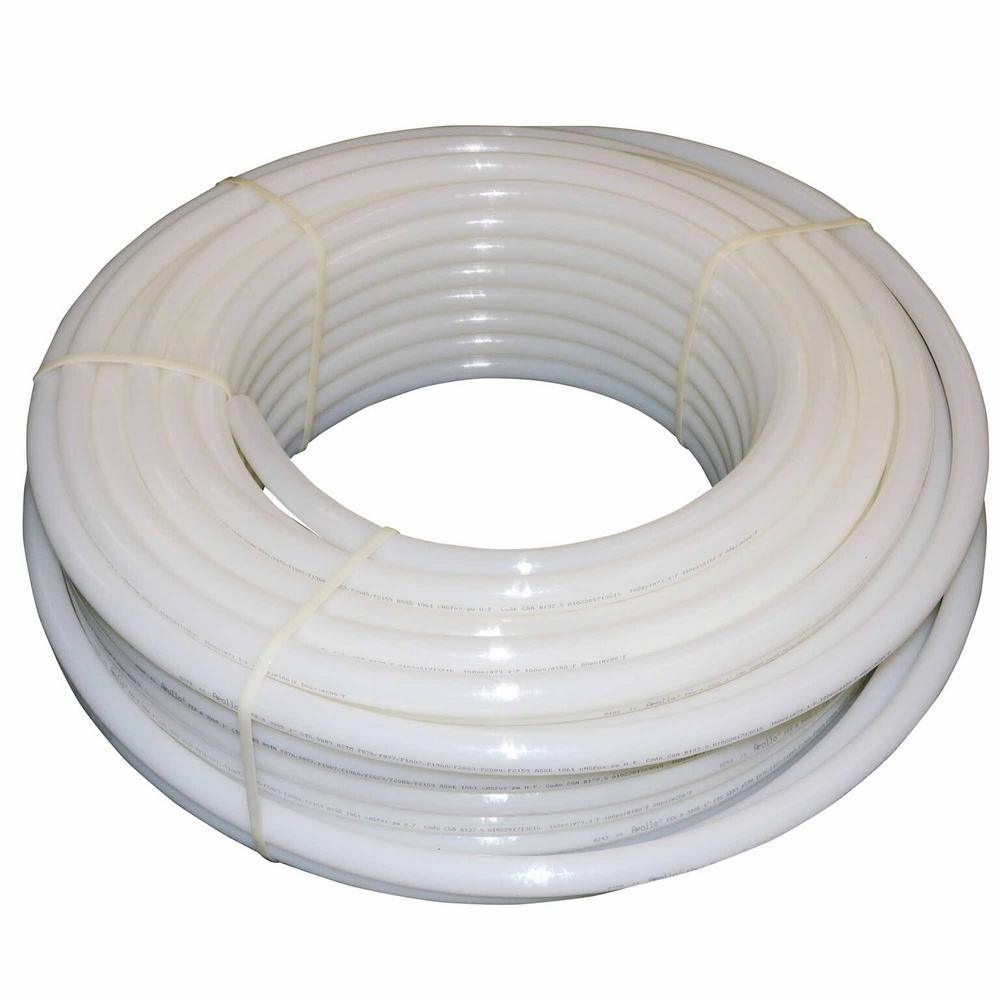

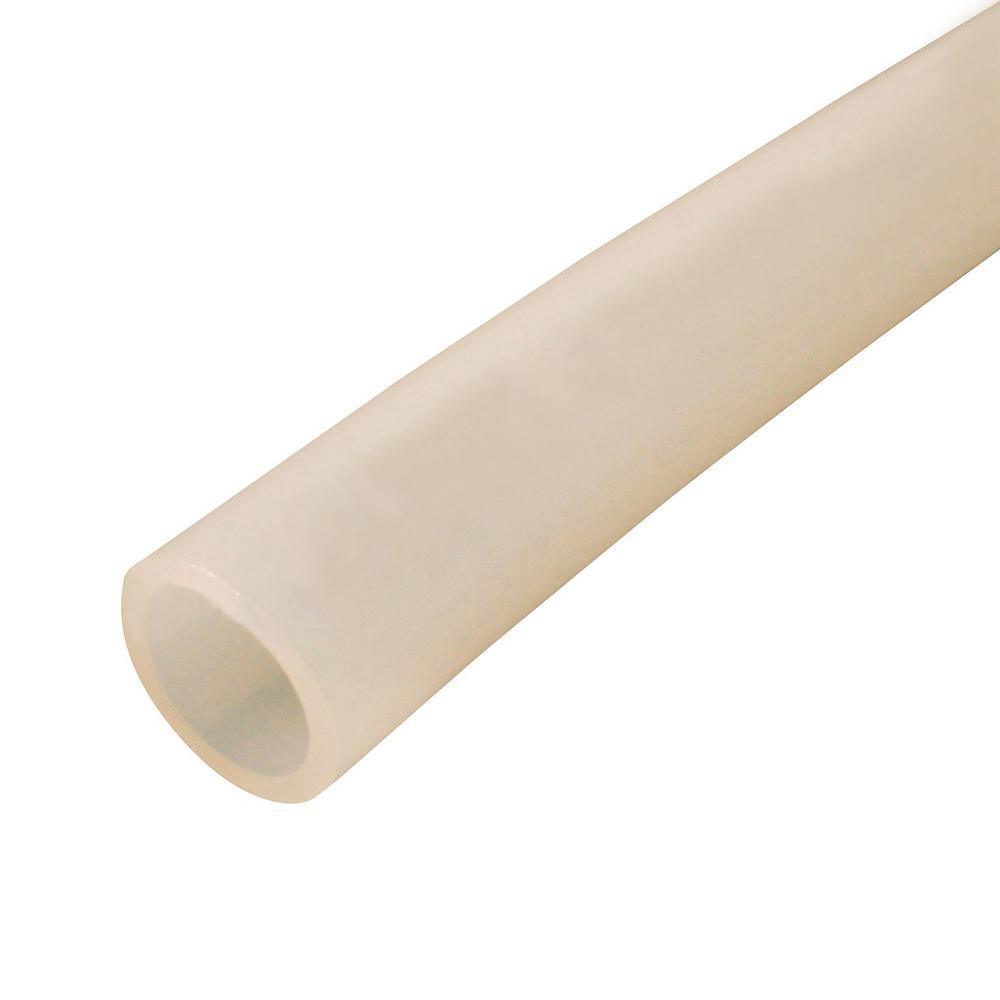

1 in. x 5 ft. White PEX-A Pipe
Flexible, durable PEX-A tubing for potable water systems. Designed for expansion fittings, it delivers full-flow performance and resists corrosion, kinks, and coil memory. Ideal for hot and cold water lines in residential installations.
Key Features:

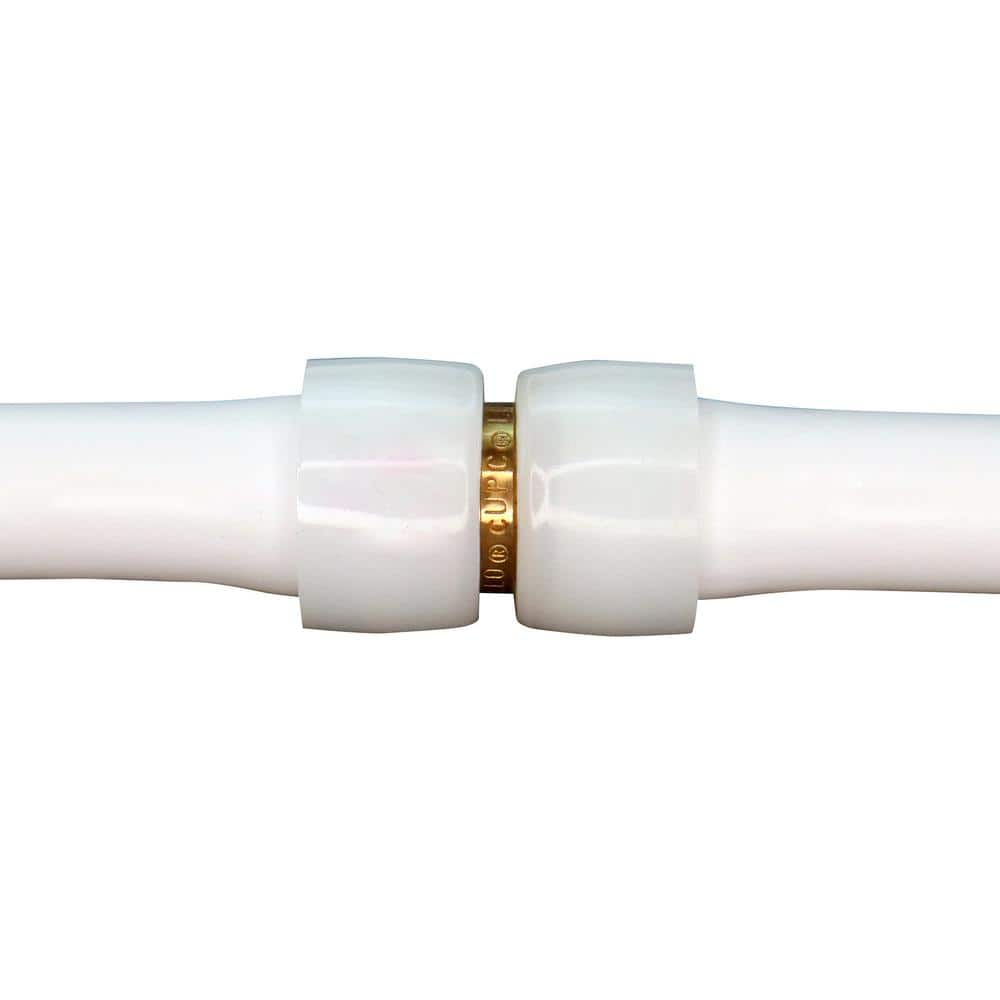

- Expansion-Ready Design: Compatible with ASTM F1960 expansion fittings for strong, reliable connections
- Flexible & Kink-Repairable: PEX-A construction offers superior flexibility and can be heat-repaired if kinked
- Full-Flow Performance: Larger I.D. supports up to 7.5 GPM for efficient water delivery
- Wide Temperature & Pressure Range: Rated up to 200°F and 160 psi; NSF/CSA certified for potable water
- Versatile Installation: Works with expansion, crimp, clamp, sleeve, and push-to-connect systems including Tectite
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Application | Potable Water |
| Color | White |
| Color/Finish | White |
| Connectivity | Barb; compatible with expansion, crimp, clamp, sleeve, and push-to-connect |
| Material | Cross-Linked Polyethylene (PEX) |
| PEX Type | A |
| Pack Size | 1 |
| Pipe Features | Corrosion Resistant, Ductile, Flexible |
| Pipe or Fitting Product Type | Pipe & Tubing |
| Maximum Flow Rate (GPM) | 7.5 |
| Maximum Working Temperature (F) | 200 |
| Maximum Working Pressure (psi) | 160 |
| Minimum Working Temperature (F) | -40 |
| Actual Inside Diameter (in.) | 0.862 |
| Actual Outside Diameter (in.) | 1.125 |
| Nominal Inside Pipe Diameter (in.) | 1 |
| Pipe Wall Thickness (in.) | 0.1315 |
| Product Length (ft.) | 5 |
| Product Weight (lb.) | 0.86 |
| Certifications and Listings | ANSI Compliant, ASTM Compliant, CSA Listed, NSF Listed; cNSFus-pw; CSA B137.17 |
| Manufacturer Warranty | 25 Years: For exclusive use with ASTM F1960 fittings |
| Standards Met | Meets/exceeds ASTM F876, F877, F1807, F1960, F2023, F2080, F2159 |

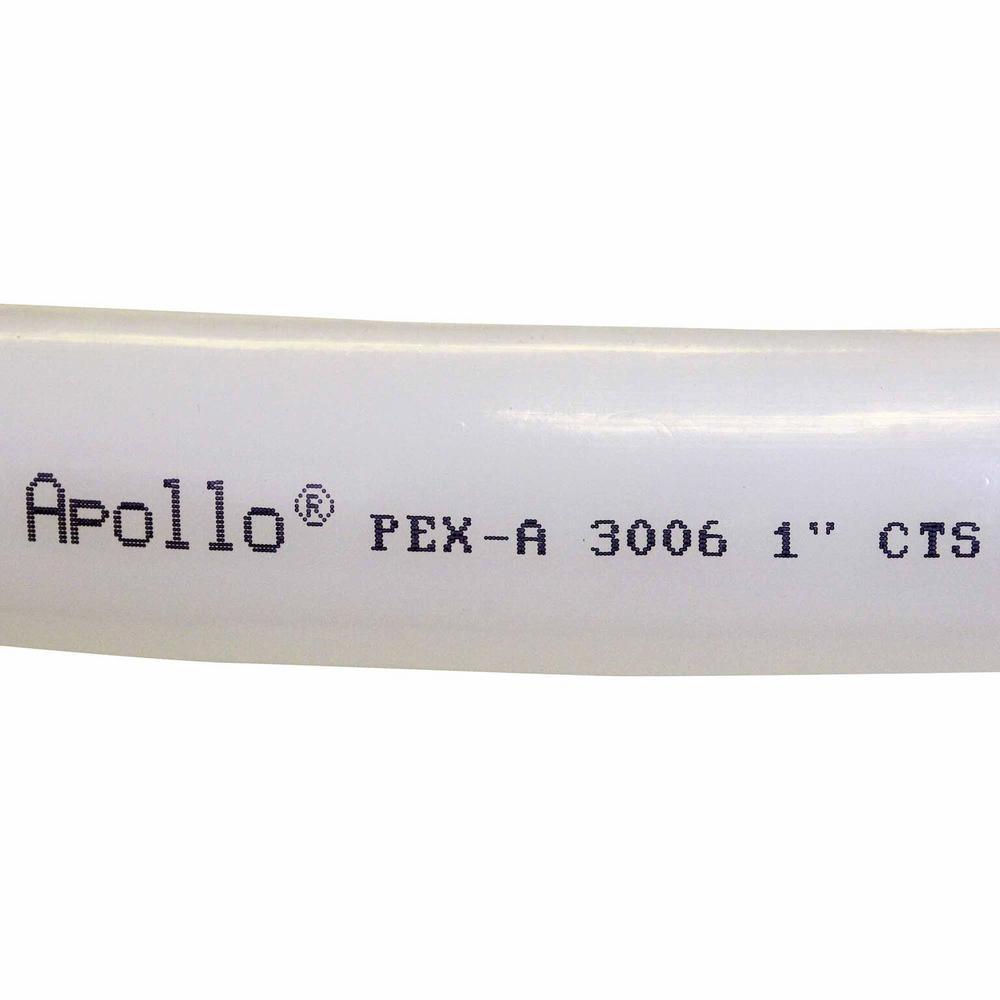

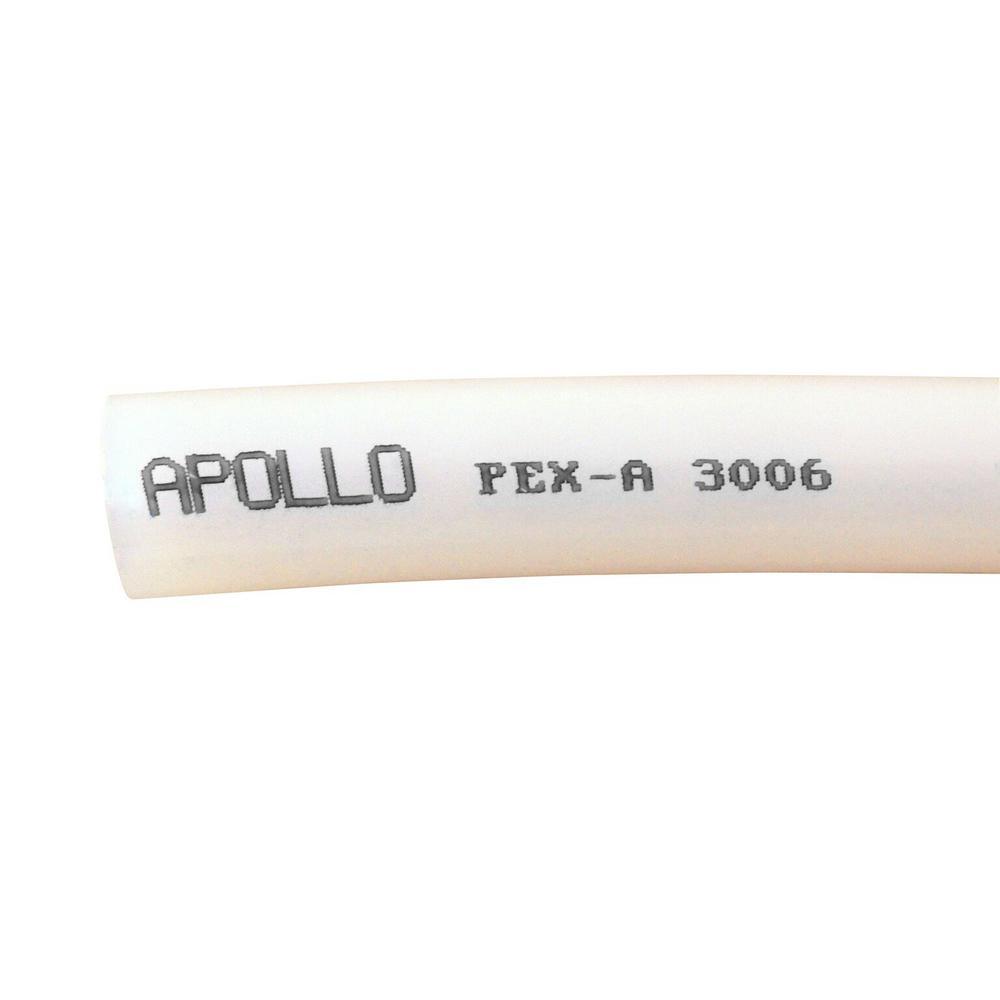

| Identification | Opaque white with black print line |
| Compatibility Notes | Compatible with Uponor and Wirsbo systems; Tectite by Apollo push-to-connect fittings |
| Pressure/Temperature Ratings | 160 psi @ 73.4°F, 100 psi @ 180°F, 80 psi @ 200°F |
| Installation Environments | Can be installed in concrete, gypsum-based lightweight concrete, sand, asphalt, under wood flooring, behind wallboard or plaster |
Frequently Asked Questions (FAQ):
Q: Can this pipe be used for both hot and cold potable water?
A: Yes. It is NSF listed for potable water and rated up to 200°F and 160 psi.
Q: What fitting systems are compatible?
A: Expansion (ASTM F1960) is preferred, but it is also compatible with crimp, clamp, sleeve, and push-to-connect systems like Tectite.
Q: Can I repair a kinked section?
A: Yes. PEX-A can be heat-repaired to remove kinks, reducing the need for additional fittings.
Q: What are the actual dimensions?

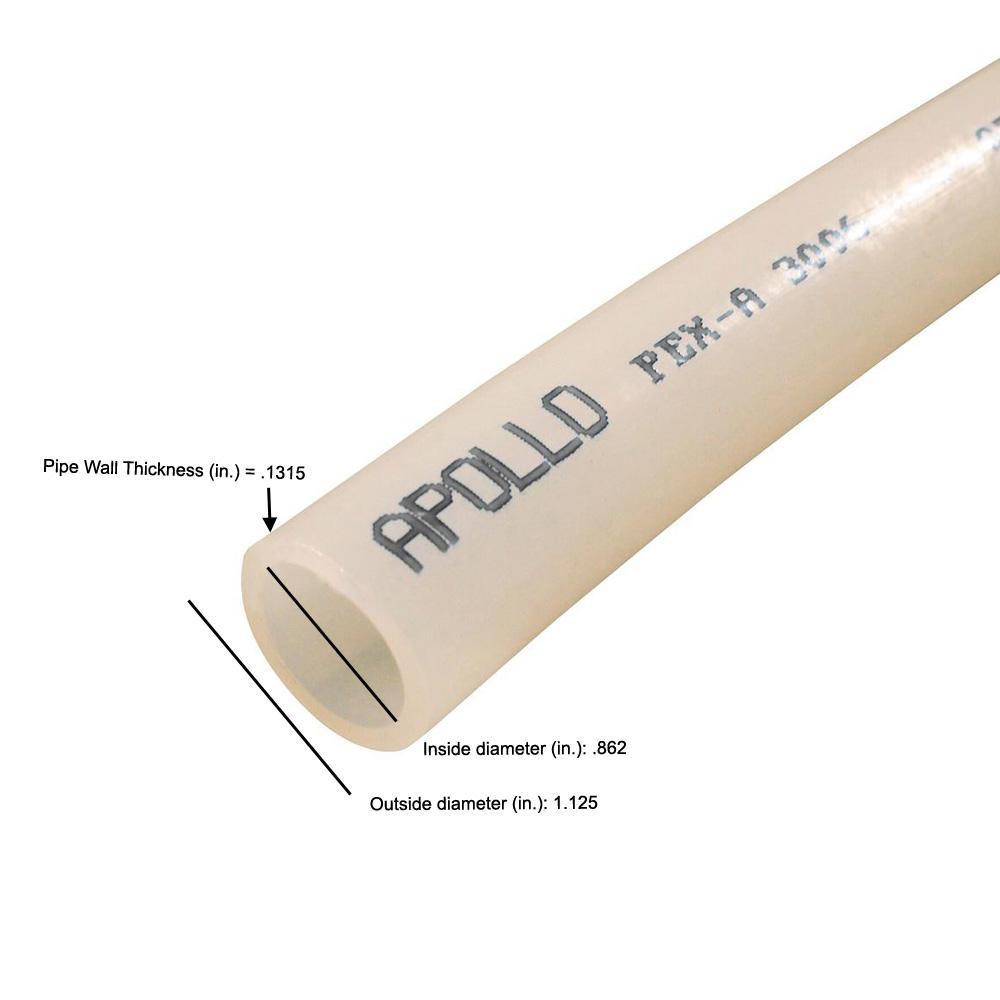

A: Outside diameter 1.125 in., inside diameter 0.862 in., wall thickness 0.1315 in., length 5 ft.
Q: Is it suitable for in-slab installations?
A: Yes. It may be installed in concrete, lightweight gypsum, sand, asphalt, under flooring, or behind wallboard/plaster.
