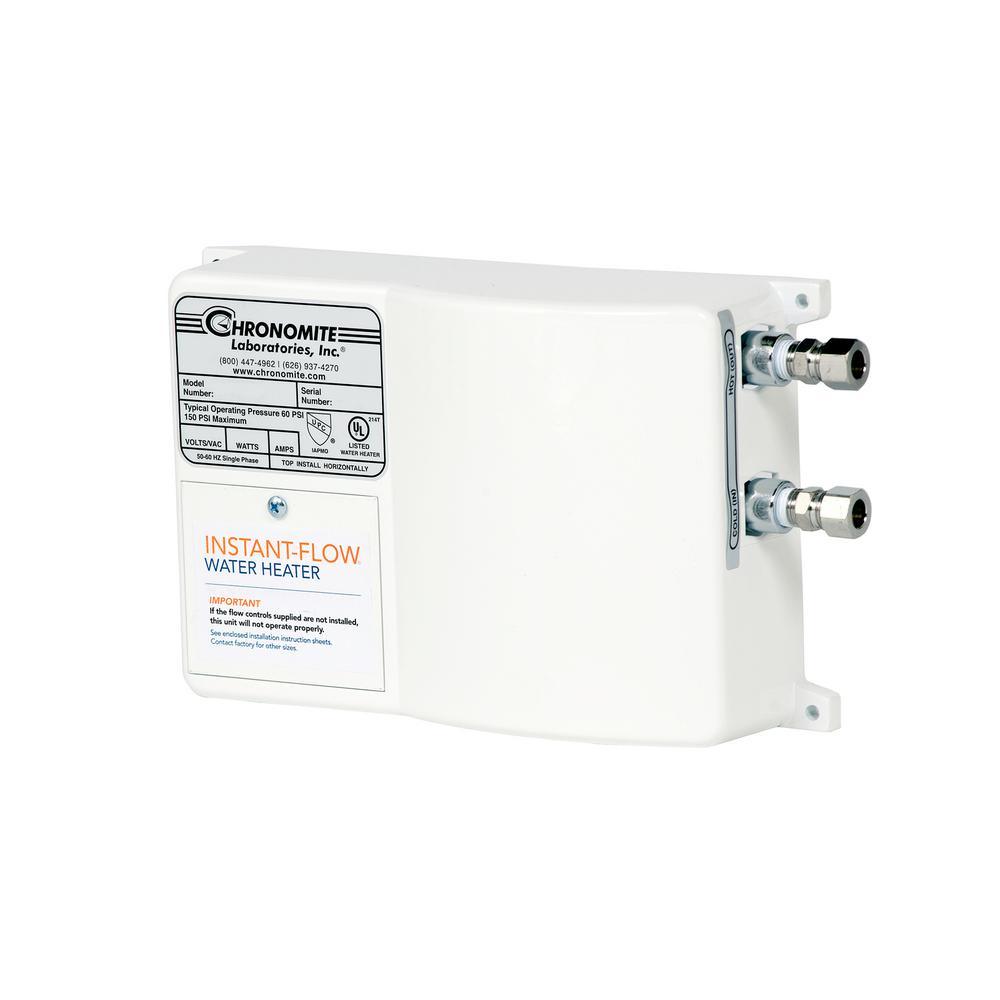

Instant-Flow Micro-Standard Flow .65 GPM Point of Use Electric Tankless Water Heater, 40 Amp, 277-Volt, 11080-Watt
from $256.55
Published price — same for everyone
In stock
SKU 307248661
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

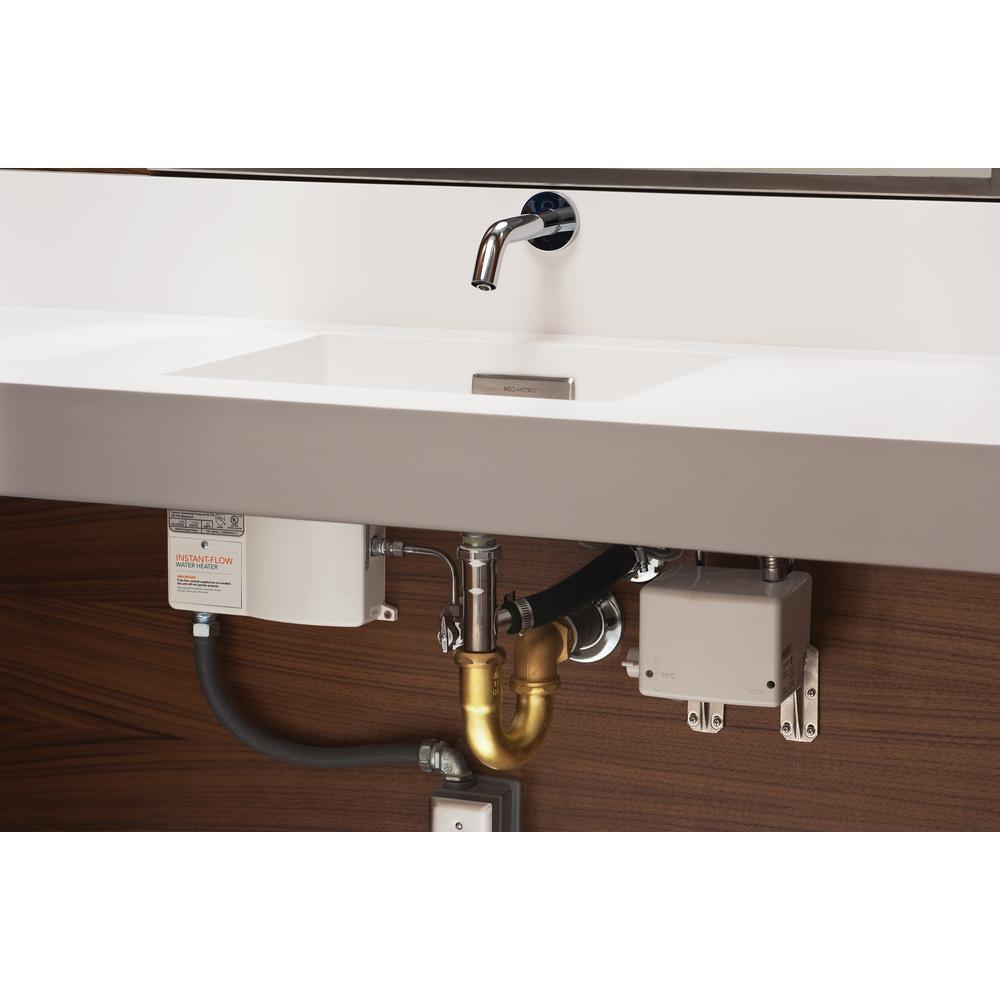

The Instant-Flow Micro instant water heater features a factory preset temperature using digital microprocessor technology. This instant water heater responds to fluctuations in incoming water temperature, pressure, and flow rate regulating the water temp over 100 times per second. This eliminates the concern of scalding as well as the need for mixing valves. It offers the same compact size, easy installation, and unlimited hot water as heaters without microprocessors, while offering up to 50% more energy efficiency. Ideal for sensor/hands-free faucets with the 104°F factory preset setting. The Instant-Flow Micro is great for lavatories, sinks, and numerous other special applications.
Features
- California residents
- Ideal for sensor/hands-free faucets with the 104°F factory preset setting
- Compact design, easy installation, unlimited hot water
- Vandal resistant rugged cast aluminum housing
- Element assembly is fabricated from Celcon plastic, heating coils are chrome
- Meets ADA requirements and complies with standards for: water conserving product, IAPMO, UL, UPC
- Applications: commercial, industrial, residential, public lavatories, kitchen sink, bar sink
- Includes: compression fittings and faucet flow controls
- Certified for use in portable water applications
- Field adjustable temperature 104°F to 125°F
- Microprocessor use is the most energy efficient means of heating water
- Unit must be hard wired
- Model # M-40/277 HTR 110F
- Single phase
Features
| Item Weight | 4.5 |
| Flow Rate @ 45 F Rise (gallons/min) | 1.68 |
| Minimum Temperature (F) | 33 |
| Heat Exchanger Warranty | 1 Year |
| Application Type | Point of Use |
| Efficiency Level | Super High |
| Pack Size | 1 |
| Maximum Temperature (F) | 140 |
| Finish Family | White |
| Returnable | 180-Day |
| Wattage (watts) | 11080 |
| Product Weight (lb.) | 4.5 |
| Commercial/Residential | Commercial,Residential |
| Required Volt Connection | 277 volt |
| Wattage (watts)2 | 11080 |
| Flow Rate @ 35 F Rise (gallons/min) | 2.16 gal (US)/min |
| Fuel Type | Electric |
| Indoor/Outdoor | Indoor |
| Flow Rate @ 65 F Rise (gallons/min) | 1.16 |
| Minimum Activation Rate (gpm) | 0.65 |
| Flow Rate @ 55 F Rise (gallons/min) | 1.38 |
| Amperage (amps) | 40 |
| Water Heater Features | No Additional Features |
| Uniform Energy Factor | .99 |
| Product Height (in.) | 6.25 |
| Product Width (in.) | 9.625 |
| Product Depth (in.) | 2.75 |
| Water Connection Size (in.) | 0.375 comp. x 0.25 MP |
| Part Warranty | No Warranty |
| Labor Warranty | No Warranty |
| Certifications and Listings | ADA Compliant,CSA Certified,ETL Classified,IAPMO Certified,UL Listed |
