Details

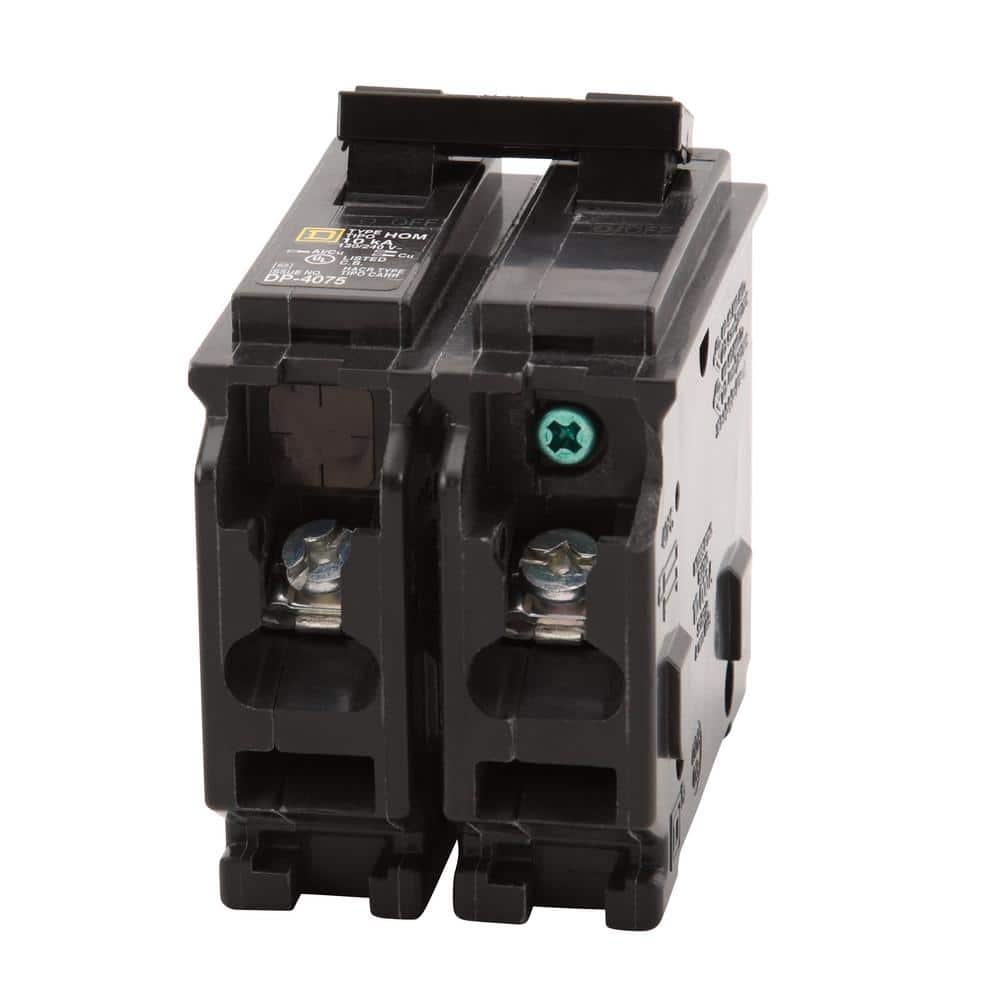

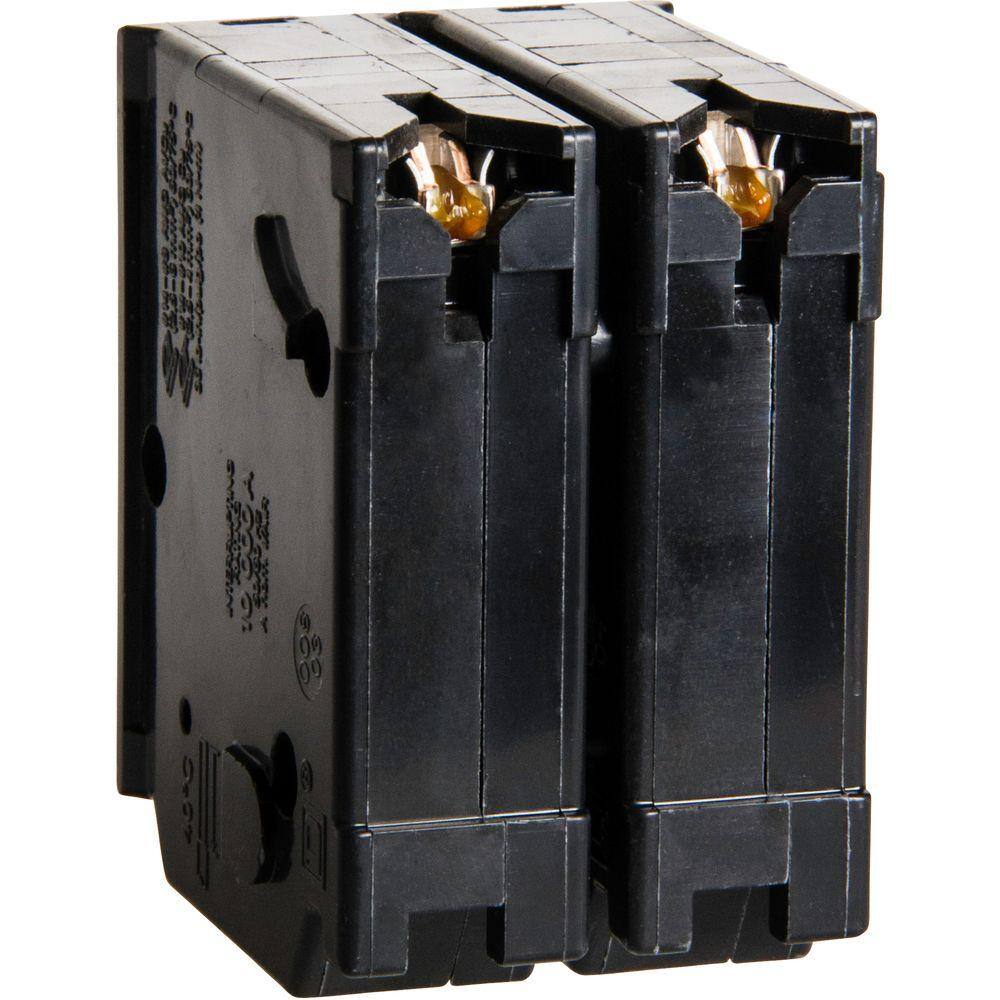

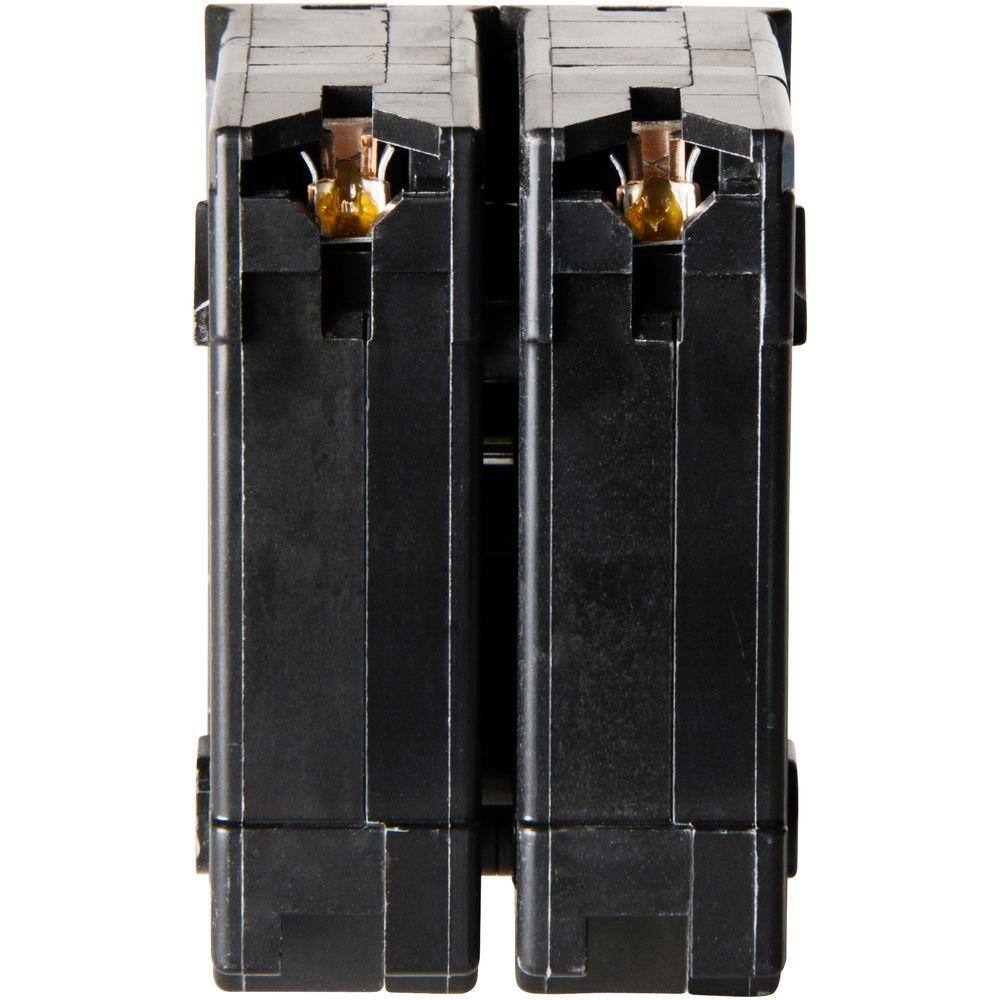

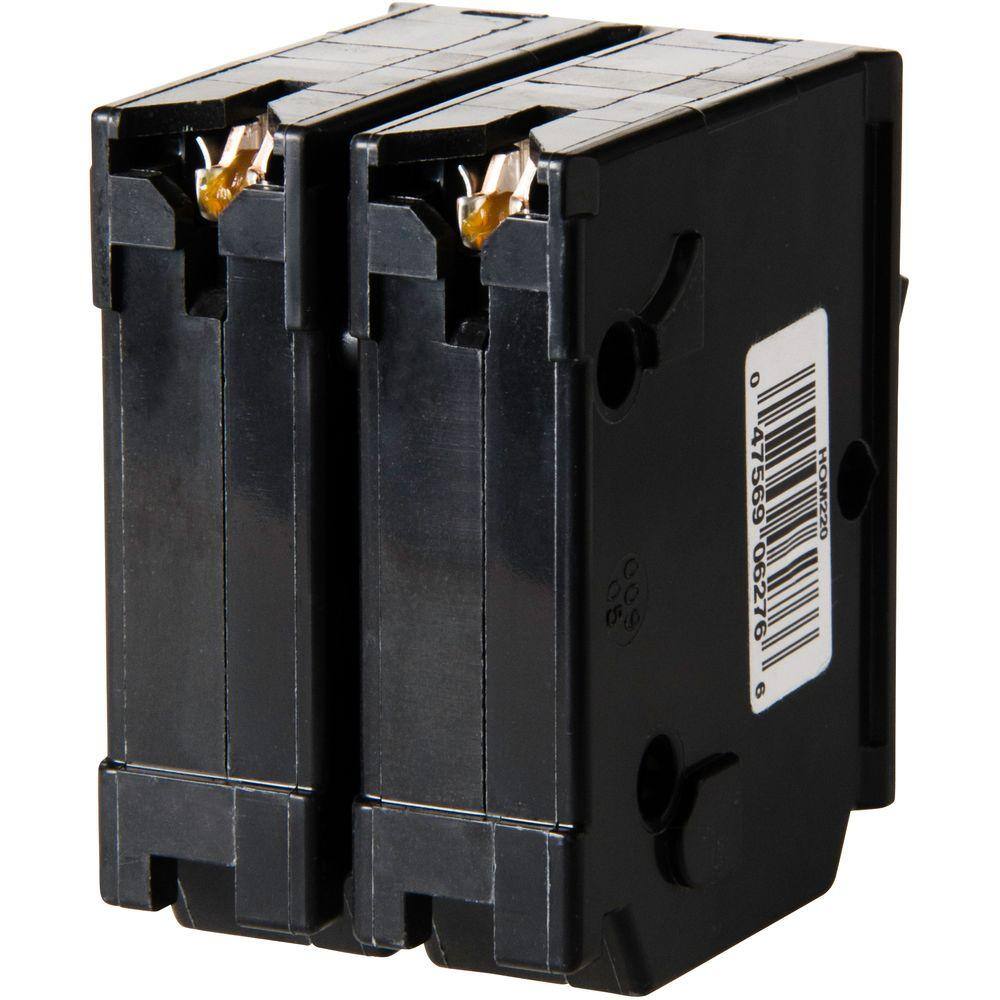

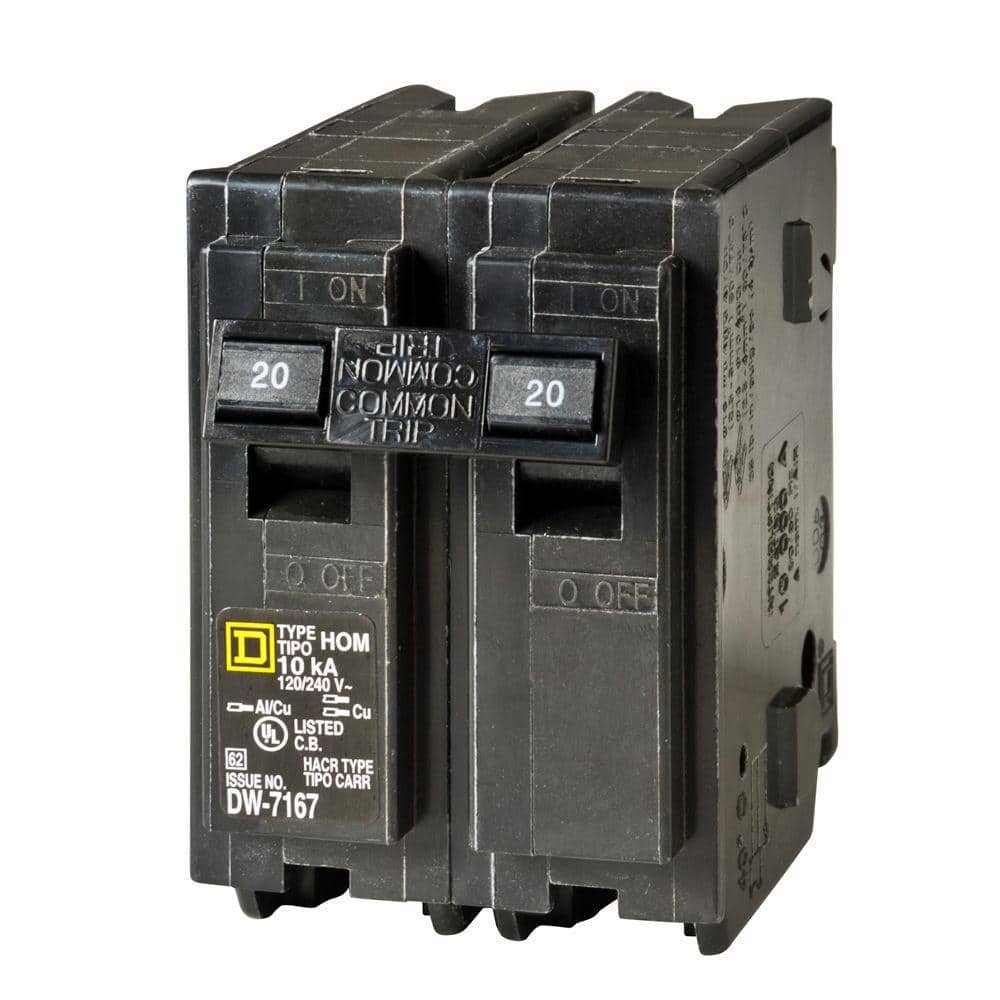

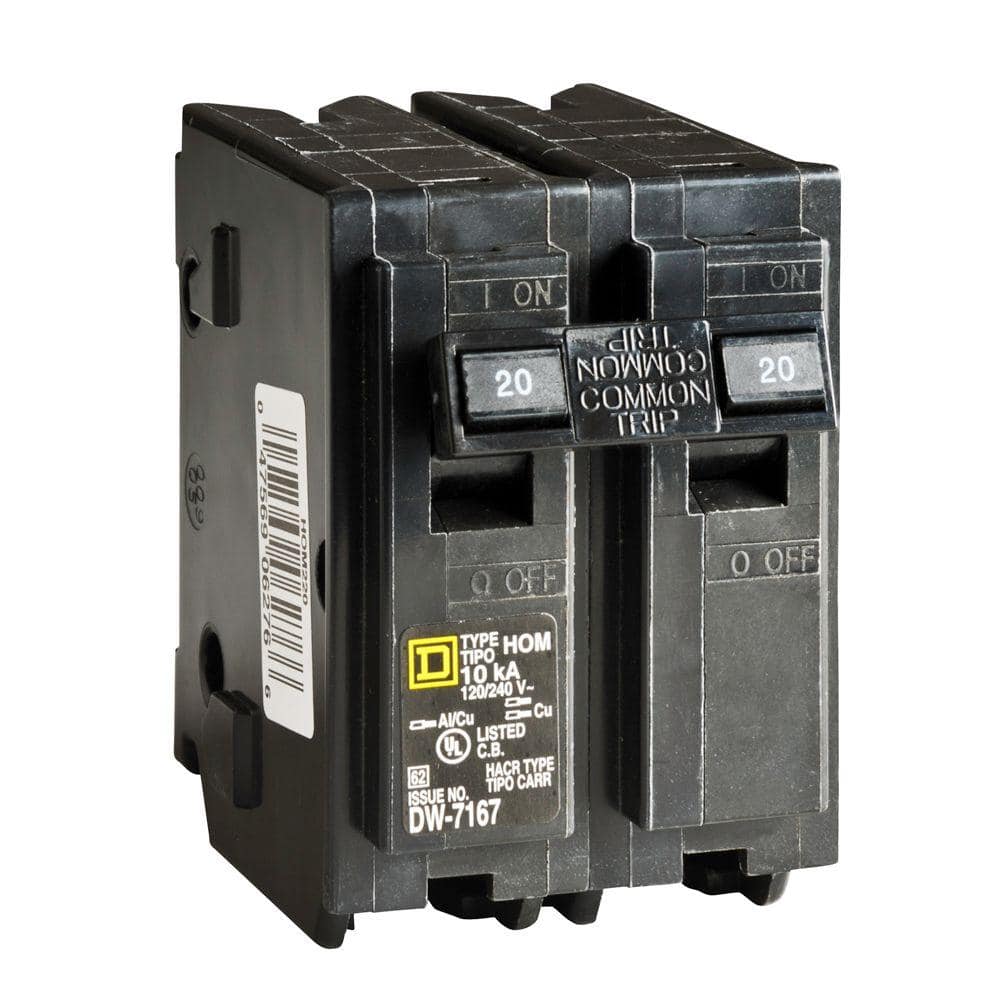

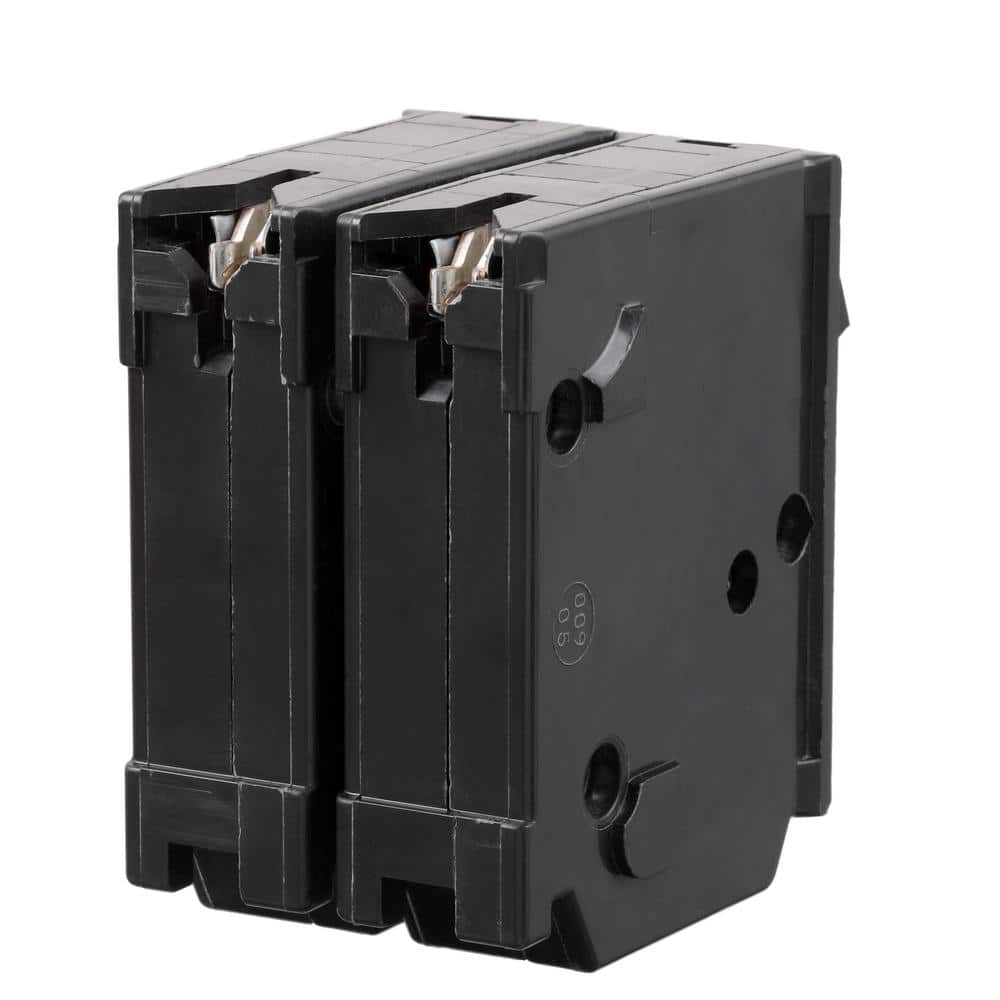

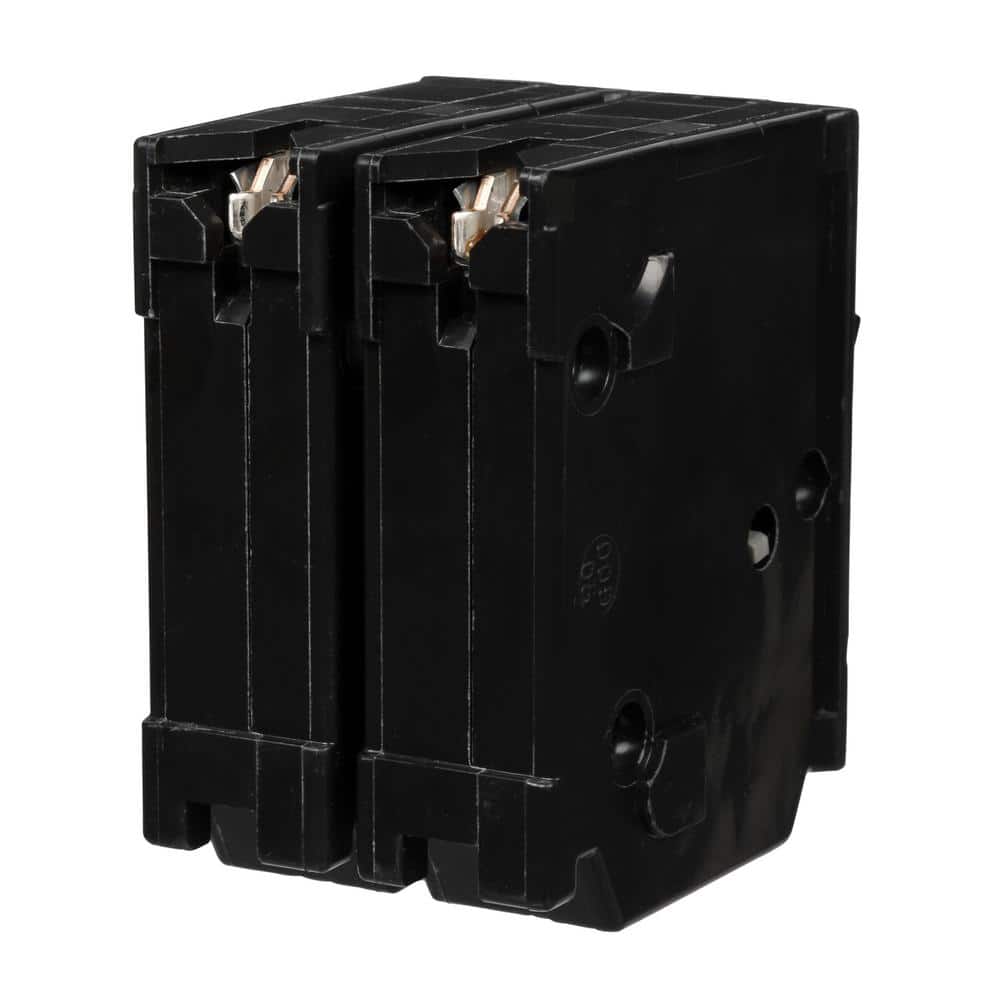

Square D Homeline 20A 2-Pole Circuit Breaker, 6-Pack
Square D Homeline 20A 2-pole circuit breakers provide reliable overload and short-circuit protection for 120/240V AC systems. Designed for easy plug-on installation in Homeline load centers and CSEDs, they feature thermal-magnetic trip technology and a 10,000 AIR rating. Ideal for residential and single-phase commercial applications.
Key Features:
- Overload & Short-Circuit Protection: Thermal-magnetic trip unit delivers dependable circuit interruption
- Homeline Compatibility: Fits Square D Homeline panels and CSED devices for seamless integration
- Easy Plug-On Install: Quick, tool-friendly installation reduces downtime
- Residential-Ready: Optimized for 120/240V single-phase systems with 10,000 AIR rating
- Value 6-Pack: Includes six 20A 2-pole breakers for multi-circuit projects
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Maximum Amperage | 20A |
| Poles | 2-pole (common trip) |
| Voltage | 120/240 VAC |
| AIC Rating | 10,000 AIR |
| Mounting Type | Plug-On |
| Trip Unit | Thermal Magnetic |
| Breaker Type | Standard |
| Connection Type | Non-Neutral |
| Pack Size | 6 |
| Product Weight | 0.67 lb |
| Product Height | 3.13 in |
| Product Width | 2 in |
| Product Depth | 2.98 in |
| Certifications | UL Listed |
| Warranty | Limited lifetime warranty for the lifetime of the Homeline load center in which installed |
Frequently Asked Questions (FAQ):
Q: Will these breakers fit non-Homeline panels?
A: No. They are designed specifically for Square D Homeline load centers and compatible CSEDs.
Q: What is the interrupt rating (AIR)?
A: 10,000 AIR at 120/240V AC.
Q: What type of trip mechanism do they use?
A: Thermal-magnetic standard trip.
Q: Are these suitable for aluminum or copper conductors?
A: Yes, they are rated for Al/Cu conductors per the product labeling.
Q: What is included in the pack?
A: Six Homeline 20A 2-pole circuit breakers.
Clean, Confident Power Management
These Homeline breakers bring crisp functionality to the backbone of a well-appointed home. The compact, plug-on design keeps panels orderly while the strong 20-amp, common-trip action assures harmony across your electrical landscape. Pair them with a neatly labeled Homeline load center for a visually tidy, high-performance utility space. Consider them the silent guardians of luxurious living—power that’s polished and precise.
Equip your Homeline panel with reliable 20A protection—add this 6-pack to your project today.
