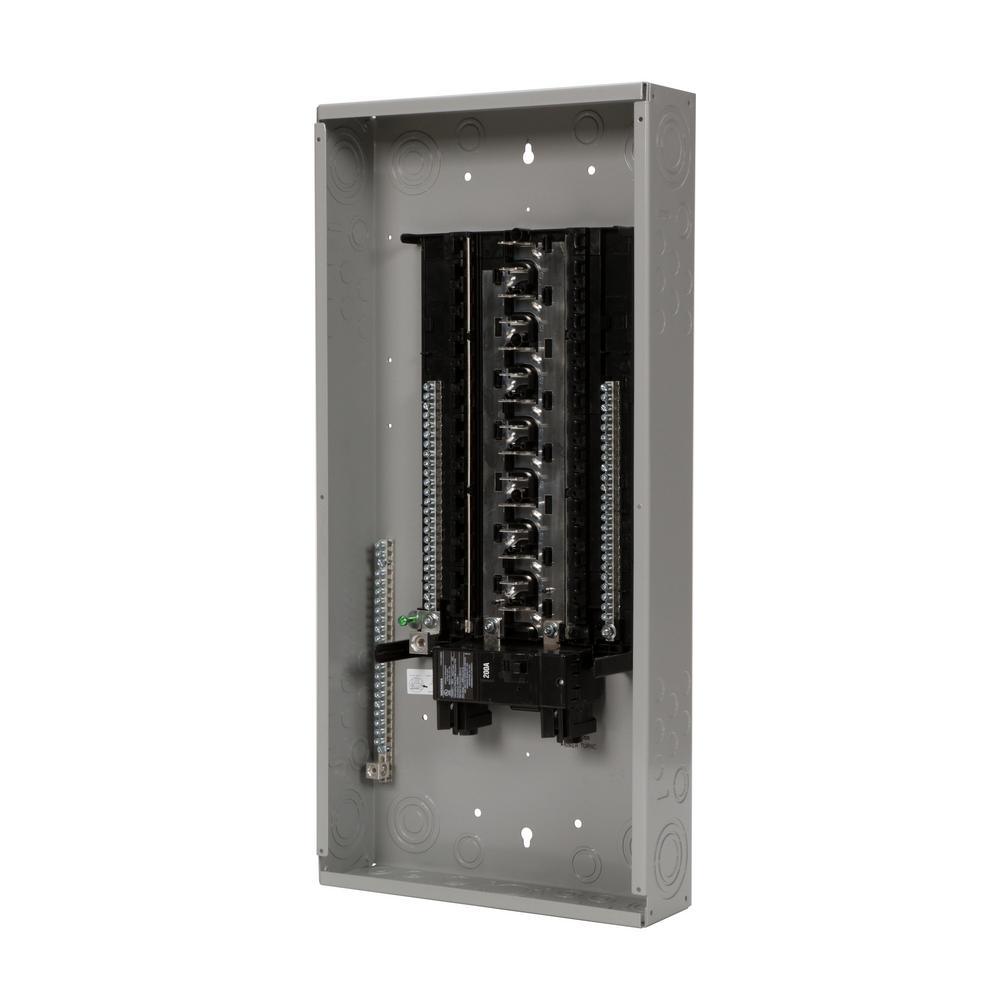

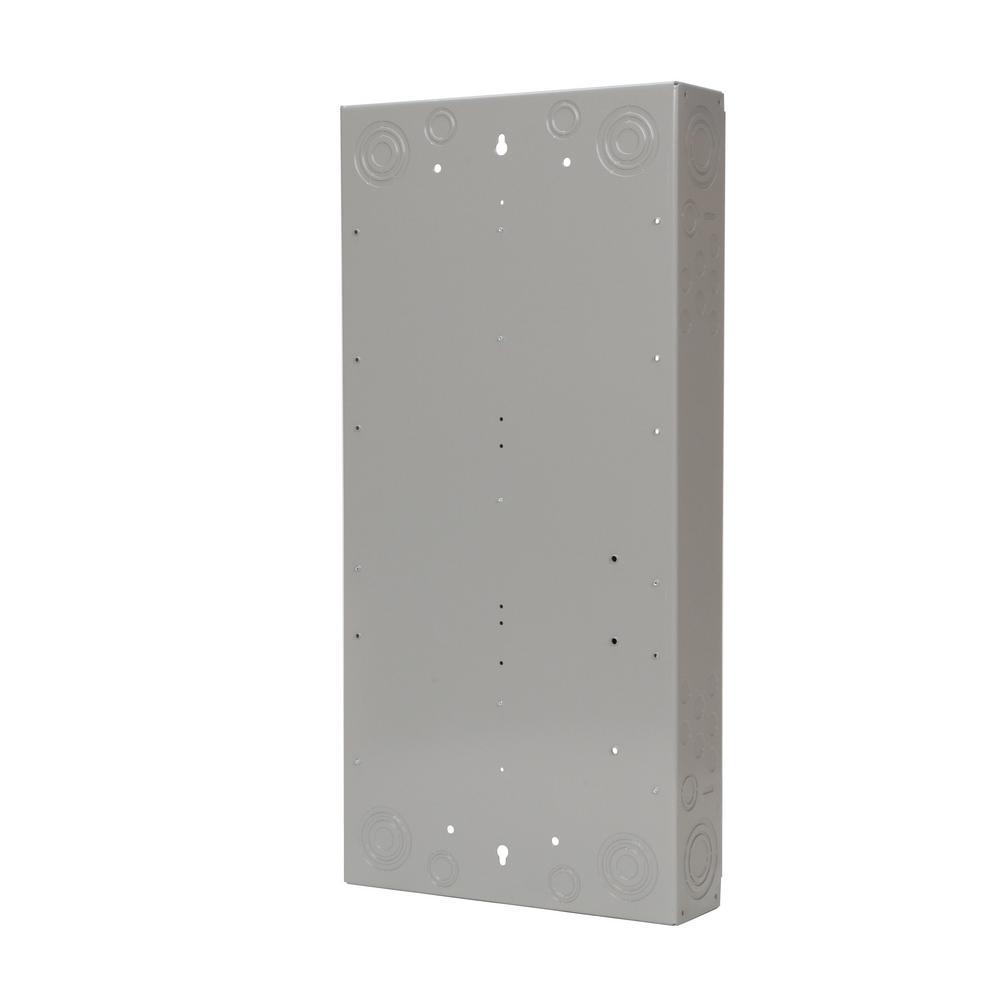

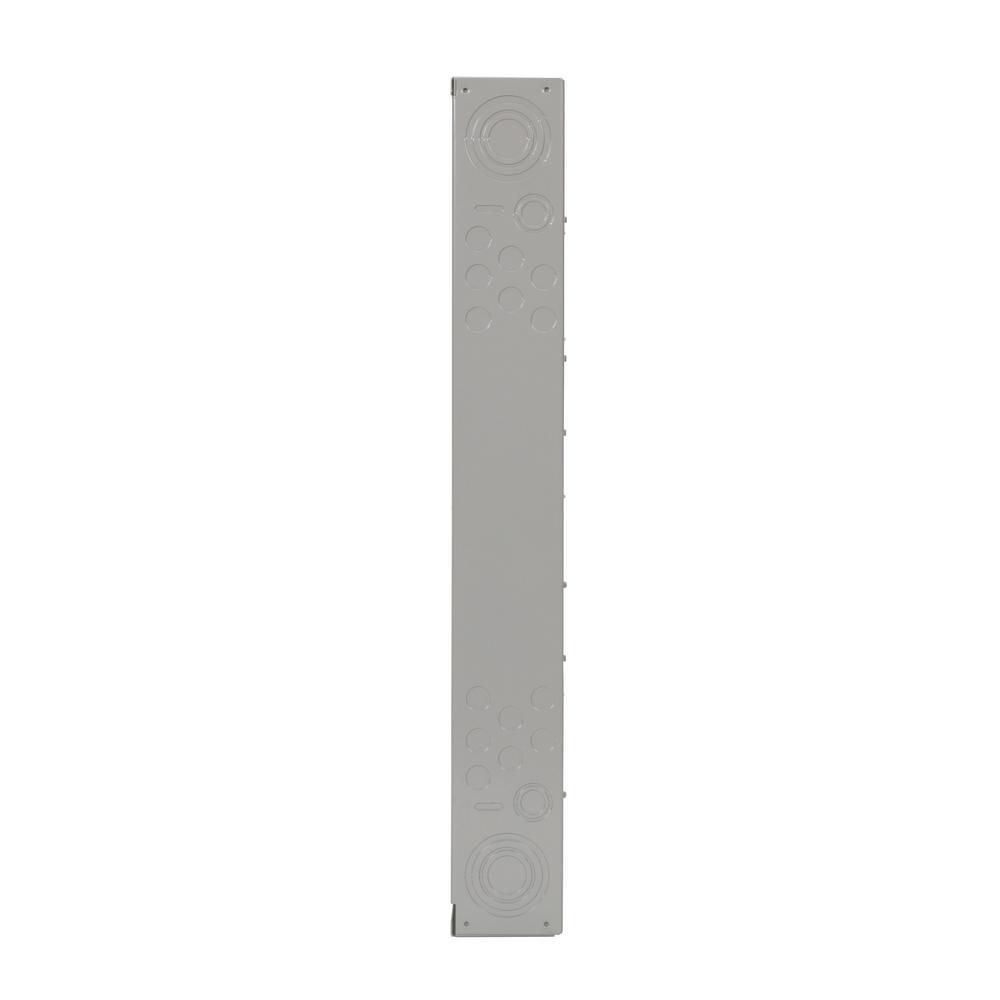

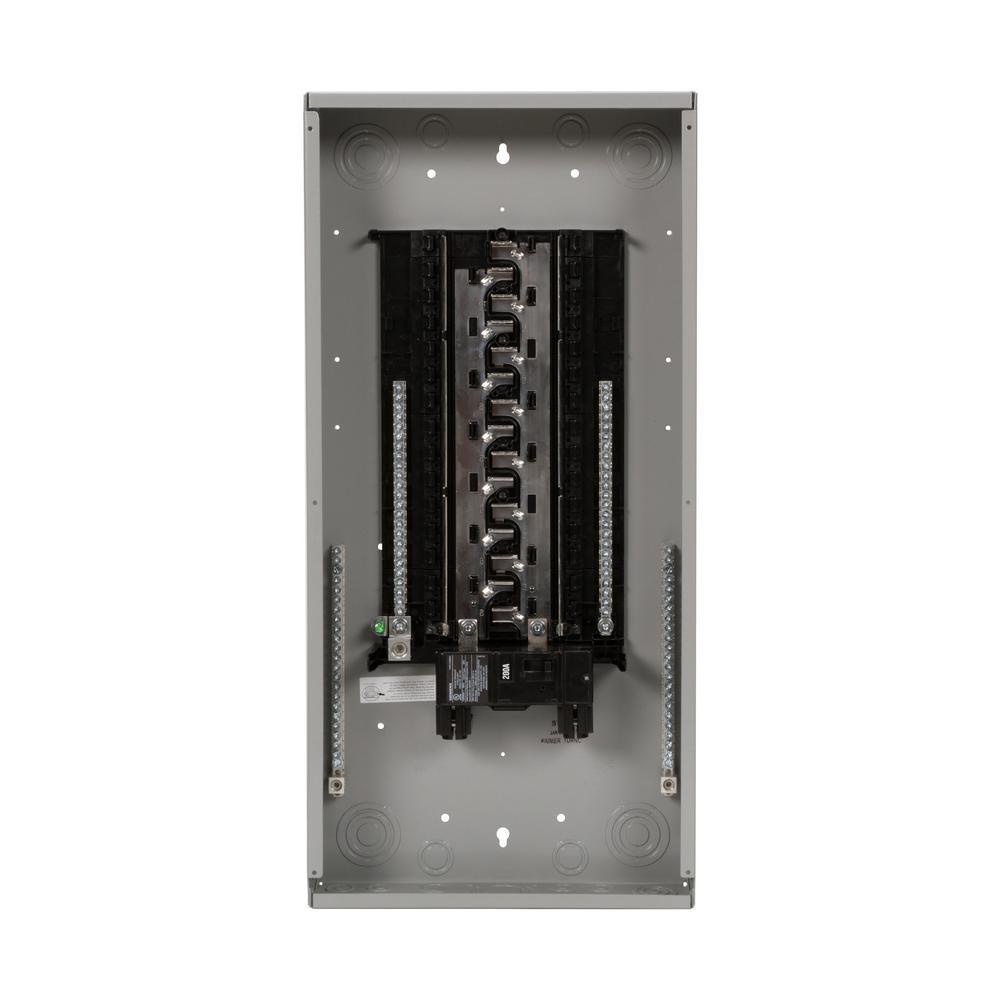

PN Series 200 Amp 30-Space 48-Circuit Main Breaker Plug-On Neutral Load Center Indoor with Copper Bus - Super Arbor

Siemens

PN Series 200 Amp 30-Space 48-Circuit Main Breaker Plug-On Neutral Load Center Indoor with Copper Bus

$168.48

Published price — same for everyone

In stock

SKU 205430761

The price on the page is the price.

Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.

Buying more than one thing? Start your list — however you have it

Freight and delivery are calculated at checkout — no surprise charges.

Details

Siemens introduces PN Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PN Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the Plug-on neutral breakers, patented insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
  • Features Siemens plug-on neutral, for simple quick installation, that is spacious with over 4 in. of wire bending space and a secure reliable installation method
  • PN series load center includes 2 factory installed ground bars
  • Tin plated copper bus
  • Single phase load center
  • NEMA Type 1 enclosure
  • Grey trim
  • Interrupt rating: 22000 AIC
  • UL Listed


Features
Item Weight 37.05
Load Center Mounting Type Flush,Surface
Voltage (volts) 120/240
Number of Circuits 48
Number of Spaces 30
Load Center Type Main Breaker
Mounting Type Plug-On Neutral
Electrical Product Type Load Center
Indoor/Outdoor Indoor
Product Weight (lb.) 37.05
Returnable 180-Day
Phase Type 1 Phase
Maximum Amperage (amps) 200
Load center depth (in.) 32.13
Load center width (in.) 15.94
Load center height (in.) 5.62
Certifications and Listings UL Listed
Manufacturer Warranty 1 YEAR
