Schlage Camelot Satin Nickel Connect Z-Wave Plus Smart Deadbolt & Camelot Handleset with Accent Lever, Camelot Trim

Schlage Camelot Z-Wave Plus Smart Deadbolt & Handleset (Satin Nickel)

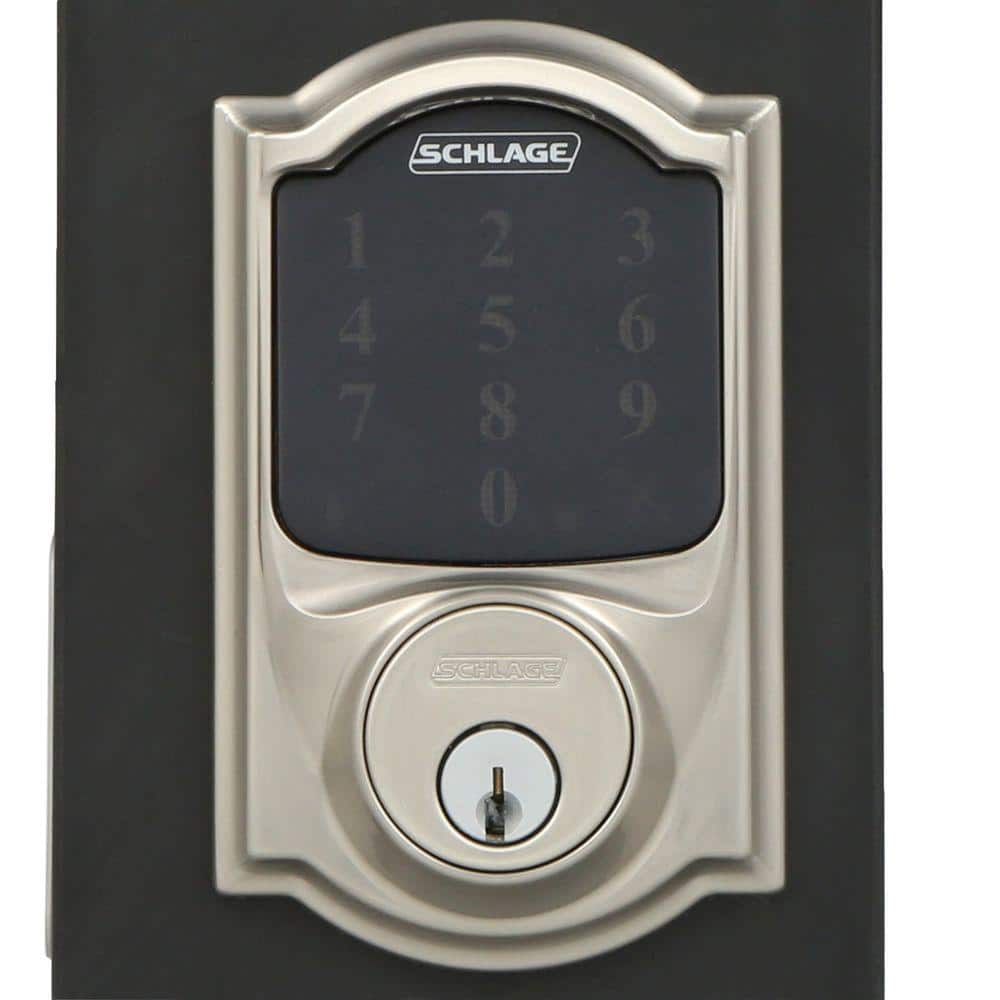

A complete smart entry set combining the Schlage Connect Z-Wave Plus touchscreen deadbolt with a Camelot handleset and Accent interior lever in satin nickel. Delivers Grade 1 security, built-in alarm, and smart home compatibility for convenient keyless access and remote control.

---

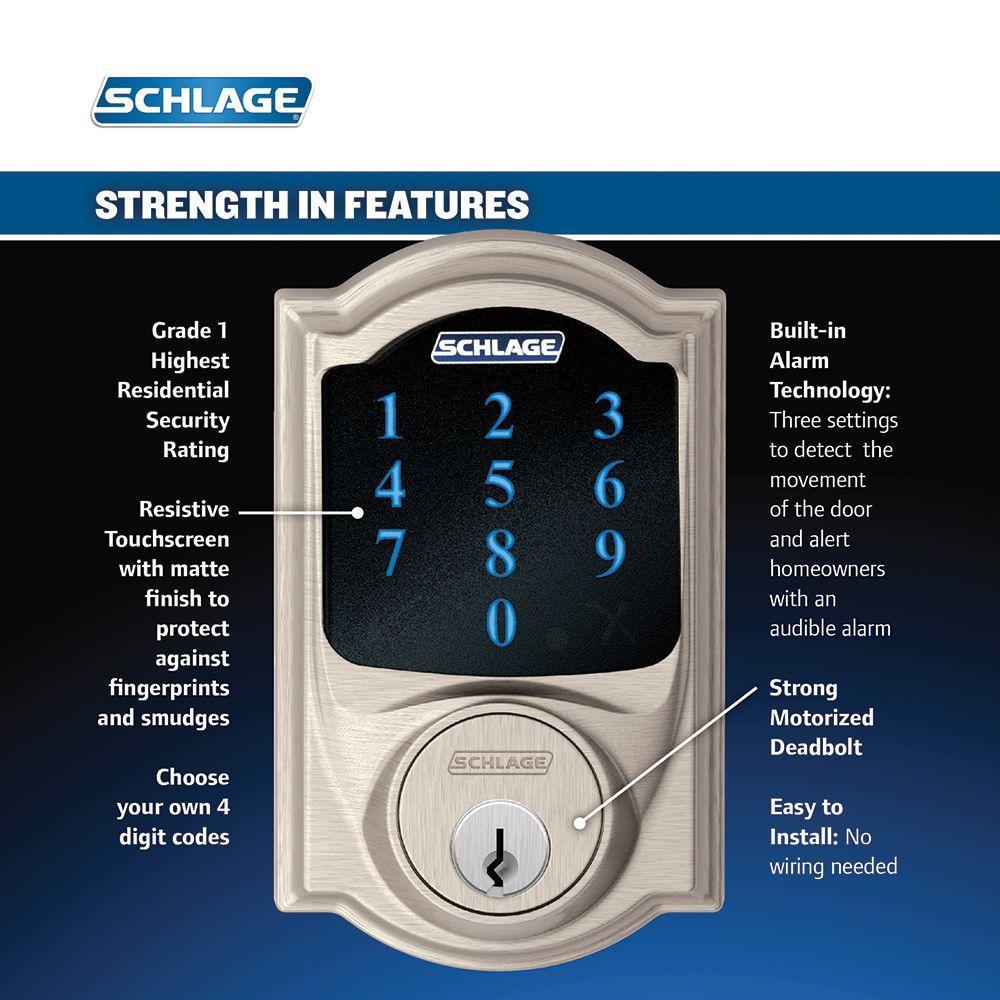

Key Features:

• Smart Home Ready: Z-Wave Plus connectivity—works with Alexa via compatible hubs like SmartThings, Nexia, Wink

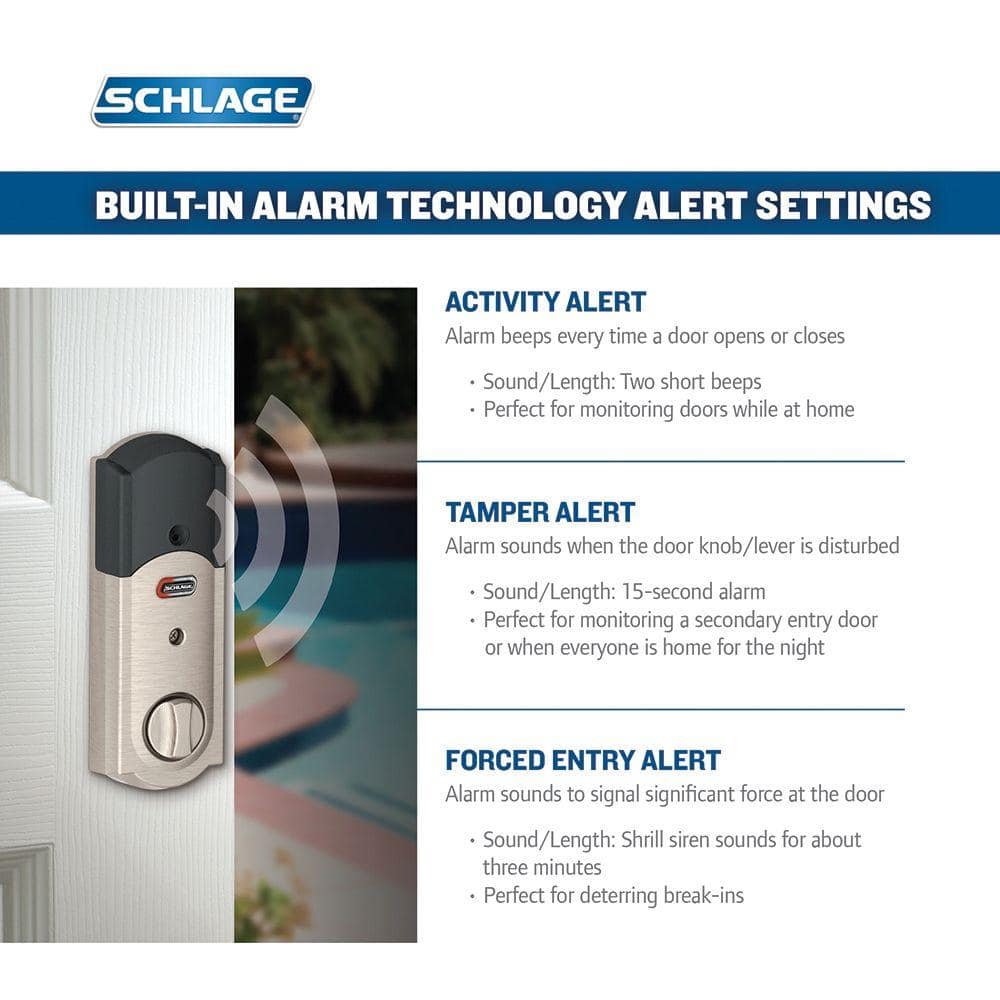

• Highest Residential Security: ANSI Grade 1 deadbolt with strong motorized throw and built-in alarm (activity, tamper, forced entry)

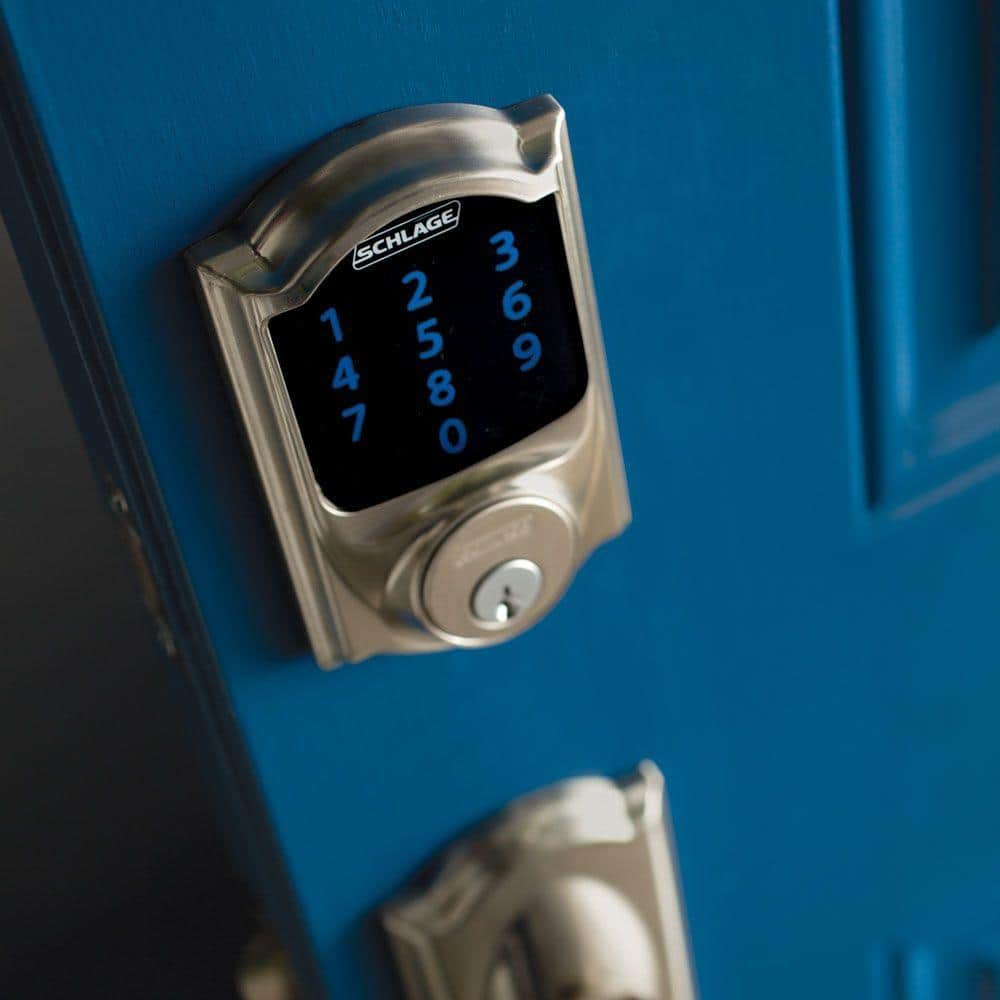

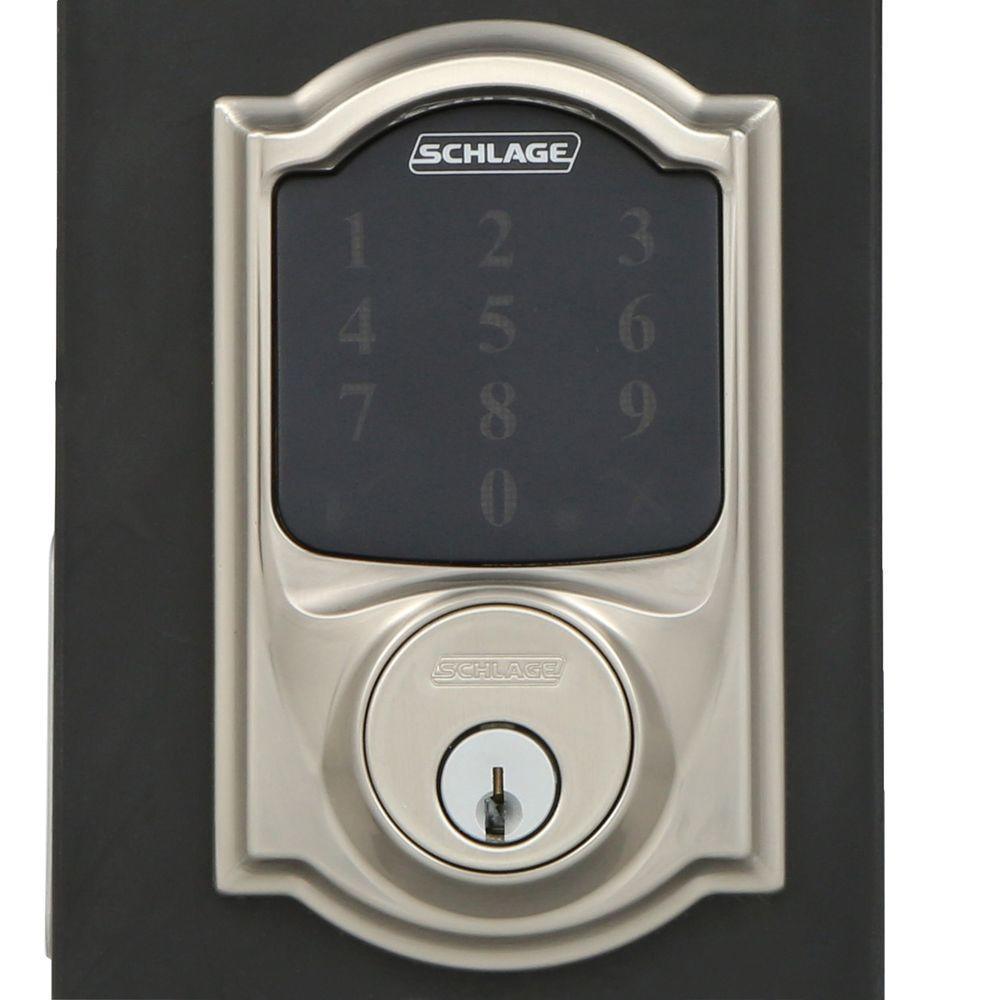

• Easy Keyless Entry: Fingerprint-resistant touchscreen; program custom codes; backup key included
• Universal Fit & Install: Fits 1-3/8–1-3/4 in. doors with adjustable 2-3/8 or 2-3/4 in. backset; no wiring needed

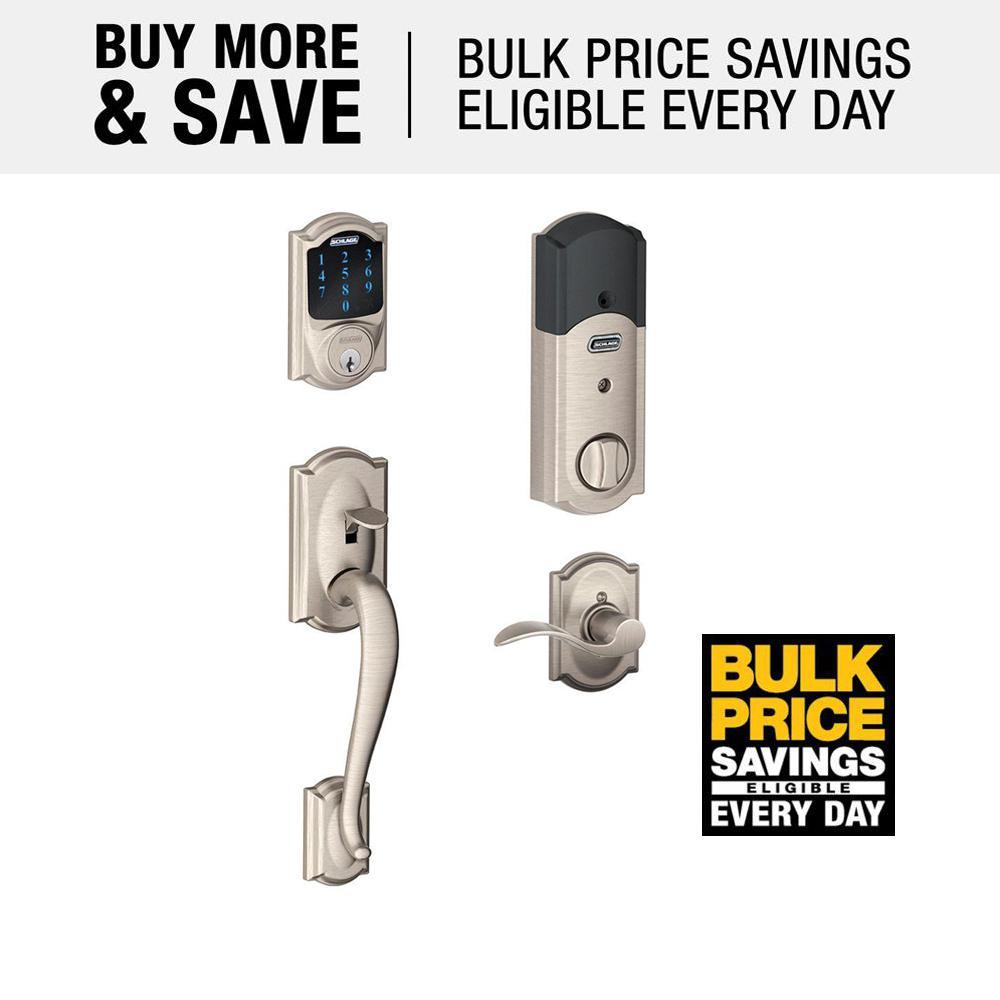

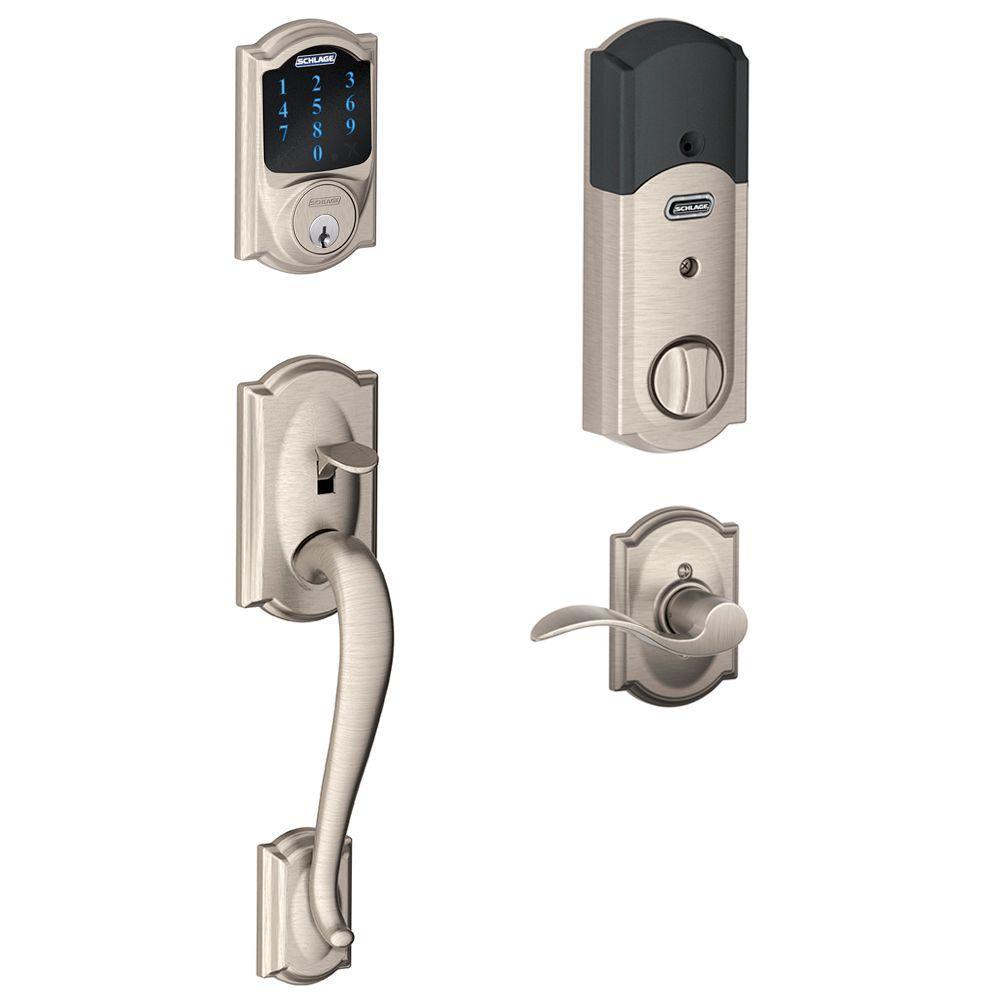

• Complete Set: Includes Camelot exterior handleset and Accent interior lever with satin nickel finish

---

Specifications Table:

Specification	Details
Finish	Satin Nickel
Connectivity	Z-Wave / Z-Wave Plus
Smart Technology	Bluetooth, Keypad, Z-Wave
Works With	Alexa, Homey, Nexia, Samsung SmartThings
Voice Control Hub Required	Alexa via Samsung SmartThings Hub, Wink Hub
Hub Required	Nexia Gateway, Samsung SmartThings Hub, Wink Hub
Requires Hub?	Hub required for remote access
Electronic/Mechanical	Electronic
Deadbolt Type	Single Cylinder Deadbolt
Security/ANSI Grade	ANSI Grade 1 (Best)

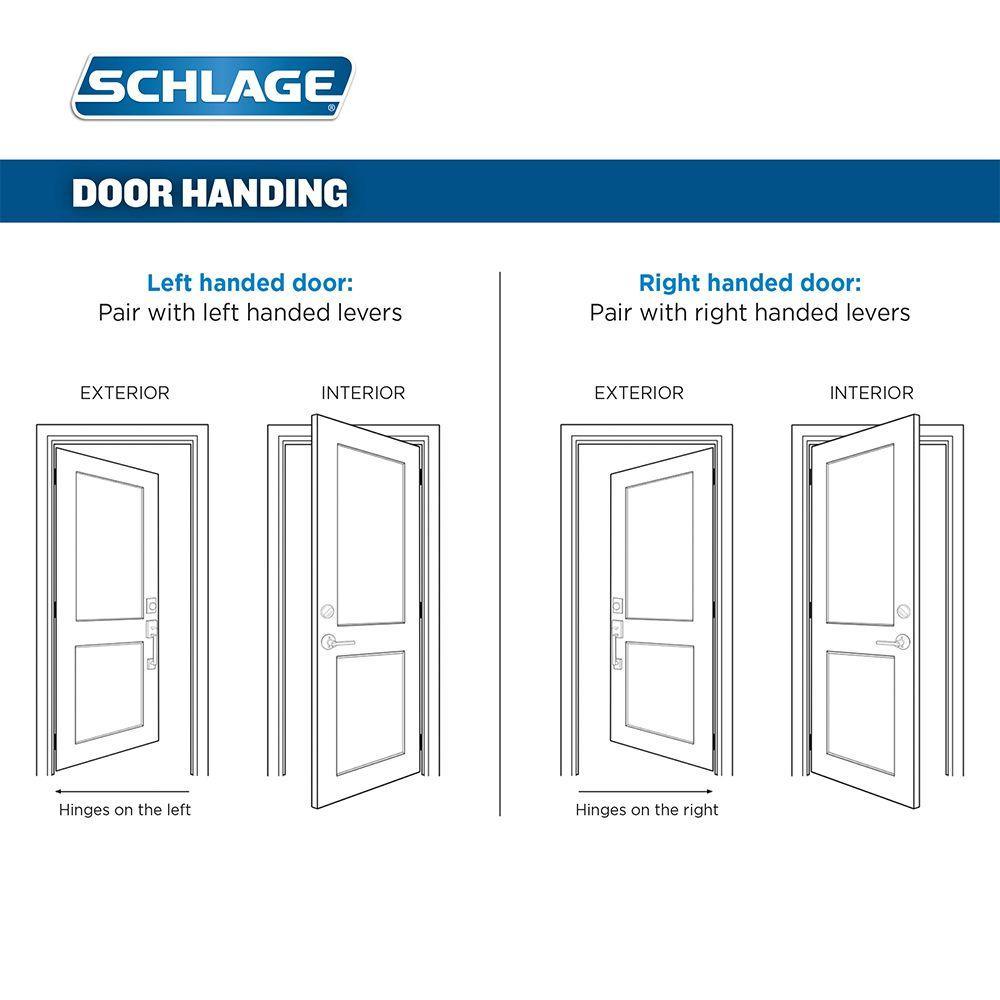

Door Handing	Universal
Door Type	Entry w/ Deadbolt
Handleset Product Type	2 Piece Front & Back
Material	Metal
Hardware Color Family	Nickel
Hardware Finish Family	Nickel
Features	Adjustable Backset, Alarm, Automatic Relocking, Backlit, Delay Timer, Easy Installation, Indicator Light(s), LED Backlight, Low Battery Indicator
Included	Batteries, Drilling Template, Installation Instructions, Mounting Hardware, Self Guiding Screws
Keyway	C
Total Number of Keys Included	1
Holding force (lb.)	1350
Power Source	Battery
Power Options	Battery
Battery Type	AA
Number of Batteries Required	4
Remote Access	Yes (via hub)
Smart Home Protocol	Z-Wave
Tools/Hardware Collections	Schlage Connect
Trim	Arch
Certifications and Listings	ANSI Certified
Manufacturer Warranty	1 year electronics, limited lifetime mechanical and finish
Product Weight (lb.)	9.25 lb
Backset Size (in.)	Adjustable
Deadbolt Bore Hole Diameter (in.)	2.13 in
Deadbolt Cross Bore Diameter (in.)	1 in
Deadbolt Strike Height (in.)	2.75 in
Deadbolt Strike Width (in.)	1.13 in

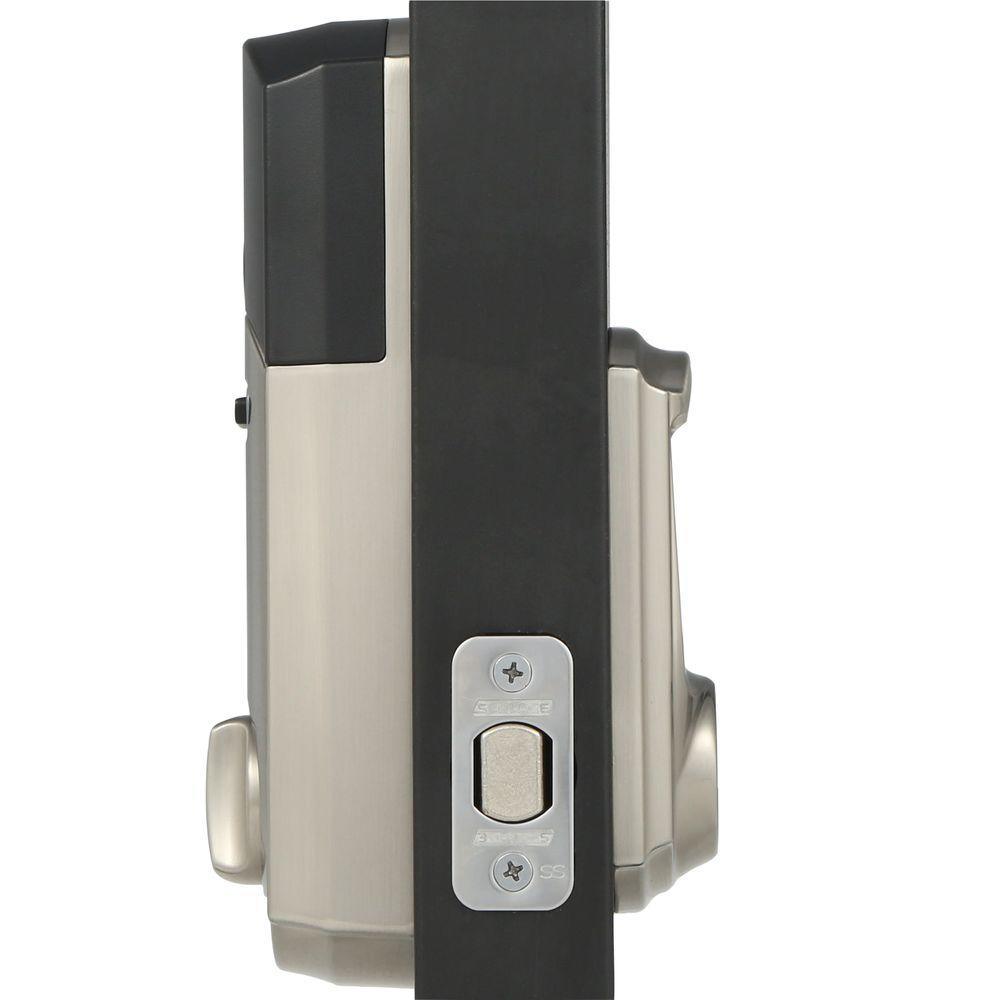

Deadbolt Throw Length (in.)	1 in
Deadbolt Trim Ring Diameter (in.)	2 in
Faceplate Depth (in.)	0.06 in
Faceplate Height (in.)	2.25 in
Faceplate Width (in.)	1 in
Handle grip length (in.)	8.23 in
Inside top plate length (in.)	8 in
Inside top plate width (in.)	3 in
Knob/lever bore hole diameter (in.)	2.13 in
Knob/lever cross bore diameter (in.)	1 in
Knob/lever housing height (in.)	2 in
Knob/lever housing width (in.)	2 in
Knob/lever strike height (in.)	2.25 in
Knob/lever strike width (in.)	1.63 in
Knob/lever throw length (in.)	0.5 in
Maximum Door Thickness (in.)	1.75 in
Minimum Door Thickness (in.)	1.38 in
Outside bottom handle plate length (in.)	3.12 in
Outside bottom handle plate width (in.)	2 in
Outside key plate length (in.)	3.38 in
Outside key plate width (in.)	2.5 in
Outside top handle plate length (in.)	5.27 in
Outside top handle plate width (in.)	3 in
Projection (in.)	1 in
Strike Plate Height (in.)	2.25 in
Strike Plate Width (in.)	1.63 in
Descriptive Notes	Universal handleset fits left or right handed doors; guaranteed to fit standard pre-drilled doors; no wiring needed; built-in alarm with activity, tamper, and forced entry alerts; auto-throw deadbolt via Schlage button; code entry retracts deadbolt; key backup
Finish Collection	Camelot Trim with Accent Lever

---

Frequently Asked Questions (FAQ):

Q: Do I need a hub for remote access or voice control?
A: Yes. A compatible Z-Wave hub (e.g., SmartThings, Nexia, Wink) is required for app/remote access and Alexa voice control.

---

Q: What batteries does it use and how many?
A: Four AA batteries; included in the box.

---

Q: Will it fit my door?
A: Designed for standard pre-drilled doors 1-3/8 to 1-3/4 in. thick with adjustable 2-3/8 or 2-3/4 in. backset; universal handing for left or right doors.

---

Q: Is there a mechanical key backup?
A: Yes, the lock includes a keyed cylinder for traditional entry if needed.

---

Q: What security rating does the deadbolt carry?
A: ANSI Grade 1 (highest residential).

---

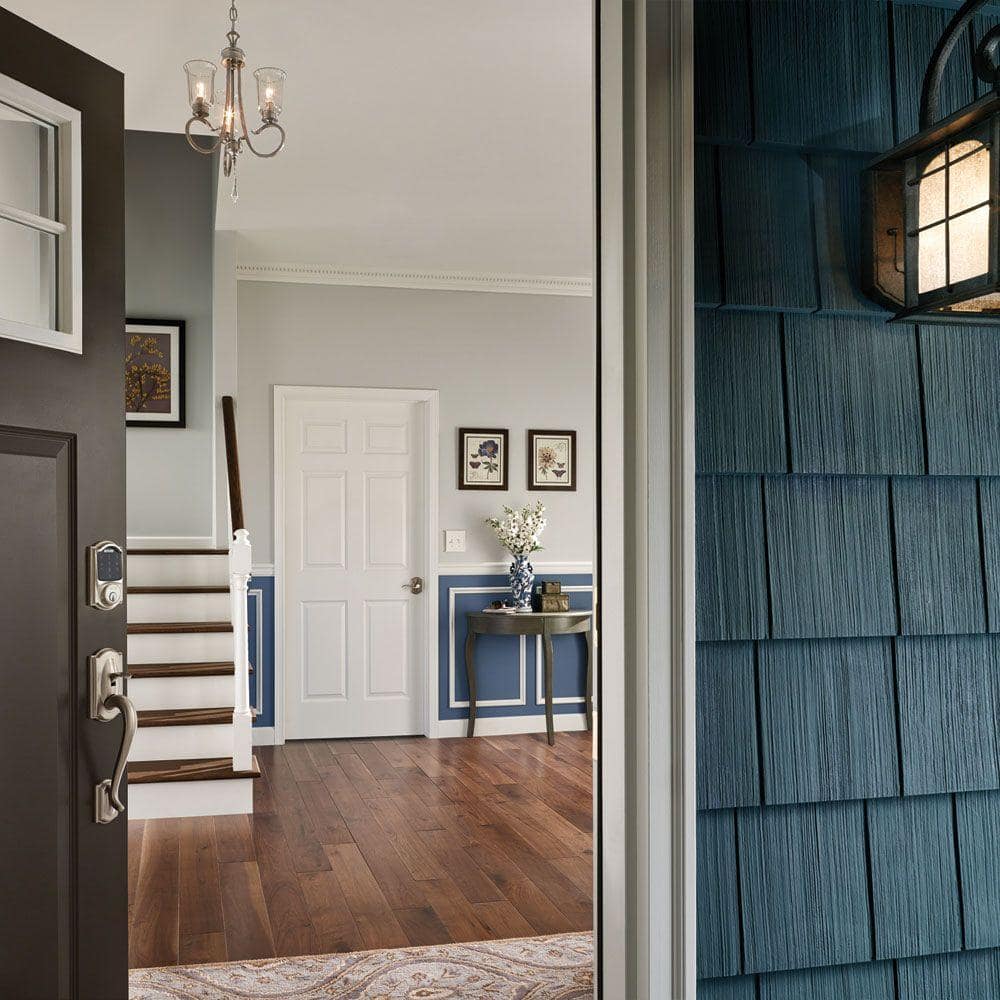

Classic Camelot, Smart Security

The satin nickel Camelot set brings a refined, architectural silhouette to your entry while quietly housing modern intelligence. A softly arched touchscreen and sculpted handleset create a timeless focal point that pairs beautifully with both traditional millwork and transitional façades. Style it against a richly painted door for contrast and let the Accent lever echo the curve from inside. It’s an elegant essential that elevates the threshold with luxurious, connected living.

---

Secure and streamline your entry with Schlage Connect—add this Camelot smart set to your door today.
