SharkBite 3/4 in. Push-to-Connect x FIP 18 in. Braided Stainless Steel Water Heater Connector with Integrated Ball Valve (2-Pack)
In stock
SKU UR3068FX15
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
3/4 in. Push-to-Connect x FIP 18 in. Braided Water Heater Connector w/ Valve, 2-Pack

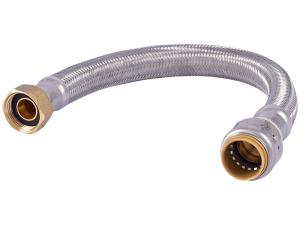

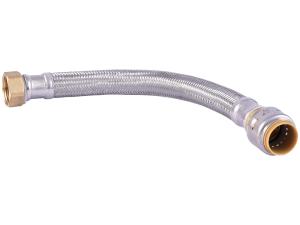

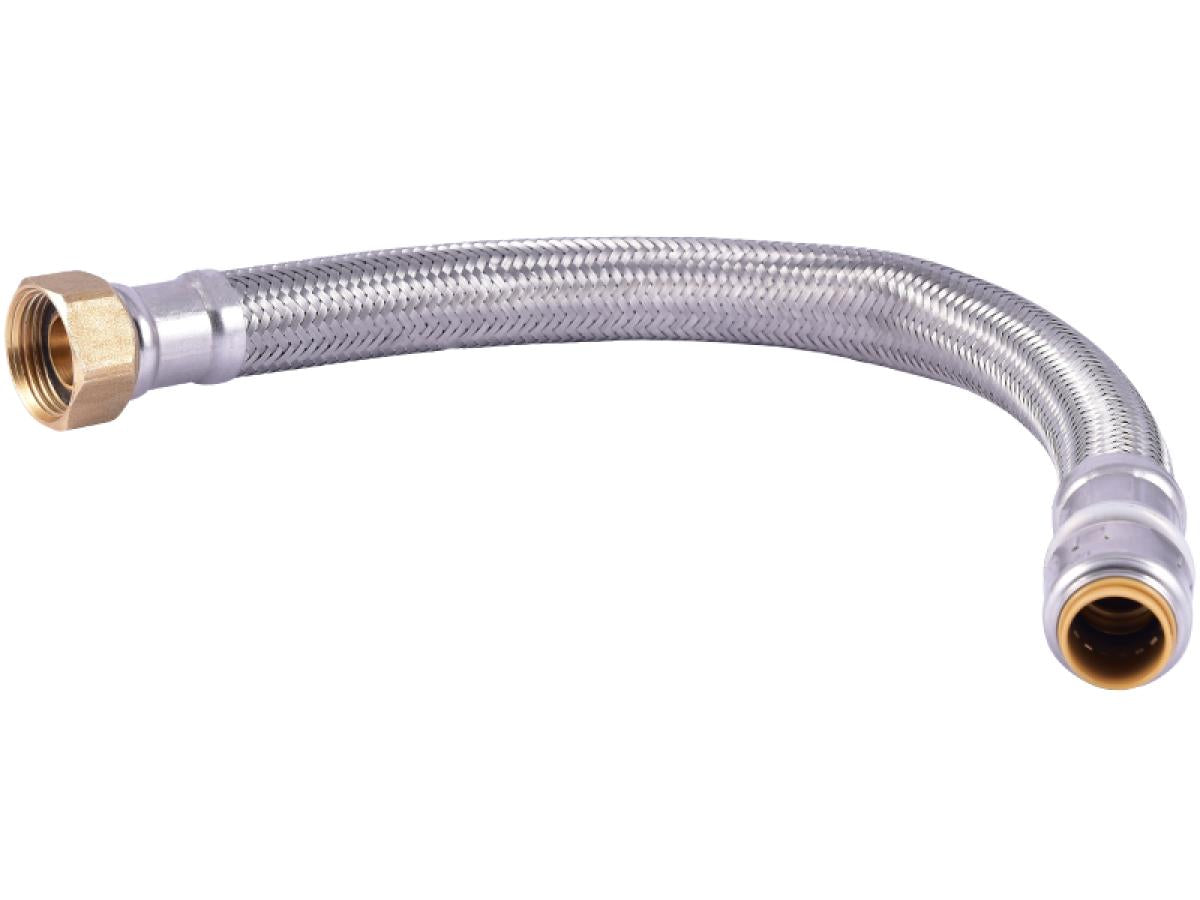

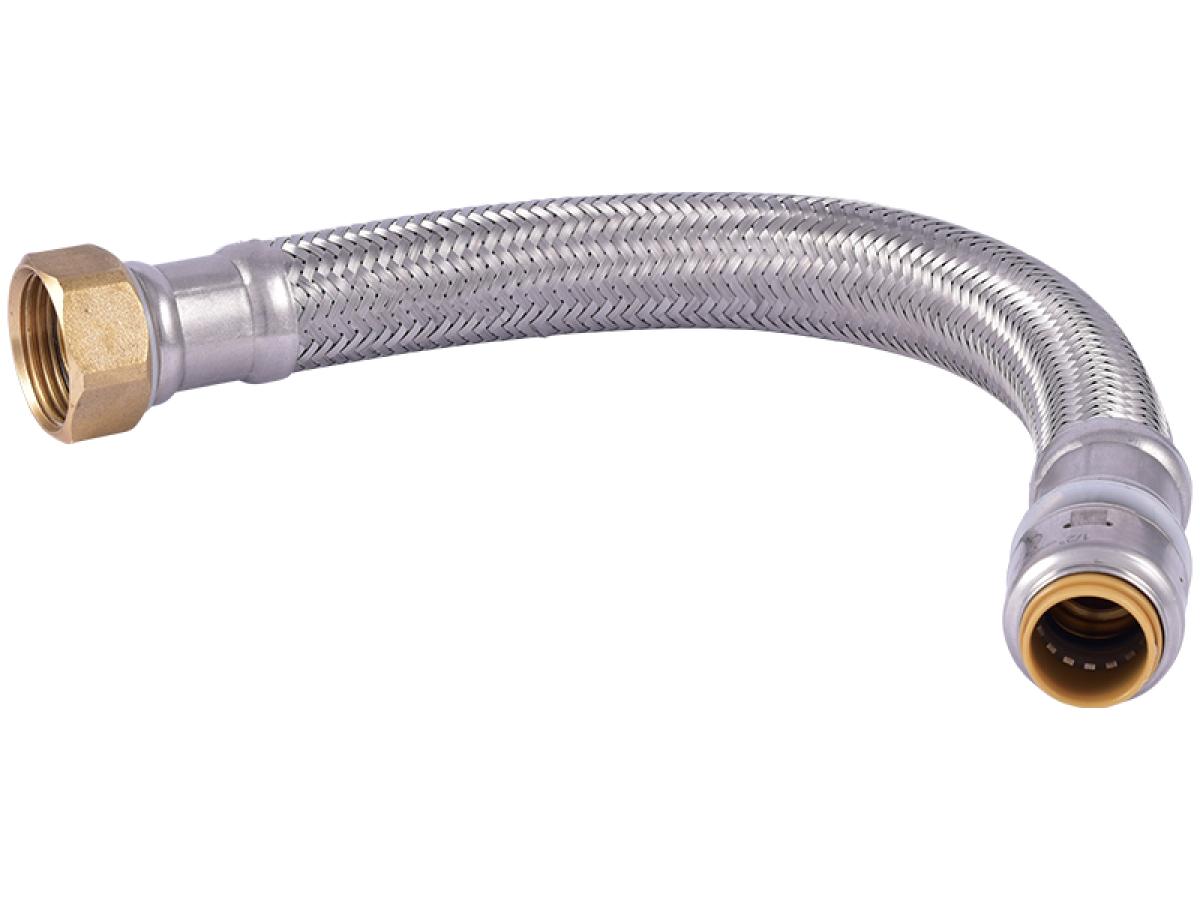

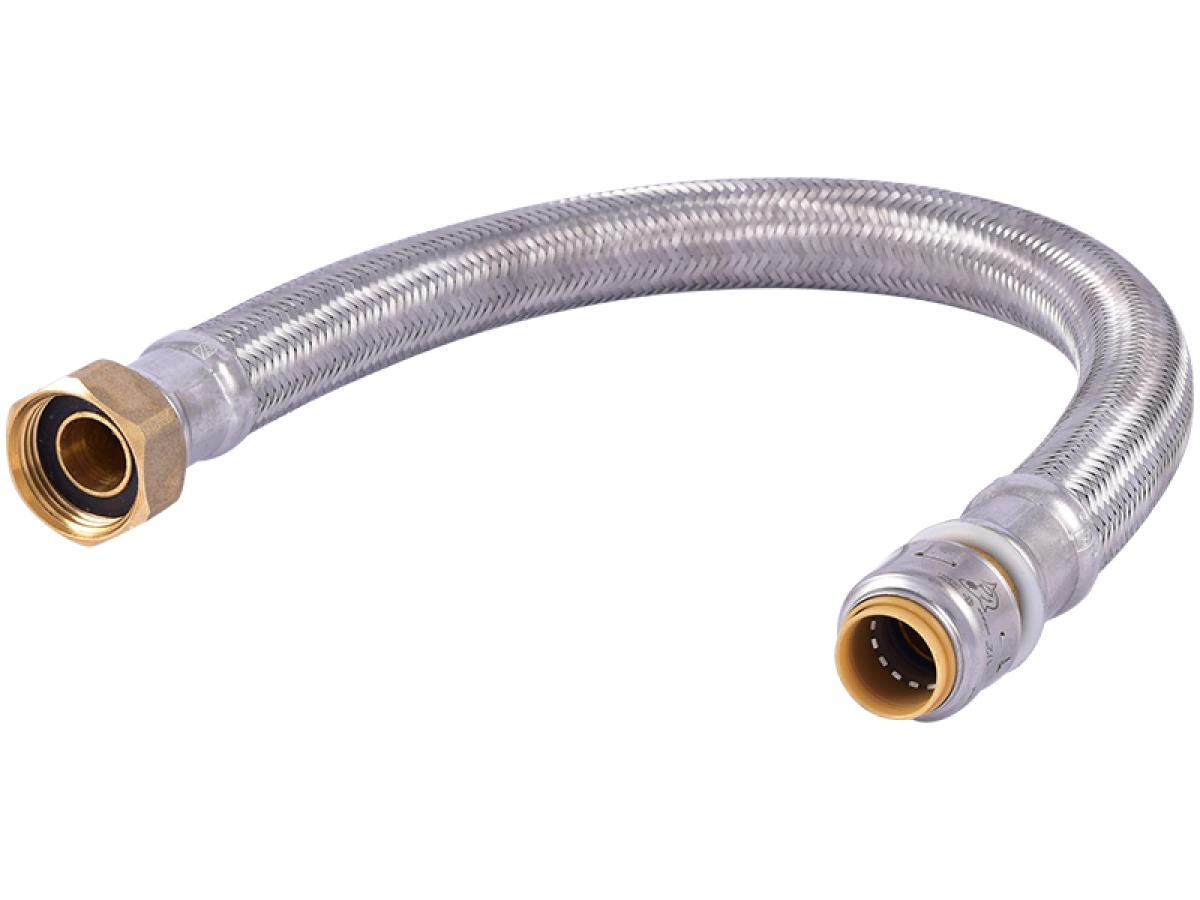

Braided stainless steel water heater connectors with SharkBite push-to-connect end and 3/4 in. FIP swivel make fast, secure hookups to gas or electric water heaters. Integrated ball valve provides on-the-line shutoff for quick maintenance and safer installations.
Key Features:
- Integrated Shutoff: Built-in ball valve allows immediate isolation for service or replacement
- Push-to-Connect Convenience: Installs without tools on copper, PEX, CPVC, PE-RT or HDPE SDR-9
- Durable Build: Braided stainless steel with DZR lead-free brass body and stainless steel retainer
- Rapid, Reliable Install: Works on wet lines and can be pressure tested right away
- High Performance Ratings: Up to 140°F and 200 psi; connector rotates after installation
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Connection 1 | 3/4 in. Push-to-Connect |
| Connection 2 | 3/4 in. FIP swivel |
| Length | 18 in. |
| Material | Braided stainless steel with DZR lead-free brass body and stainless steel retainer |
| Valve Type | Integrated ball valve |
| Maximum Temperature | 140°F |
| Maximum Pressure | 200 psi |
| Compatible Pipe Types | PEX, copper, CPVC, PE-RT, HDPE SDR-9 |
| Removability | Removable with SharkBite disconnect clip, tongs, or pro tool |
| Rotation After Install | Yes |
| No Tube Liner Required | Yes, for PEX |
| Pack Quantity | 2 |
Frequently Asked Questions (FAQ):
Q: What pipe types are compatible with the push-to-connect end?
A: PEX, copper, CPVC, PE-RT and HDPE SDR-9 without special tools.
Q: Can I install these on a wet line?
A: Yes, they can be installed on wet lines and pressure tested immediately.
Q: Are these approved for gas and electric water heaters?
A: Yes, the braided connectors are approved for use on both electric and gas water heaters with a flue vent.
Q: Do I need a tube liner for PEX?
A: No tube liner is required for PEX with SharkBite Max connectors.
Q: How do I remove the connector if needed?
A: Use a SharkBite disconnect clip, tongs, or pro disconnect tool to remove it.
