WEN

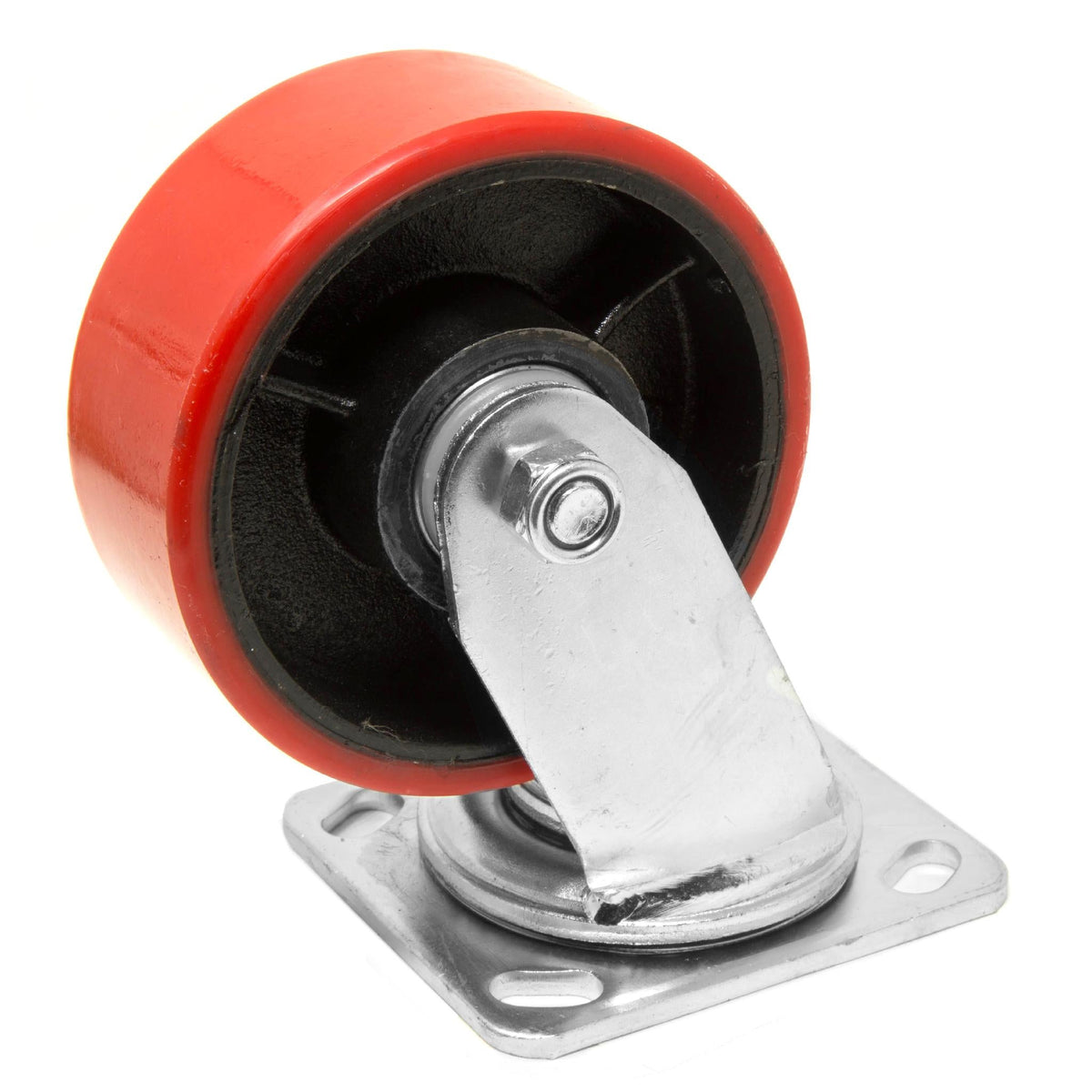

4 in. 530 lbs. Capacity Cast Iron and Polyurethane Double-Bearing Swivel Plate Caster
Published price — same for everyone
In stock
SKU CA7534W
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
4" 530 lb Double-Bearing Swivel Plate Caster
Heavy-duty swivel plate caster built with cast iron core and non-marring polyurethane tread for smooth, durable mobility. Double 6203 ball bearings minimize friction, supporting loads up to 530 lbs with reliable performance.
Key Features:
- High Load Capacity: Supports up to 530 lbs for shop carts, benches, and equipment
- Smooth Rolling: Double 6203 ball bearings reduce friction for effortless movement
- Durable Materials: Cast iron core with heat-resistant, non-marring polyurethane tread
- Secure Mounting: 4.5 x 3.9 in plate with four 10.5 x 19 mm mounting holes
- Easy Integration: 4 in wheel diameter and 2 in tread width; mounting hardware not included
Specifications Table:
| Specification | Details |
|---|---|
| Capacity | 530 pounds |
| Wheel Diameter | 4 inches (100 mm) |
| Tread Width | 2 inches (50 mm) |
| Material | Cast iron core with non-marring polyurethane treads; heat-resistant |
| Bearings | Double 6203 ball bearings |
| Plate Size | 4.5 x 3.9 inches (115 x 100 mm) |
| Mounting Holes | Four 10.5 x 19 mm holes |
| Mounting Hardware | Not included |
Frequently Asked Questions (FAQ):
Q: Does this caster include mounting hardware?
A: No. Mounting hardware is not included.
Q: What is the wheel size?
A: 4-inch diameter with a 2-inch tread width (100 x 50 mm).
Q: What type of bearings does it use?
A: Double 6203 ball bearings.
Q: Will the tread mark floors?
A: The polyurethane tread is non-marring and designed to protect floors.
Q: What are the plate dimensions and hole sizes?
A: Plate is 4.5 x 3.9 inches with four 10.5 x 19 mm mounting holes.
Industrial Grace Meets Effortless Glide
This caster blends the grit of cast iron with the sleek polish of polyurethane, turning utility into a refined design gesture. The vivid wheel and compact swivel plate create a bold, modern accent beneath benches and bar carts. Pair it with warm woods and brushed steel for a chic workshop aesthetic that moves with ease. A small detail with a luxurious impact—mobility that looks as good as it performs.
Upgrade your project’s mobility with this 530 lb WEN swivel caster—add it to your cart today.
