Bosch PL2632K 3-1/4 In. Corded Planer Kit, 6.5 Amp, 16,500 RPM

Bosch 3-1/4 In. Corded Hand Planer Kit

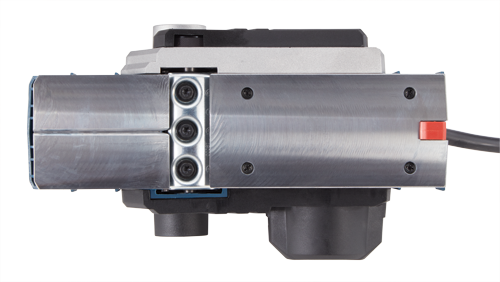

The Bosch PL2632K corded planer delivers fast, smooth stock removal with a 6.5-amp motor spinning at 16,500 RPM. Precision-machined aluminum shoes and a ratcheting depth knob provide accurate cuts up to 3/32 in., while dual-side chip ejection and a dual-mount fence enhance control and cleanliness on the job.

---

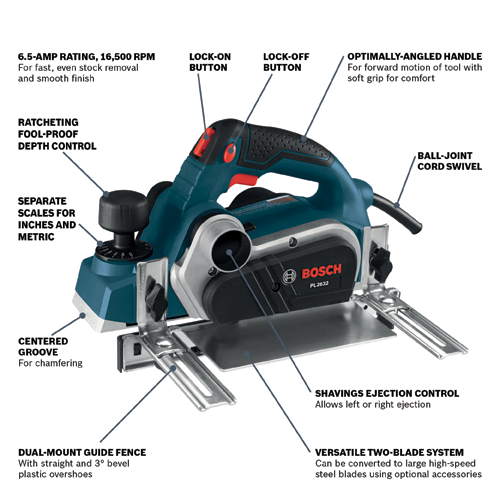

Key Features:

• Powerful Performance: 6.5-amp motor at 16,500 RPM for fast stock removal and smooth finishes
• Precision Control: Ratcheting depth knob sets 0 to 3/32 in. within one revolution; separate inch/metric scales
• Clean, Versatile Operation: Left/right chip ejection with dust ports and included shavings bag; ball-joint cord swivel
• Accurate Guidance: Dual-mount guide fence with straight and 3° no-mar overshoes; machined groove for easy chamfering
• Durable Cutting System: Reversible Bosch Woodrazor micrograin carbide blades; poly micro‑V drive belt for longevity

---

Specifications Table:

Specification	Details
Model	PL2632K
Amperage	6.5 A
No Load RPM	16,500 RPM
Voltage / Rating	120V AC
Variable Speed	No
Planing Width	0 in. – 3-1/4 in.
Planing Depth	0 in. – 3/32 in. (0 – 2.6 mm)
Rabbet Depth	5/16 in.
Rabbet Width	3-1/4 in.
Height	6.5 in.
Length	11.125 in.
Width	6.5 in.
Weight	6.3 lb
Case Type	Heavy-duty plastic
Color	Blue

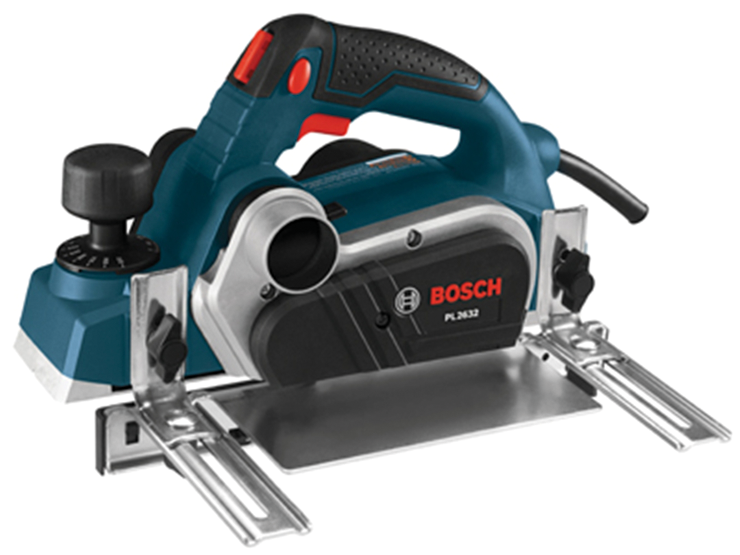

Guide Fence	Dual-mount with straight and 3° no-mar plastic overshoes
Depth Adjustment	Ratcheting foolproof knob; separate inch and metric scales
Chip Ejection	Selectable left or right; dust ports on both sides
Cord Feature	Ball-joint cord swivel
Cutting System	Reversible Bosch Woodrazor micrograin carbide blades; versatile two-blade system (can use HSS blades with optional accessories)
Chamfering	Machined groove
Drive Belt	Poly micro‑V
Includes	PL2632 Planer; PA1202 Woodrazor blades (2); Dual-mount guide fence; Straight no-mar overshoe; 3° no-mar overshoe (PA209); Shavings bag; Blade wrench; Carrying case
Works With (Vacuum Hoses)	Anti-Static: VH1635A (with included adapter), VAC008 and most 35 mm anti-static hoses; Other: VH1035, VH1635 (with VX120 adapter), VAC005, VAC006 and most other 35 mm hoses; 1-1/4 in. & 1-1/2 in. adapter: VAC002; 2-1/2 in. adapter: VAC020

---

Frequently Asked Questions (FAQ):

Q: What is the maximum cutting depth per pass?
A: Up to 3/32 in. (2.6 mm) per pass, set via the ratcheting depth knob.

---

Q: What planing width does this tool support?
A: Up to 3-1/4 in. wide.

---

Q: Does it support dust collection?

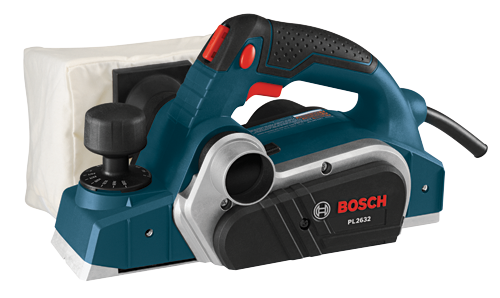

A: Yes. It features chip ejection control to the left or right, dust ports on both sides, and includes a shavings bag. It also connects to various Bosch vacuum hoses/adapters.

---

Q: Are the blades replaceable?
A: Yes. It uses reversible Bosch Woodrazor micrograin carbide blades and can be converted to use large high-speed steel blades with optional accessories.

---

Q: What safety features are included?
A: An ambidextrous lock-off release helps prevent accidental starts, and a lock-on button supports extended operation.

---

Crisp, Tailored Surfaces With Pro-Level Ease

This planer brings a refined, architectural polish to woodwork, turning raw edges into sleek, intentional lines. I love the precision of the aluminum shoes and the elegant chamfer groove—details that make millwork feel couture. Pair it with a dust extractor for a clean, focused workspace and use the 3° fence overshoe to finesse door fits. It’s a quiet essential for achieving that tailored, luxurious finish throughout the home.

---

Upgrade your shop with the Bosch PL2632K and achieve fast, precise, and clean planing on every project.
