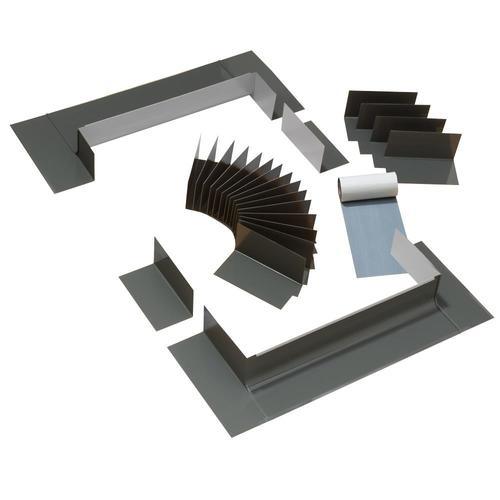

VELUX 2222, 2230, 2234, 2246 Shingle Roof Aluminum Curb Mount Skylight Flashing Kit
$98.00
Published price — same for everyone
In stock
SKU 50134540
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

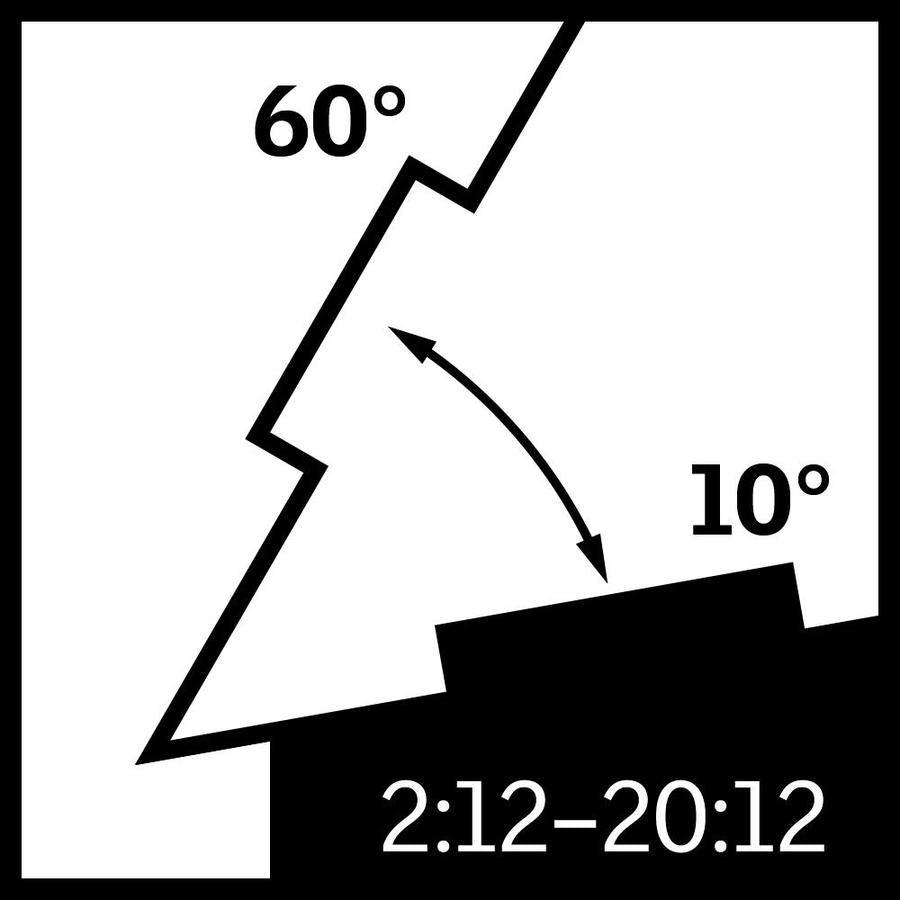

ECL flashing can be used with shingles, shakes, or slate roofs (up to 1/2 in. thickness) with a minimum pitch of 10 ° and a maximum pitch of 60 °

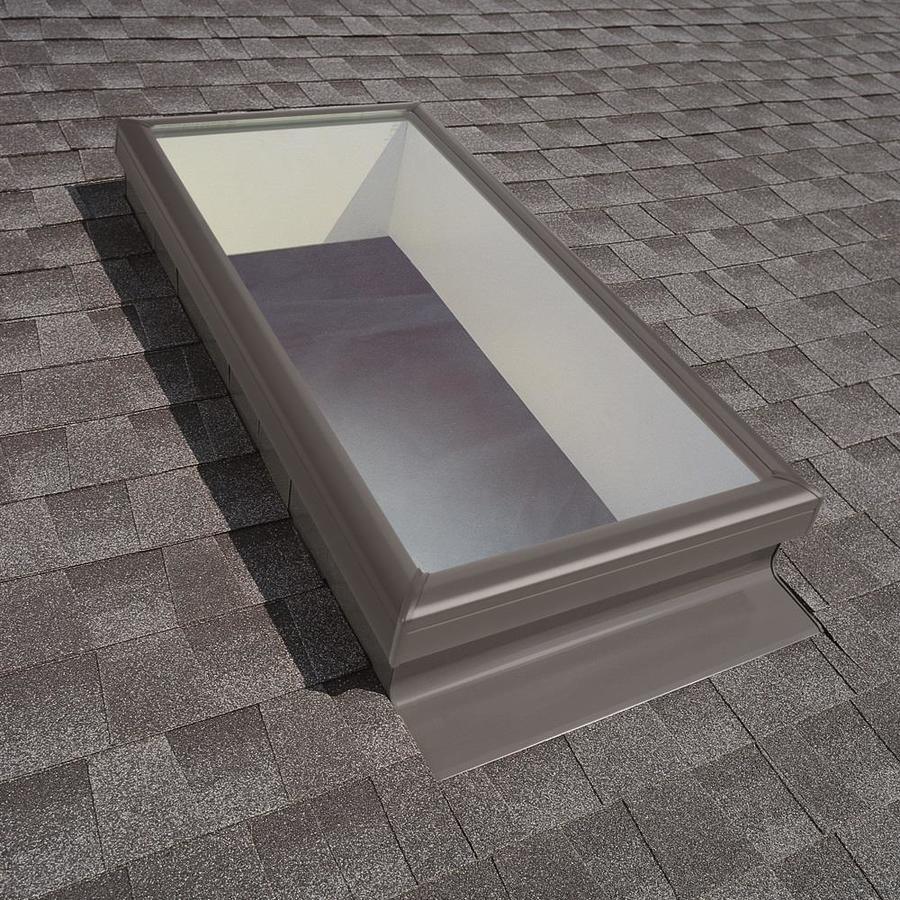

ECL 2246 flashing is designed specifically to fit VELUX curb mounted2222, 2230, 2234, and 2246 models with an outside curb width of 25-1/2 in and maximum length of 49-1/2 in
Designedto work in conjunction with a site-built curb, and the ECL cannot be installed on skylights from other manufacturers, or other VELUX skylight models not noted above
Curb mounted flashing kits for tile roofs are available (model ECW)
Features
Features
| Series Name | 2222, 2230, 2234, 2246 Curb Mount Shingle Roof |
| Width (Inches) | 31.5 |
| Length (Inches) | 56.5 |
| For Use with Decks | No |
| For Use with Skylights | Yes |
| For Use with Chimneys | No |
| For Use with Windows | No |
| For Use with Roofs | No |
| For Use with Doors | No |
| For Use with Vents | No |
| For Use with Pipes | No |
| For Use with Gutters | No |
| For Use with Egress Windows | No |
| Gauge | 23 |
| Color/Finish Family | Gray |
| Manufacturer Color/Finish | Neutral gray |
| Warranty | 10-year limited |
| Type | Curb mount skylight flashing kit |
| Application | Shingle roof |
| Material | Aluminum |
| Profile | Low |
| CA Residents: Prop 65 Warning(s) | Yes |
