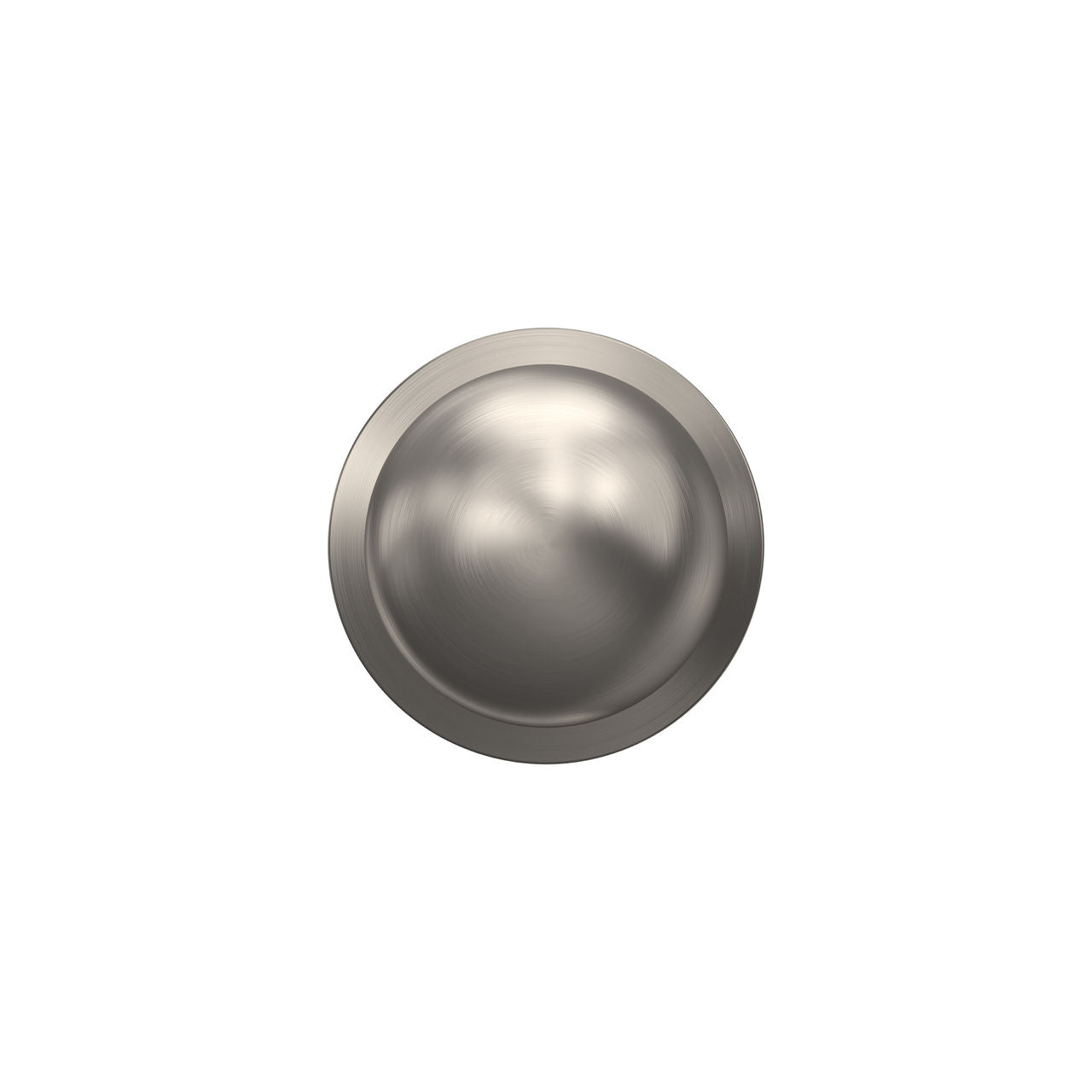

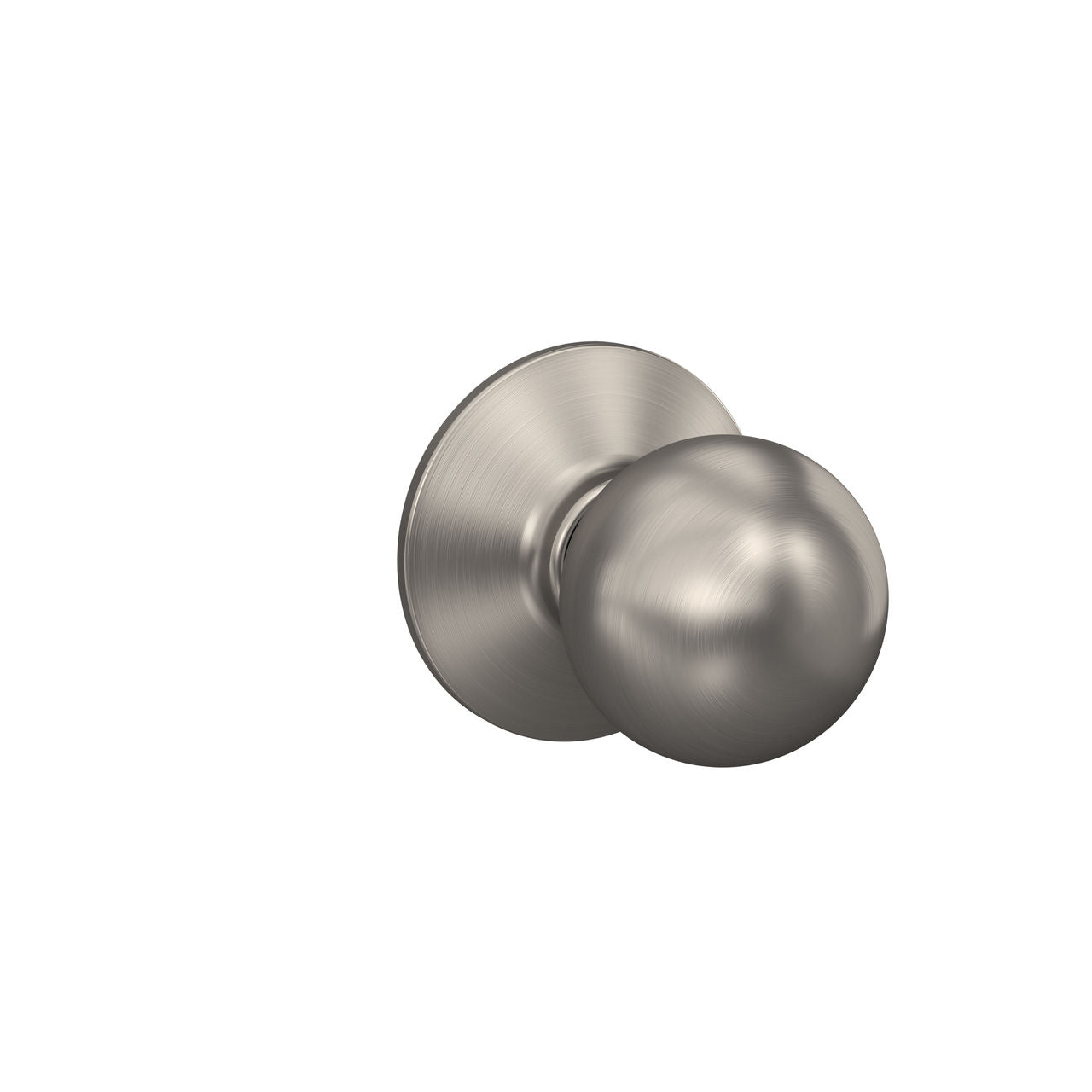

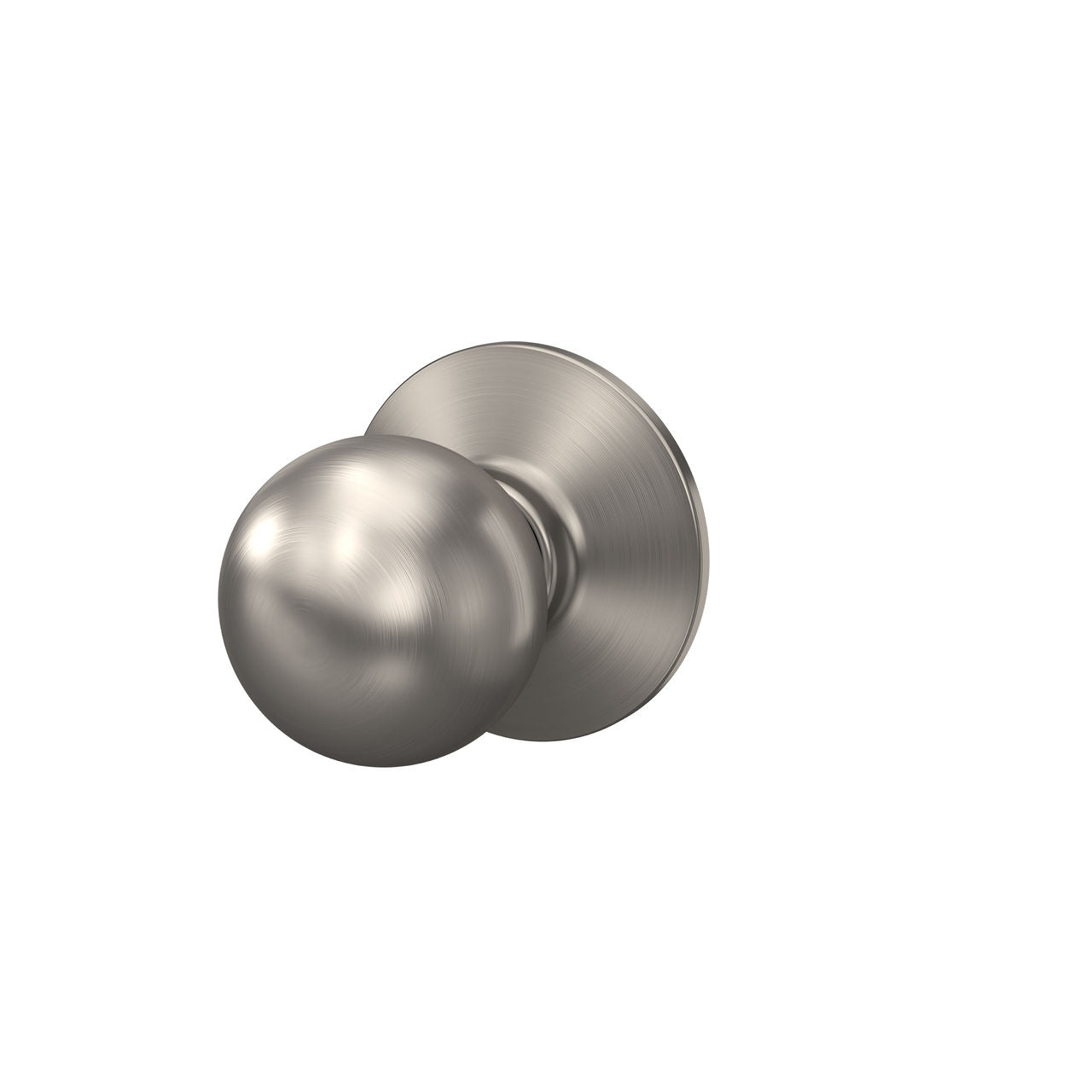

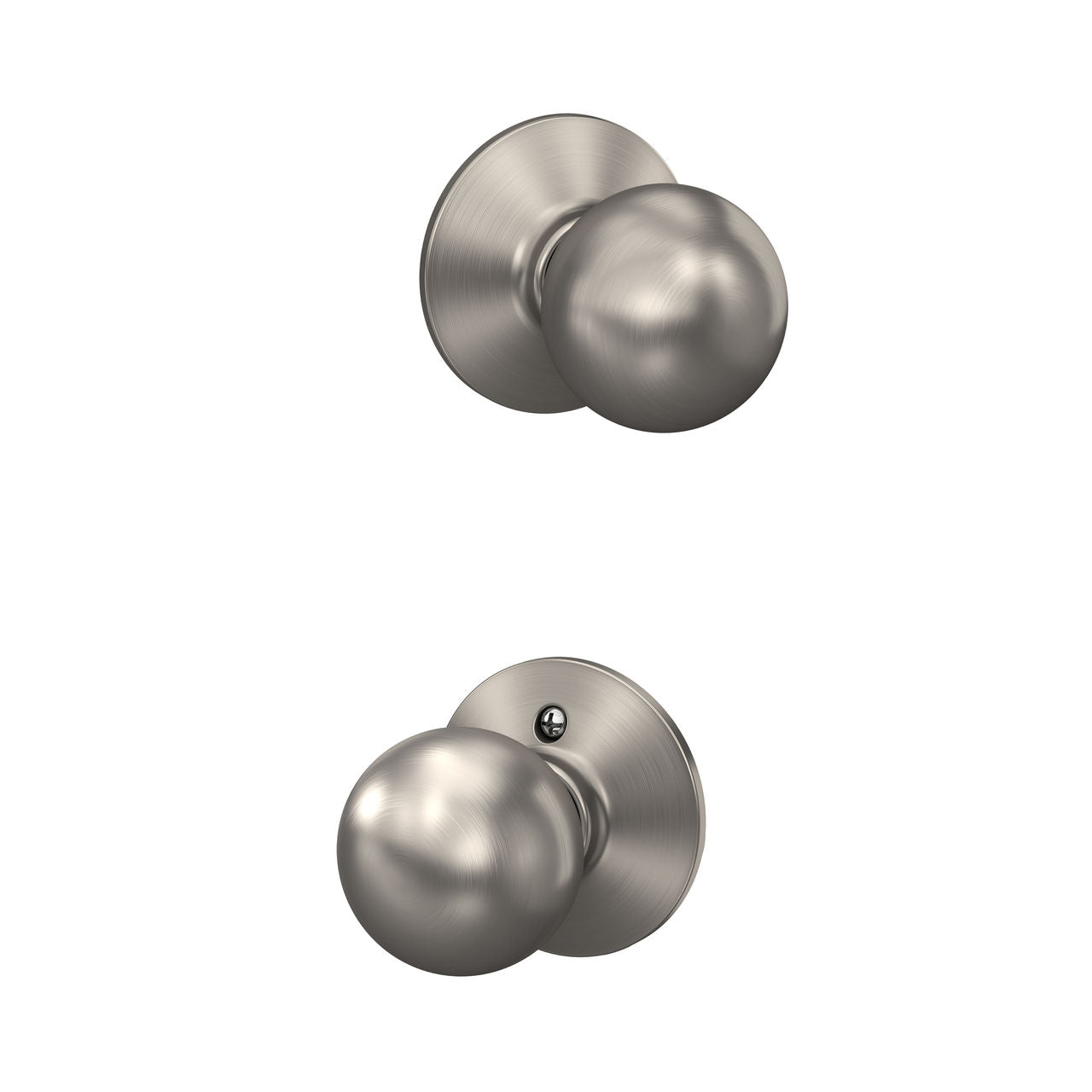

Orbit Satin Chrome Passage Door Knob

The Schlage Orbit passage lockset offers a clean, round knob design in a durable satin chrome finish. Built to ANSI Grade 2 standards, it fits standard doors and provides non-locking functionality ideal for hallways and closets.

---

Key Features:

• Grade 2 Durability: Premium metal construction with BHMA Grade 2/AAA certification for strength and finish
• Universal Fit: Adjustable latch for 2-3/8" or 2-3/4" backsets and 1-3/8" to 1-3/4" door thickness
• Easy Installation: Self-aligning screw holes and all hardware included for quick setup
• Non-Locking Passage Function: Ideal for hall and closet doors or pairing with a deadbolt
• Satin Chrome Finish: Modern, brushed look that resists wear for lasting style

---

Specifications Table:

Specification	Details
Function	Passage (non-locking)
Finish	Satin Chrome
Style/Series	Orbit Knob
ANSI/BHMA A156.2	2011
ANSI/BHMA A156.39	2015
Grade	Grade 2 / BHMA AAA for Security, Durability, Finish
Door Thickness	1-3/8" to 1-3/4" (35–44 mm)
Backset	Fits 2-3/8" (60 mm) or 2-3/4" (70 mm); 5" available
Latch	Universal latch; includes radius and drive-in faceplates
Installation	Self-aligning screw holes; mounts on single bore; right/left handed
ADA Compliant	No
UL Listed	Locks for up to three-hour fire doors available
Warranty	Limited Lifetime Mechanical and Finish Warranty
Brand	Schlage

---

Frequently Asked Questions (FAQ):

Q: What doors is this knob intended for?
A: It’s a passage (non-locking) knob ideal for interior hall and closet doors or paired with a deadbolt on exterior doors.

---

Q: Will it fit my door thickness and backset?
A: Yes, it fits standard doors 1-3/8" to 1-3/4" thick and works with 2-3/8" or 2-3/4" backsets.

---

Q: Is installation difficult?
A: No. It installs with a screwdriver; self-aligning screw holes and included hardware make it straightforward.

---

Q: Is it fire-rated or ADA compliant?
A: ADA compliant: No. UL-listed options are available for up to three-hour fire doors.

---

Q: What warranty is included?
A: Backed by a limited lifetime mechanical and finish warranty from Schlage.

---

Streamlined Minimalism with Everyday Ease

Orbit’s pure, spherical silhouette brings a calm, modern cadence to doors, letting architectural lines take center stage. The satin chrome finish softly diffuses light for a refined, brushed sheen. Pair it with a sleek deadbolt on entryways or use it to unify hall and closet doors for an elevated, cohesive look. It’s a small detail that delivers polished, luxurious living without trying too hard.

---

Upgrade your doors with the Schlage Orbit passage knob for durable, effortless style and a perfect fit.
